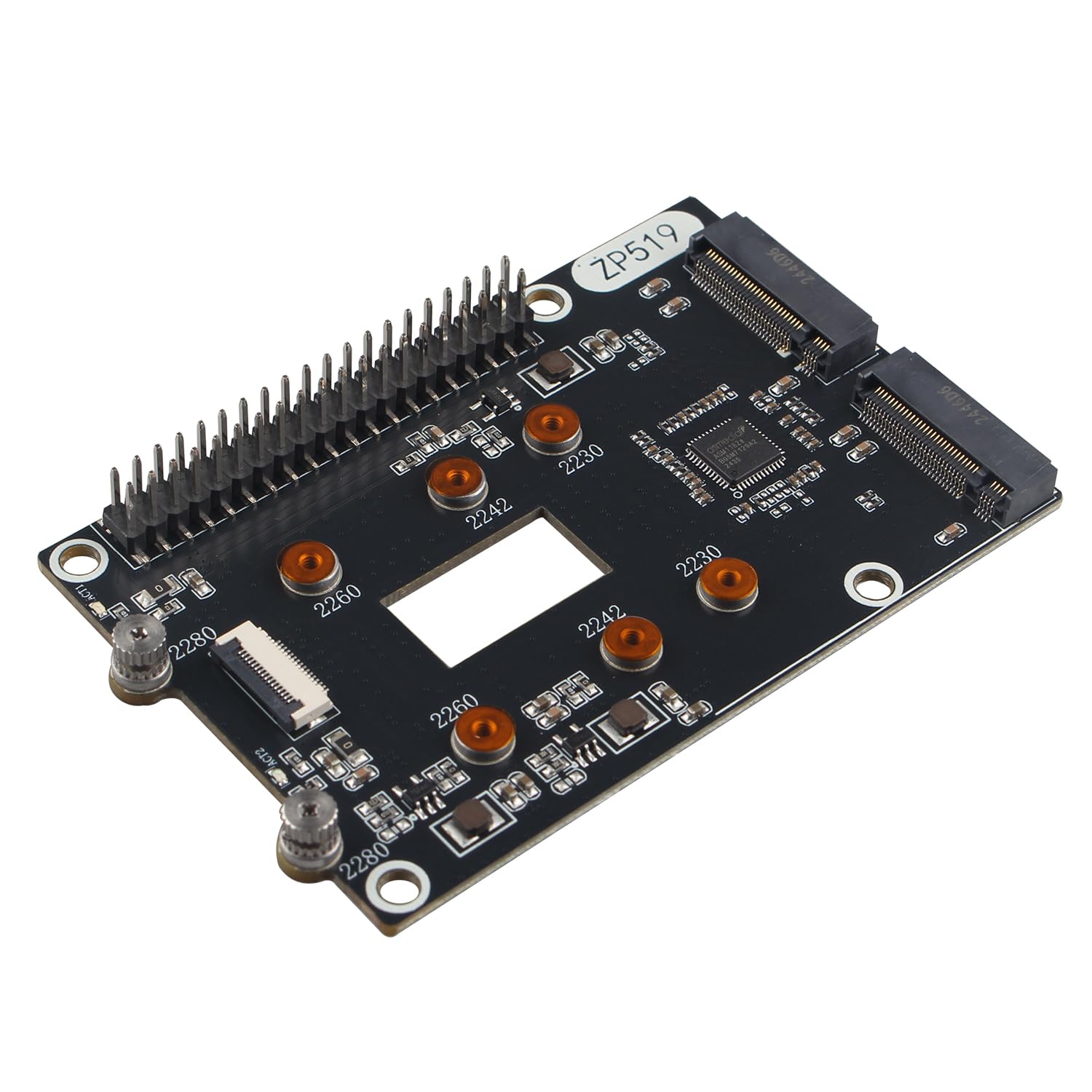

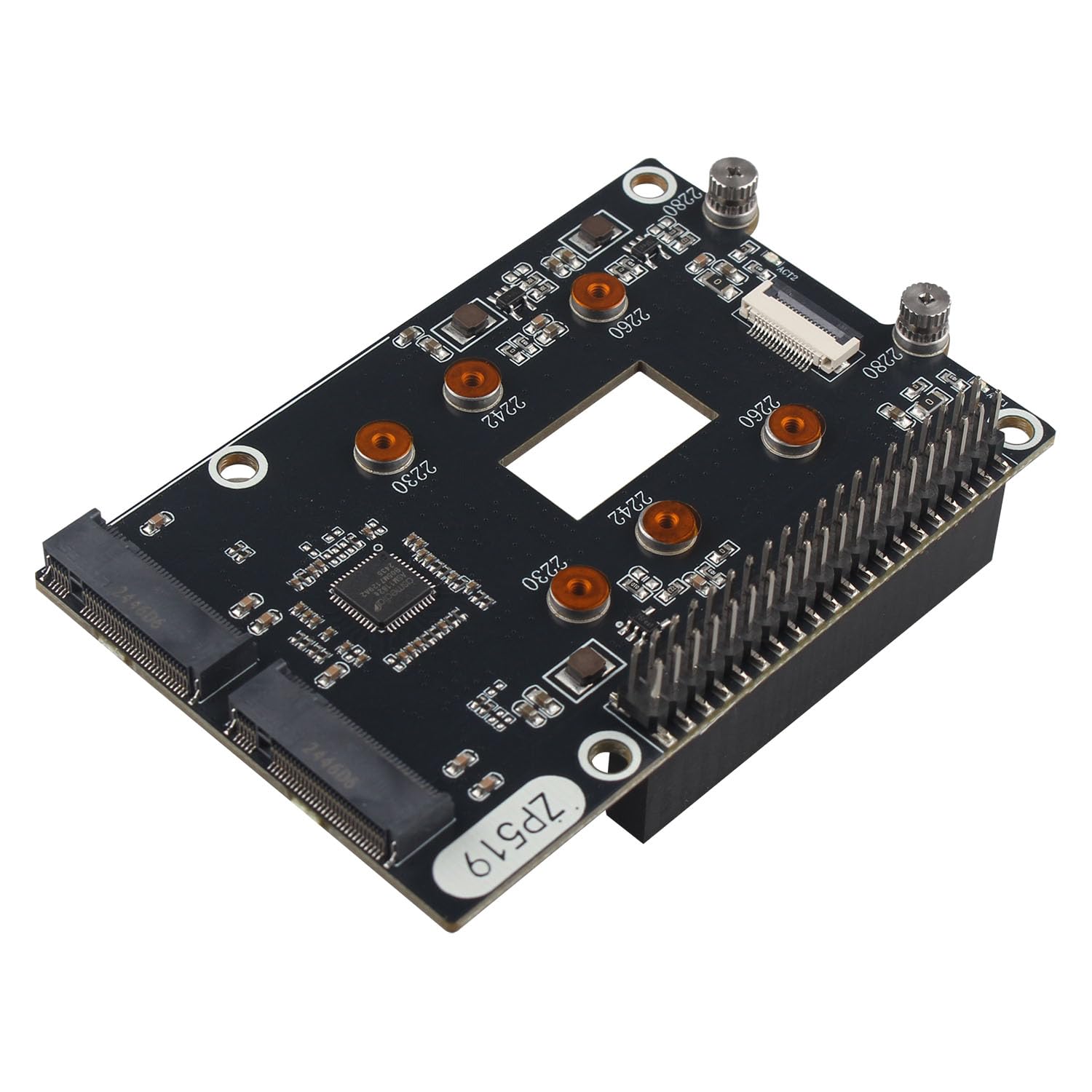

ZDE ZP519 PCIe to Dual M.2 HAT Key M NVMe SSD PCIe Peripheral Board Solid State Drive Adapter Board for Raspberry Pi 5 Support M.2 NVMe SSD 2230 2242 2260 2280
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

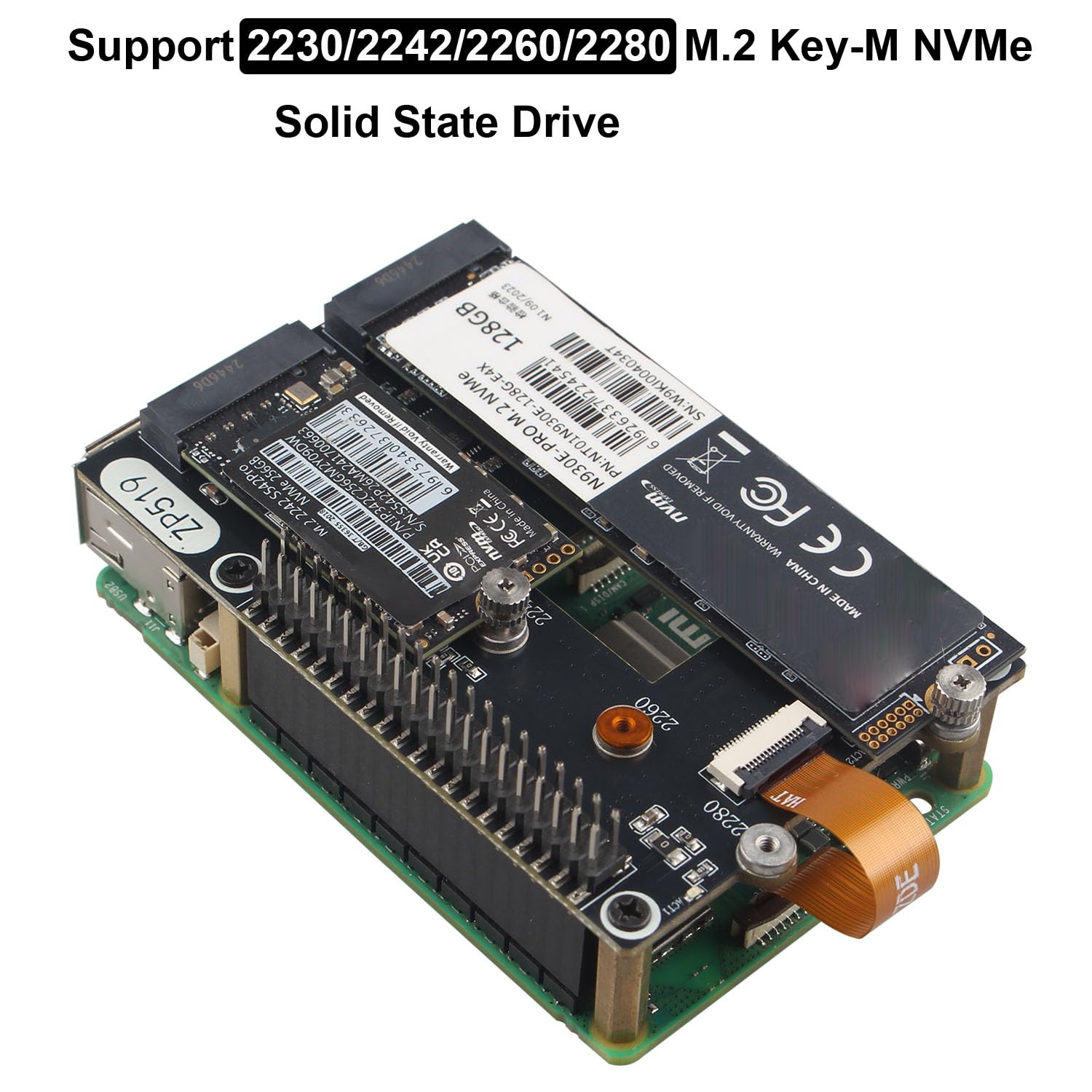

•Dual M.2 NVMe SSDs Supported: ZP519 PCIe to Dual M.2 HAT Key-M NVMe SSD expansion board supports the installation of two M.2 Key-M NVMe SSDs in 2230/2242/2260/2280 length, high-speed reading/writing; supports boot from NVMe SSD.
•Compatibility: This PCIe to Dual M.2 HAT NVMe kit is only compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC.

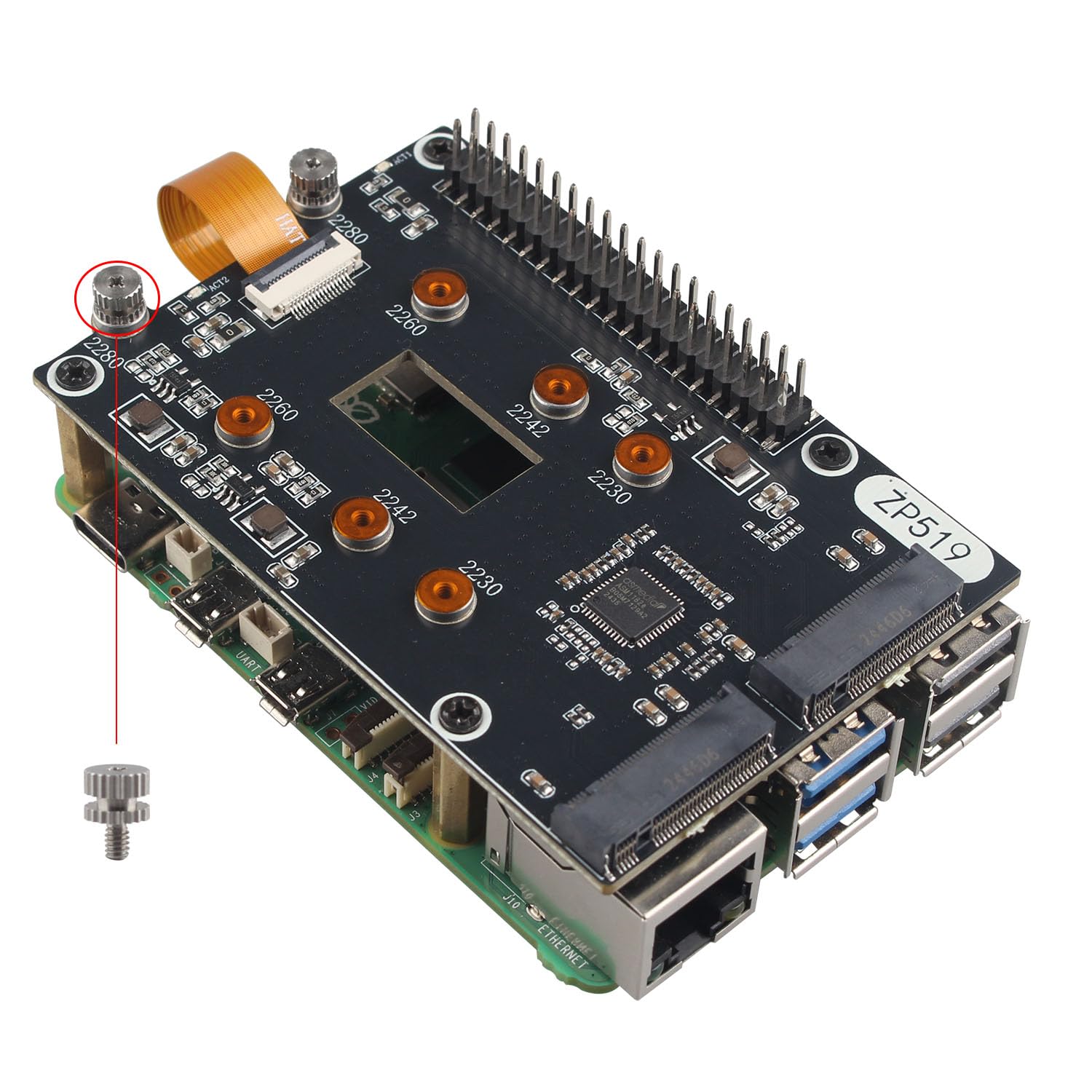

•How to Power: Power the adapter directly from the PCIe FPC ribbon cable. Also, with 40pin GPIO header, the board can automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity of SSDs.
•Cooling Solution: The ZP519 shield supports the installation of official Pi 5 Active Cooler (Not Included) and there is a reserved airflow vent for the cooling fan, providing excellent heatsink for Raspberry Pi 5 and SSD.
•Practical Accessories: Comes with 2pcs M2 studs for 2230/2242/2260/2280 SSD installation, no soldering required.
