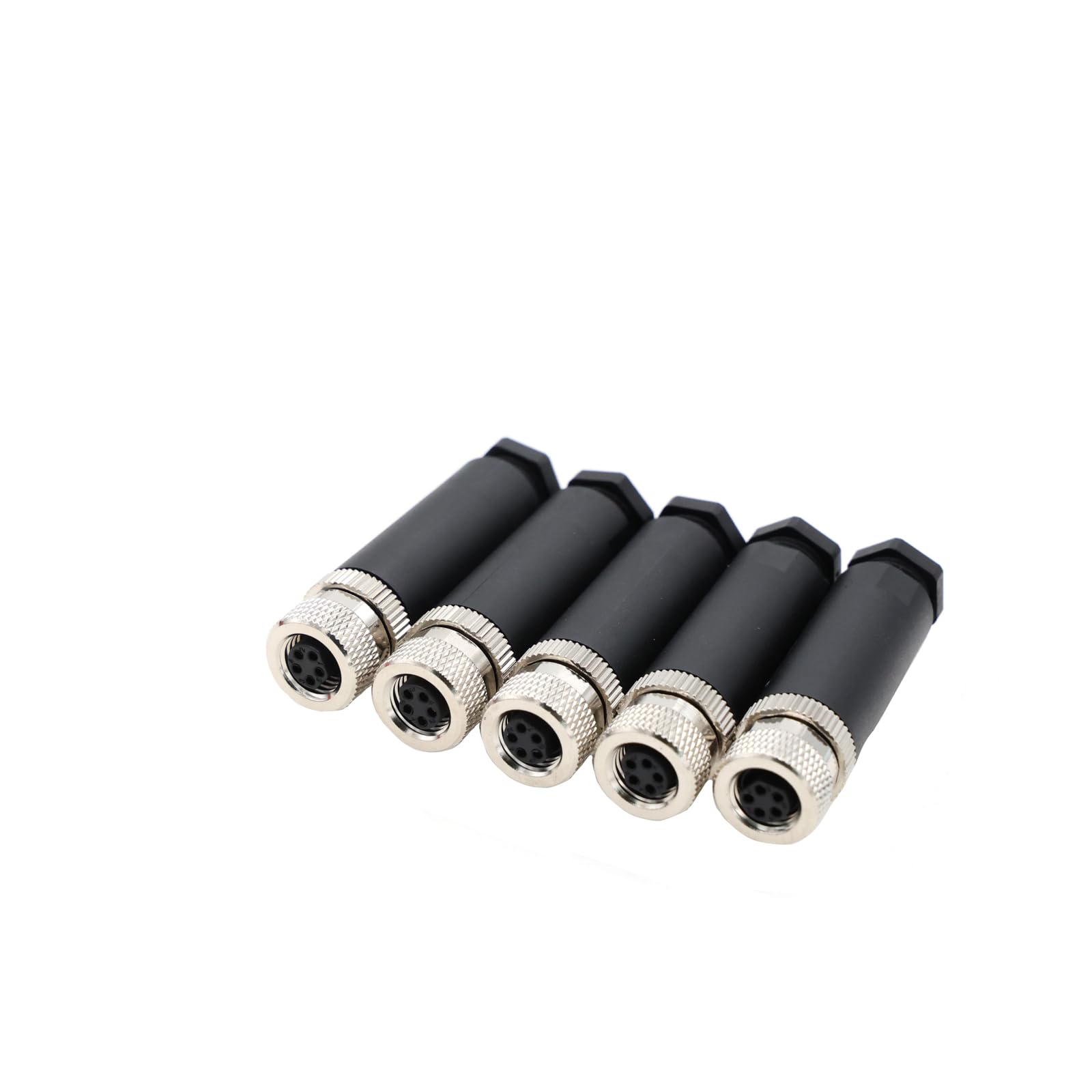

ZBLZGP Waterproof M8 Female Aviation Plug Straight Circular M8 Sensor Electrical Connector 8mm IP67 Waterproof B-Coding 5 Pin for Data Communication 5Pack
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•M8 Connector Waterproof 3-pole 4-pole 5-pole 6-pole 8-pole A, B, D coding available with M8*1.0 screw locking circular connector.
•Rated Current：1.5A/2A/3A/4A.Rated Voltage：30V for 5/6/8 pin；60V for 3/4 pin.Protection level：IP67/IP68 waterproof.Contact Resistance：≤10mΩ.Mechanical Operation：>500 mating cycles.
•Easy quick connect and disconnect coupling;Shield and un-shield Version Available with metal or plastic housing.
•Screw/Nut Material：Brass with nickel plated.Contact Material：Phosphorus copper with gold plated.Temperature Range: -25°C ~ + 85°C.
•The M8 series offers a wide range of male and female M8 connectors for small sensors and actuators. These connectors are ideal for industrial control networks that require small sensors. The connectors are available factory molded with TPU overmolding or as panel receptacles with solder cups for wire connections or PCB panel solder contacts.
