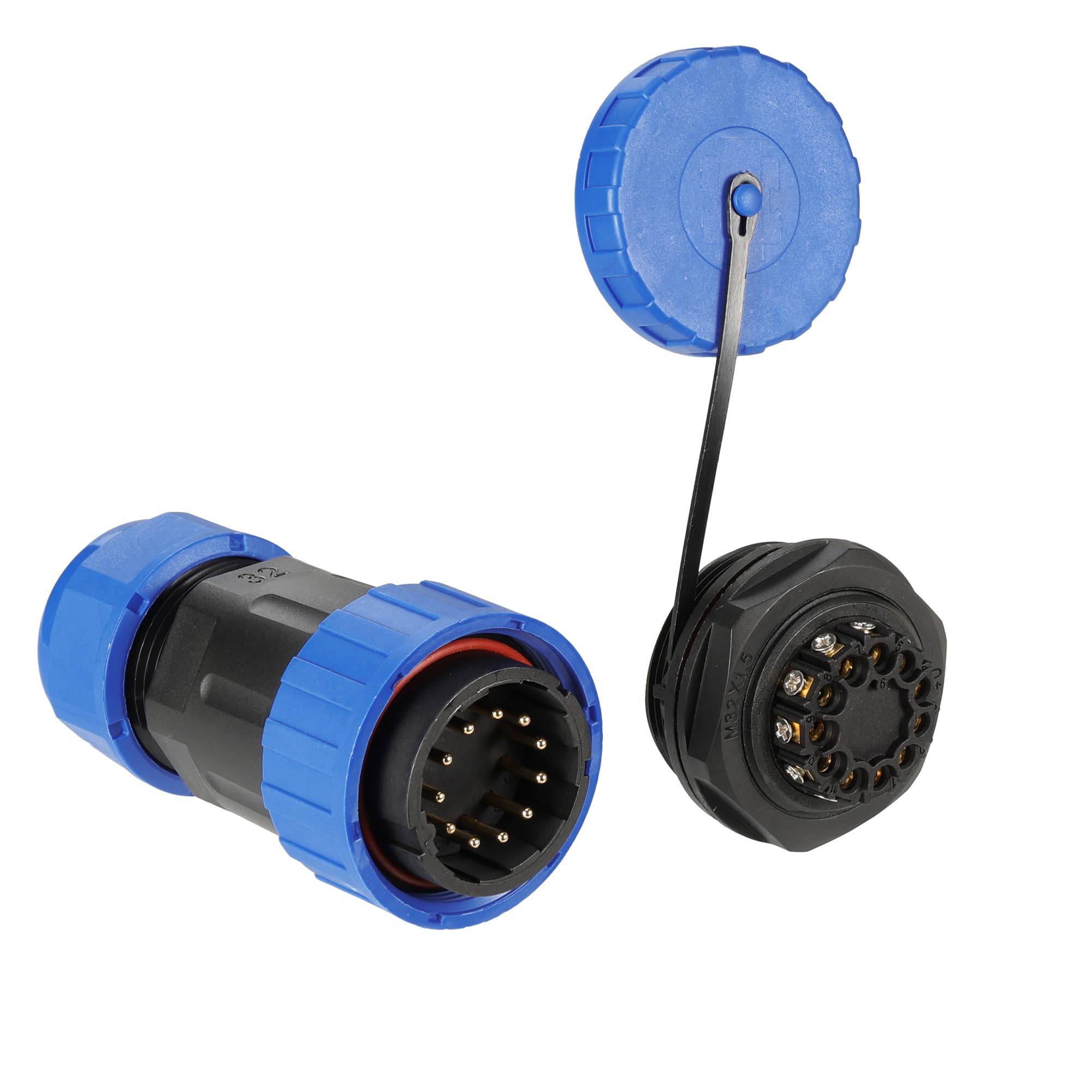

ZBLZGP TY32 11-Pin Solder-Free Aviation Connector, IP68 Waterproof Screw Crimp Type, Ideal for Security Cameras and Infrared Detectors
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【30-Second Tool-Free Connection】Forget messy soldering and complex tools.Our unique screw crimping design lets you achieve a secure connection in under 30 seconds—simply strip the wire, insert, and tighten. Dramatically slash installation time and labor costs by up to 60%, making it the ultimate solution for on-site repairs and urgent maintenance tasks.
•【3 to 11-Pin Options for Diverse Needs】TY32 11 Pin suitable wire diameter:12~17.5mm；Contact DiameterΦ1.8-3.6mm;Rated Current / Voltage : AC 380V/10A;Withstand Voltage: 1500V (AC); Contact Resistance: 2MΩ; Cable specifications: ≤1.5mm²/18AWG;Insulation resistance: 2000MΩ;Contact Diameter × Number: Φ1.8mm x 11.
•【Vibration-Proof & Gold-Plated Conductivity】Engineered for reliability. The threaded locking mechanism ensures connections stay tight, even under intense vibration. Featuring gold-plated copper contacts, they guarantee ultra-low resistance (≤0.5mΩ) for maximum power delivery and minimal signal loss, protecting your equipment's performance.
•【IP68 Waterproof & Industrial Durability】Built to conquer the toughest conditions. With a flame-retardant PA66 shell and high-grade silicone seals, this connector is fully IP68 rated against dust and water. It performs flawlessly in extreme temperatures from -25°C to 85°C, ideal for outdoor, industrial, and automotive use.
•【Applications】Perfect for EV charging piles, outdoor security cameras, construction site lighting, servo motors, medical devices, and home appliances. Simplify your inventory and tackle any electrical connection challenge with a single, reliable product family.
