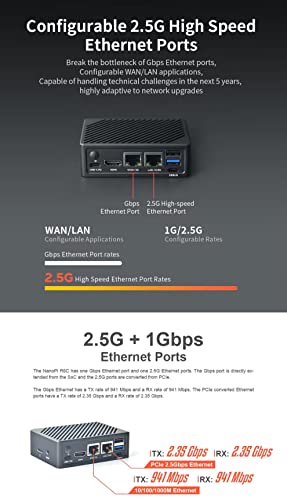

youyeetoo NanoPi R6C Mini Router with Metal Case, RK3588S Development Board, 2.5G+1 Gbps Ethernet/HDMI 2.0, Support OpenWRT/Docker for VPN NAS IOT Smart Home Gateway (4GB LPDDR4X)(no eMMC)

60+ customers visited this product in the past 30 days

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

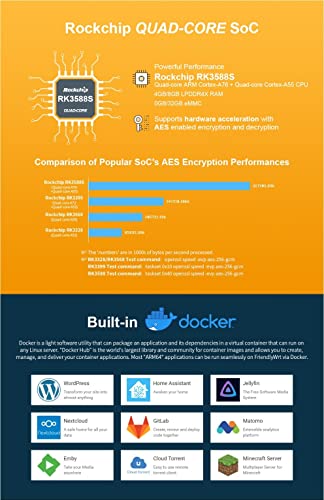

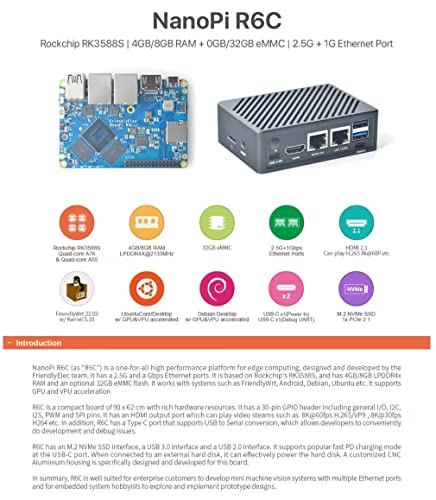

•[Rockchip RK3588S SoC] The NanoPi R6C is an open-sourced mini IoT gateway device with one 2.5G and one Gbps Ethernet ports. CPU: Rockchip RK3588S Chip with 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz. GPU: Mali-G610 MP4; NPU: 6TOPs.RAM: 4/8GB LPDDR4X at 2133MHz. PCIe: M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc.

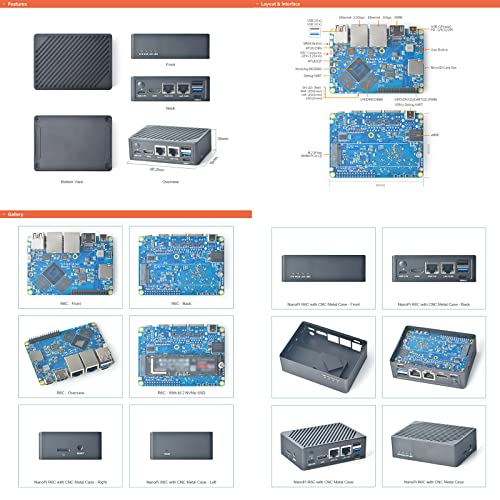

•[Rich Hardware Resources] NanoPi R6C wifi router has rich hardware resources. A 30-pin header is provided to hardware resources for secondary development, including interfaces such as GPIO, I2C, I2S, PWM, SPI. With 1x HDMI port, 1x M.2 NVME port, 1x USB type-C power delivery port, 2x USB ports, support external USB Wifi Adapter. It is an ideal portable drive for saving images and videos.
•[OS/Software] Nanopi R6C mini router supports booting with TF cards and works with operating systems such as FriendlyWrt, Android, Debian, Ubuntu etc and works with headless systems as well.
•[8K Video Decoders and Encoders] Support 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder.
•[Open Source and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It offers endless possibilities for geeks, fans and developers.
•[Embedded Custom Development] Nanopi R6C wifi router is very suitable for enterprise customers to customize and develop mini machine vision systems with multiple network ports, and it is also suitable for embedded enthusiasts to discover, explore and create their own unique gameplay.
•[Package Content] NanoPi R6C LPDDR4X 4GB Mini Wifi Router x1
•[Wiki] "https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R6C#Get_Started".
