YELUFT 6pcs MCP4725 DAC Breakout Module 12-bit Resolution I2C DAC Development Board 2.7V to 5.5V with EEPROM for Arduino Raspberry Pi
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Working Princple: MCP4725 is a single-channel 12-bit resolution I2C interface DAC conversion module with non-volatile memory (EEPROM), which allows you to store the configuration register bits (2 bits) and DAC input data (12 bits) in the non-volatile EEPROM (14 bits) memory. By setting the configuration register bits, the DAC can be configured in normal mode or power-saving shutdown mode

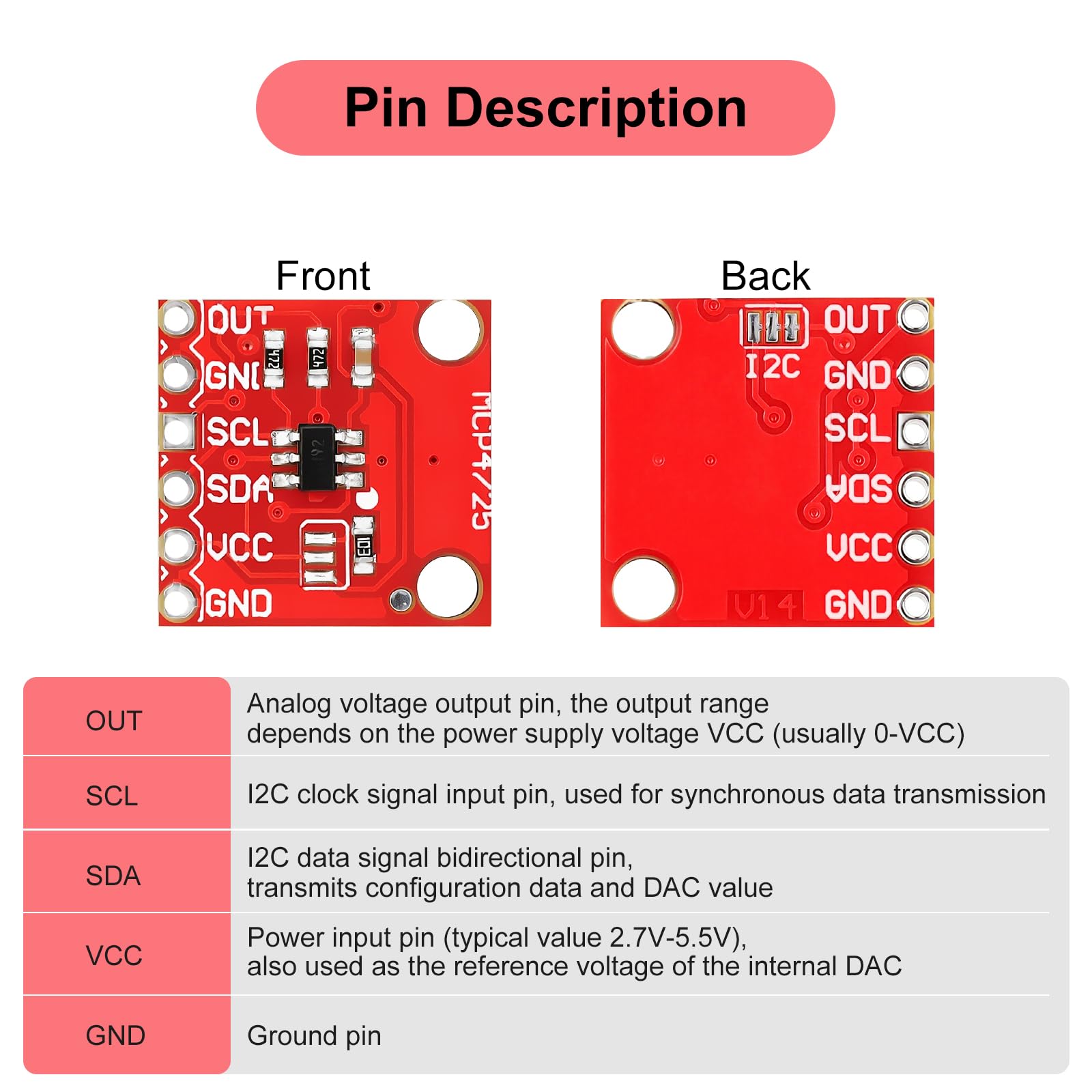

•Interface Configuration: I2C address can be modified through the A0 pin (default 0x60), supporting multiple modules connected on the same bus to enhance system scalability; the setup time is only 6μs, supporting up to 3.4Mbps I2C high-speed mode, meeting application scenarios with high real-time requirements
•High Precision: Provides 12-bit resolution (4096 levels) of digital-to-analog conversion capability, with a typical differential nonlinearity (DNL) of only ±0.2LSB, ensuring the accuracy and stability of the output signal
•Low Power Design: Wide operating voltage range (2.7V-5.5V), quiescent current as low as 0.12mA, especially suitable for battery-powered portable devices
•Applicable Scenarios: MCP4725 module can be applied to industrial control systems, test and measurement equipment, consumer electronics, embedded systems, communication equipment, etc
