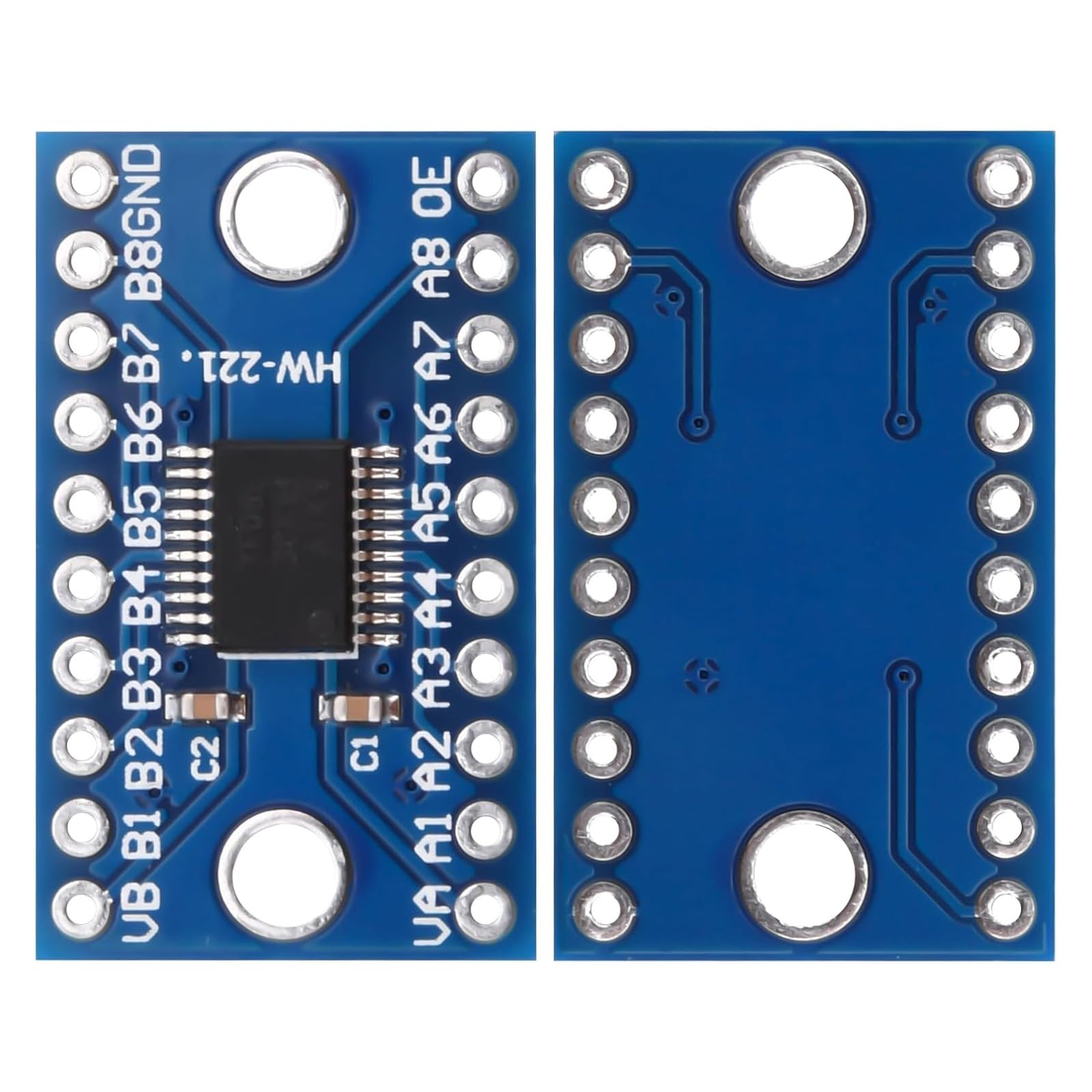

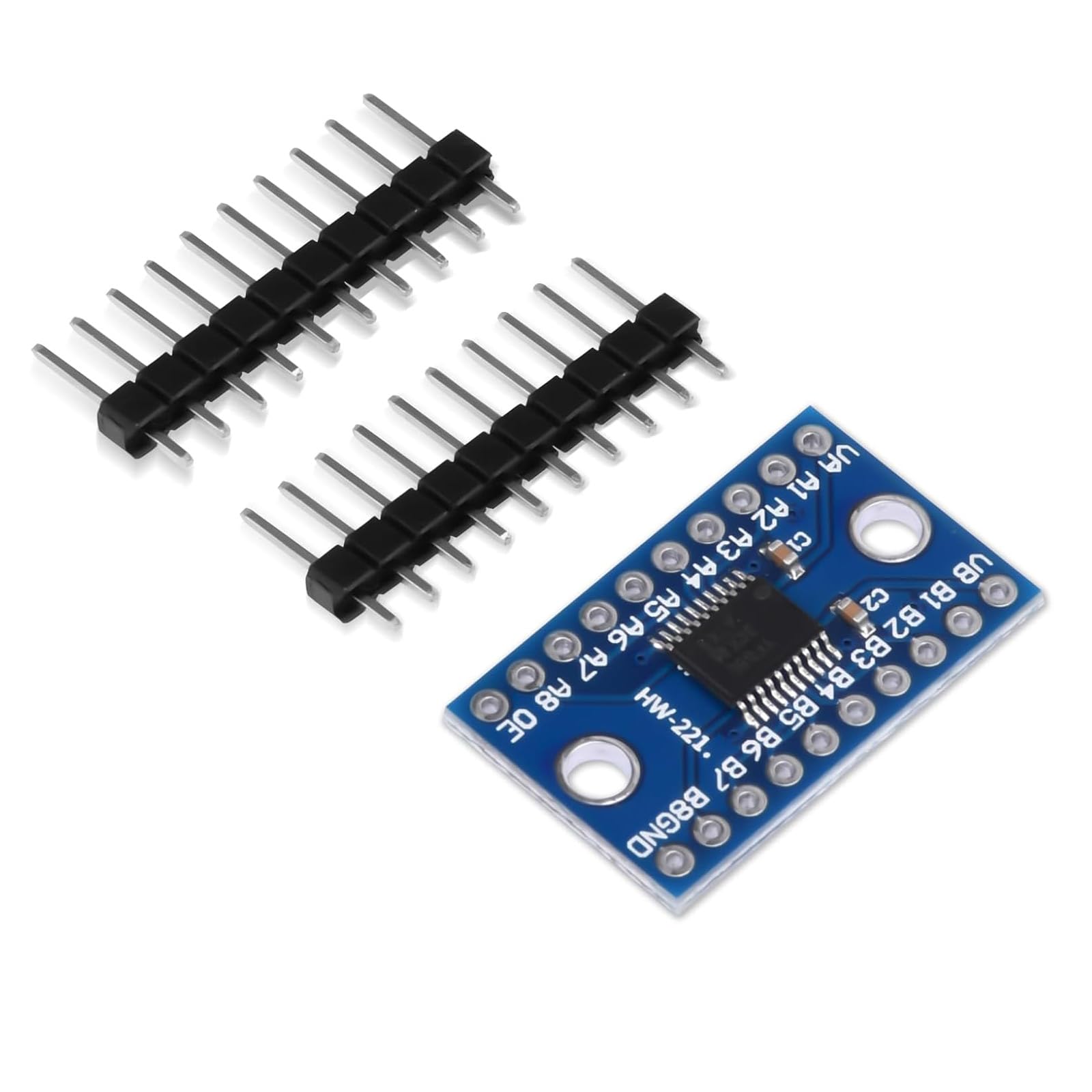

TXS0108E High Speed Full Duplex 8 Way 8 Channel Level Conversion Module 8-Bit 8 CH Logic Level Bi-Directional Converter Module Apply to Raspberry Pi and Arduino 5pcs
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

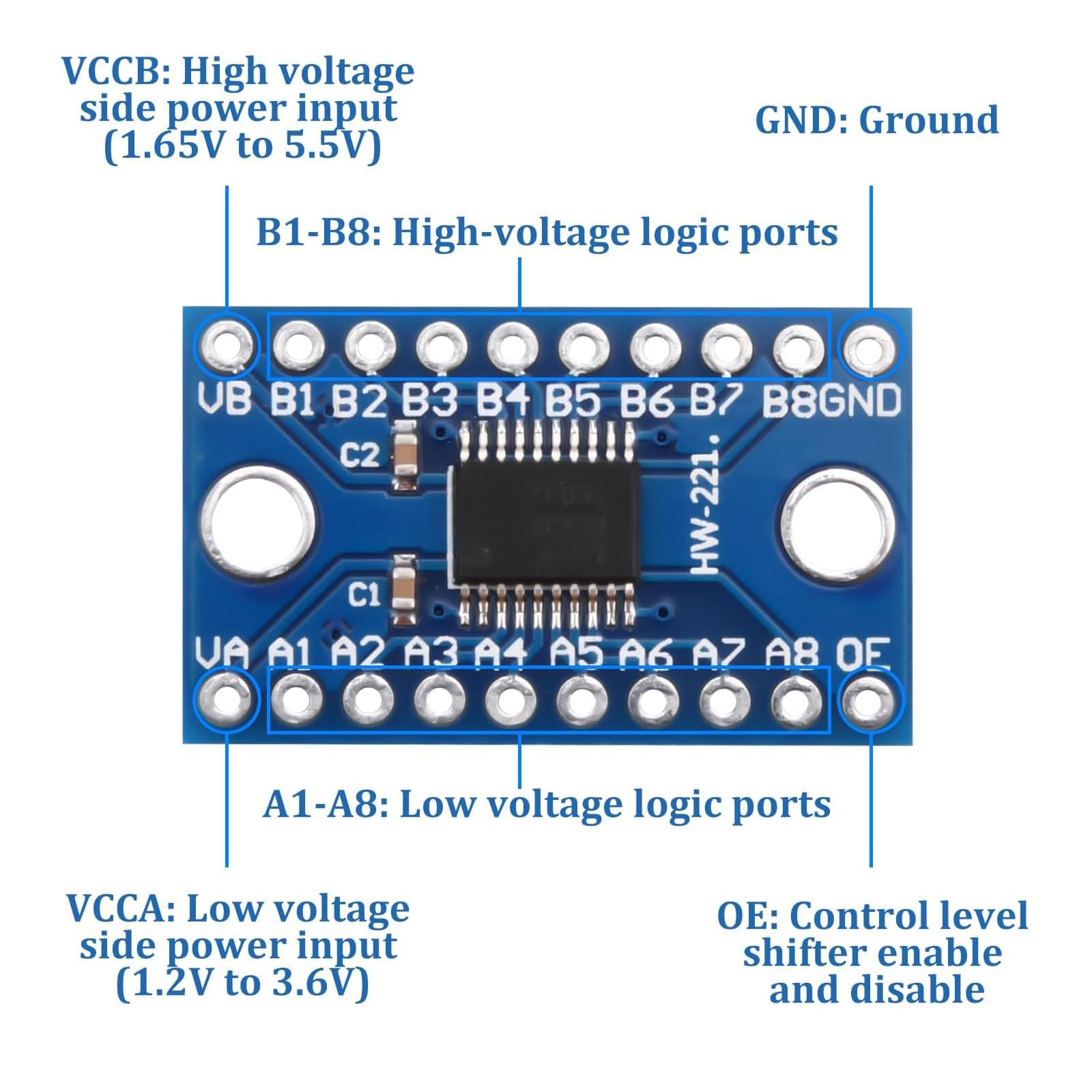

•Provide two-way communication capabilities,OE active high enable IO recommended by a low voltage side of the IO port.
•Supply voltage VA:1.2V to 3.6V - VB: 1.65V to 5.5V.
•Allows the use of 5V modules on 3.3V microcontrollers, or 3.3V modules on 5V microcontrollers.
•Supports SCM, I²C, SPI.
•Widely used in the MCU and SD card, MCU and serial devices,MCU and 5V/3V module communiction.
