Teansic 5PCS Type C Female Serial Basic Breakout,USB C 16Pin PCB Converter Board with Pin Header
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

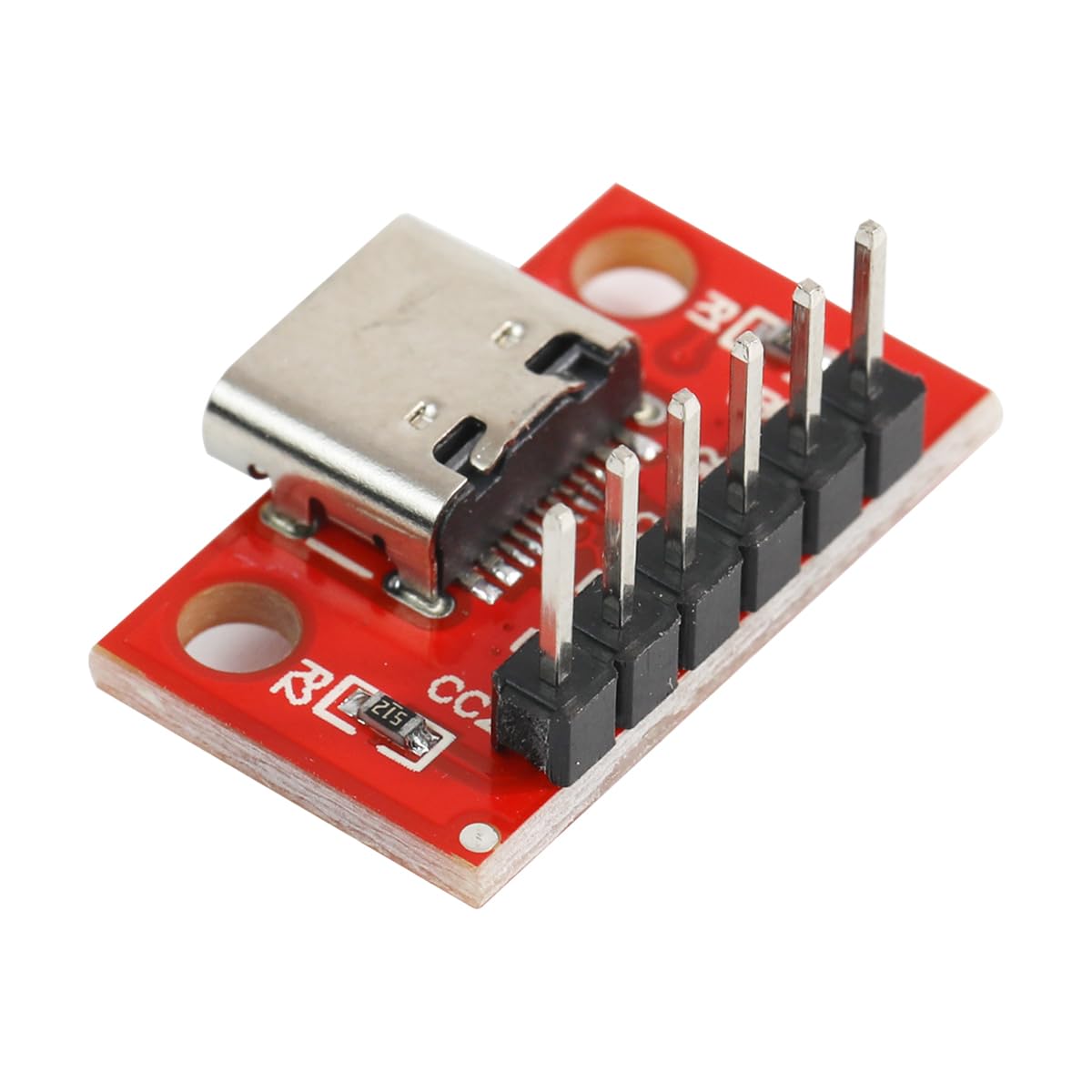

•Type-C Female Test Board -- This is a 16-pin USB C female breadboard, USB Type C female to 2.54 (0.1 inch) high-current power adapter board module, 5 pcs per pack.

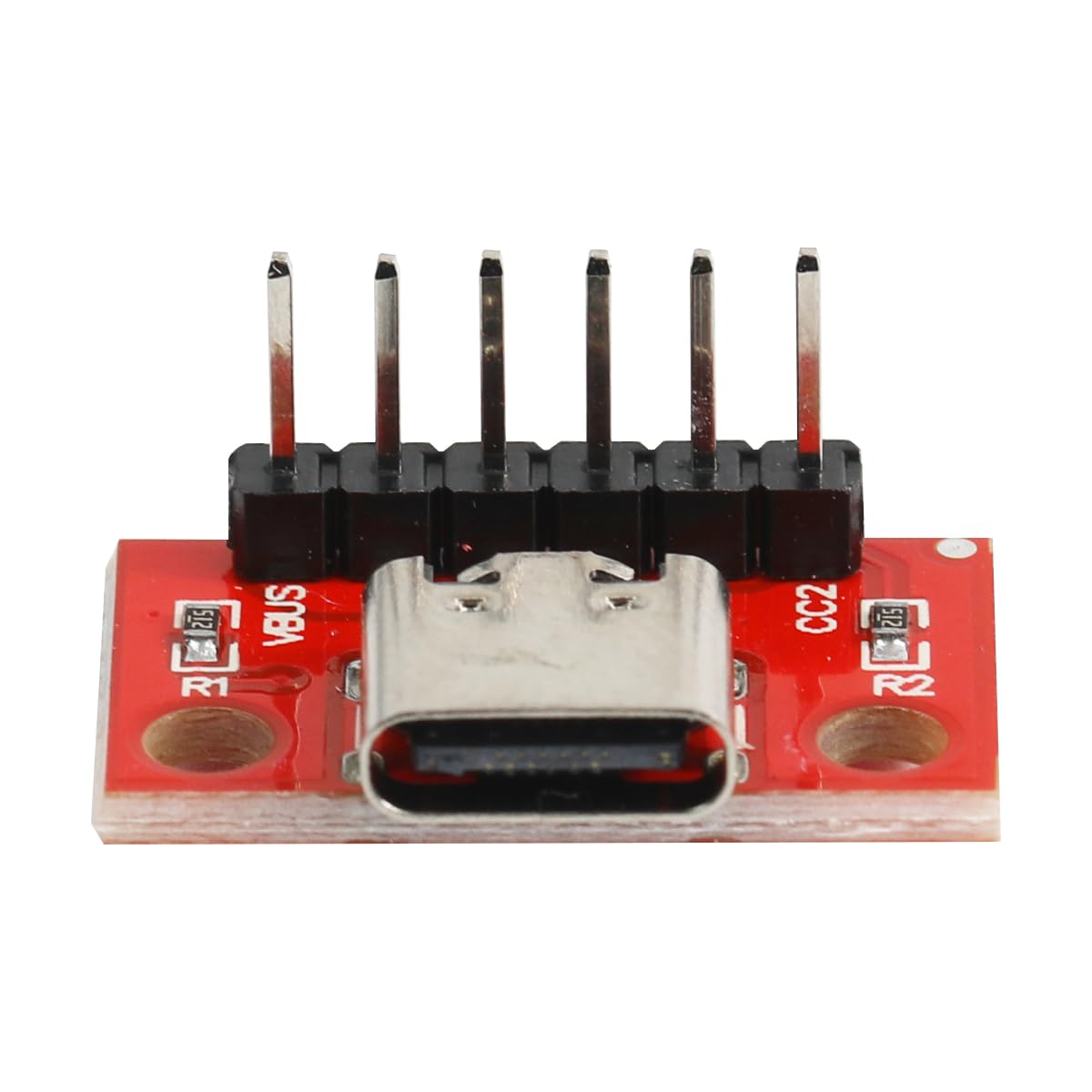

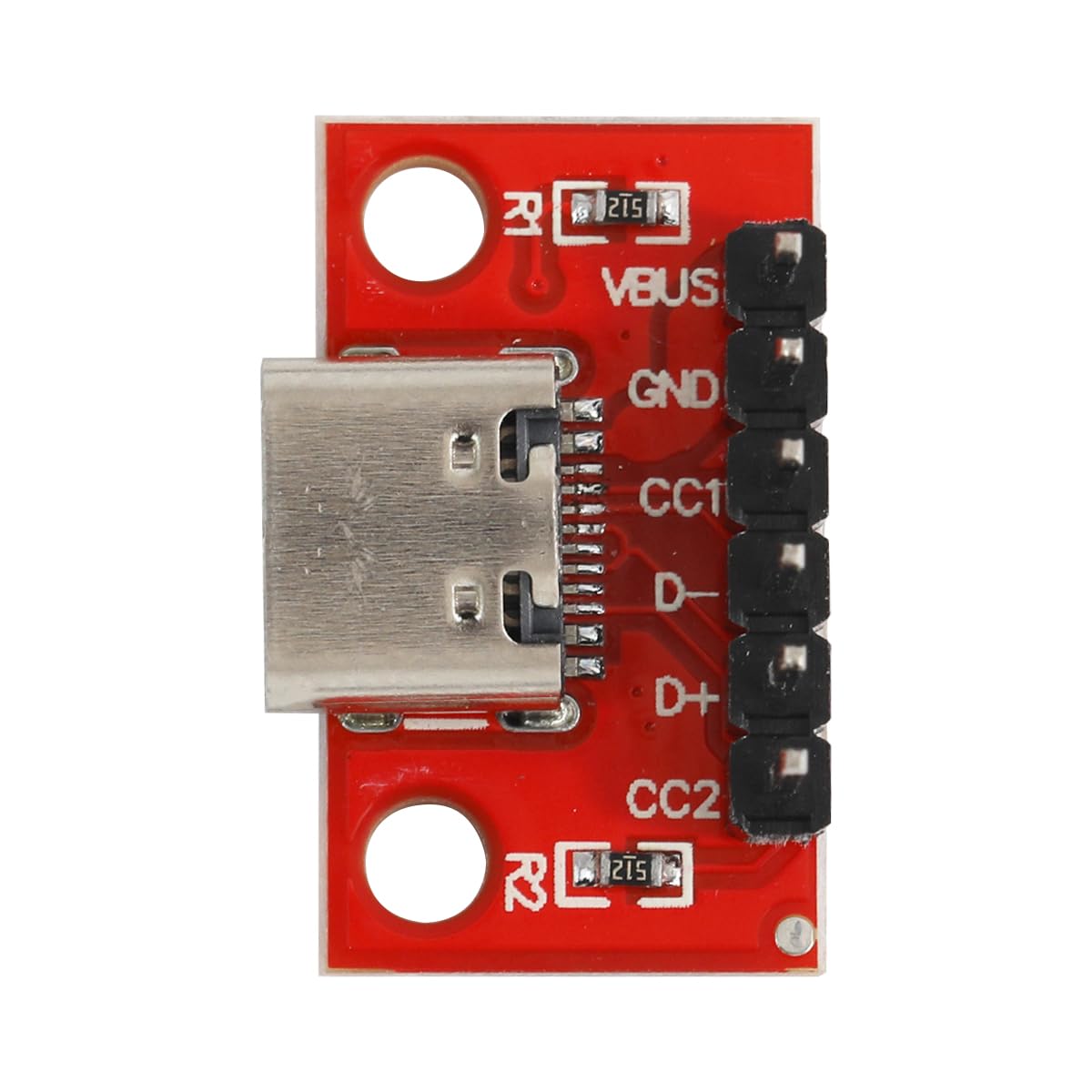

•Clear pin out printing -- The USB-C connector has 6 pins: VBUS, GND, CC1, CC2, D+, and D-. It can provide a rated current of up to 1.5A, with a maximum of 3A (depending on the upstream device).
•Soldered straight pins -- This USB Type-C female adapter board features soldered straight pins, enabling connection to connectors with a 2.54mm (0.1-inch) pitch, supporting device power supply via the USB-C board.
•Wide Application -- It can conveniently upgrade old USB devices to USB Type-C, such as the charging interface of headphones, or convert old wired keyboards to removable USB-C interfaces. The circuit board has positioning holes for easy fixation. The holes on the Type-C USB are large enough for easy use with breadboards or DuPont cables.
•Reversible design -- This Type-C female serial board can be inserted into USB-C devices in either direction, as USB-C ports feature reversible functionality.
