Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

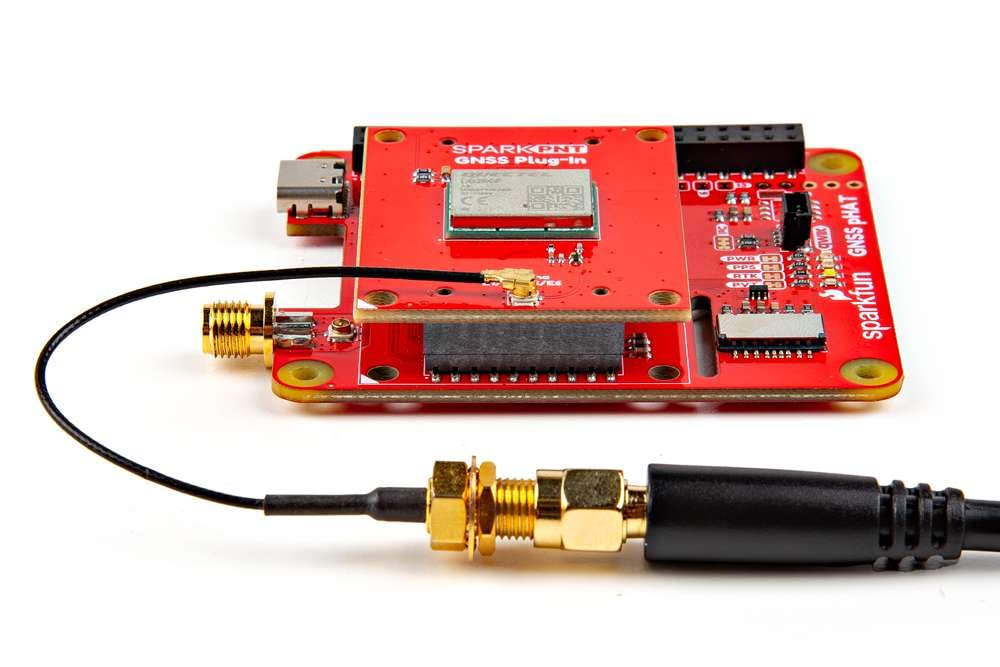

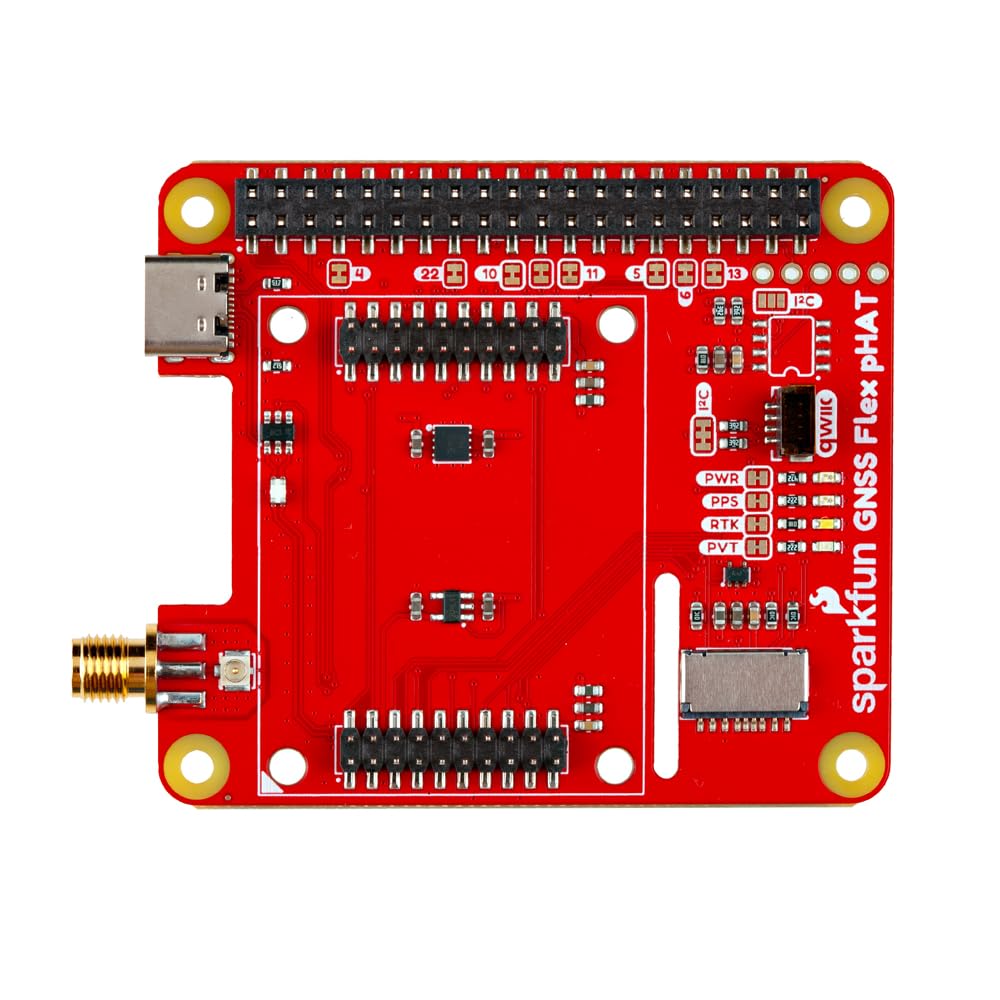

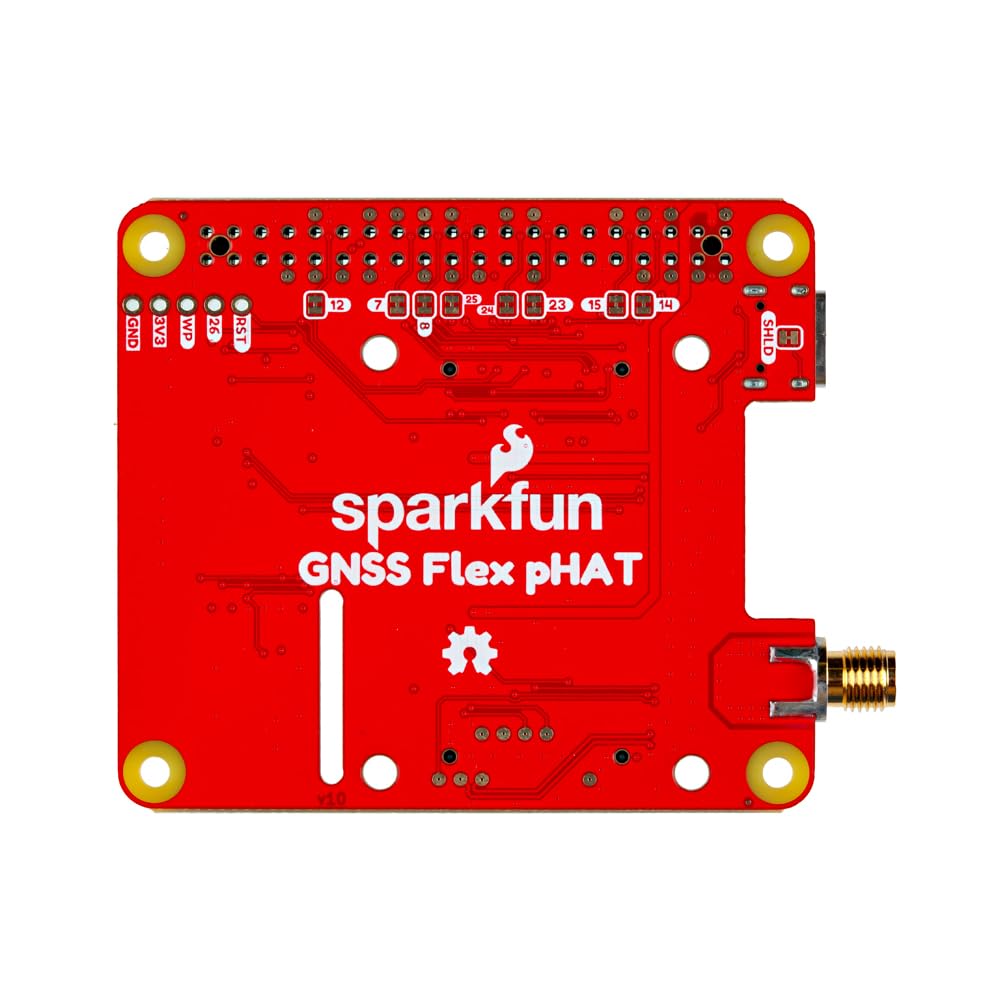

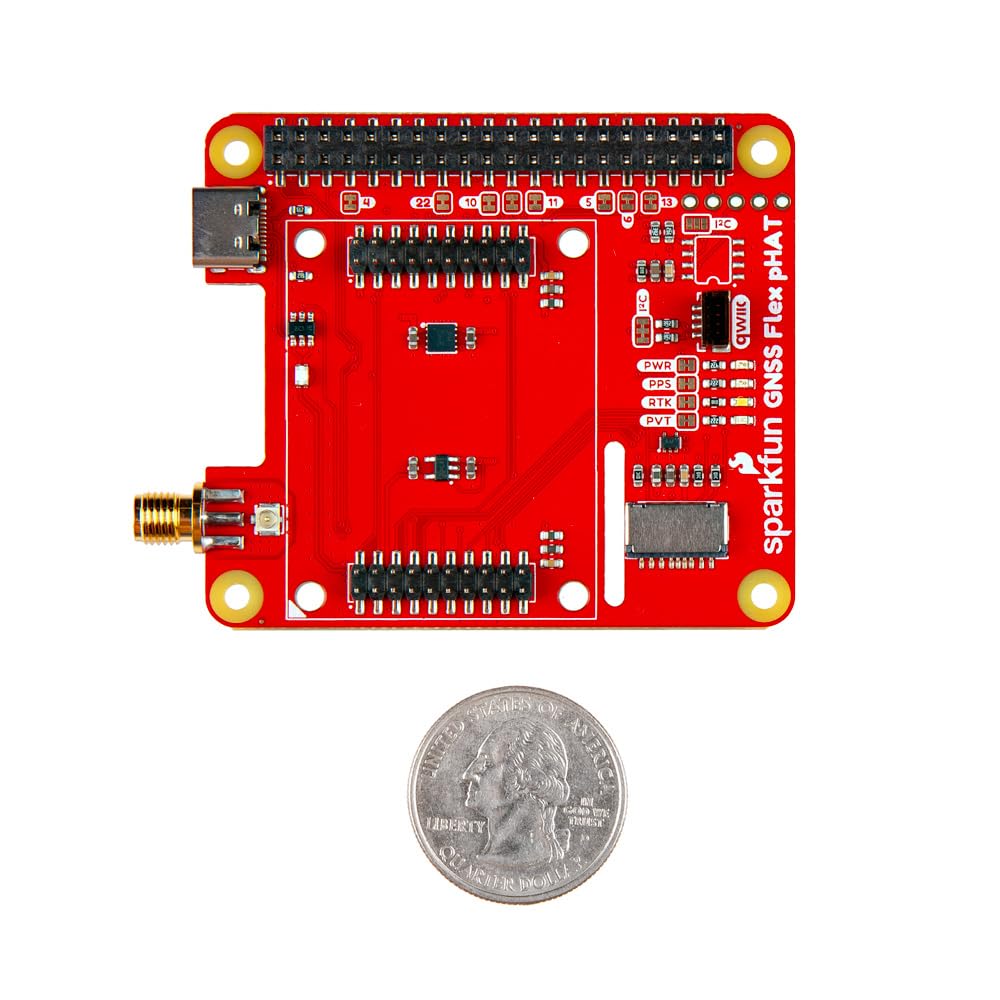

•Modular carrier: solderless Raspberry Pi pHAT for SparkPNT GNSS Flex modules; standardized ecosystem uses two 2×10, 2 mm headers between module and carrier; Note: Board only; Module and accessories sold separately
•Easy stacking: pre-soldered headers mate with a 40-pin SBC header; default UART uses GPIO14/15 on Raspberry Pi, with other interfaces available
•Connectivity options: breakouts provide USB data, 4× UART, I2C, SD card, PPS/event signals; USB-C connects directly to the GNSS Flex module
•Antenna & expansion: U.FL-to-SMA antenna bridge, microSD socket for logging, Qwiic connector, and status LEDs for PWR, PPS, RTK, and PVT
•Configuration control: 24 jumpers for GPIO isolation, LED power isolation, and I2C pull-up selection; designed for Pi/Jetson/Coral-style 40-pin SBCs
From USA
