qlxhbot 2pack mc 31b magnetic reed switch wired surface mount | Shop The World
From USA
NewQLXHBOT
QLXHBOT 2Pack MC-31B Magnetic Reed Switch Wired Surface Mount Normally Open Closed NC NO Door Contact Sensor Alarm Magnetic Door Switch White
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

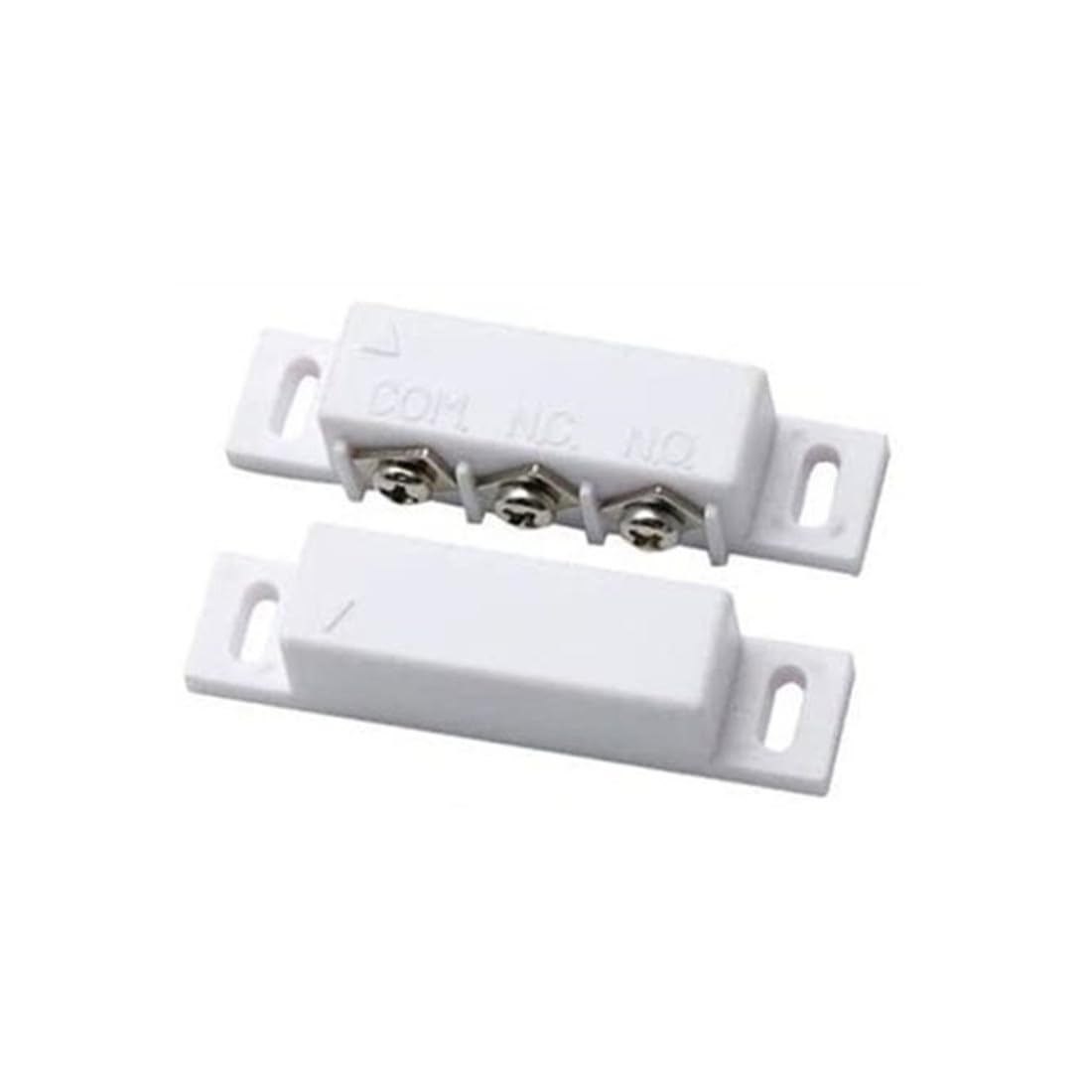

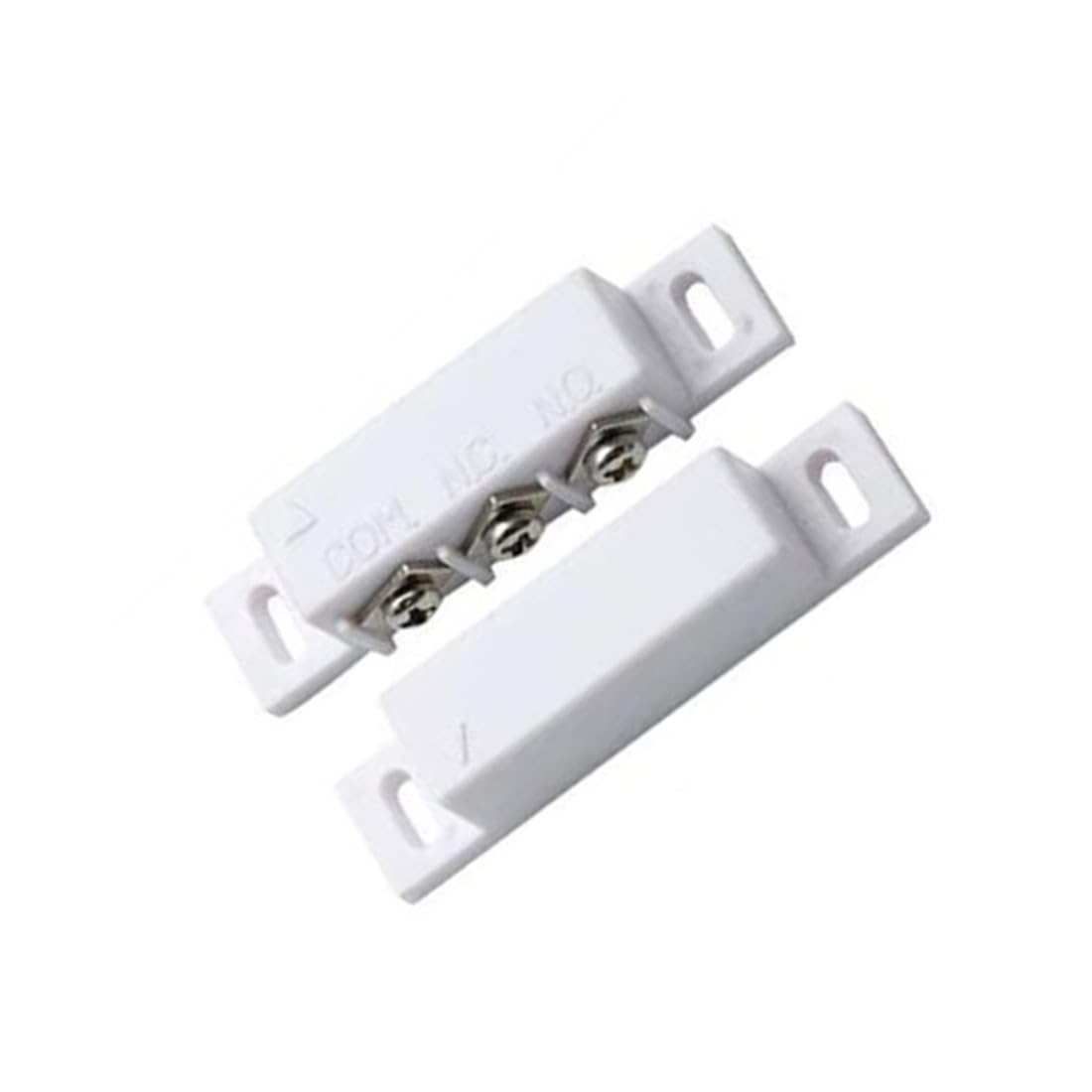

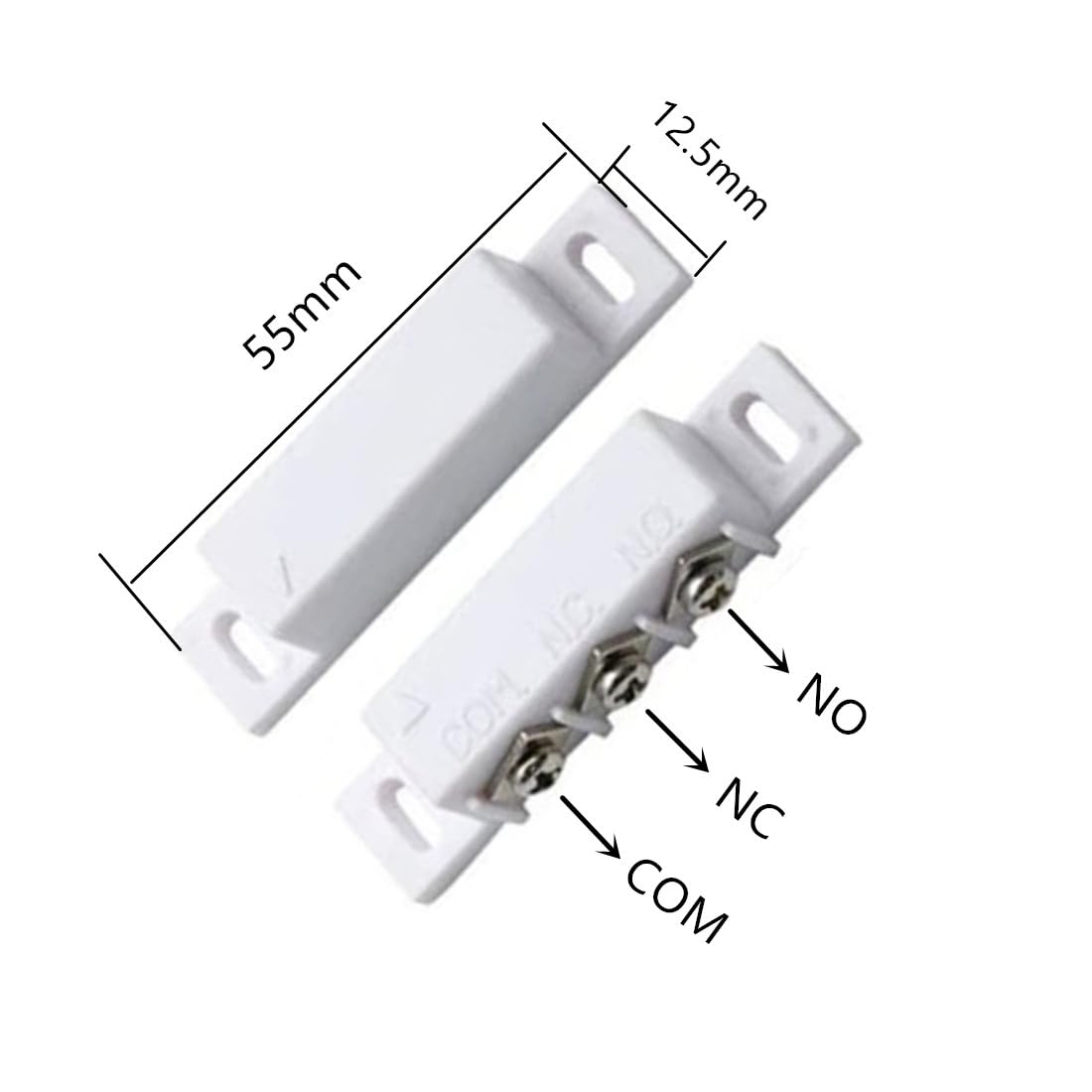

•Product Name: Surface Mount Magnetic Reed Switch.Type:MC-31B.Color:Black.Material: fireproof ABS material.Product size: 55X12.5X11.5mm / 2.17" x 0.45" x 0.45"(L*W*H).Maximum Switch Voltage: 100V DC.Maximum switch current: 0.5A.Maximum switch power: 10W.
•Contact Type: NC/NO/COM: NC means Normally Closed.When the magnet together, the circuit is conductive; when the magnet separate, the circuit is not conductive.NO means normally open: when the magnets are separated, the circuit is turned on ; when the magnets are together, the circuit is not turned on. Actuation Distance: 10-20mm.

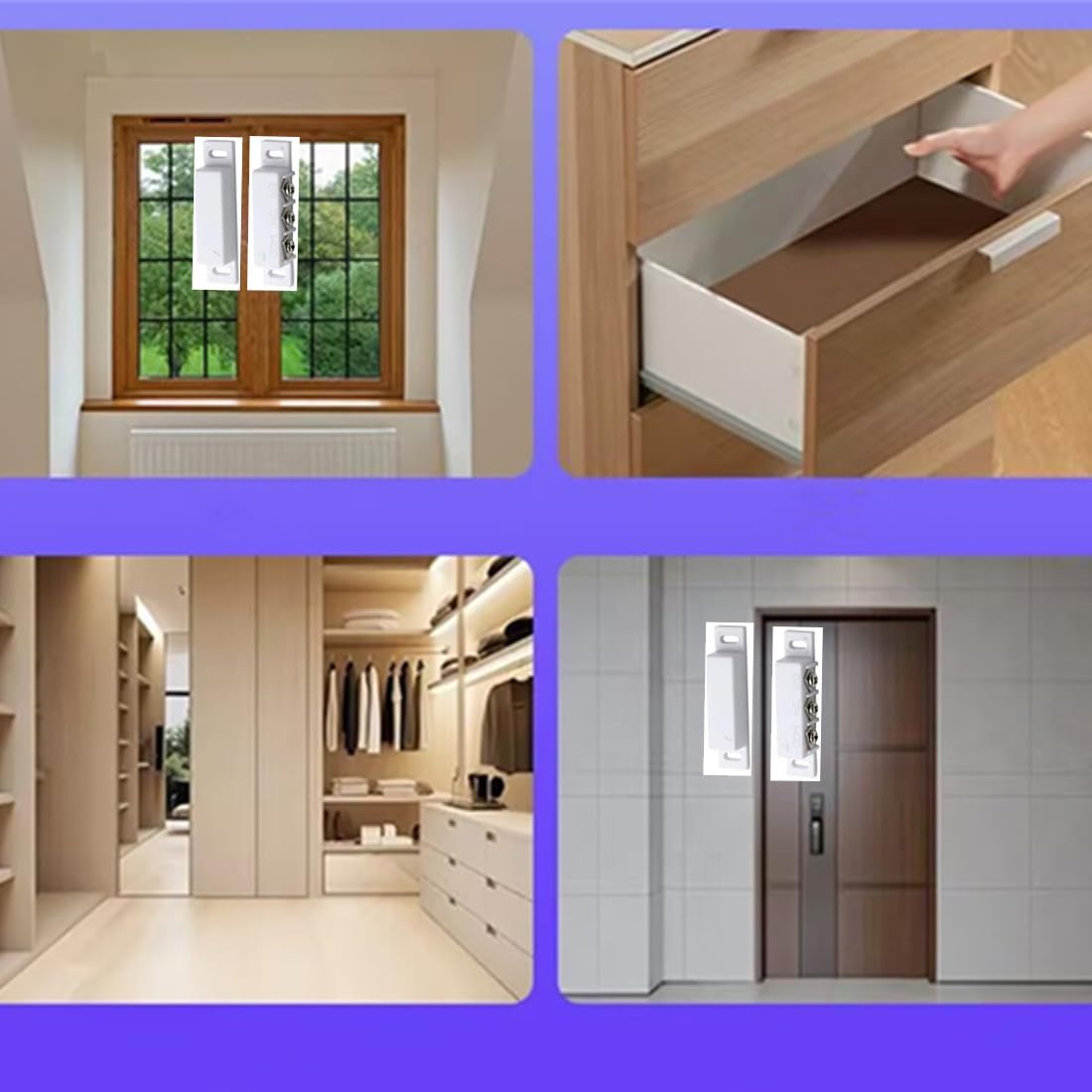

•Reed switch can be used in home security and burglar alarm system. It is an ideal choice for wooden doors and windows in homes and factories.
•Magnetic Reed Switch can not connect directly to power, It needs to work with the alarm system. It provides a switching signal.
•Package Content: 2 sets Magnetic Reed Switch+8pcs Screws
