Specifications:

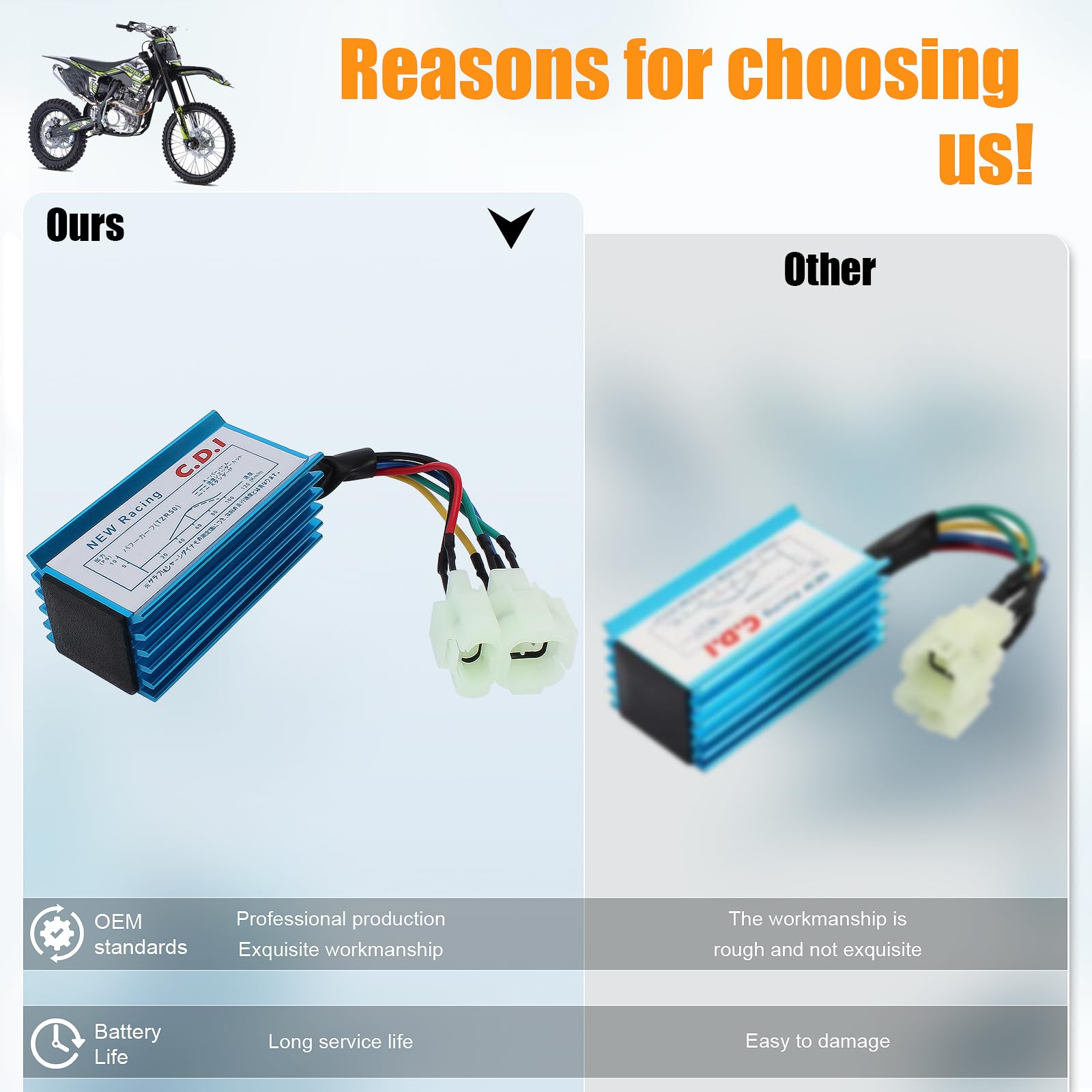

100% brand new and high-quality racing CDI box.
Material: aluminum.
Connector: AC-fired, 6 Pins (2+4 Pins) Male Plug.
CDI dimension: 70mm x 38mm x 30mm(L x W x H).
Wire + plug length: 160mm.
Match up exactly with original equipment in perfect fitness, just replace and ride again, easy to install.
Fitment:
For Honda XR50 XR70 XR80 XR100 / CRF50 CRF70 CRF80 CRF100.
Fits: GY6 50cc-150cc 4-stroke engines Scooters, ATVs, Go Karts, Mopeds and other Bikes.
Fits models: GY6 139QMB, 152QMI and 157QMJ engines.
This item will fit almost all Chinese brands, such as TaoTao, Buyang, Roketa, Coolsport, NST, BMX, Kazuma, Sunl, AIM-EX, Baja, Panterra, Kymco, Carroll Stream Eagle etc and various unlisted makes/models.
Package include:
1 x CDI box.
Please note:
1. This products only suits AC engine, don’t use it on DC engine.
2. It is an aftermarket part, please be carefully check the goods appearance, size, shape before ordering.
Mechanics Note on distinguishing AC fired or DC fired CDI box:
1. In the GY6 6-plug set-up, you have AC if you have 3-wires going into the 4-plug side and you have 2-wires going into the 2-plug side. On the other hand, you have DC if you have the larger CDI box, 3 or 4 wires going into the 4-plug side and only 1 wire going into the 2-plug side.
2. In general, the DC CDI's tend to be larger in size than the AC ones.For example ,the common AC fired CDI box is length 65 x width 36 x height 22 mm or length 58 x width 33 x height 22 mm ,but common DC fired CDI box is larger than AC fired cdi box in size ,suze as length 75 x width 42 x height 24 mm or length 96 x width 55 x height 24 mm .Certainly this size is only for your common original CDI Box reference,don't include the racing cdi box size ,please note.
