Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•High-Efficiency ZU4EV ZU5EV SoC Core:Equipped with Xilinx Zynq UltraScale+ ZU4EV or ZU5EV chip featuring 4× Cortex-A53 and 2× Cortex-R5 processors with 4GB PS and 1GB PL DDR4 for advanced computing.

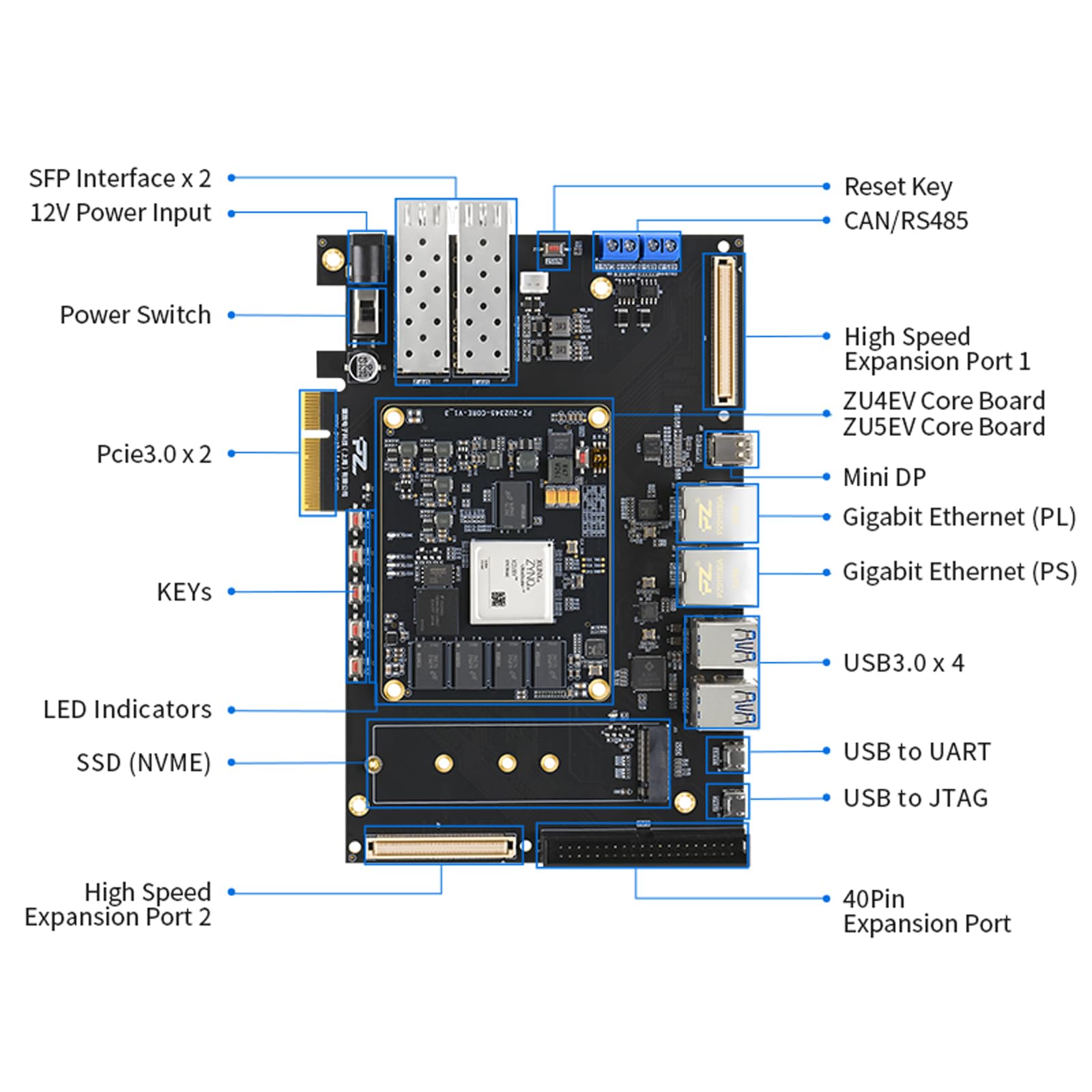

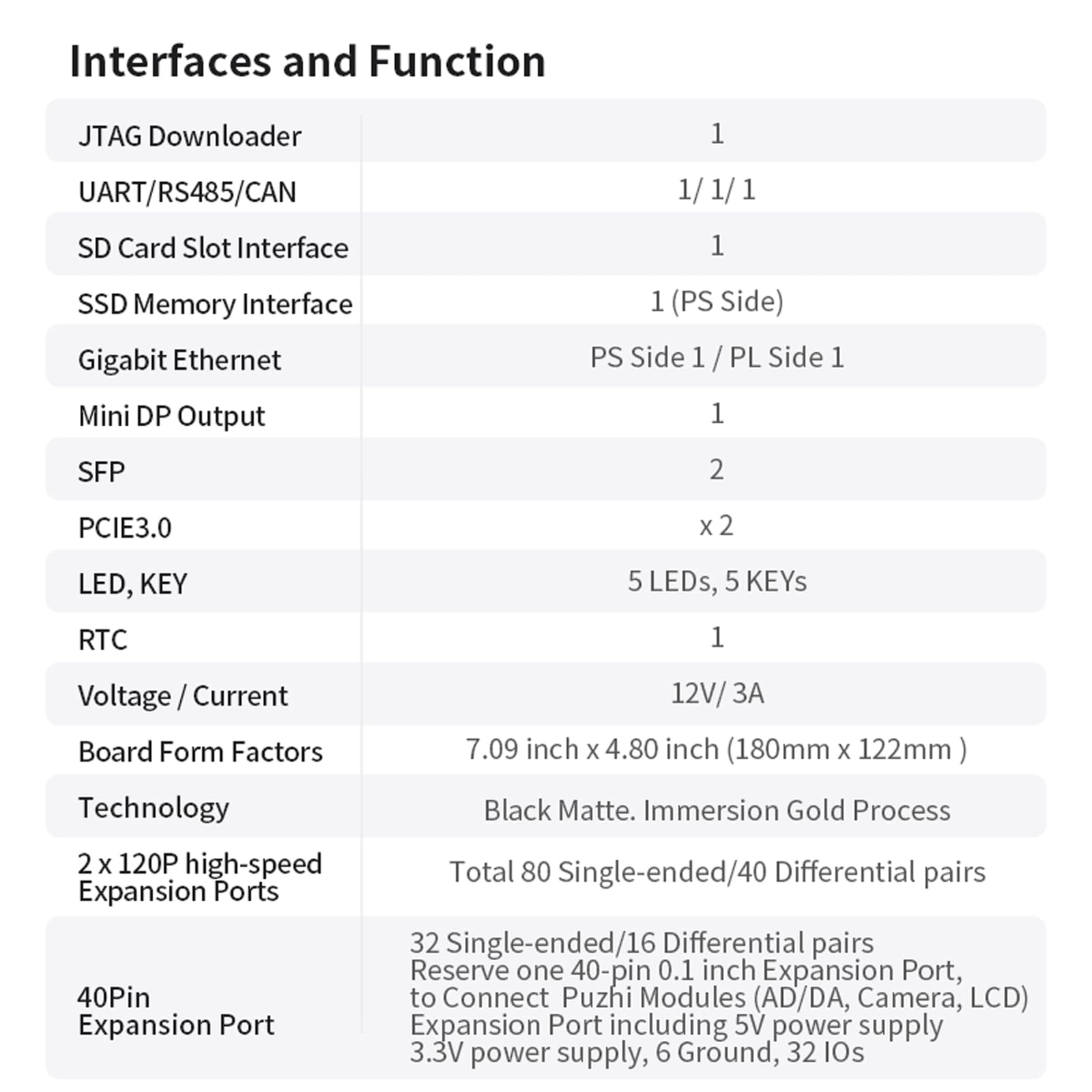

•Rich High-Speed Interfaces:Integrates PCIe 3.0 x2, SFP x2, Mini DP, USB 3.0 x4, NVMe SSD, and dual Gigabit Ethernet (PL and PS) for versatile data communication and system expansion.
•Flexible Boot and Storage Options:Supports multiple boot modes including JTAG QSPI SD and EMMC. Onboard 8GB eMMC and 256Mb QSPI Flash plus NVMe SSD slot for flexible storage design.
•Industrial-Grade Durability:Designed for -40°C to +85°C operating range with black matte PCB and gold immersion finish. Includes user LEDs keys RTC and reset for stable system control.
From USA
