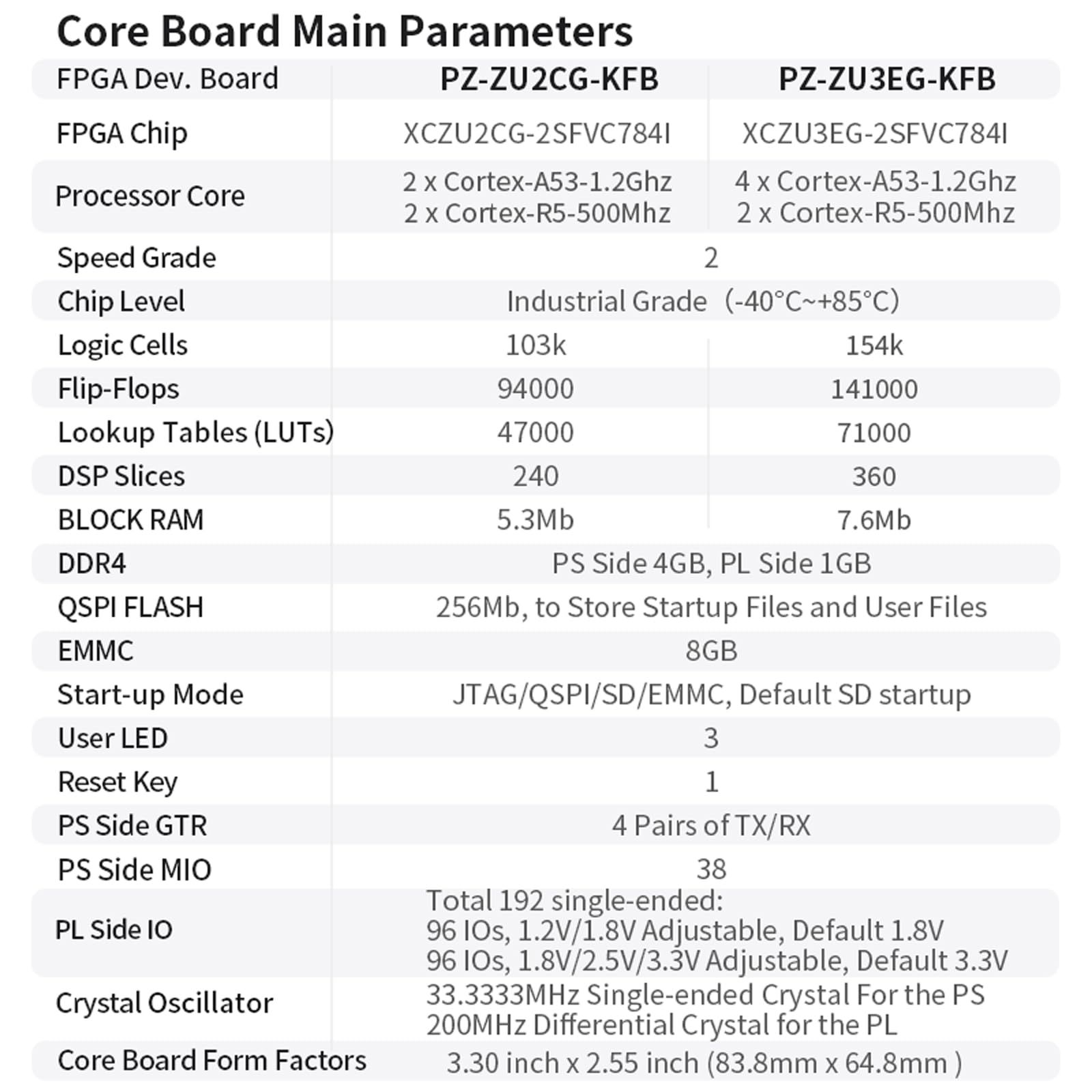

•Industrial-Grade Zynq UltraScale+ Core:Features XCZU2CG or XCZU3EG SoC with ARM Cortex-A53 and Cortex-R5 cores, suitable for high-reliability embedded systems and edge computing.
•Comprehensive Memory Architecture:Equipped with 4GB DDR4 (PS), 1GB DDR4 (PL), 8GB EMMC, 256Mb QSPI Flash, and NVMe SSD slot—ensuring fast boot and large storage capacity.

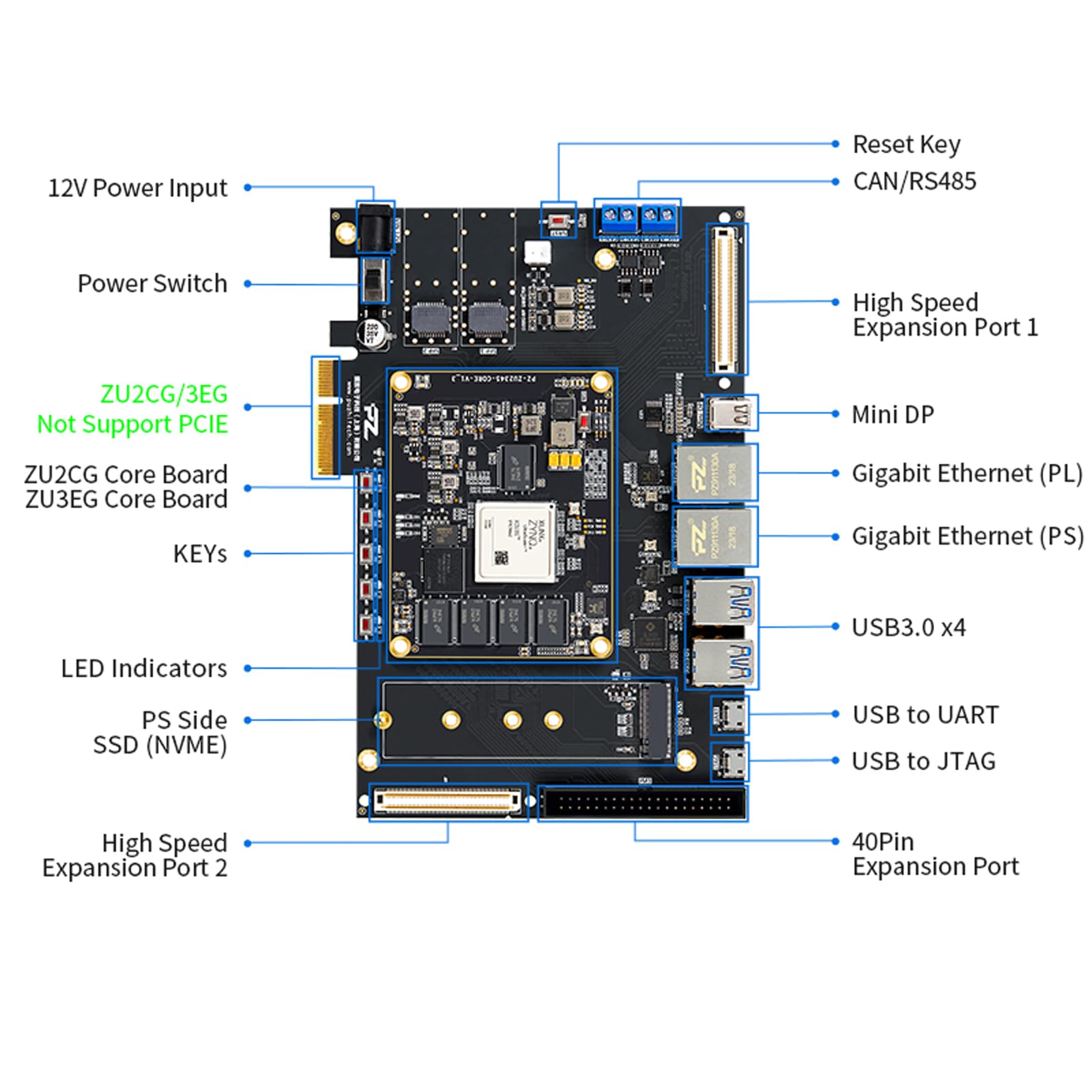

•Rich High-Speed Interfaces:Includes USB3.0 x4, Gigabit Ethernet (PS & PL), Mini DP, CAN/RS485/UART, JTAG, and 2x 120P & 40P Expansion Ports—ideal for signal processing applications.
•Versatile Expansion Capability:2x high-speed 120P ports and 40Pin expansion for AD/DA, camera, LCD modules—supports 3.3V/5V IOs and differential pairs for flexible system integration.
•Wide Operating Temperature Range:Industrial-grade design operates from -40°C to +85°C; black matte PCB with immersion gold finish enhances reliability and durability.
