Power Amplifier 1000w Mono Sound Amplificador Class D Digital | Shop The World
From USA
NewUnknown
Power Amplifier 1000w Mono Sound Amplificador Class D Digital Amp Stage Audio Amplifier Speaker Home Theater DIY
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Speaker protection independent power supply, 1237 protection, more complete protection function, optimized circuit design, more robust low frequency and a lot of intermediate frequency thickness.

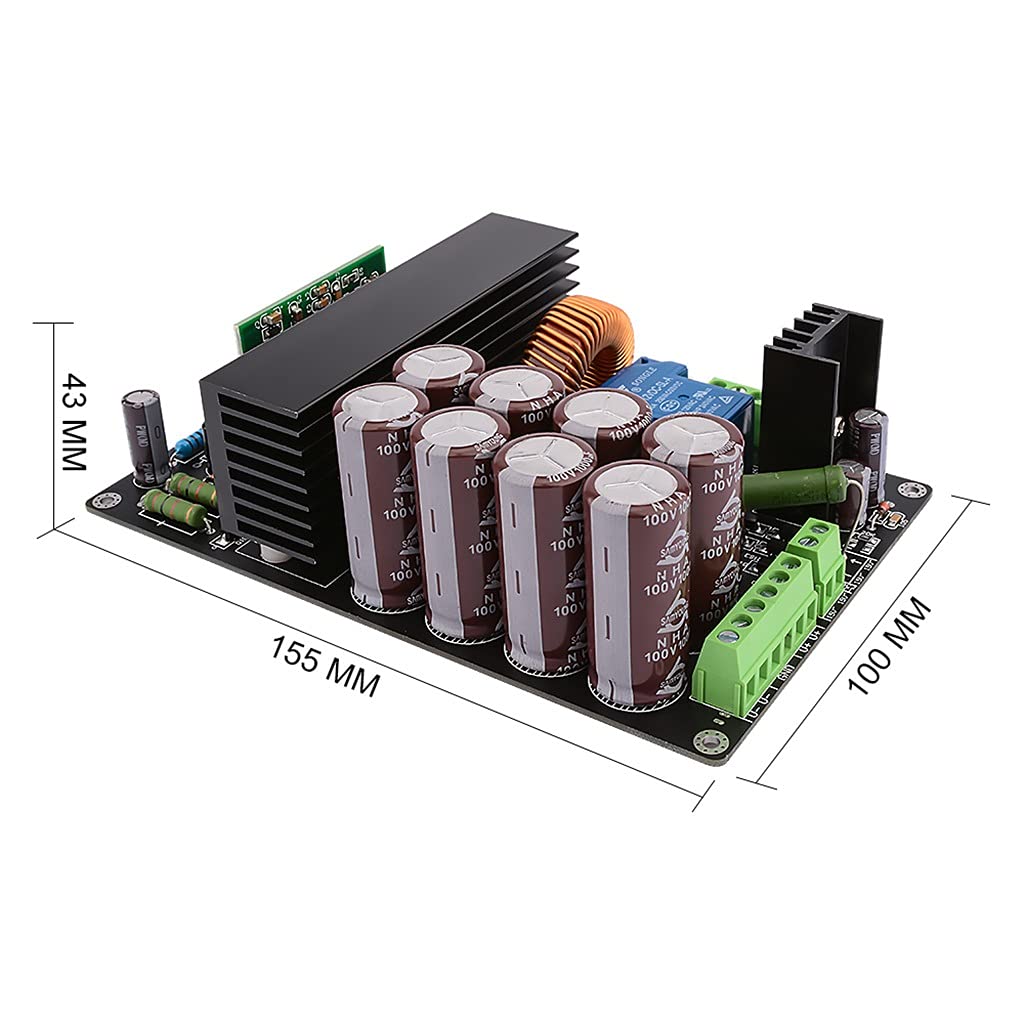

•The size is 160MM * 100MM, the height is 45MM (without copper pillars, 55 height chassis can be installed).

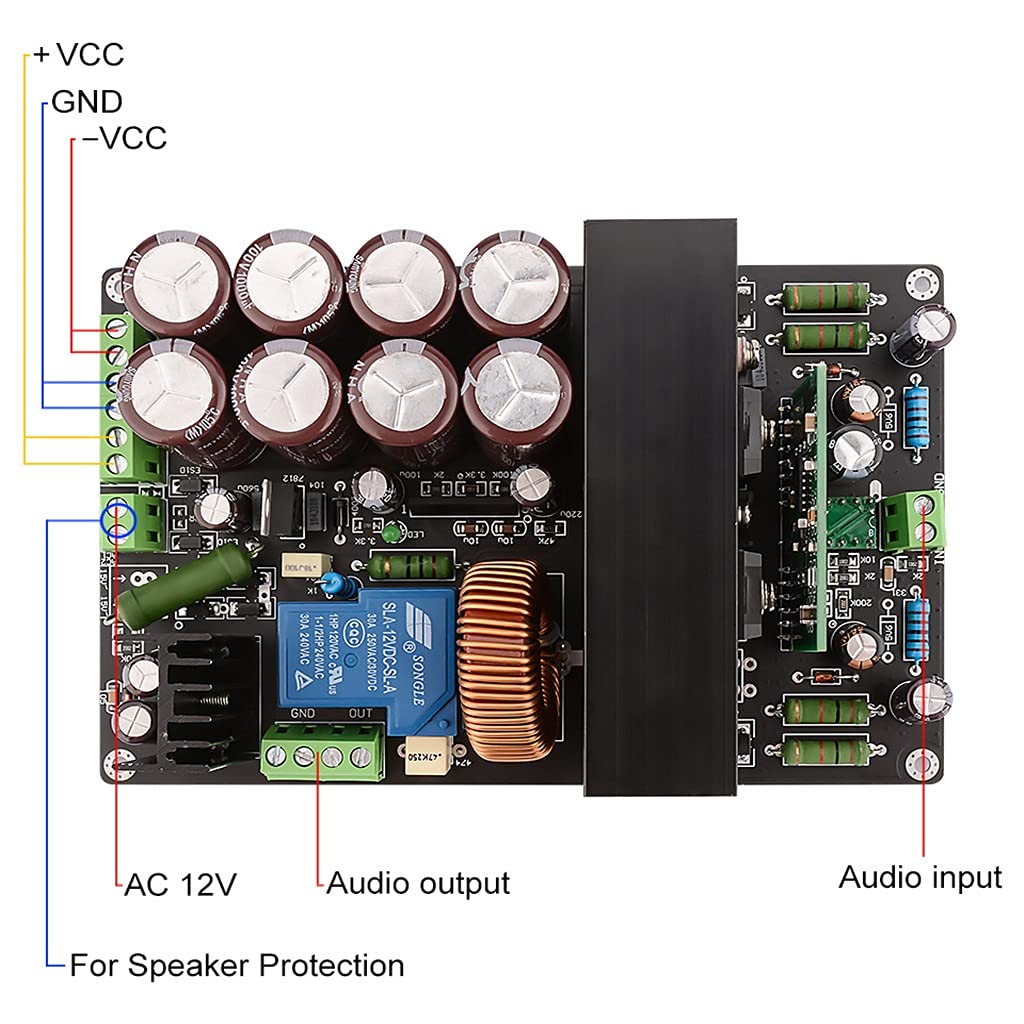

•Main voltage power supply: ±DC65V-80V, recommended ±DC80V (± power supply is 3-wire, two-wire not single power supply) digital power amplifier output is strictly prohibited, live, signal input/output is prohibited.
•Secondary voltage power supply: independent single DC15V or independent single AC10-12V.
•Under ±DC80V, it is enough to cope with any household fever speakers, full power 1000W low distortion output (high power requires enhanced heat dissipation, forced air cooling)
