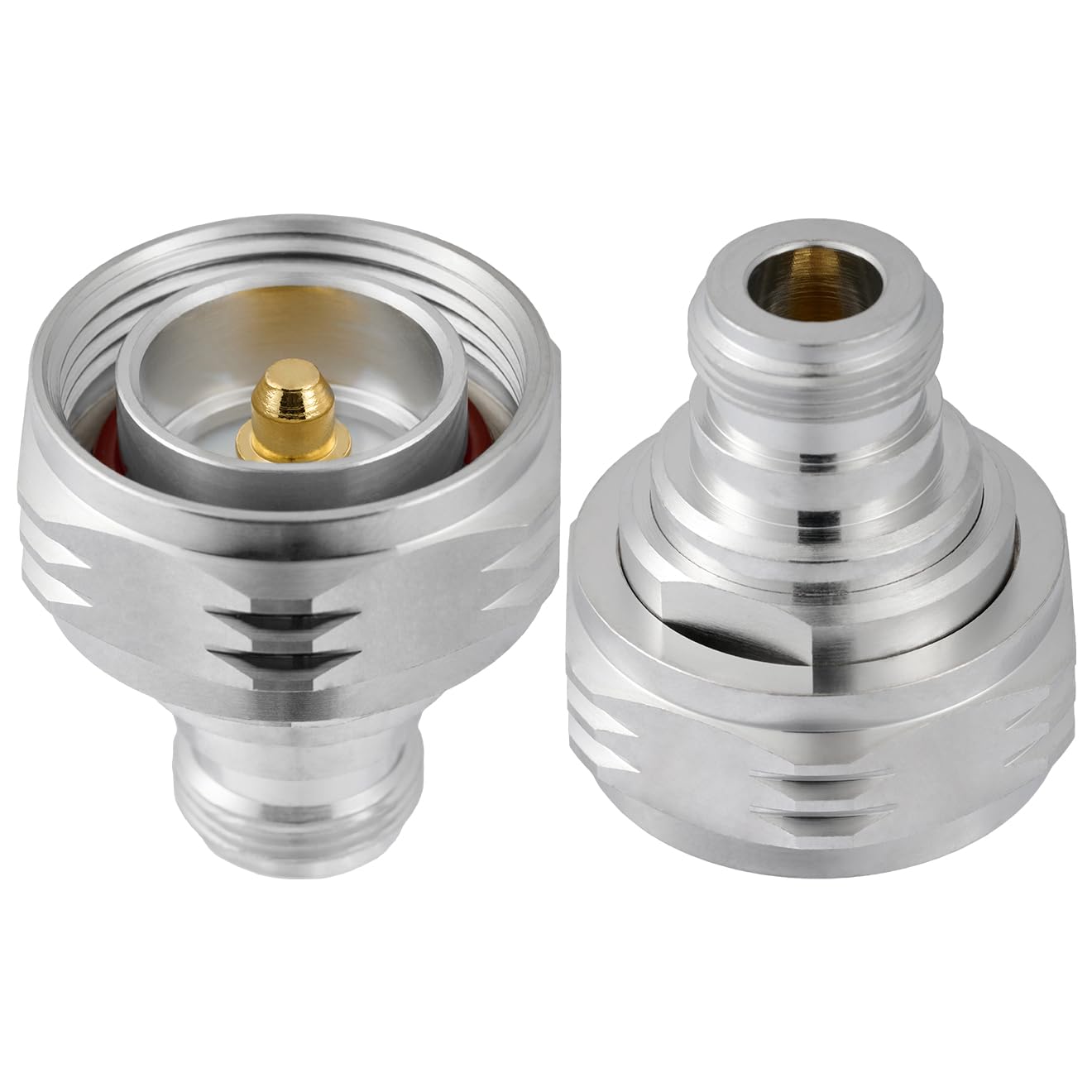

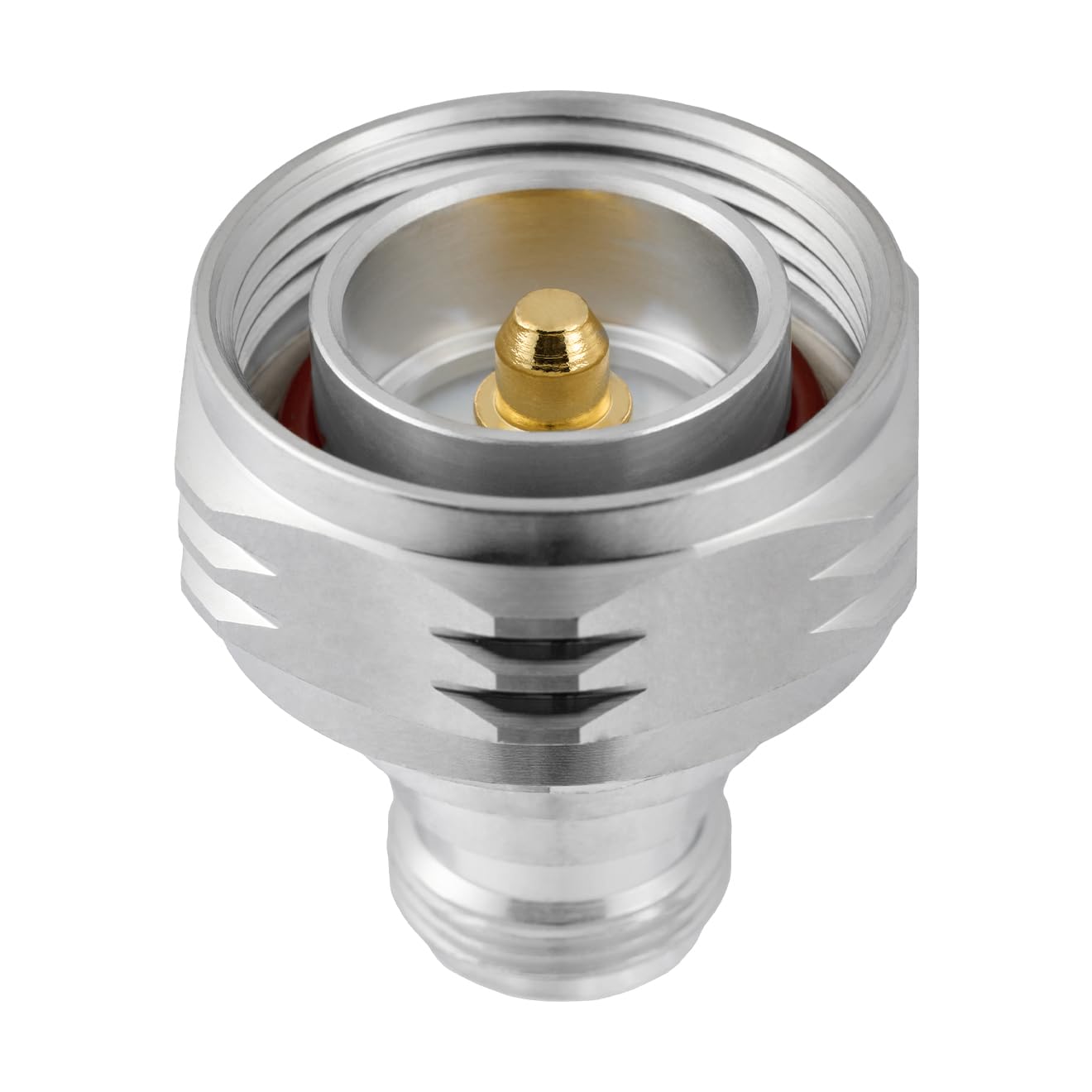

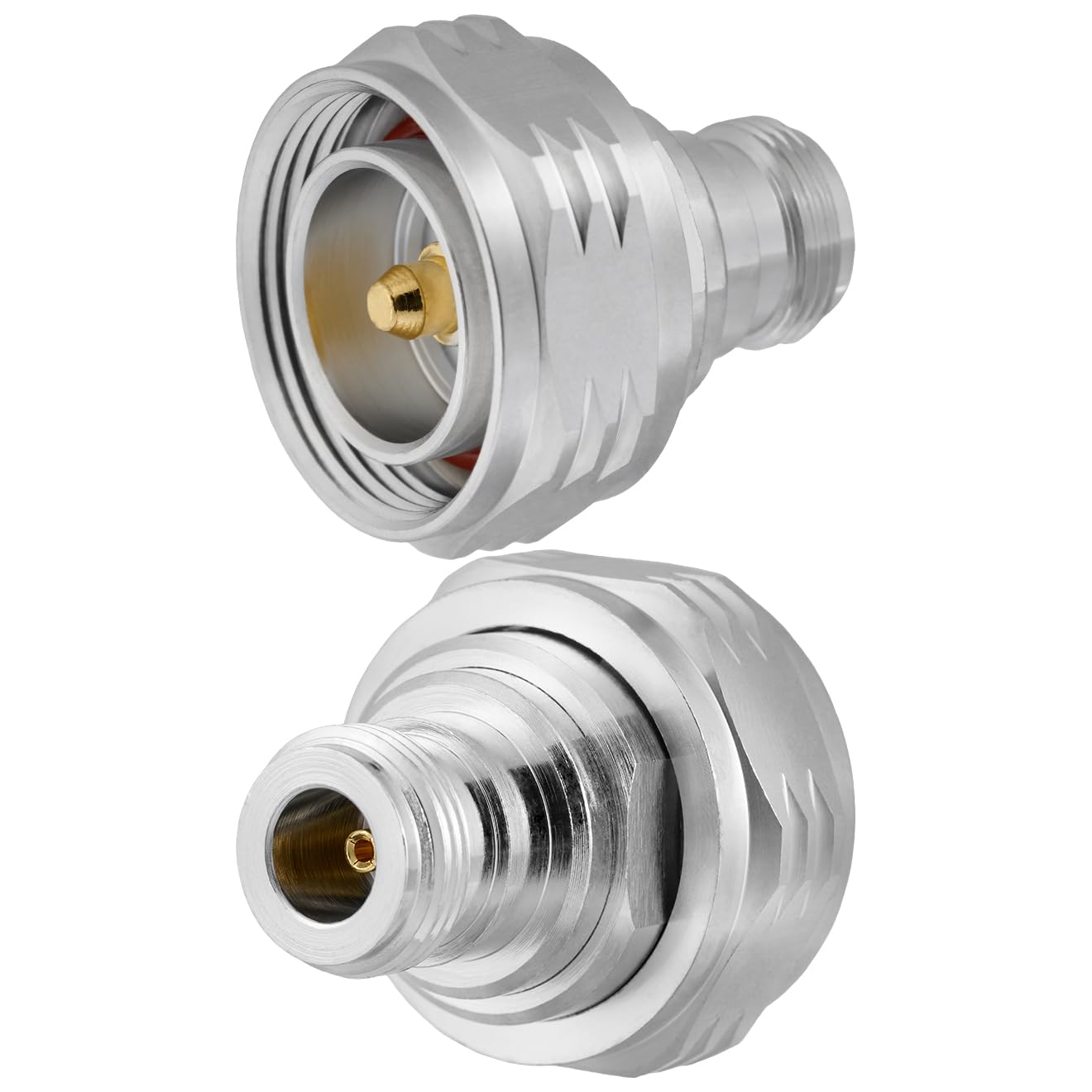

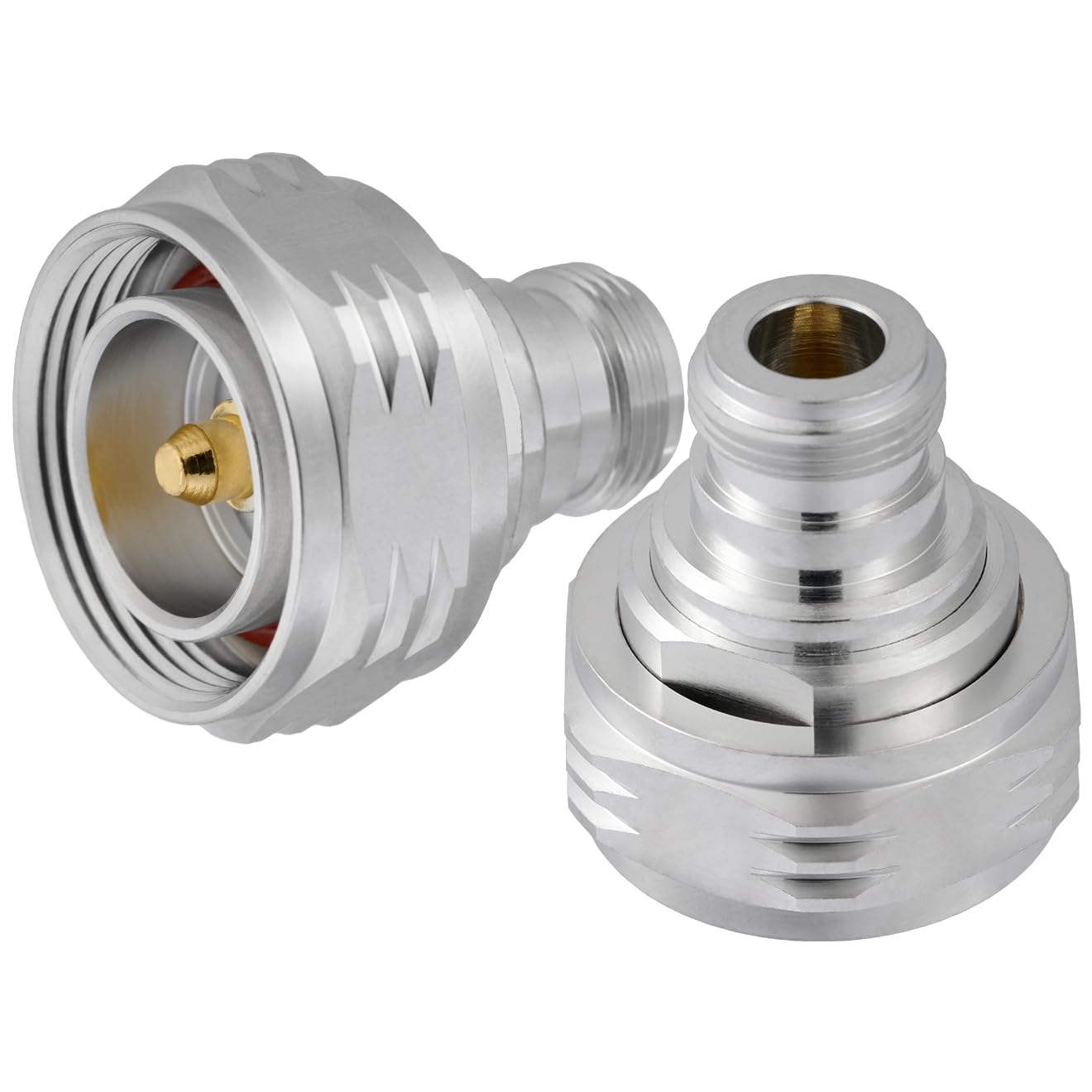

POBADY 2PCS N Female to L29 7/16 DIN Male RF Coaxial Adapter N to 7/16 DIN Adapter Converter for Communication
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Product name: N female to L29 7/16 DIN male RF coaxial adapter;
•Connector type: Connector 1: N female; Connector 2: L29 7/16 DIN male
•Housing material: Copper, nickel plated
•Inner conductor material: Copper
•Contact material: PTFE
•Body style: Straight;
•Impedance: 50 ohm
•Insulator: PTFE
•VSWR: ≤1.2
•Frequency range: DC～3GHz
•Withstand voltage: 1000V rms
•Insulation resistance ≥ 5000 MΩ
•Center contact resistance: ≤ 3 mΩ
•Outer contact resistance: ≤ 2 mΩ
•Temperature range: -45～125°C
•Durability: ≥500 cycles;
•Features: Easy installation, long operating time, good electrical conductivity, strong corrosion resistance;
•Package: 2 x N female to L29 7/16 DIN male adapters
