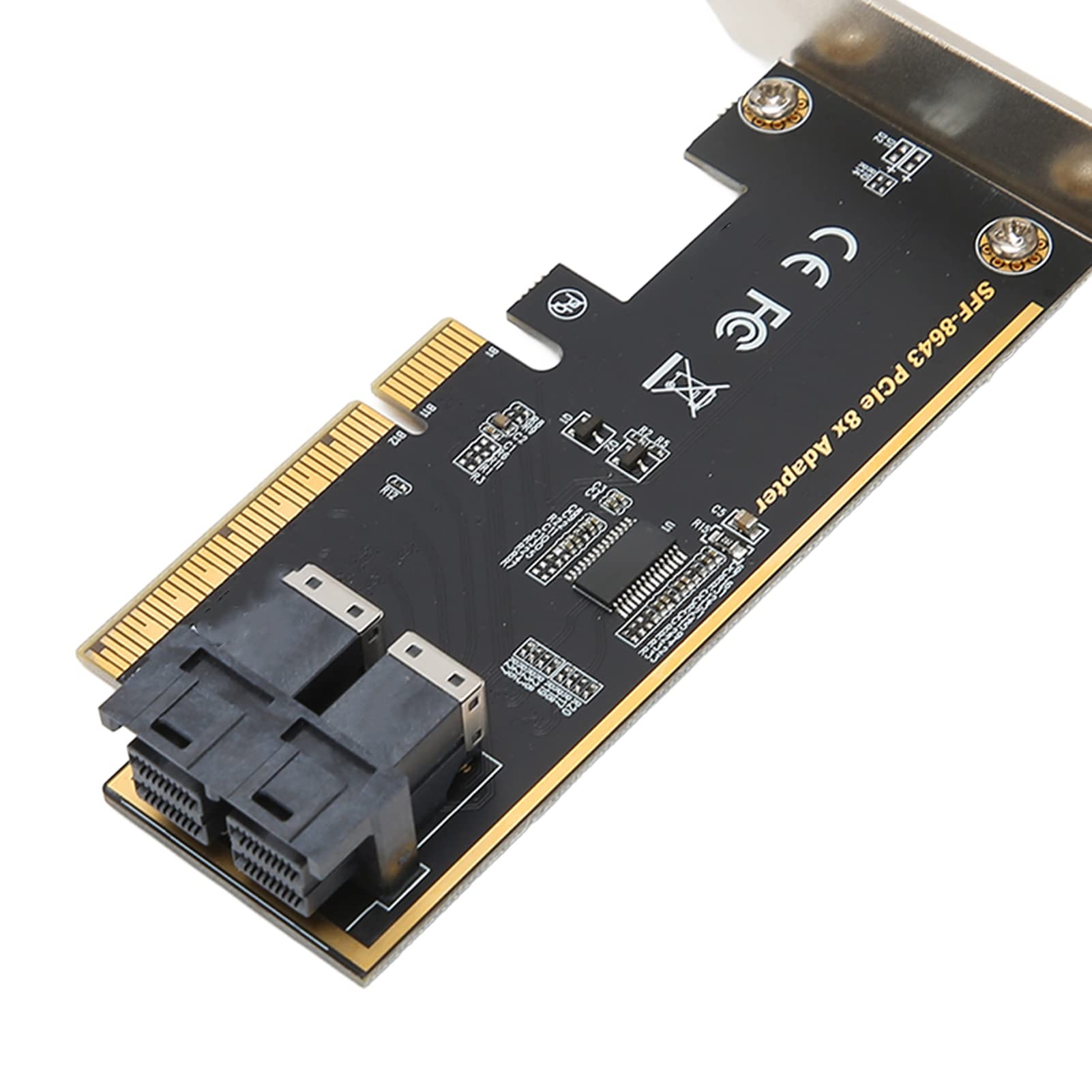

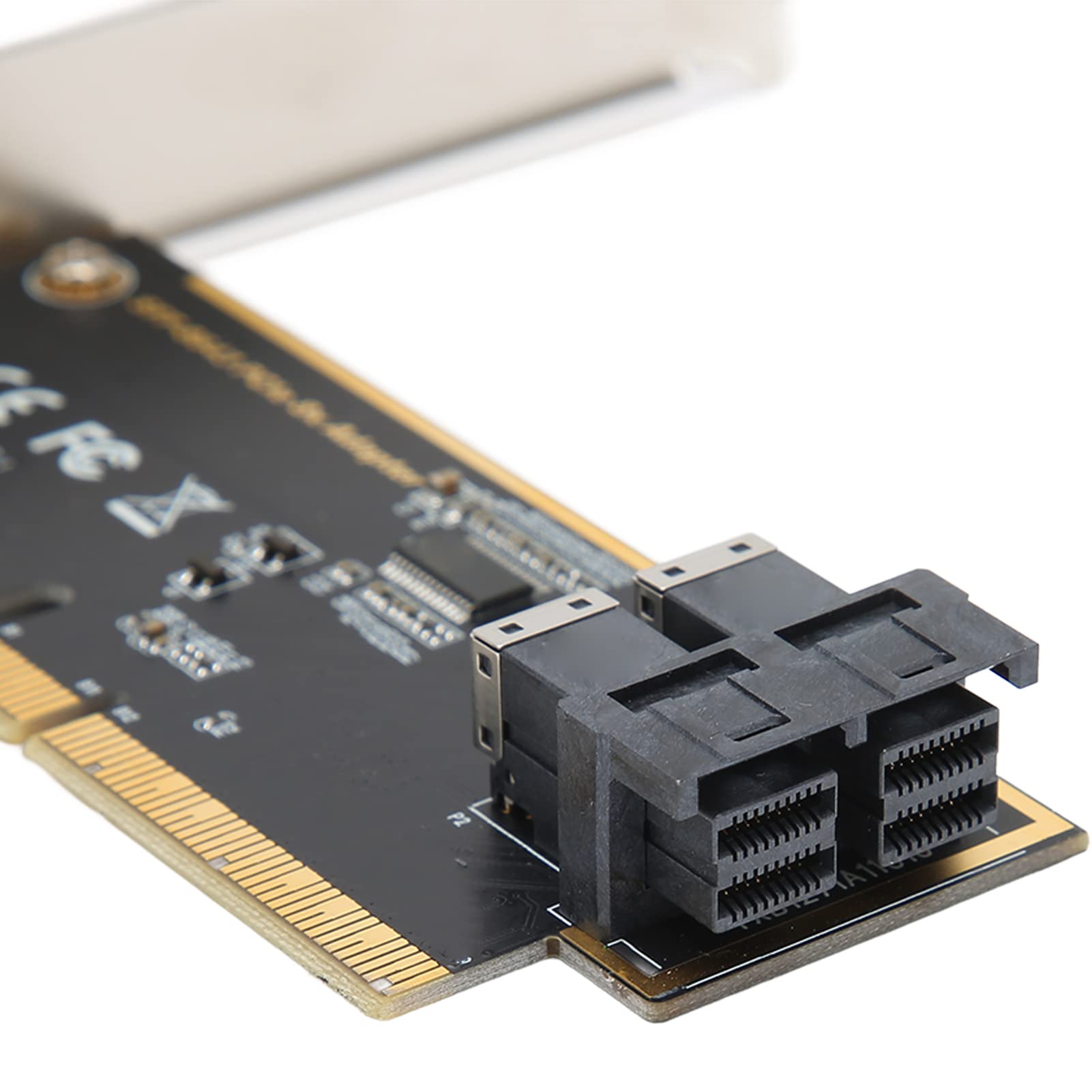

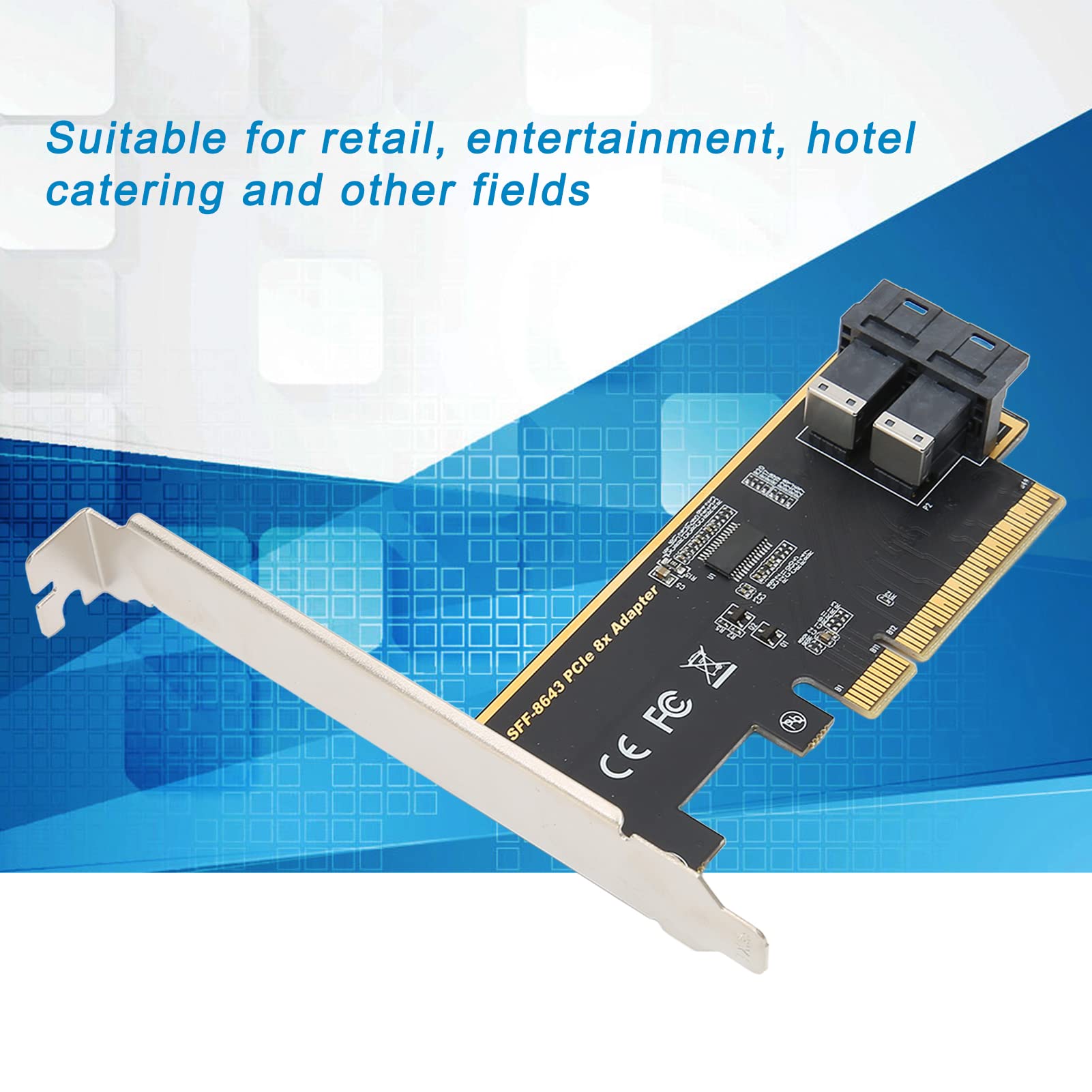

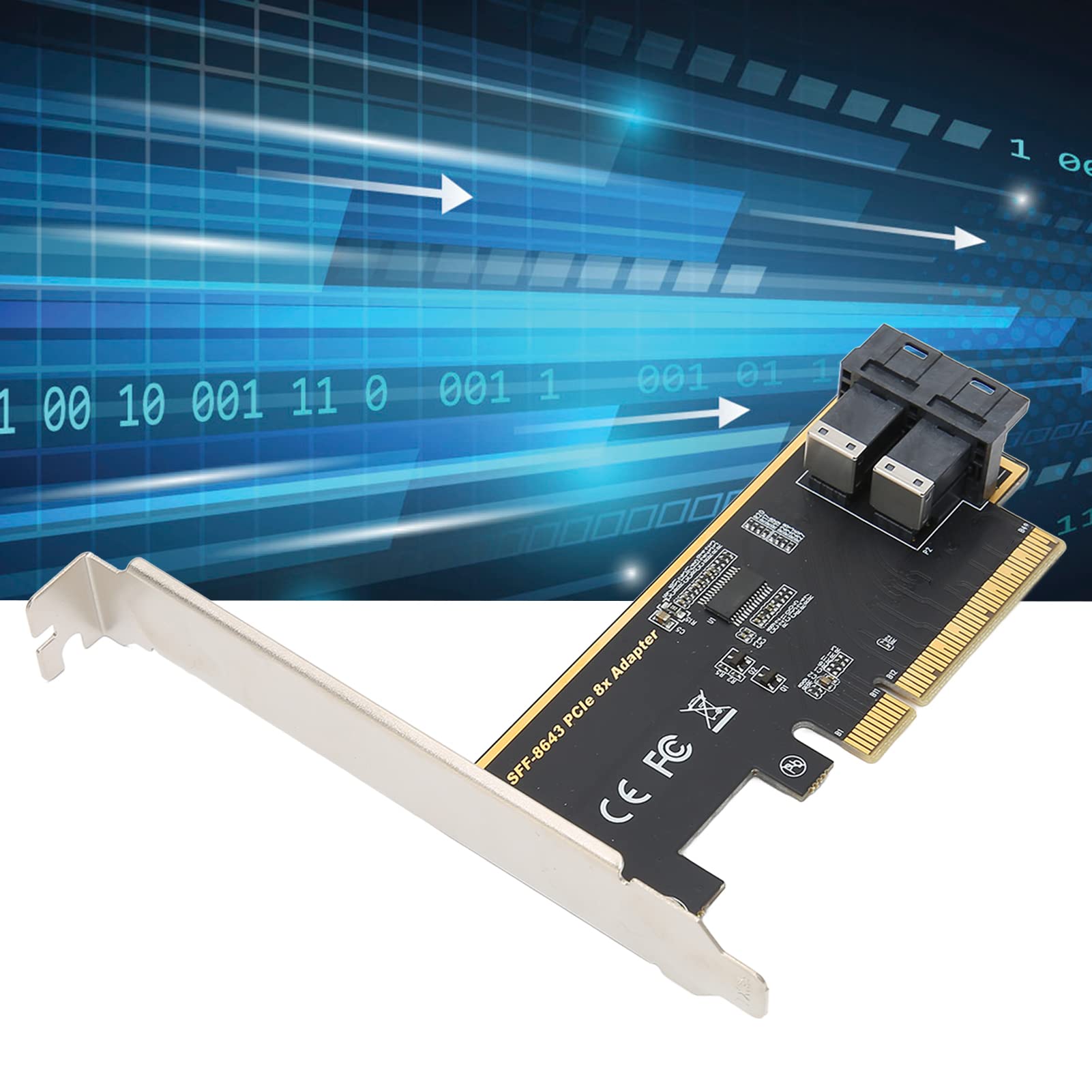

PCIE X8 to U.2 Adapter Card, PCIE Adapter Card, High Compatibility Dual Port SFF 8643 Mini SAS HD 36Pin PCIE Adapter Card for Conventional Desktop
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【Best Solution】Connect two 2.5 inch U.2 (SFF‑8639) PCIe NVMe SSDs to PCIe x8 slots in the system via SFF‑8643 cables (not included). Allows you to install two PCIe NVMe U.2 2.5in SSD drives to your PC system via a PCIe 3.0 x8 card.
•【Parameter】Two SFF 8643 mini SAS HD connectors (requires the motherboard to support split function, only 1 interface is not supported). Interface: PCIE X8 to dual port SFF 8643. Hardware requirements: PCIe 3.0 x4/x8/x16, backward compatible with PCIe 2.0/1.0.
•【Throughput】Using sophisticated production techniques to support a maximum throughput of 32Gbps in PCIe 3.0.
•【Support System】Support for Windows2000, for xp, for server2003, for xp 64bit, for Vista, for win7, for linux, for DOS, for OS X.
•【Easy Installation】The adapter card can transfer 2 SFF 8643 interfaces through the PCle x8 slot of the host computer, and users can connect 2 U.2 SSDs at the same time through the SFF 8643 to U2 (SFF 8639) data cable (not included), with a bus bandwidth. Easy to install, no drivers required.
