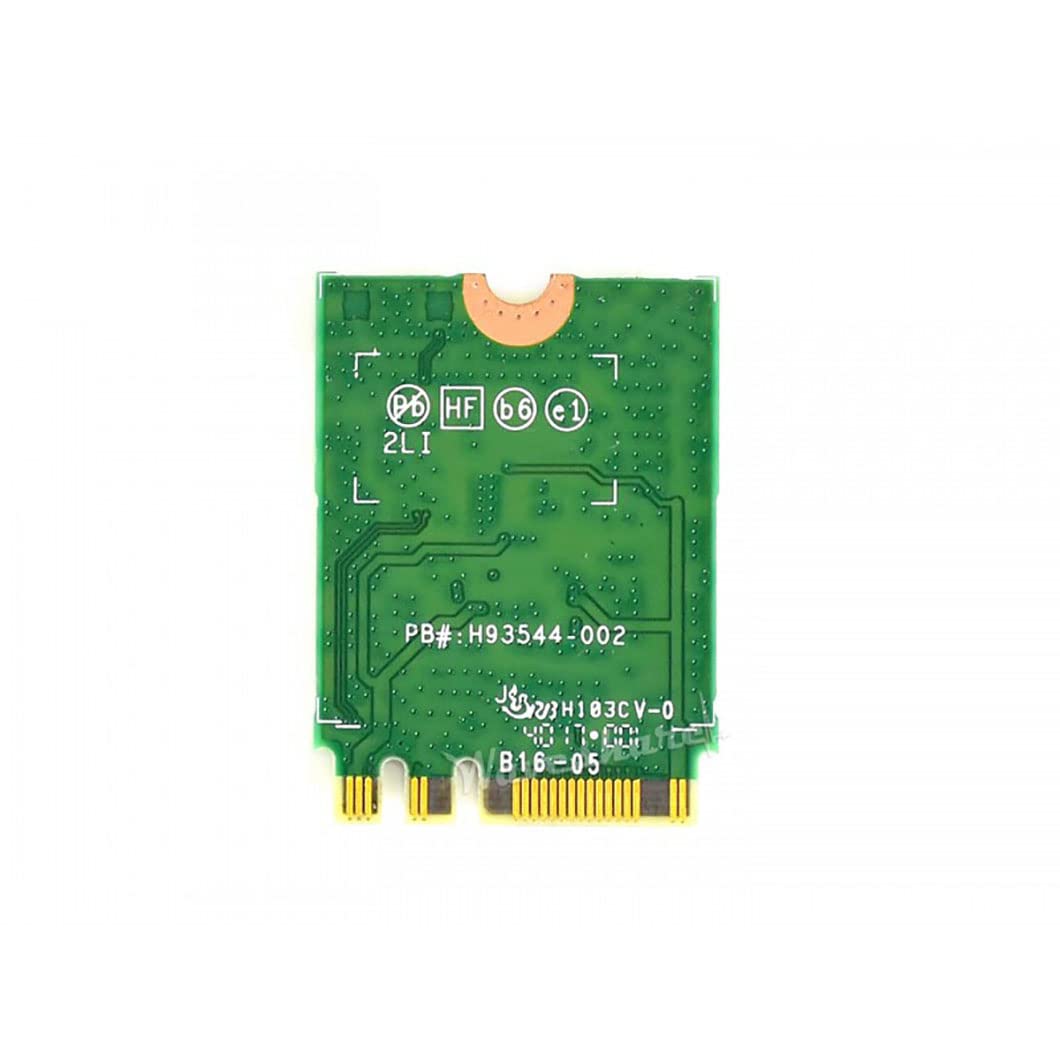

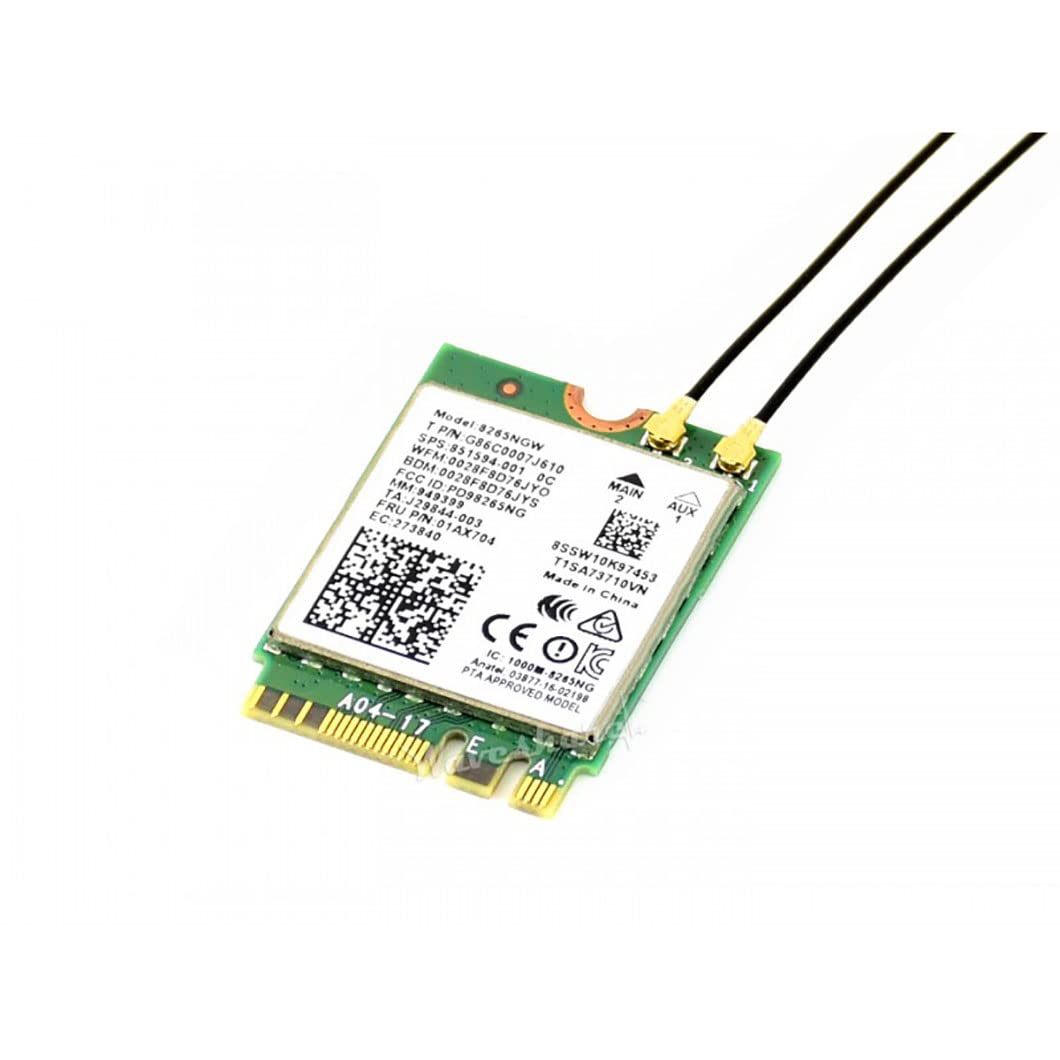

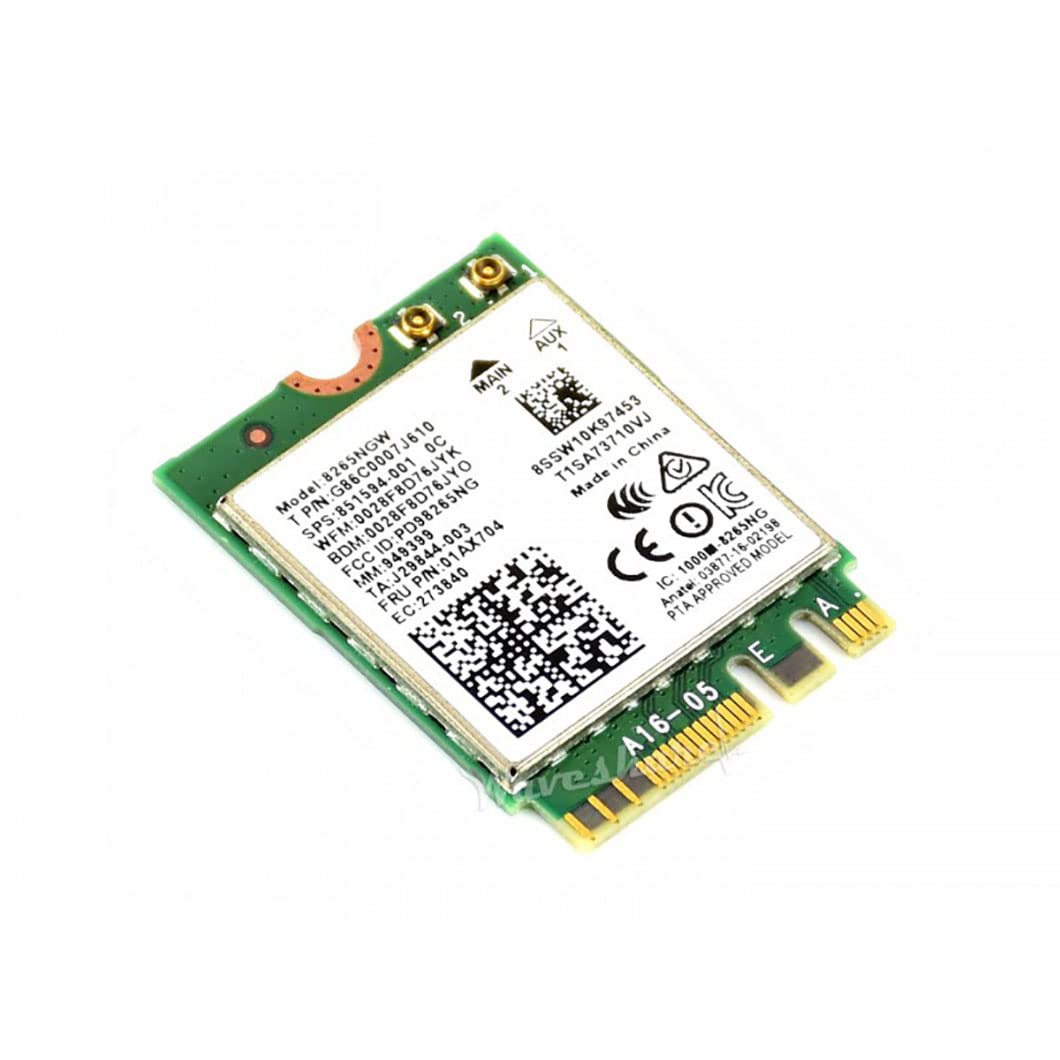

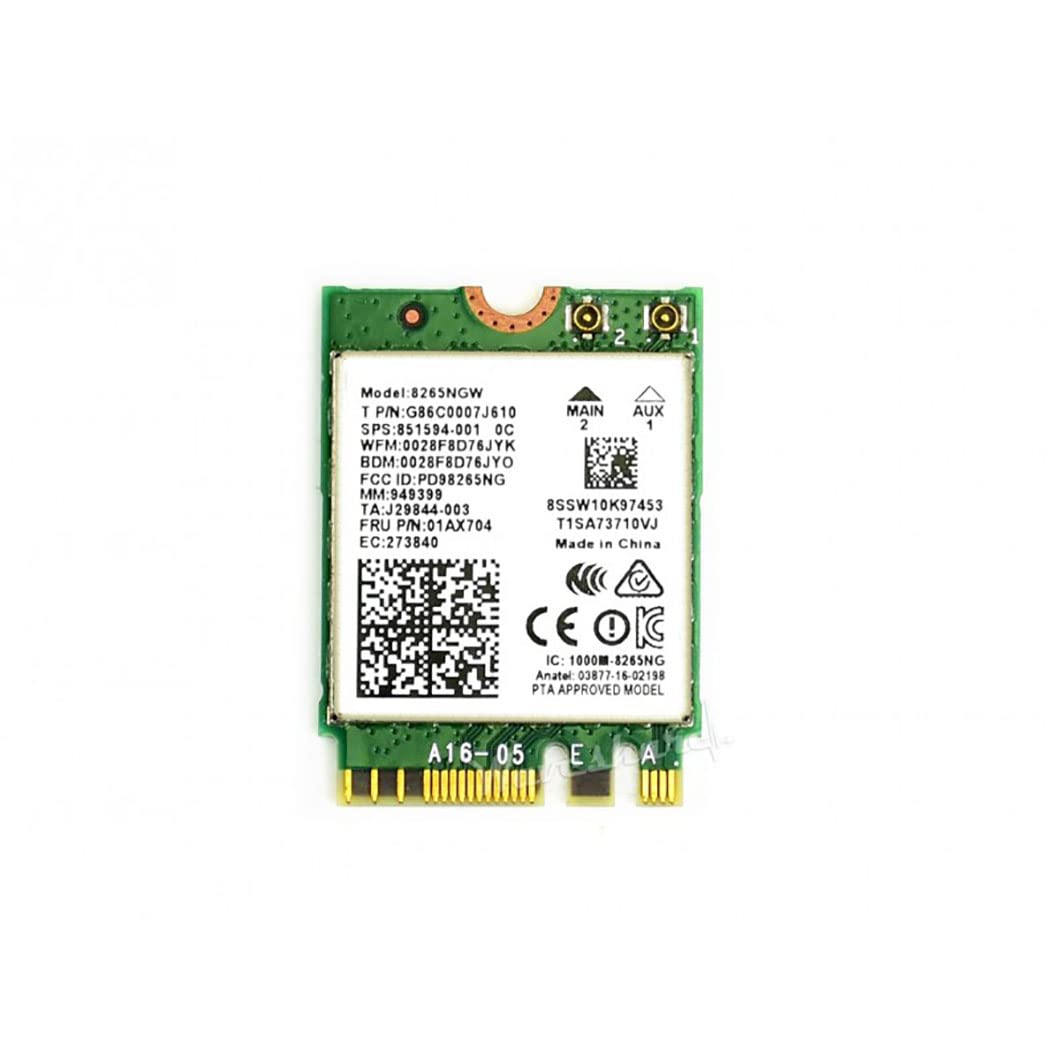

new | Wireless-AC8265 Jetson Nano Kit AC8265 Wireless NIC Module Supports 2.4G / 5G WiFi Bluetooth 4.2 with 8265AC Chip Onboard High Speed 300Mbps / 867Mbps
Brand : Coolwell
new | Wireless-AC8265 Jetson Nano Kit AC8265 Wireless NIC Module Supports 2.4G / 5G WiFi Bluetooth 4.2 with 8265AC Chip Onboard High Speed 300Mbps / 867Mbps
Brand : Coolwell
Product Specifications
Conditionnew
AsinB0BS96TP9R
CategoryElectronics
SubcategoryNetwork Cards
OriginUSA
BrandnameCoolwell
Weight1
Product Details
The wireless module AC8265 is a dual mode wireless NIC module applicable for Jetson Nano, supports 2.4GHz / 5GHz dual band WiFi and Bluetooth 4.2.
The AC8265 wireless communication module supports 2.4GHz / 5GHz dual band, the WiFi protocol is 802.11ac
The communication module AC8265 with NIC interface: NGFF (M.2)
The AC8265 NIC module supports OS: Linux, Windows 10/8.1/8/7
Feel free to contact us if you need technical support.
Product Description
Features

Chip: Intel 8265AC
Bands: 2.4GHz / 5GHz
Speed: 300Mbps / 867Mbps
WiFi protocol: 802.11ac
Bluetooth version: 4.2
NIC interface: NGFF (M.2)
Antenna interface: IPEX connector
Supported OS: Linux, Windows 10/8.1/8/7
Dimensions: 22mm × 30mm × 2.4mm

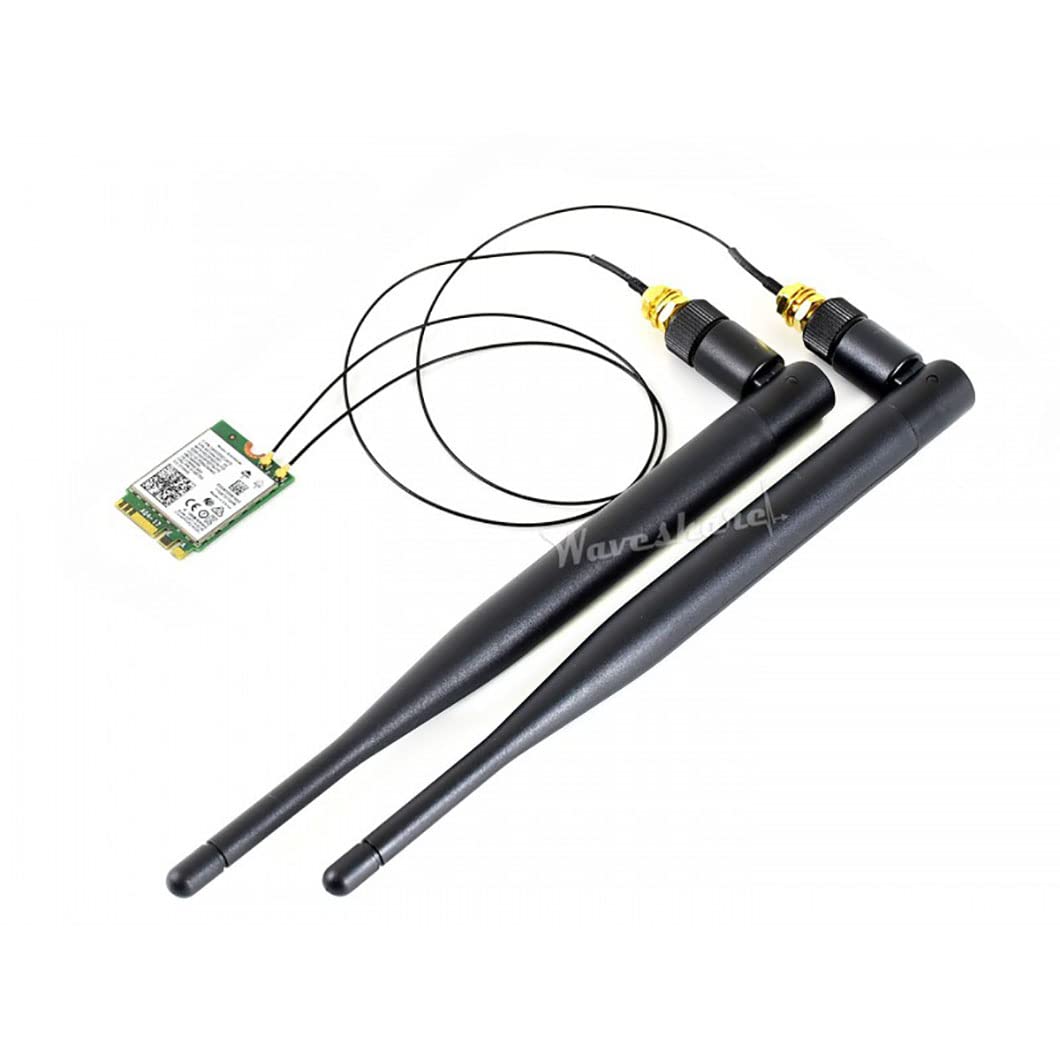

Package include

1. Wireless-AC8265 x1
2. Antenna x2
3. IPEX to SMA cable x2
Product Description
Features

Chip: Intel 8265AC
Bands: 2.4GHz / 5GHz
Speed: 300Mbps / 867Mbps
WiFi protocol: 802.11ac
Bluetooth version: 4.2
NIC interface: NGFF (M.2)
Antenna interface: IPEX connector
Supported OS: Linux, Windows 10/8.1/8/7
Dimensions: 22mm × 30mm × 2.4mm


Package include

1. Wireless-AC8265 x1
2. Antenna x2
3. IPEX to SMA cable x2
