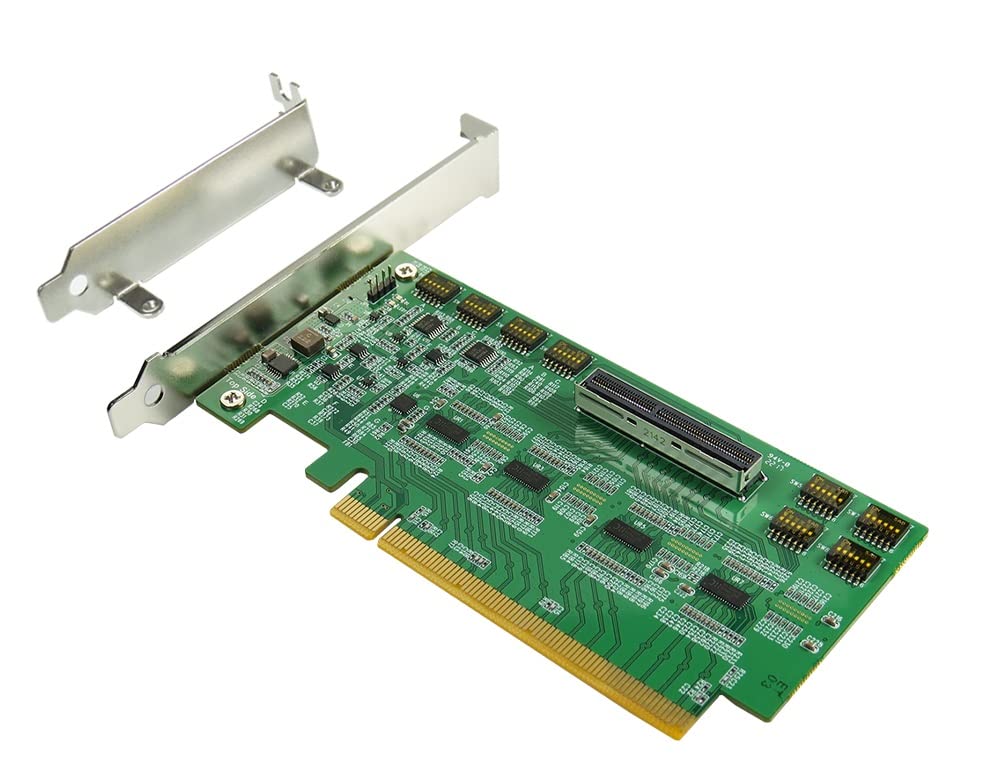

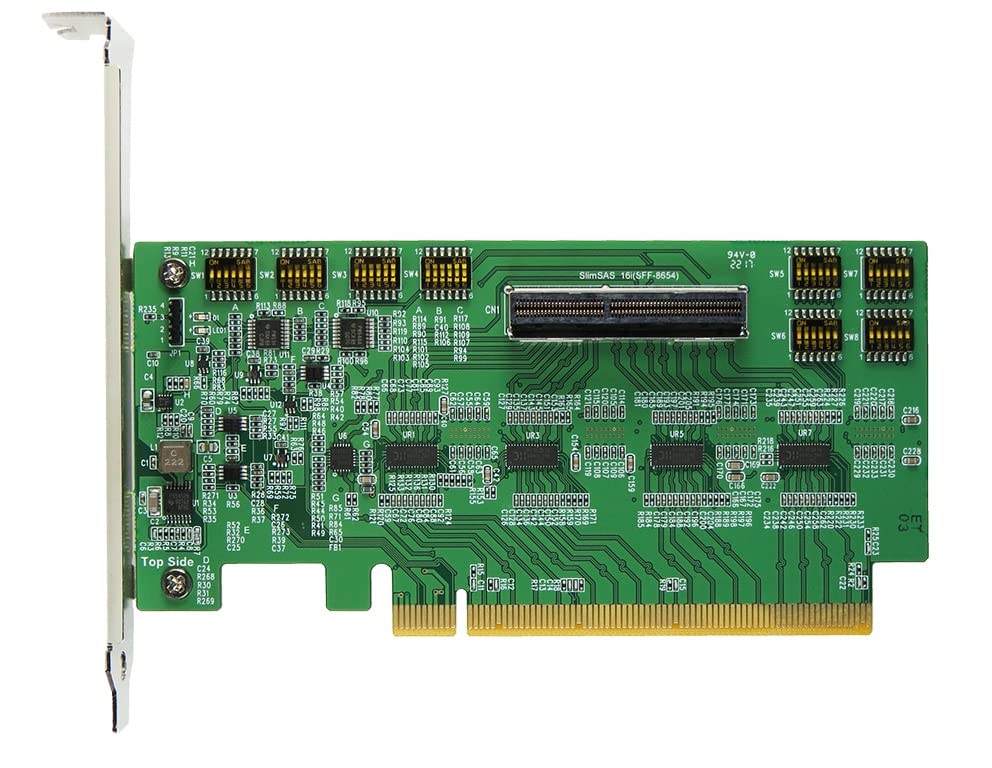

new Micro SATA Cables - SlimSAS 16i Add-in-Card PCIe 4.0

02501BAUXXB0BRJQQC8D
Shoptheworld
Shop the word
Shoptheworld
    1
    2
    3
    4
    5
    6
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
flagProduct From USA
new | Micro SATA Cables - SlimSAS 16i Add-in-Card PCIe 4.0
02501BAUXXB0BRJQQC8D
Micro SATA Cables
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details
The device is designed to support the PCIe 4.0 specification.
The device includes a PCIe x16 connector on one end and a SlimSAS 16i connector on the other end.
The device also includes a ReDriver, which is a type of signal repeater that is used to clean up and amplify the signal between the computer and the add-in-card.
The device may also include other features such as voltage regulation, noise filtering, and protection against power surges and electrostatic discharge (ESD).
Micro SATA Cables Part#SLM-2013-PCIe
Product Ranking
#4909 in Internal Computer Networking Cards
Product Description

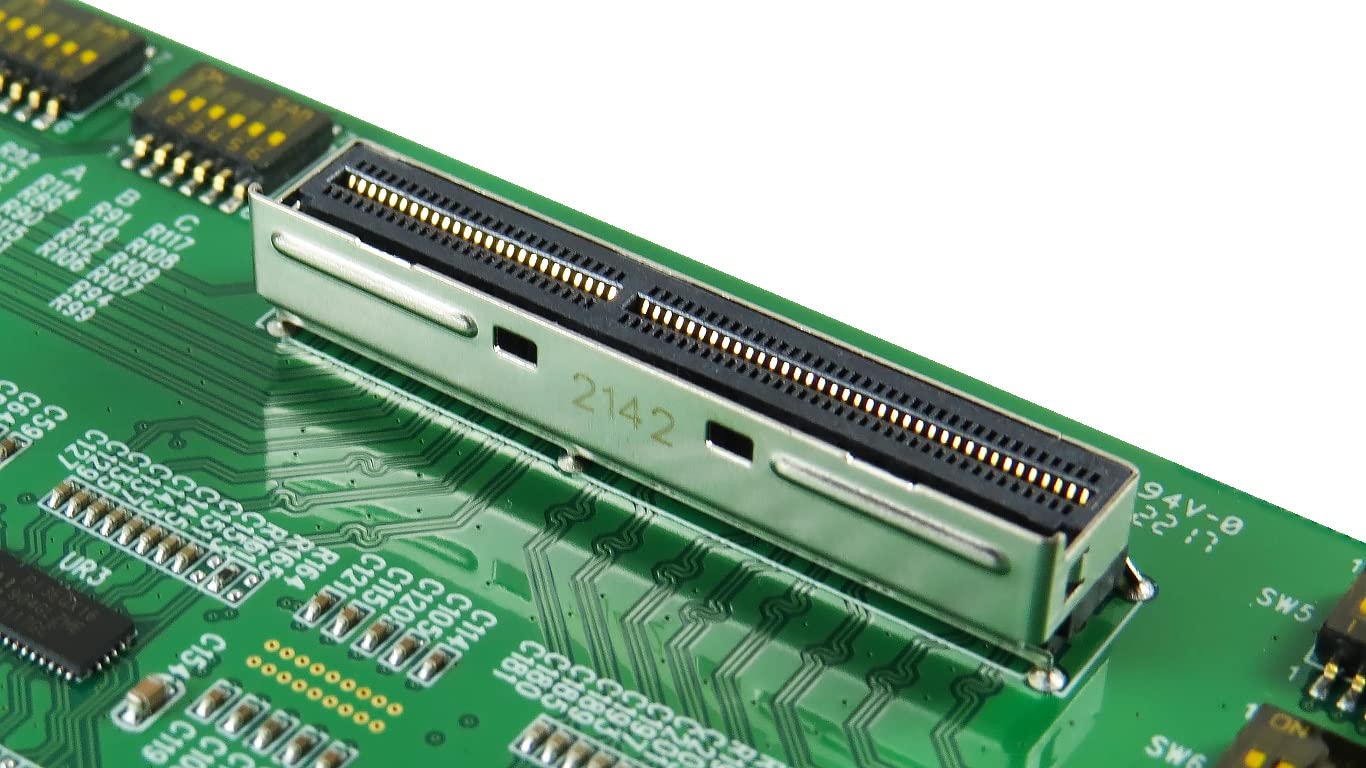

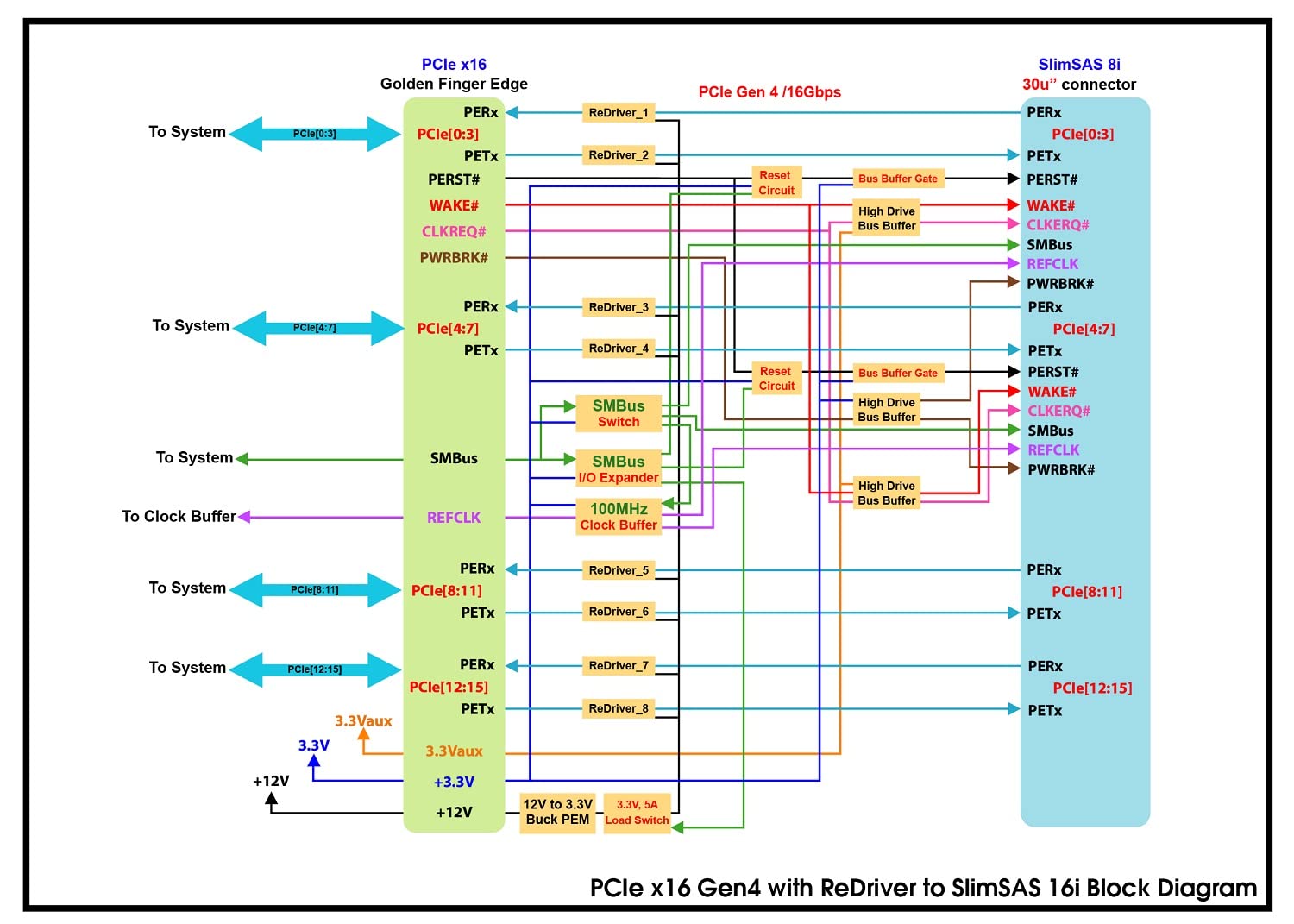

PCIe x16 with ReDriver to SlimSAS 16i Add-in-card PCIe 4.0 SlimSAS 16i(SFF-8654) to PCIe x16 Gen4 convert Built-in SlimSAS 16i(SFF-8654) connector Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width. The PCIe 16 lanes can be bifurcated into four x4 or two x8 link width to support different system topologies Built-in PCIe 4.0 100MHz Clock 2-output Fanout buffers(Address: 0x6C) for two x4 to drive longer cable length. It may be buffered and fanned out to the SlimSAS 16i(SFF-8654) clock pin. Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SlimSAS 16i(SFF-8654) SMBus communication Built-in SMBus I/O Expander(Address: 0x20) for OOB(out of band) management to remote SlimSAS 16i (SFF-8654) Reset signals. Supports PCIe PERST# management to control SlimSAS 16i(SFF-8654) Reset signals. Built-in PERST# Bus Buffer to be used over longer cable length. LED1 Green LED on indicates AIC 3.3V ready Specifications : PCI Express Base Specification Rev 4.0 PCIe_CEM_SPEC_R4_V1_0_08072019_NCB Compliant with Support SFF-9402 Rev1.1 Operating System Support : Windows 7 Windows 8 &8.1 Windows 10 UEFI 2.3.1 or later Applications : Rack server Microserver and Tower server High performance computing Hareware accelerator Storage Controller HBA(Host Bus Adapter) Desktop PC/motherboard Operating system support Applications <p>Micro SATA Cables Part# SLM-2013-PCIE</p>
Product Specifications
Conditionnew
AsinB0BRJQQC8D
CategoryElectronics
SubcategoryNetwork Cards
LeafcategoryINPUT_OUTPUT_CARD
MPN611851926373
OriginUSA
BrandnameMicro SATA Cables
Weight1
