Product From USA new | Micro SATA Cables|M.2 M-Key PCIe 4.0 with ReDriver to MCIO 38P Adapter
Brand : Micro SATA Cables
new | Micro SATA Cables|M.2 M-Key PCIe 4.0 with ReDriver to MCIO 38P Adapter
Brand : Micro SATA Cables
Product From USA | Condition | new |
|---|---|
| Asin | B0BNNX61X3 |
| Category | Electronics |
| Subcategory | Network Cards |
| Leafcategory | INPUT_OUTPUT_CARD |
| MPN | MCIO-2005-M2 |
| Connector Type | MCIO 38P, PCIe ReDriver |
| Origin | USA |
| Brandname | Micro SATA Cables |
| Weight | 1 |

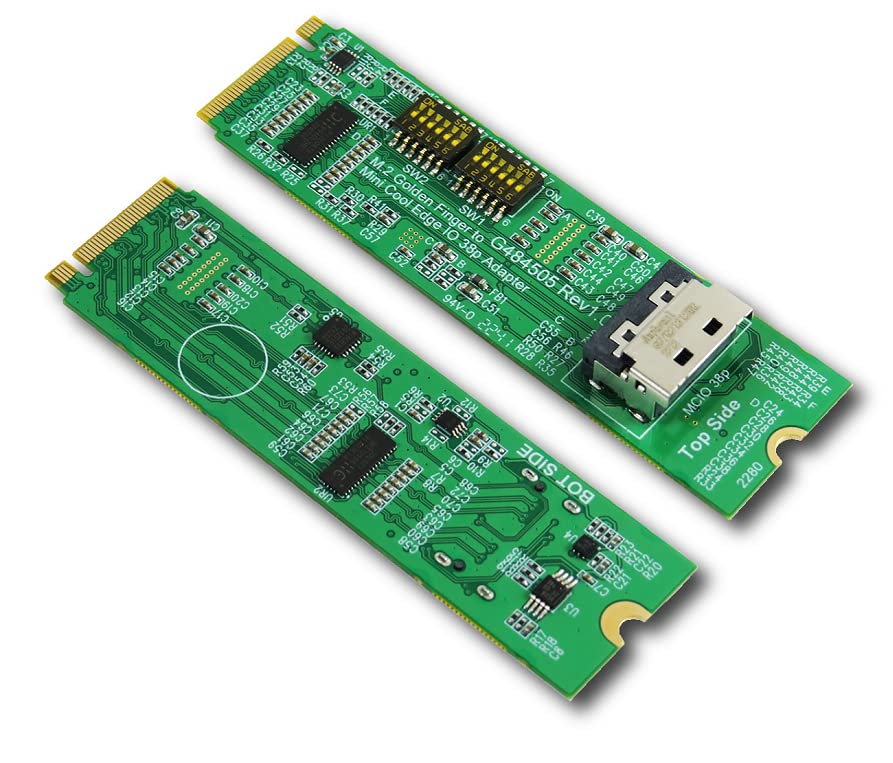

M.2 M-key PCIe 4.0 with ReDriver to MCIO 38P Adapter
Features :
MCIO 38P (SFF-TA-1016) to M.2 PCIe 4.0 convert
Built- in MCIO 38P connector with 30u”(0.76um) min Au mating area plating

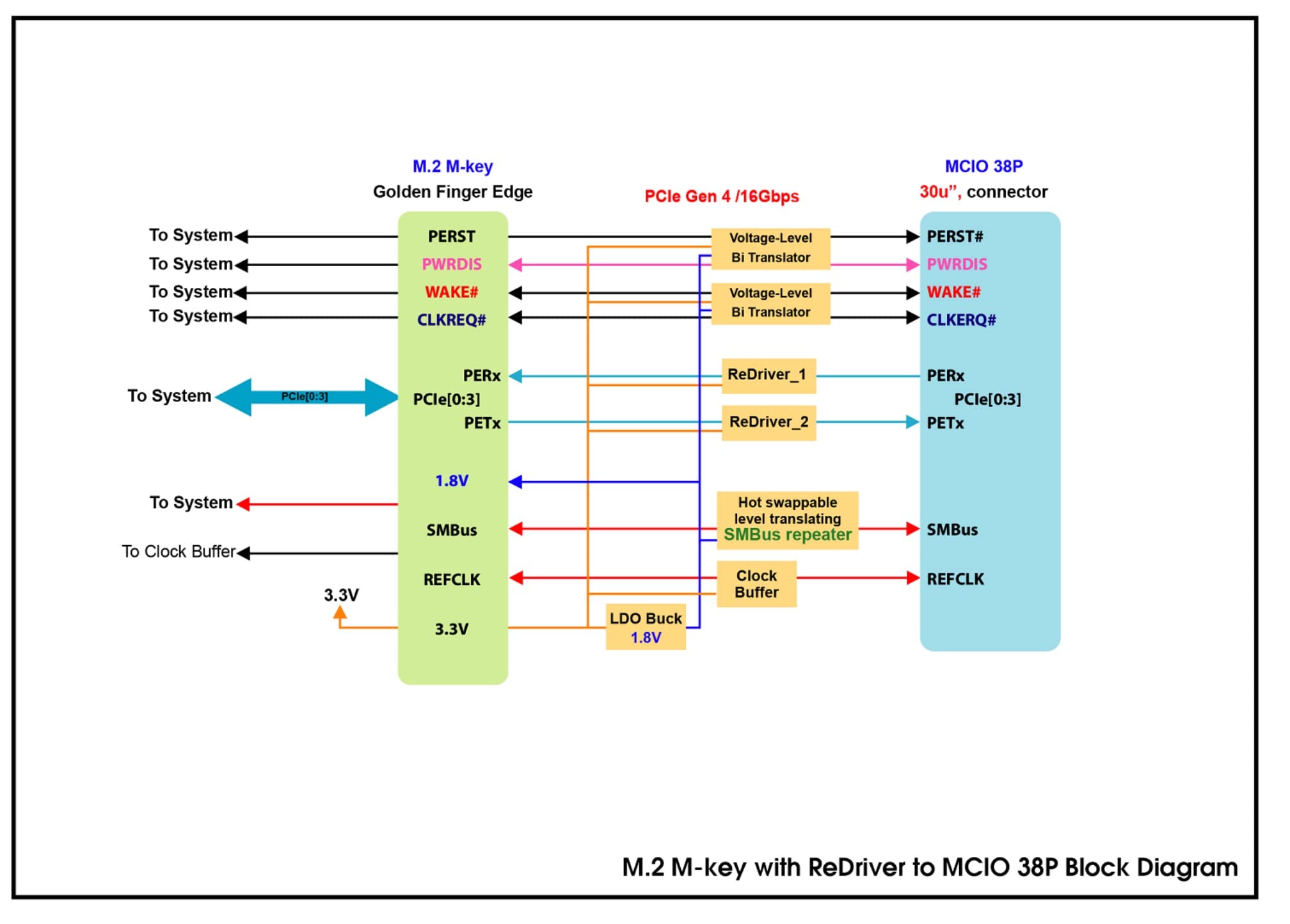

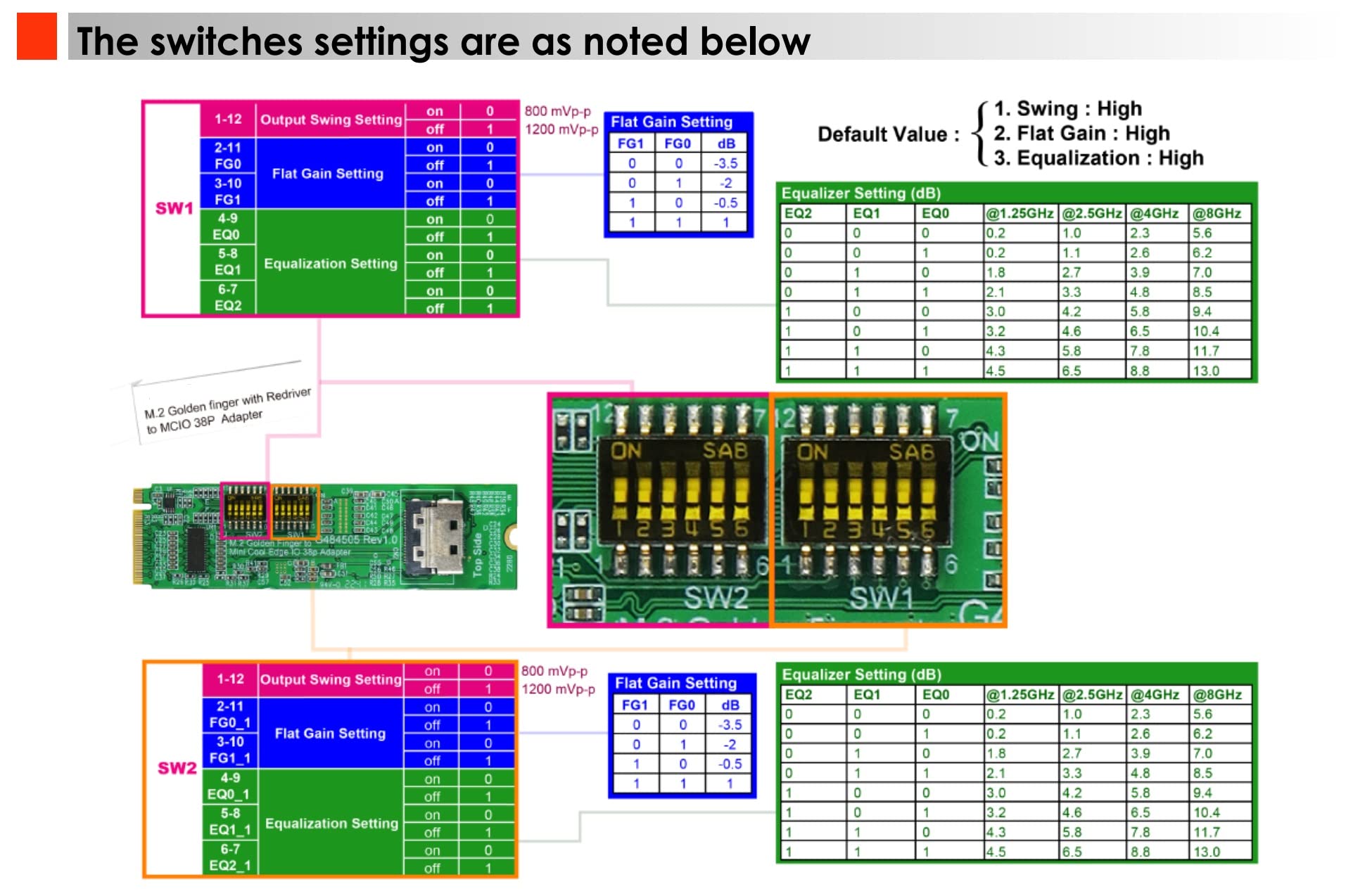

Built- in PCIe ReDriver to extend PCIe 4.0, 16GT/s differential pair signals
Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
Built- in SMBus repeater and Voltage level shift with Hot swappable level translating
Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A11 pin
Built- in WAKE# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B8 pin
Built- in CLKREQ# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A12 pin
Built- in PWRDIS Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B9 pin
Specifications :
PCI Express Base Specification Rev 4.0
PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
Compliant with SFF-TA-1016 Rev 1.0
Compliant with SFF-9402 Specification Version 1.1
PCI Express M.2 Spec Rev4.0 Ver1.0 11052020 NCB
Design follows the Intel Pinout.
Operating System Support :
Windows 7
Windows 8 &8.1
Windows 10
UEFI 2.3.1 or late
Micro SATA Cables PN # MCIO-2005-M2
M.2 M-key PCIe 4.0 with ReDriver to MCIO 38P Adapter
Features :
MCIO 38P (SFF-TA-1016) to M.2 PCIe 4.0 convert
Built- in MCIO 38P connector with 30u”(0.76um) min Au mating area plating
Built- in PCIe ReDriver to extend PCIe 4.0, 16GT/s differential pair signals
Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
Built- in SMBus repeater and Voltage level shift with Hot swappable level translating
Built- in PERST# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A11 pin
Built- in WAKE# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B8 pin
Built- in CLKREQ# Bidirectional Voltage-Level Translator, it is tied to MCIO 38P A12 pin
Built- in PWRDIS Bidirectional Voltage-Level Translator, it is tied to MCIO 38P B9 pin
Specifications :
PCI Express Base Specification Rev 4.0
PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
Compliant with SFF-TA-1016 Rev 1.0
Compliant with SFF-9402 Specification Version 1.1
PCI Express M.2 Spec Rev4.0 Ver1.0 11052020 NCB
Design follows the Intel Pinout.
Operating System Support :
Windows 7
Windows 8 &8.1
Windows 10
UEFI 2.3.1 or late
Micro SATA Cables PN # MCIO-2005-M2
