new | Nanopi R5C Wireless Mini WiFi Router OpenWRT with Rockchip RK3568B2 Soc 0.8T NPU 4GB LPDDR4X RAM 32GB eMMC Onboard Dual PCIe 2.5Gbps Ethernet Ports M.2 BT WiFi Module Slot Support Debian Ubuntu
02501BAUXXB0BNNNGTND
WayPonDEV
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details

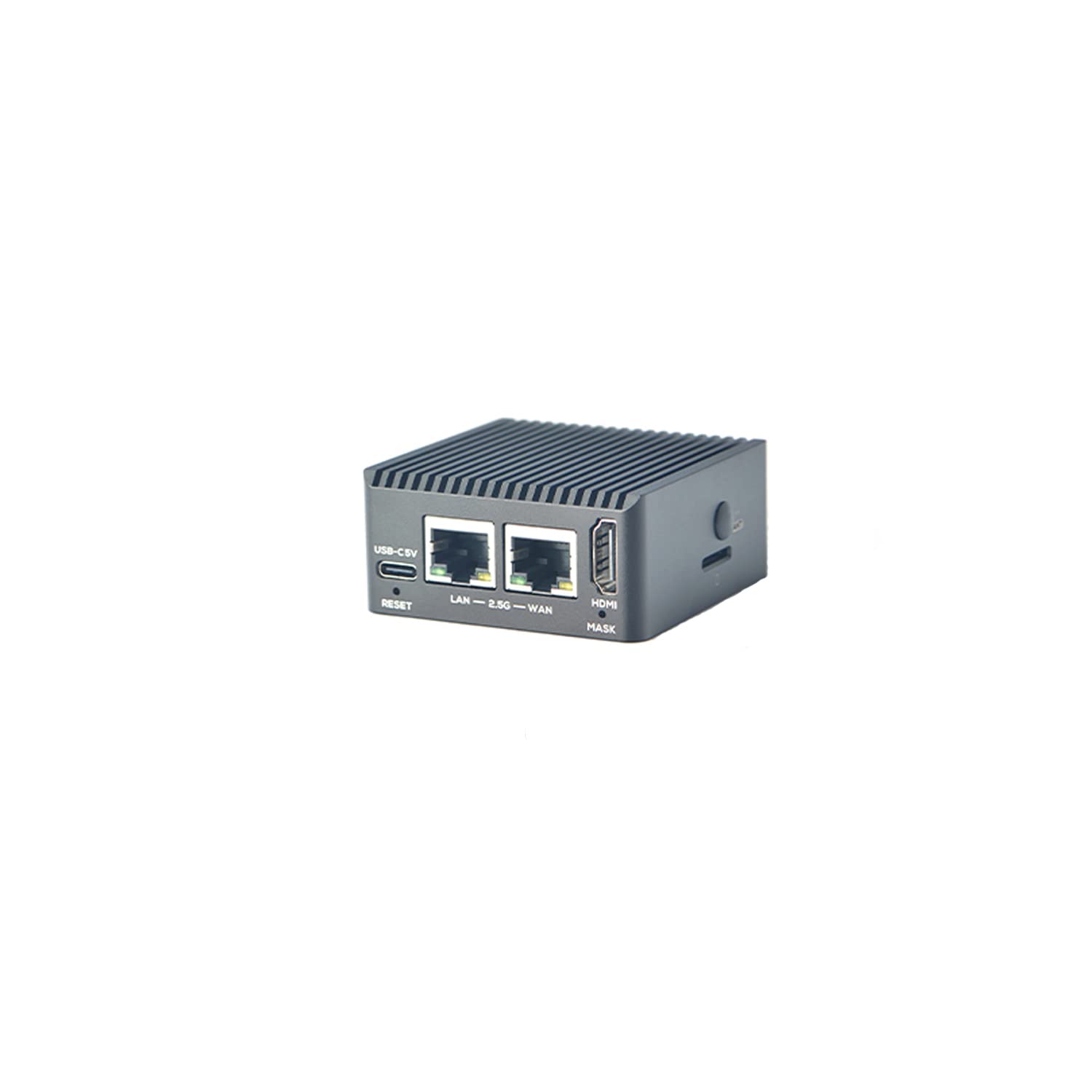

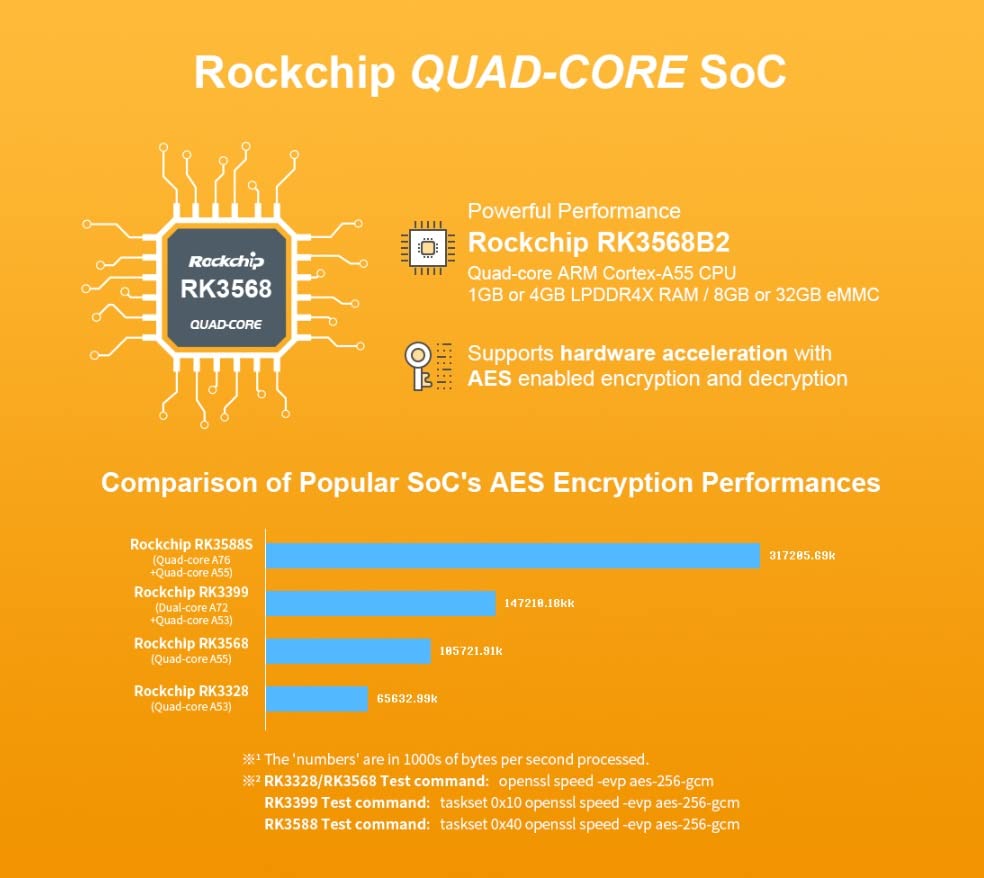

[WIRELESS MOBILE MINI TRAVEL ROUTER] Nanopi R5C Mini Wifi Router Adopt Rockchip RK3568B2 Soc, with 4GB LPDDR4x RAM and 32GB eMMC; CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz; GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile; NPU: Support 0.8T.
[OPEN SOURCE and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It can also be used as a command line mode for geeks

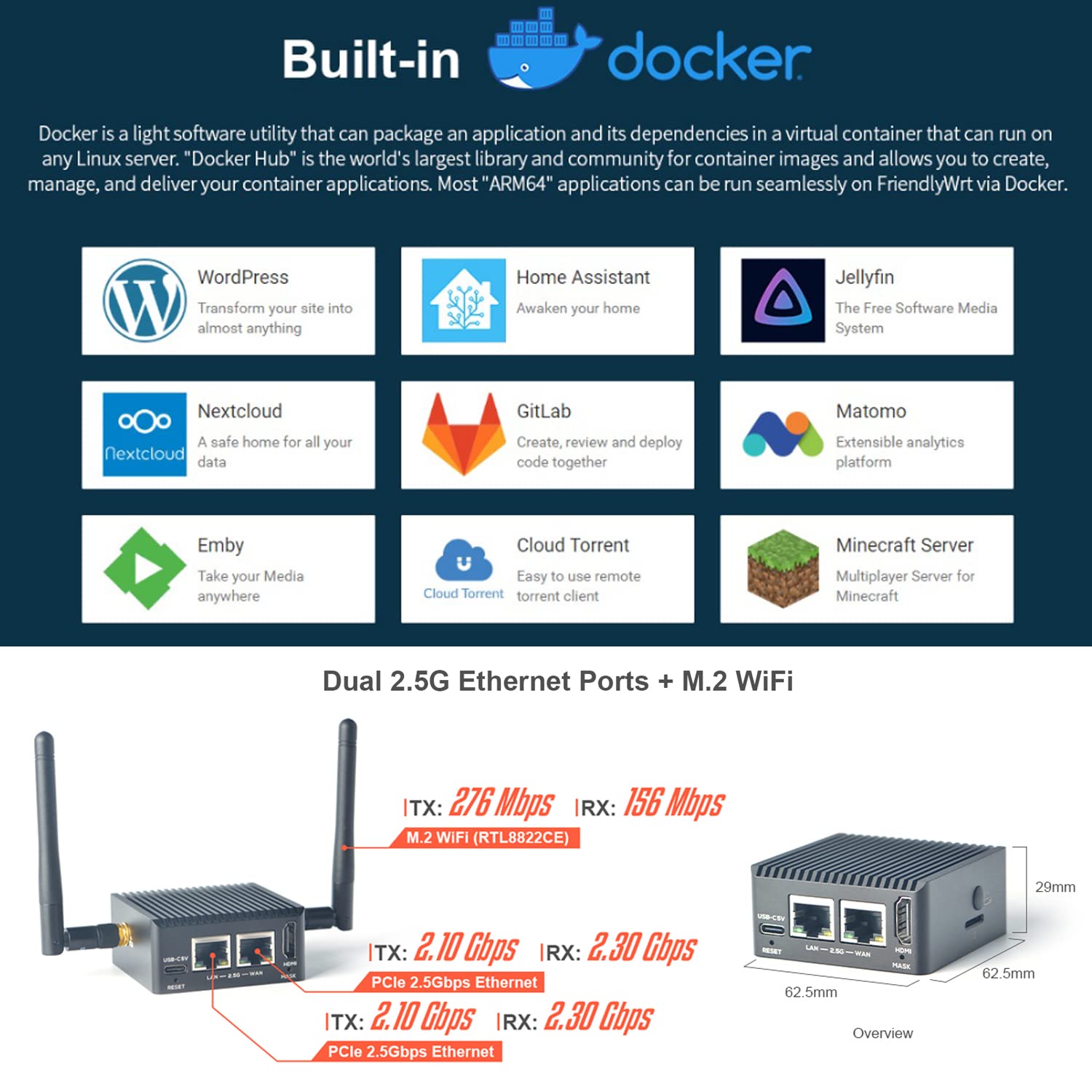

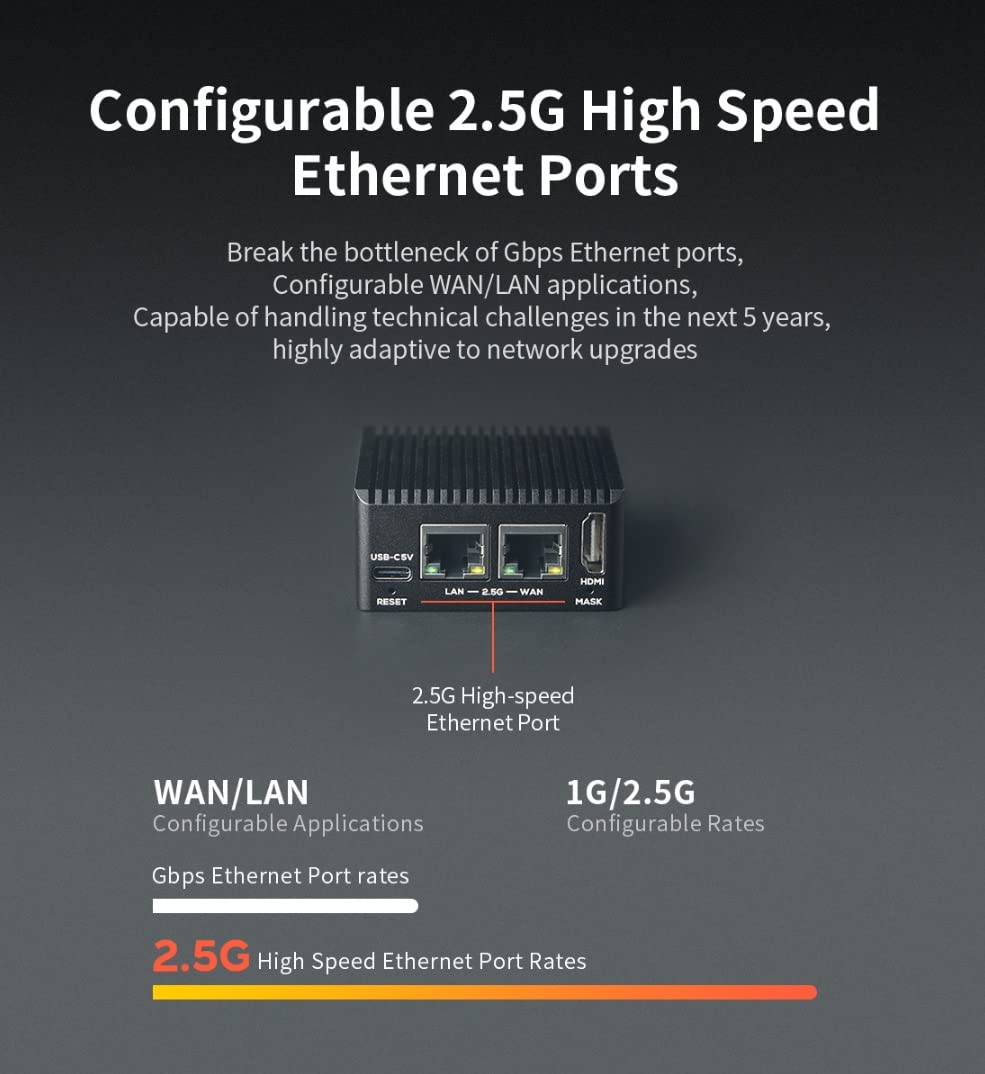

[Dual PCIe 2.5G GBPS ETHERNET PORTS] The NanoPi R5C Mini Router has dual PCIe 2.5Gbps Ethernet ports; M.2 WiFi(RTL8822CE) support 802.11 a/b/g/n/ac protocol,TX rate is 276Mbps,RX rate is 156Mbps.

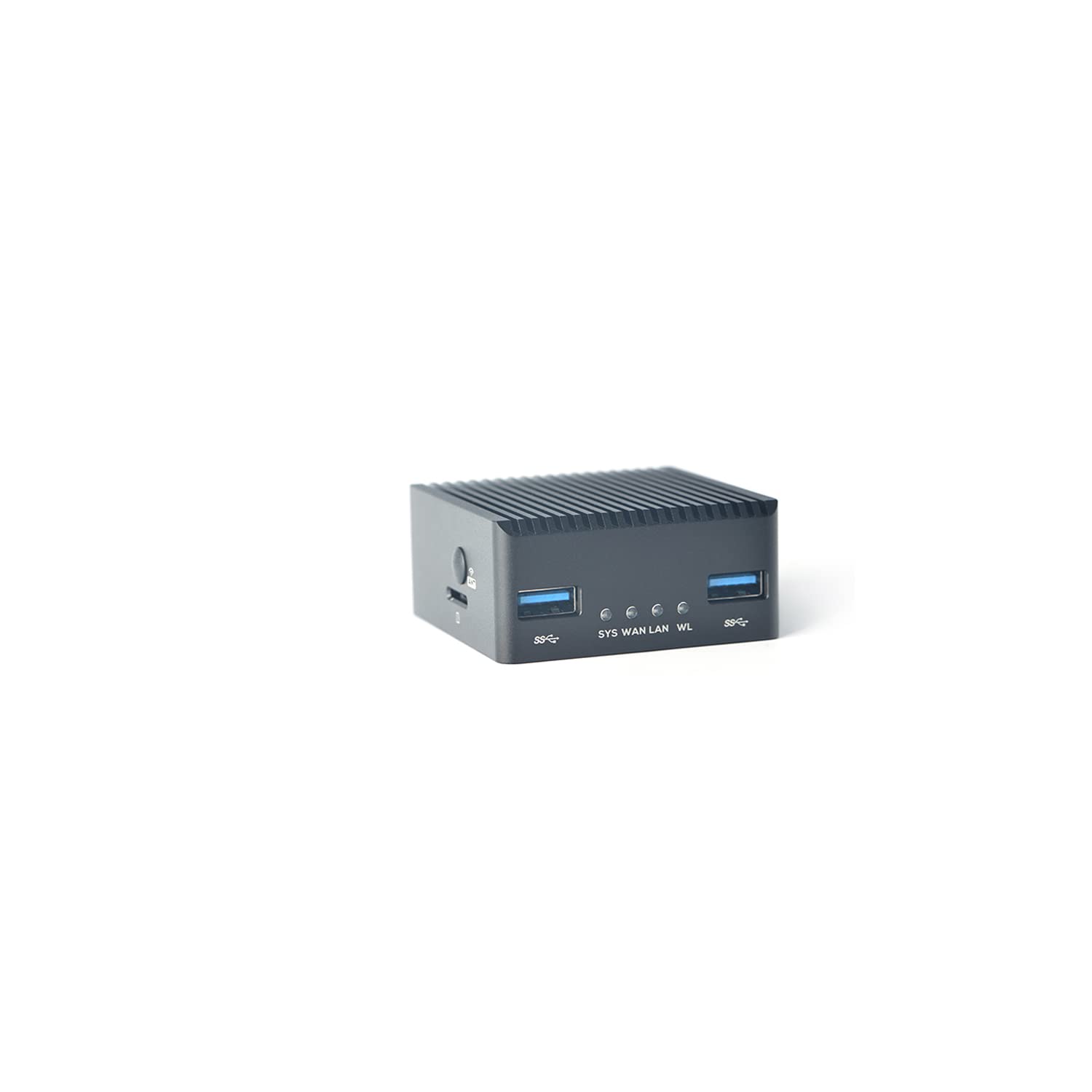

[LARGER EXTENSIBILITY & Interface] NanoPi R5C Router supports M.2 WiFi and Bluetooth Module, with M.2 Key E: PCIe2.1 x1, USB 2.0 x1 Ports;microSD: support UHS-I; USB: two USB 3.2 Gen 1 Type-A ports; Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level ;1 x HDMI output interface; LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)
[OS/Software] NanoPi R5C Portable Router Running Android, FriendlyWrt 22.03(64-bit), Debian Buster Desktop (64-bit), FriendlyCore Focal Lite(Base on Ubuntu 20.04), Buildroot; Kernel version: Linux-5.10-LTS/U-boot-2017.09.
[4K Video Decoders and Encoders] NanoPi R5C mini portable travel Router support 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder.
[USER MANUAL] WiKi:"https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5C". Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ''forum.youyeetoo.com/'' and ask a question.
What's Inside The Box ?
1 x Nanopi R5C 4GB RAM 32GB eMMC Mini Router--with CNC Metal Case
Product Ranking
#367 in Computer Routers
#56222 in Electronics
Product Description

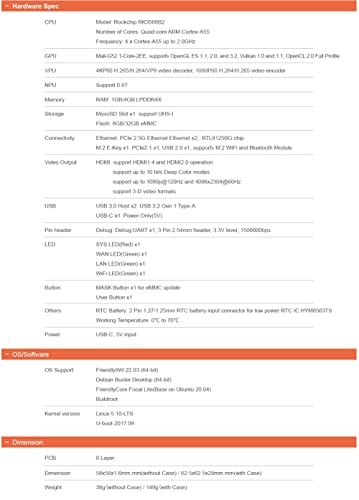

<p><b>NanoPi R5C</b> ("R5C" for short) is a dual 2.5G development board, it uses Rockchip RK3568B2 as the main control processor, is equipped with 4GB LPDDR4x memory, and 32GB eMMC flash memory, and supports TF card to start and run FriendlyWrt and other systems . It has 1 HDMI output interface, can run Android, Buildroot, Debian, Ubuntu desktop and other systems, and can also be used as a command line mode that geeks like.</p> <p><b>-Specification-</b></p> <p>SoC: Rockchip RK3568B2</p> <p>CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz</p> <p>GPU: Mali-G52 1-Core-2EE,supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile</p> <p>VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder</p> <p>NPU: Support 0.8T</p> <p>RAM: 4GB LPDDR4X</p> <p>Flash: 32GB eMMC</p> <p>Ethernet: two PCIe 2.5Gbps Ethernet</p> <p>USB: two USB 3.2 Gen 1 Type-A ports</p> <p>HDMI:</p> <p>support HDMI1.4 and HDMI2.0 operation</p> <p>support up to 10 bits Deep Color modes</p> <p>support up to 1080p@120Hz and 4096x2304@60Hz</p> <p>support 3-D video formats</p> <p>M.2 Key E: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.</p> <p>microSD: support UHS-I</p> <p>Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps</p> <p>LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)</p> <p>Others:</p> <p>2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS</p> <p>MASK button for eMMC update</p> <p>One User button</p> <p>Power supply: USB-C 5V input</p> <p>PCB: 8 Layer, 58x58x1.6mm</p> <p>Ambient Operating Temperature: 0℃ to 70℃</p> <p><b>-OS Support-</b></p> <p>Android, FriendlyWrt 22.03(64-bit)</p> <p>Debian Buster Desktop (64-bit)</p> <p>FriendlyCore Focal Lite(Base on Ubuntu 20.04)</p> <p>Buildroot</p> <p>Kernel version: Linux-5.10-LTS/U-boot-2017.09.</p> <p><b>-Package Content-</b></p> <p>1 x Nanopi R5C 4GB RAM 32GB eMMC Mini Router--with CNC Metal Case</p> <p><b>-Technical Support-</b></p> <ul> <li>Wiki: “<a href="https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5C" rel="nofollow">https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5C</a>”</li> </ul> <ul> <li>Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------&gt;@) skype: monica_9122</li> </ul> <ul> <li>Please leave the message in our forum by forum.youyeetoo.com/</li> </ul>
Product Specifications
Conditionnew
AsinB0BNNNGTND
CategoryElectronics
SubcategorySingle Board Computers
MPNRockchip RK3568B2
ColorBlack
OriginUSA
BrandnameWayPonDEV
Height1.1811
Length2.48031
Width2.48031
Weight1
Operating SystemAndroid, FriendlyWrt 22.03 (64-Bit)
RAM Memory Installed Size4 GB
