new | Development Board, STM32 Development Board Double Row Pin Headers for Electronics
02501BAUXXB0BNGH8RTL
Honio
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details

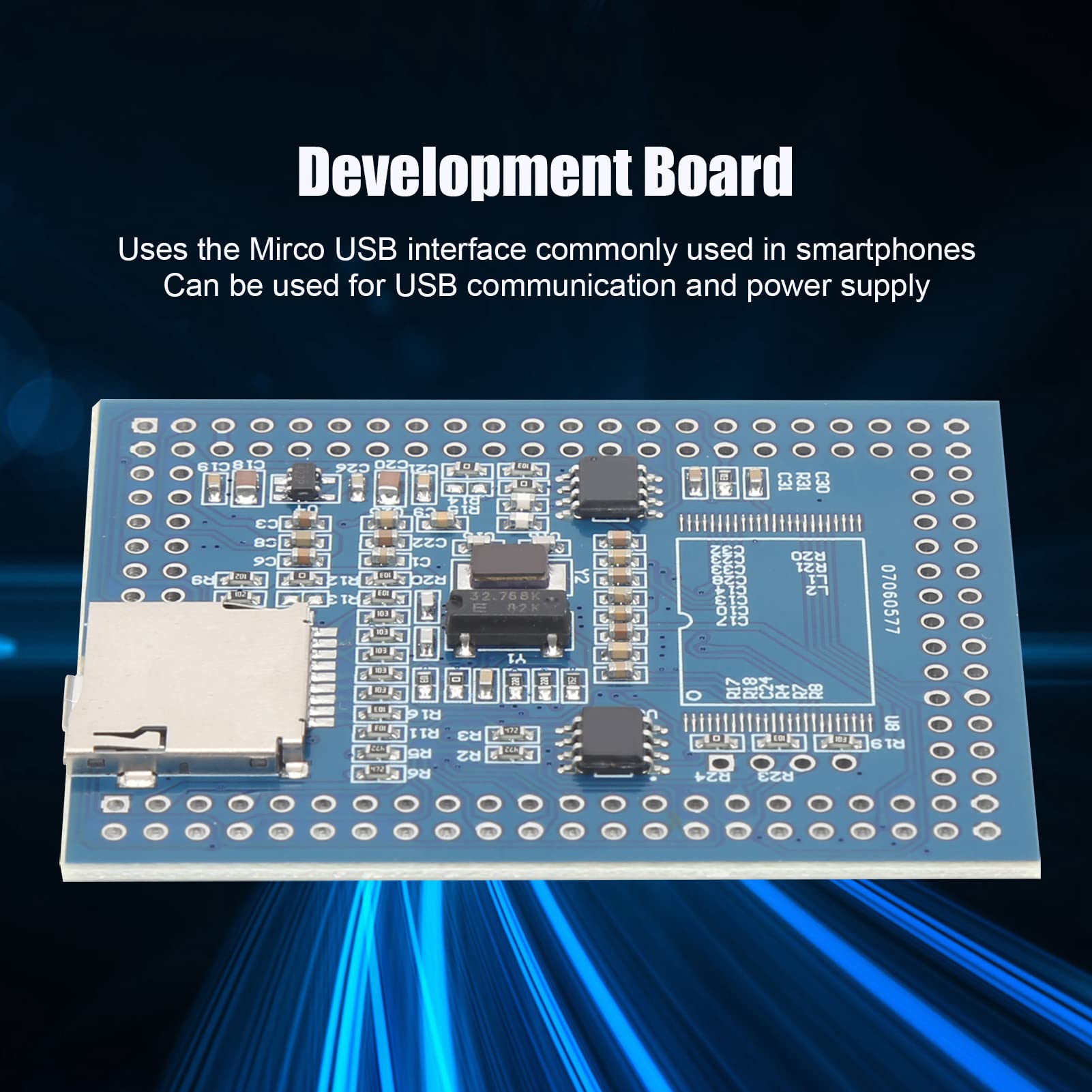

CONVENIENT AND SIMPLE: The SWD simulation debugging download interface is lead out, and the debugging simulation downloader downloads, convenient and simple. It uses the Mirco USB interface commonly used in smart phones, which is easy to use and can be used for USB communication and power supply.

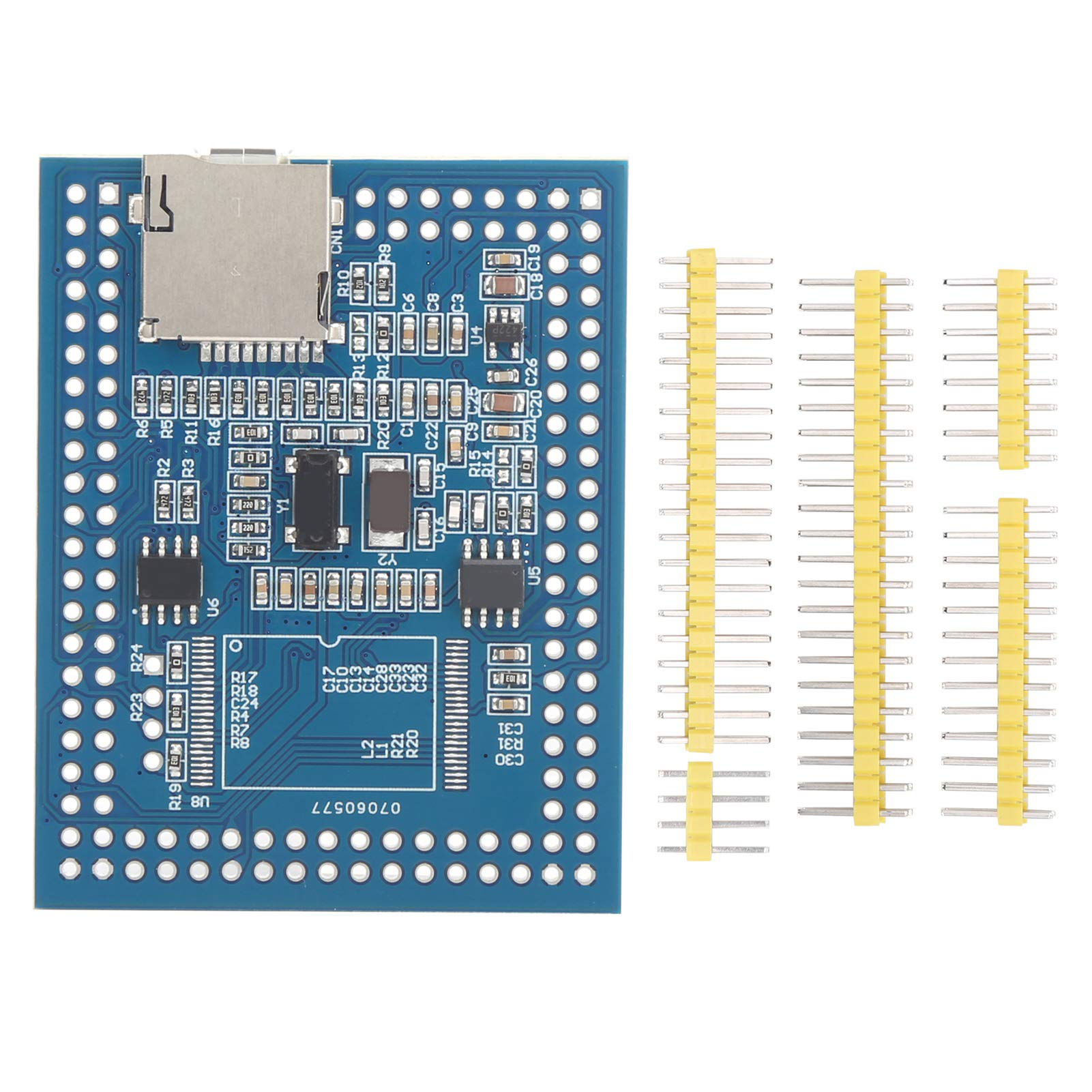

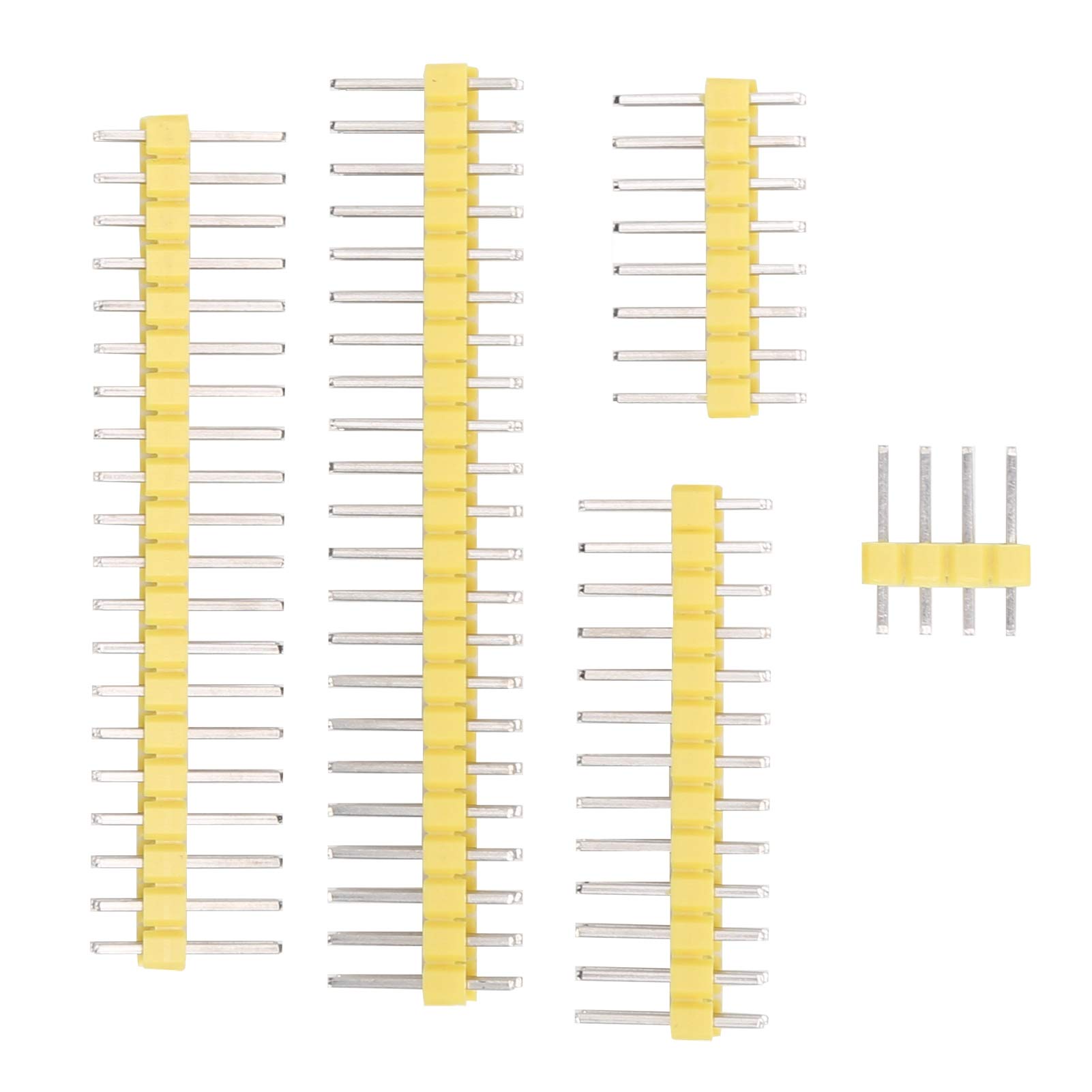

HIGH QUALITY: Equipped with high quality 2.54mm pitch double‑row pin headers to ensure excellent electrical contact, which is convenient for users to place the core board on the marked universal board or breadboard. Users can choose the welding direction according to their actual needs.

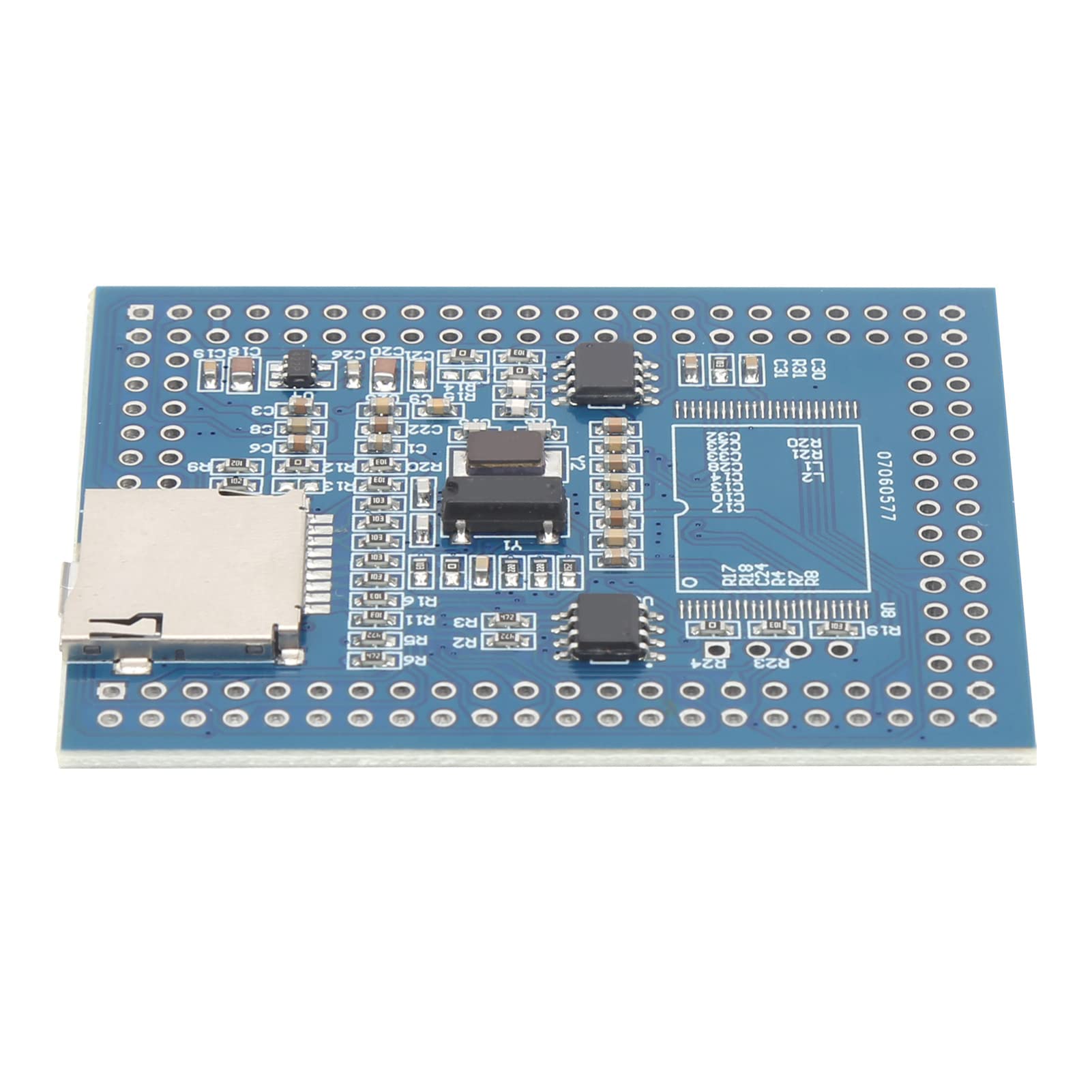

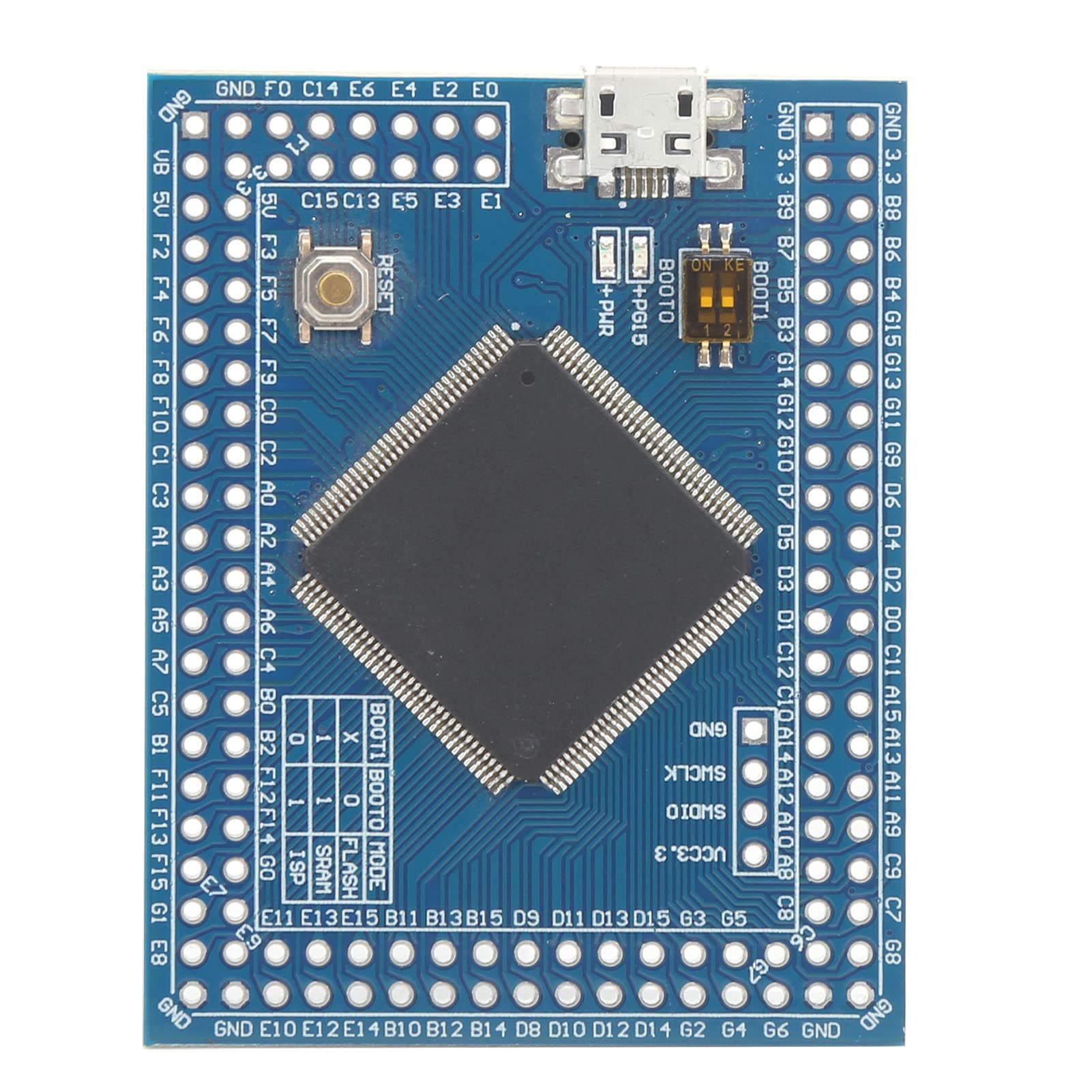

THE MOST BASIC CIRCUITS: The most basic circuits based on MCU are onboard, such as crystal oscillator circuit, power conversion circuit and USB port. The core board leads to commonly used I/O resources.
FEATURE: A low load RTC crystal oscillator solution is adopted, which largely avoids the problem of RTC not vibrating due to the use of cheap cylindrical crystal oscillators.
ADDED EEPROM: Added EEPROM, memory card Mrico memory card and SPIFlsh peripherals, and reserved NandFlash peripheral pads to expand the storage circuit.
Product Description
Feature:<br>1. The most basic circuits based on MCU are onboard, such as crystal oscillator circuit, power conversion circuit and USB port. The core board leads to commonly used I/O resources.<br>2. Added EEPROM, memory card/Mrico memory card and SPIFlsh peripherals, and reserved NandFlash peripheral pads to expand the storage circuit.<br>3. The SWD simulation debugging download interface is lead out, and the debugging simulation downloader downloads, convenient and simple. It uses the Mirco USB interface commonly used in smart phones, which is easy to use and can be used for USB communication and power supply.<br>4. A low-load RTC crystal oscillator solution is adopted, which largely avoids the problem of RTC not vibrating due to the use of cheap cylindrical crystal oscillators.<br>5. Equipped with high‑quality 2.54mm pitch double‑row pin headers to ensure excellent electrical contact, which is convenient for users to place the core board on the marked universal board or breadboard. Users can choose the welding direction according to their actual needs.<br><br><br>Specification:<br><br><br><br><br>Item Type: Development Board<br>Material: PCB<br><br>Purpose: Suitable for operation learning and development of college students, engineers, technicians, factories, individual DIY, electronic enthusiasts, etc.<br>Number Of Pins: 114<br>Core: ARM 32-bit Cortex-M1+FPU<br>Working Frequency: 168MHz<br>Storage Source: 1021K Byte Flash, 192KBvte RAM<br>Interface Source: 3 x SPI, 4 x USART, 2 x UART, 3 x 12C, 2 x CAN, 114 x I/O port, 2 x USB (OTG), 1 x SDIO, 2 x I2S, 1 x 10/100 Ethernet Media Access Controller, 1 x DCMI (digital camera interface)<br>Analog-to-Digital Conversion: 3 x ADC (12 bits/21 channels)<br>Digital-to-Analog Conversion: 2 x DAC (12 bits/2 chan<br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br>
Product Specifications
Conditionnew
AsinB0BNGH8RTL
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryNETWORKING_DEVICE
MPNHontoy5cv46zgun98699
OriginUSA
BrandnameHonio
Weight1
