new | youyeetoo BPI-R3 Router Development Board MediaTek MT7986 8G EMMC with 2X SFP 2.5GbE/ 5X RJ45 GbE /Support PoE (with Case and Power)
Brand : youyeetoo
new | youyeetoo BPI-R3 Router Development Board MediaTek MT7986 8G EMMC with 2X SFP 2.5GbE/ 5X RJ45 GbE /Support PoE (with Case and Power)
Brand : youyeetoo
Product Specifications
Conditionnew
AsinB0BN7F1WBN
CategoryElectronics
SubcategorySingle Board Computers
LeafcategorySINGLE_BOARD_COMPUTER
OriginUSA
Brandnameyouyeetoo
Weight4
Product Details
MediaTek MT7986A (Filogic 830) quad-core Arm Cortex A53 processor with hardware acceleration engines for Wi-Fi offloading and networking
Wifi 6/6E 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
2x SFP 2.5GbE/ 5x RJ45 GbE /support PoE
2 GB RAM / 8GB EMMC Support mircoSD slot/ 26 PIN GPIO/ MINI PCIE/ M.2 Key M
Provide OpenWRT 21.02 wifi 6E 2.4G and 5G working fine.support nand flash ,SD card ,eMMC flash boot.
【WIKI】youyeetoo.com/blog/banana-pi-bpi-r3-bpdpr3main01-211（if you have any question , please : forum.youyeetoo.com/）
Product Description

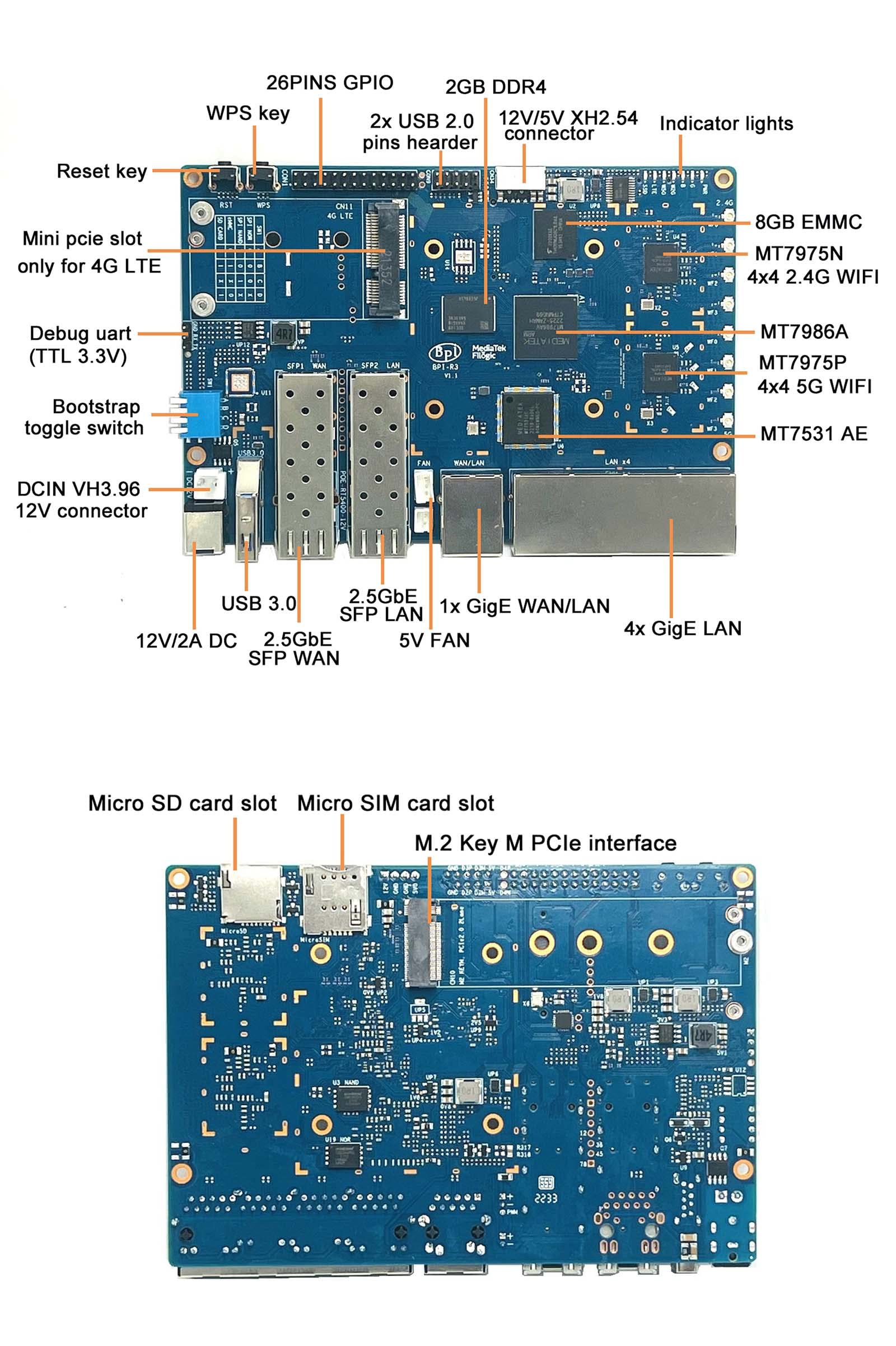

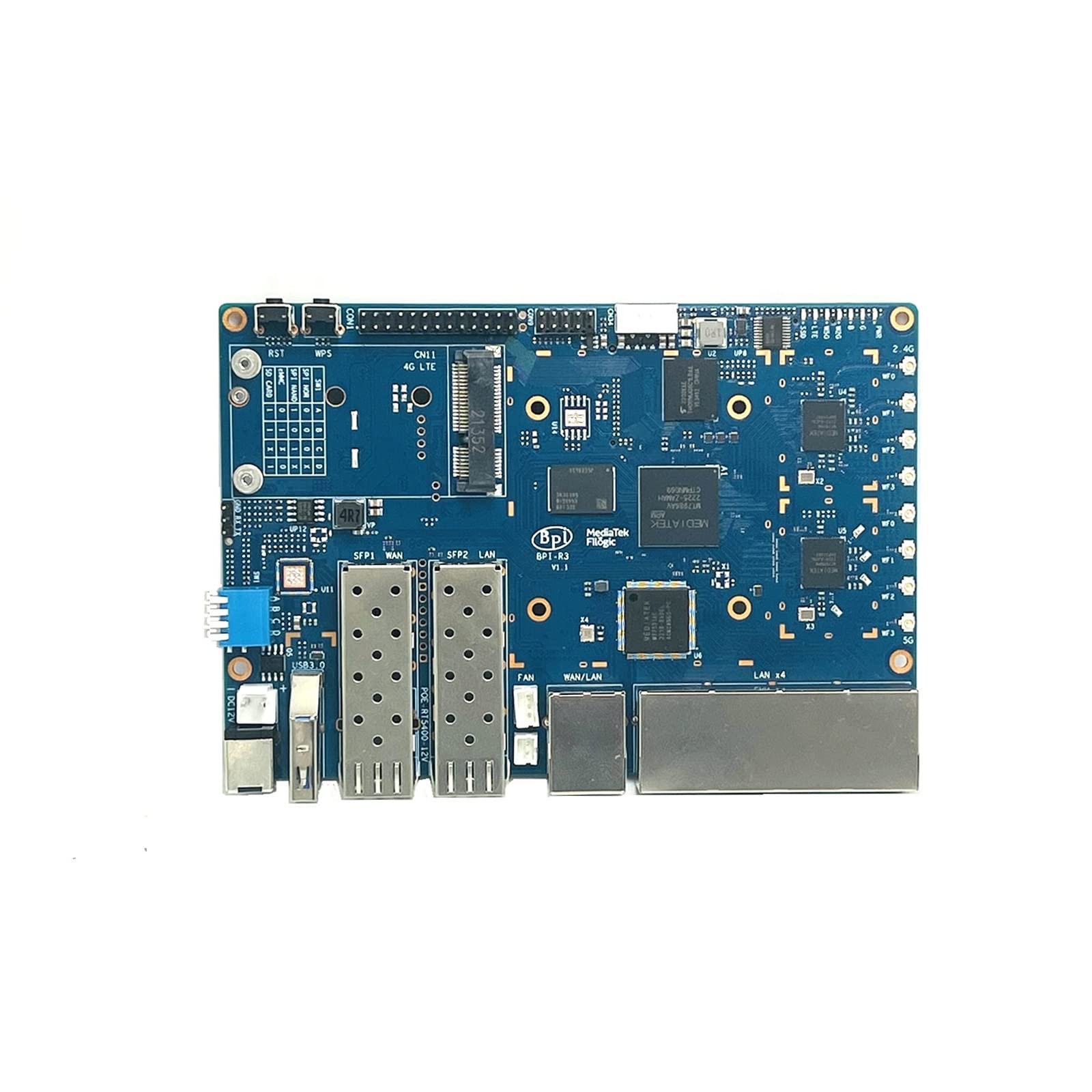

Banana Pi BPI-R3 Router board with MediaTek MT7986(Filogic 830) quad core ARM A53 + MT7531A chip design ,2G DDR RAM ,8G eMMC flash onboard.

It is a very high performance open source router development board,support Wi-Fi 6/6E 2.4G wifi use MT7975N and 5G wifi use MT7975P, support 2 SFP 2.5GbE port, and 5 GbE network port.

Product Description

Banana Pi BPI-R3 Router board with MediaTek MT7986(Filogic 830) quad core ARM A53 + MT7531A chip design ,2G DDR RAM ,8G eMMC flash onboard.

It is a very high performance open source router development board,support Wi-Fi 6/6E 2.4G wifi use MT7975N and 5G wifi use MT7975P, support 2 SFP 2.5GbE port, and 5 GbE network port.
