Product Details
LoRa modem supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes, and supports frequency band 410MHz ~ 525MHz
The operating voltage is 3.3V, the maximum output transmission power is 22dBm, the maximum working current is 140mA, the receiving state has low power consumption characteristics, the receiving current is 4.2mA, the standby current is 0.6mA, and the high sensitivity is as low as-129dBm
Support spread spectrum factor SF5/SF6/SF7/SF8/SF9/SF10/SF11, the module uses SPI interface, uses half-duplex communication, with CRC, up to 256 bytes of packet engine

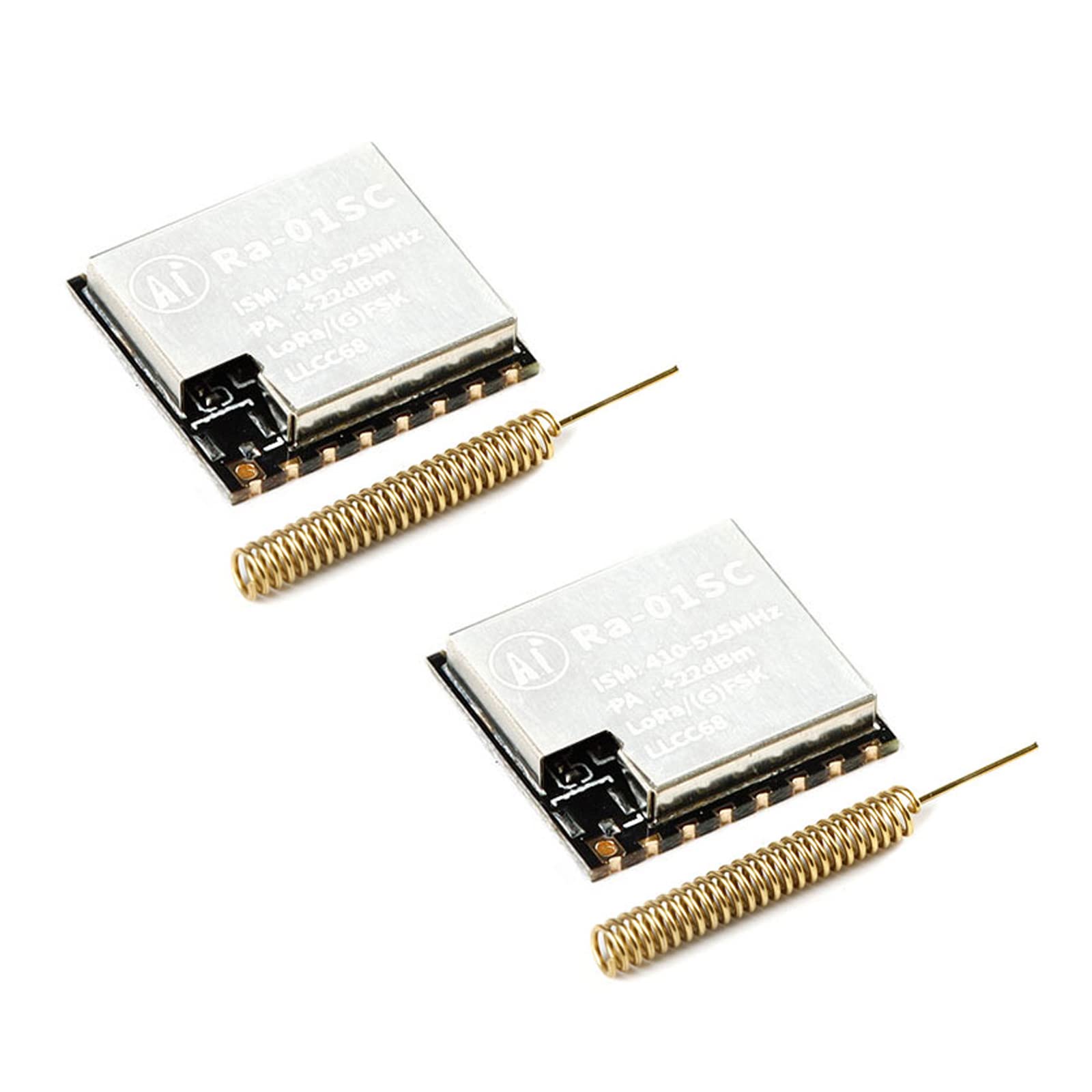

Power supply range: 2.7~3.6V, typical value 3.3V, recommended current greater than 200mA; Support interface: SPI; Programmable bit rate: up to 300Kbps; Crystal oscillator frequency: 32MHz; Transmission distance: 2.8km with spring antenna in open space
Spectrum range: 410MHz ~ 525MHz; Operating temperature: -40 ℃ ~ 85 ℃; Storage environment: -40 ℃ ~ 125 ℃ , < 90% RH
Product Description

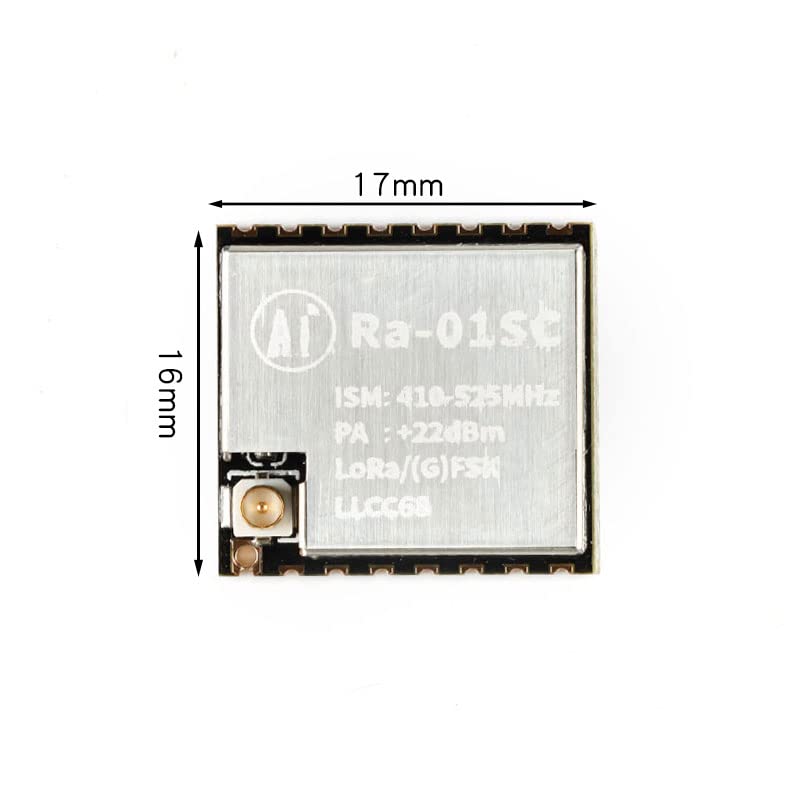

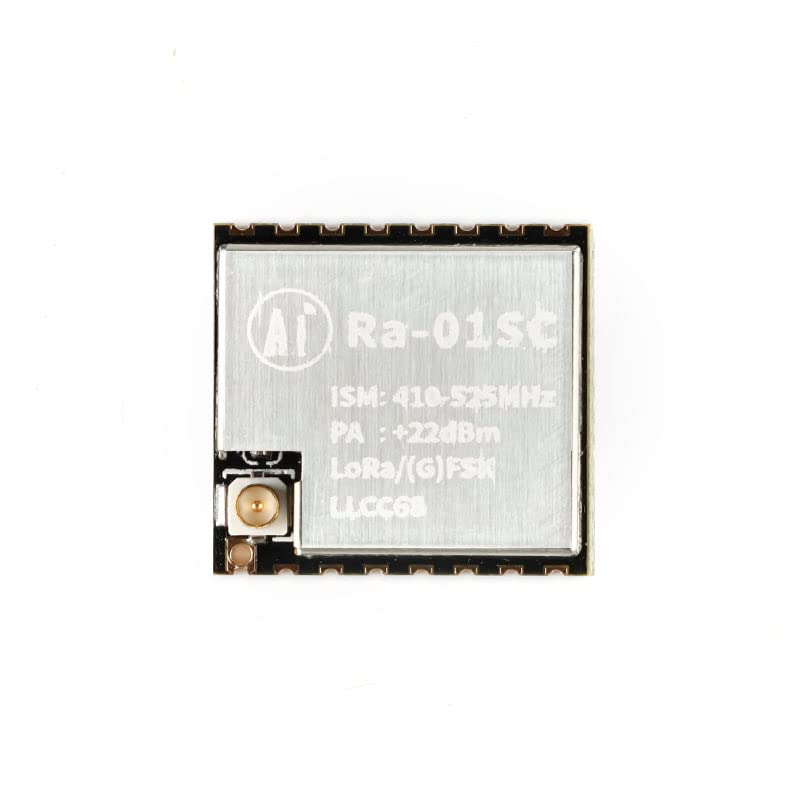

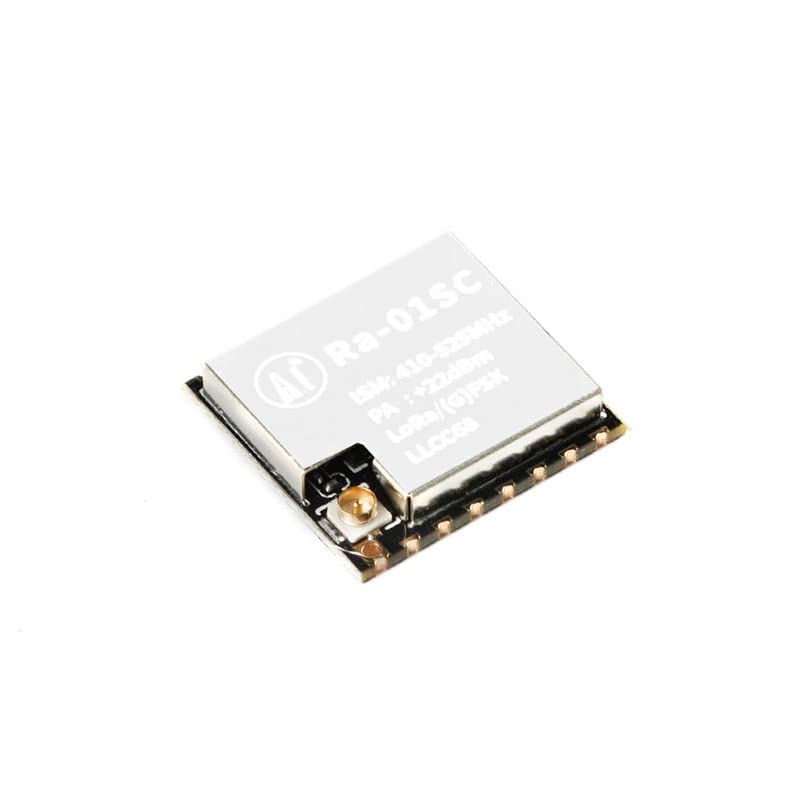

The Ra-01SC module is used for ultra-long-range spread spectrum communication, and its RF chip LLCC68 mainly uses LoRa remote modem for ultra-long-range spread spectrum communication, with strong anti-interference and low power consumption. With the help of LoRa modulation technology, LLCC68 has a high sensitivity exceeding-129dBm, a power output of 22dBm, a long transmission distance, and high reliability. At the same time, compared with traditional modulation technology, LoRa modulation technology also has obvious advantages in anti-blocking and selection, which solves the problem that traditional design schemes cannot take into account distance, anti-interference and power consumption at the same time.<br> Applications are used in: intelligent instruments, supply chain and logistics, home building automation, security systems, remote irrigation systems, etc.
Product Specifications
Conditionnew
AsinB0BLGV86Z8
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryNETWORKING_DEVICE
OriginUSA
BrandnameJESSINIE
Weight1
