new | Dual-Port PCIe Gigabit Ethernet Server Adapter with NetXtreme BCM5720-2P Chipset PCI Express 1000M Network LAN Card for Windows Sever Linux Ubuntu VMware
02501BAUXXB0BDRS1L13
ULANSeN
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details
The BCM5720-2P is compatible with x86 and x64 servers utilizing the PCIe v1.X and v2.X interfaces
PCI-E x1,compatible with pci-e x2,x4,x8,x16.Comes with Low Profile Bracket
Wide range of applications:Cloud and Web2.0 data center servers,Enterprise data center servers,Private Cloud,Machine Learning (ML) clusters,High-Performance Computing (HPC) clusters,Multi-node container platforms,NVMe storage disaggregation (NVMe-oF),Database servers
OS Support:CentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX(Esxi 5/6/7/8), VMware vSphere, Windows Hyper-V, Windows Server
180 day worry-free warranty and friendly customer service. If you have any questions, we will help you solve the problem when you need it, and if it can’t be solved, we will provide a refund and no return is required.
Product Ranking
#234 in Internal Computer Networking Cards
Product Description

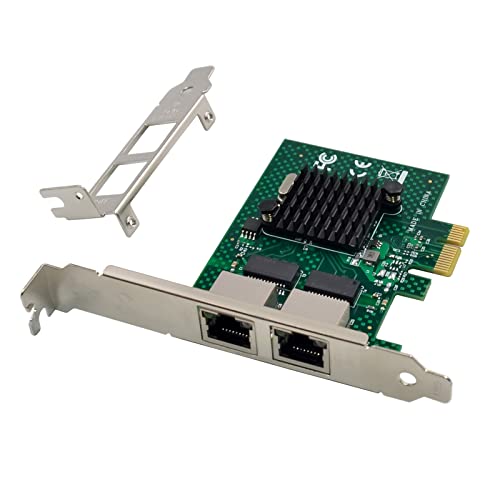

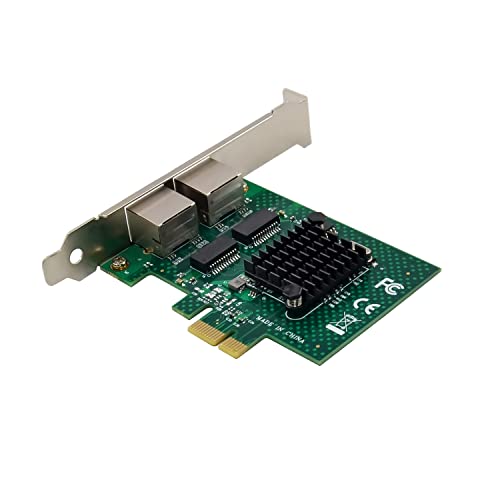

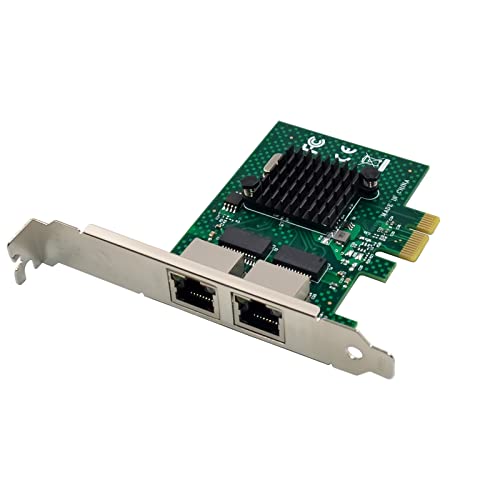

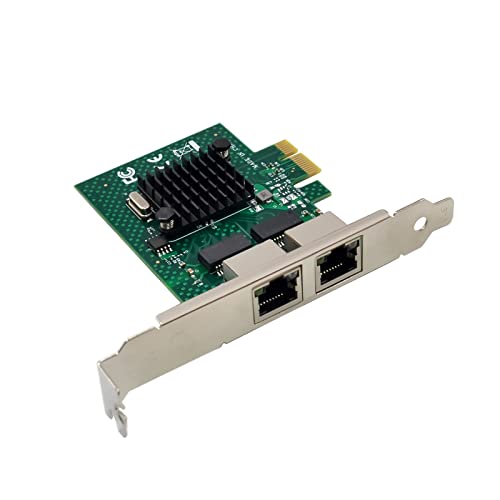

<b>Dual-Port PCIe Ethernet Server Adapter with NetXtreme BCM5720-2P Chipset PCI Express 1000M Network LAN Card for Windows Sever Linux Ubuntu VMware</b><br> Adapter The Broadcom NetXtreme BCM5720-2P is a dual-port 10/100/1000 Mb/s x1 PCI Express (PCIe) Ethernet adapter that supports the IEEE 802.3ab standard over Category 5 twisted-pair cable. The adapter card supports offload technologies including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and receive-side scaling (RSS) that deliver optimal network throughput, lower host processor utilization and as a result improve system overall performance. The adapter card comes in small form factor that is suitable for both low-profile and standard chassis. <br> <b>Features</b> <br> MAC controller—BCM5720-2P <br> Connector—RJ-45<br>  Dual-port Gigabit Ethernet Server adapter for rack and tower servers <br> IEEE 802.3ab 10/100/1000 Mb/s Gigabit Ethernet compliant<br> x1 PCI Express (PCIe) v2.0 (5 GT/s) support <br> Energy Efficient Ethernet (EEE) <br> I/O Virtualization supported with 17 receive queues and 16 transmit queues per port <br> Full line-rate performance across all ports <br> Broad OS and hypervisor support <br> Preboot eXecution Environment (PXE) support <br> Support for VMware NetQueue and Microsoft VMQ <br> Link aggregation and automatic load-balancing <br> Wake-on-LAN support <br> MSI and MSI-X support <br> IPv4 and IPv6 offloads <br> TCP, UDP, and IP checksum offloads <br> Large Send Offload (LSO) <br> TCP Segmentation Offload (TSO) <br> ACPI v2.0 <br> SMBus 2.0<br> IEEE 802.3ab 1000BASE-T <br> IEEE 802.3u 100BASE-TX <br> IEEE 802.3i 10BASE-T<br> IEEE 802.1q—VLAN tagging support <br> IEEE 802.3x—Flow control <br> IEEE 802.3az—EEE<br> Receive Side Scaling (RSS) <br> Transmit Side Scaling (TSS) <br> VLAN support with VLAN tagging <br> Jumbo frame support for frames larger than 1500 Bytes <br> Broadcom Advanced Control Suite (BACS) <br> management application <br> iSCSI remote boot support<br> <b>OS Support </b><br> Microsoft—Windows Server 2008, 2008 R2, and 2012, all editions <br> Linux – Red Hat Enterprise Linux (RHEL) 5.9/5.8, 6.4/6.3 <br> – Novell SUSE Linux Enterprise Server (SLES) 10 SP4/SP3, 11 U3/U2 <br> VMware—vSphere 5.x <br> Citrix—XenServer 6.1<br> <b>Package contentst</b><br> 1xPCIe 1G LAN Card<br> 1x Low profile Bracket<br> 1xManual <br> 1xCD Driver<br>
Product Specifications
Conditionnew
AsinB0BDRS1L13
CategoryElectronics
SubcategoryNetwork Cards
LeafcategoryNETWORK_INTERFACE_CONTROLLER_ADAPTER
ColorRed
OriginUSA
BrandnameULANSeN
Height0.70866
Length3.38582
Width2.67716
Weight1
