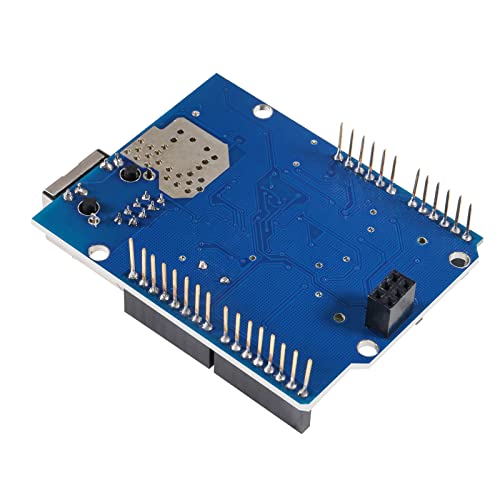

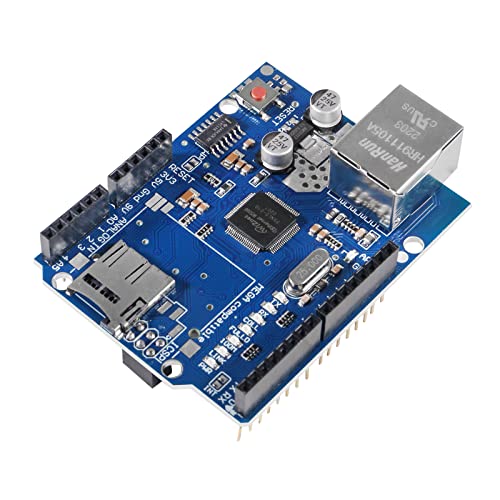

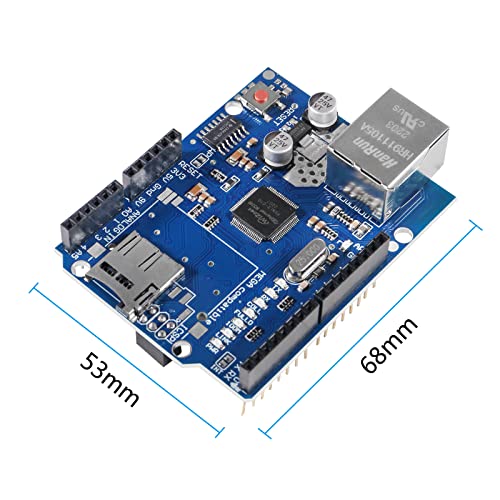

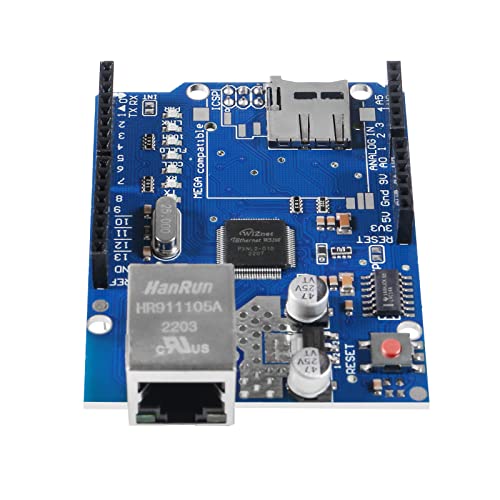

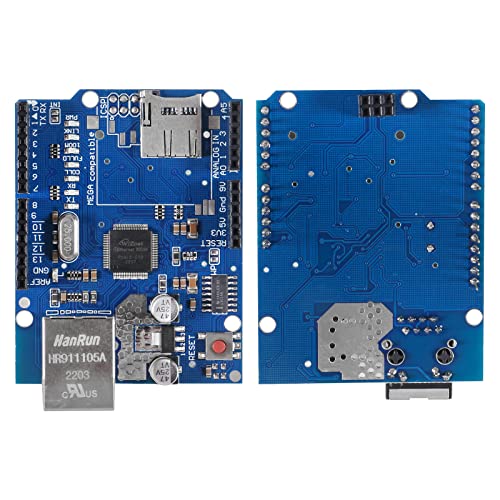

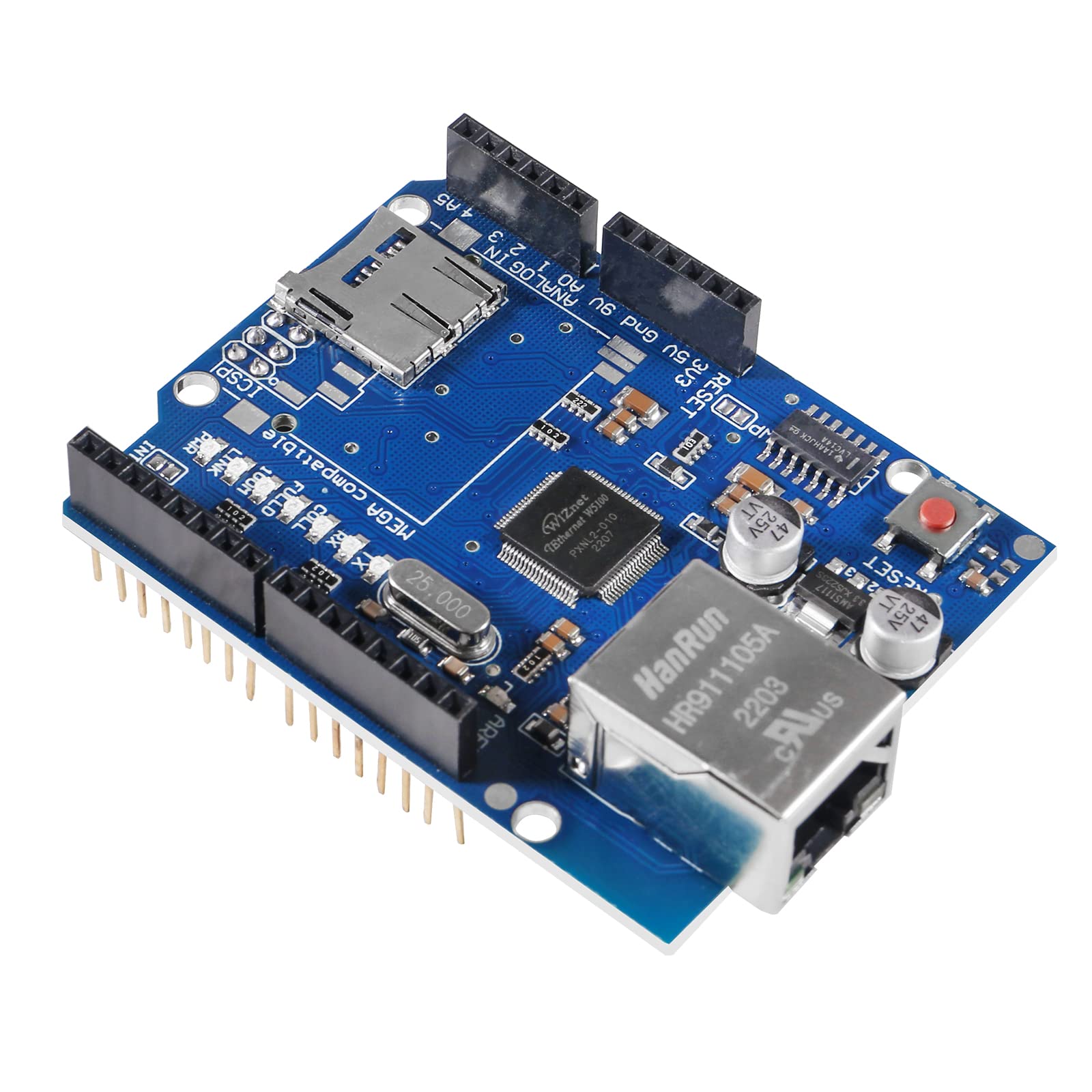

new | W5100 Ethernet Network Shield Ethernet Expansion Board with SD Card Slot Development Board
Brand : Shutao
new | W5100 Ethernet Network Shield Ethernet Expansion Board with SD Card Slot Development Board
Brand : Shutao
Product Specifications
Conditionnew
AsinB0BB5DLSCN
CategoryElectronics
SubcategoryNetwork Cards
LeafcategoryCOMPUTER_COMPONENT
MPN13563S-1
OriginUSA
BrandnameShutao
Weight1
Product Details
Ethernet shield compatible with arduino board can be used to connect to internet.Can be used as server or client
It adds a micro-SD card slot, which can be used to store files for serving over the network.
Ethernet shield compatible with arduino board can be used to connect to internet.Can be used as server or client
W5100 provides a network (IP) stack that can support both TCP and UDP.
It is compatible with Arduino and can be accessed using the SD library.
Product Ranking
#11672 in Single Board Computers (Computers & Accessories)
Product Description
Support hardware TCP/IP protocol: TCP, UDP, ICMP, IPv4ARP, IGMP, PPPoE, ethernet
Embedded 10 BaseT/100 BaseTX Ethernet physical layer
Support for automatic communication handshakes (full duplex and half duplex)
Support automatic MDI/MDX, automatic signal polarity correction
Supports ADSL connection (supports PAP/CHAP authentication mode in PPPoE)
Supports four independent ports running simultaneously
P fragmentation is not supported
Internal 16KB memory is used for data send/receive caching
0.18 um CMOS process
3.3V operating voltage, I/0 port can withstand 5V voltage
80 pin LQFP compact package
Environmentally friendly lead-free package
Support for SPI interface (SPI mode 0)
Multi-function LED signal output (TX, RX, full duplex/half duplex, address conflict, connection, speed, etc.)

Package include:
1 x W5100 development board
