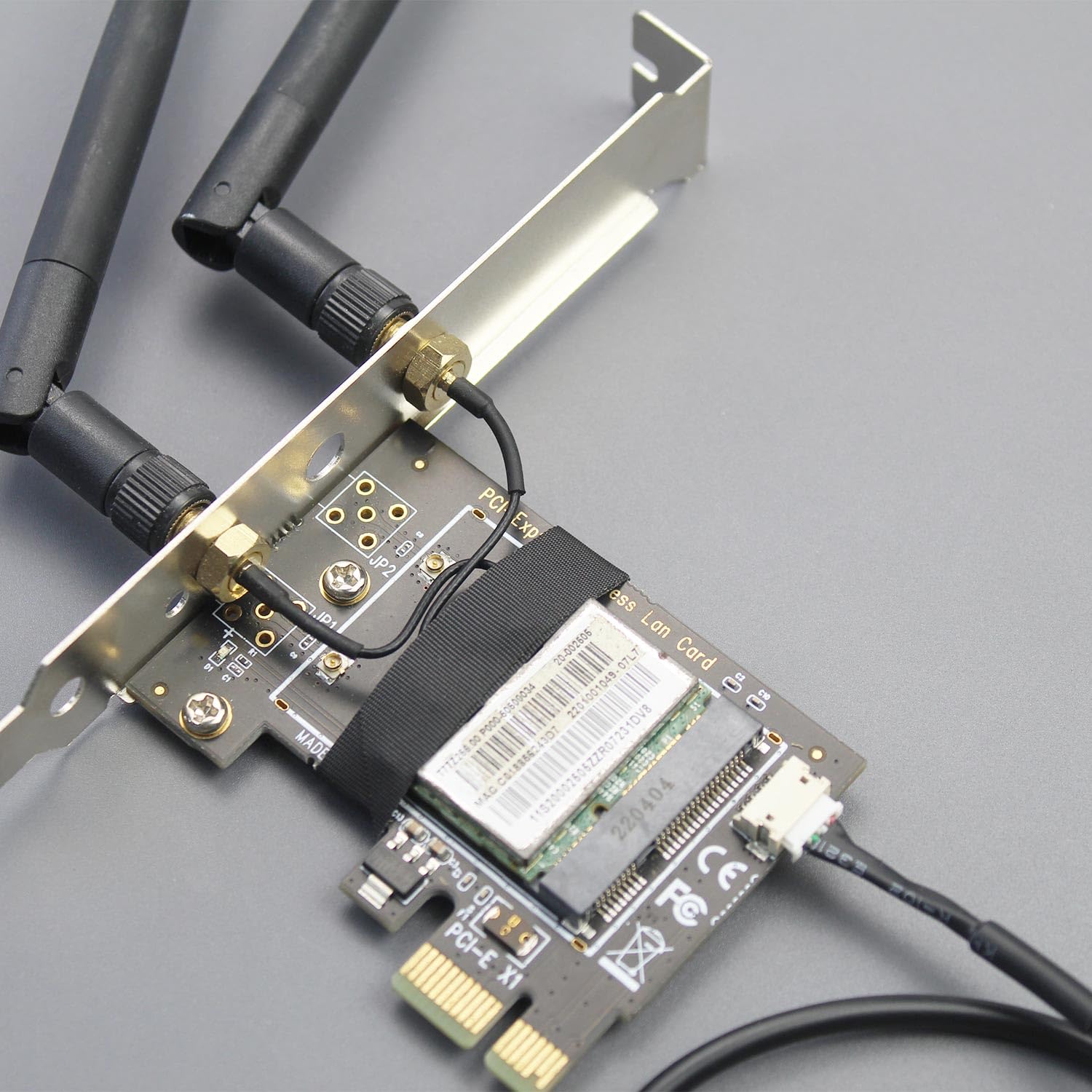

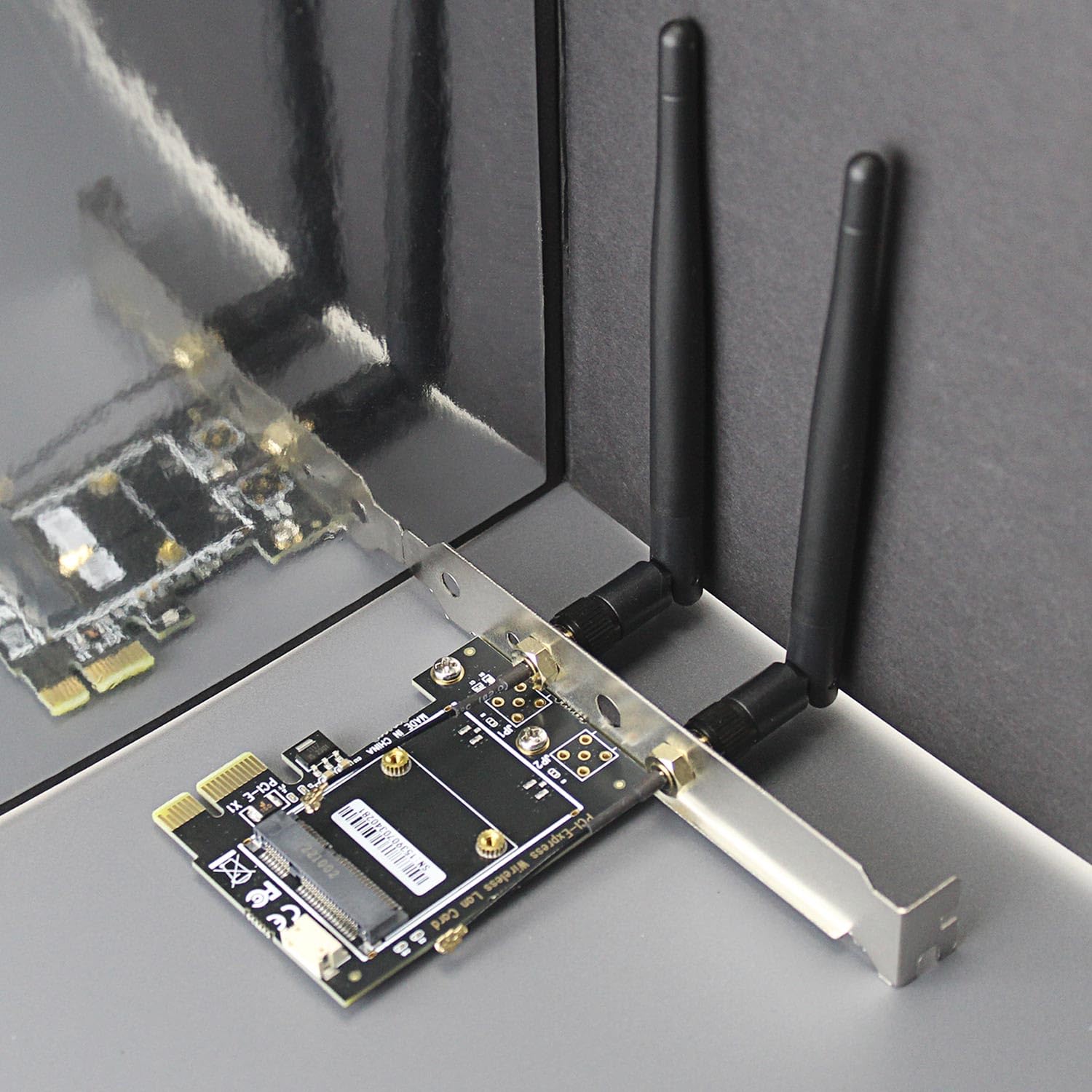

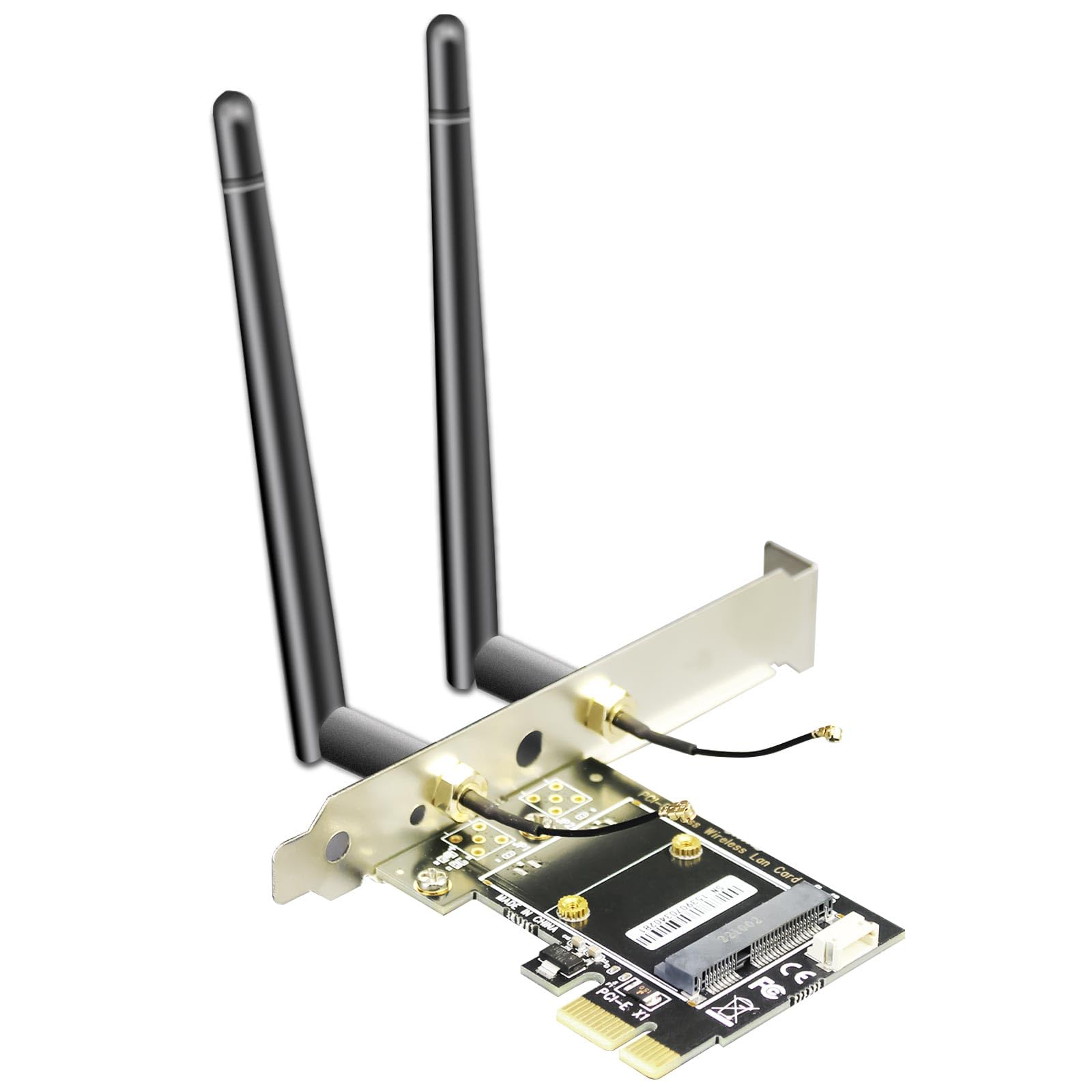

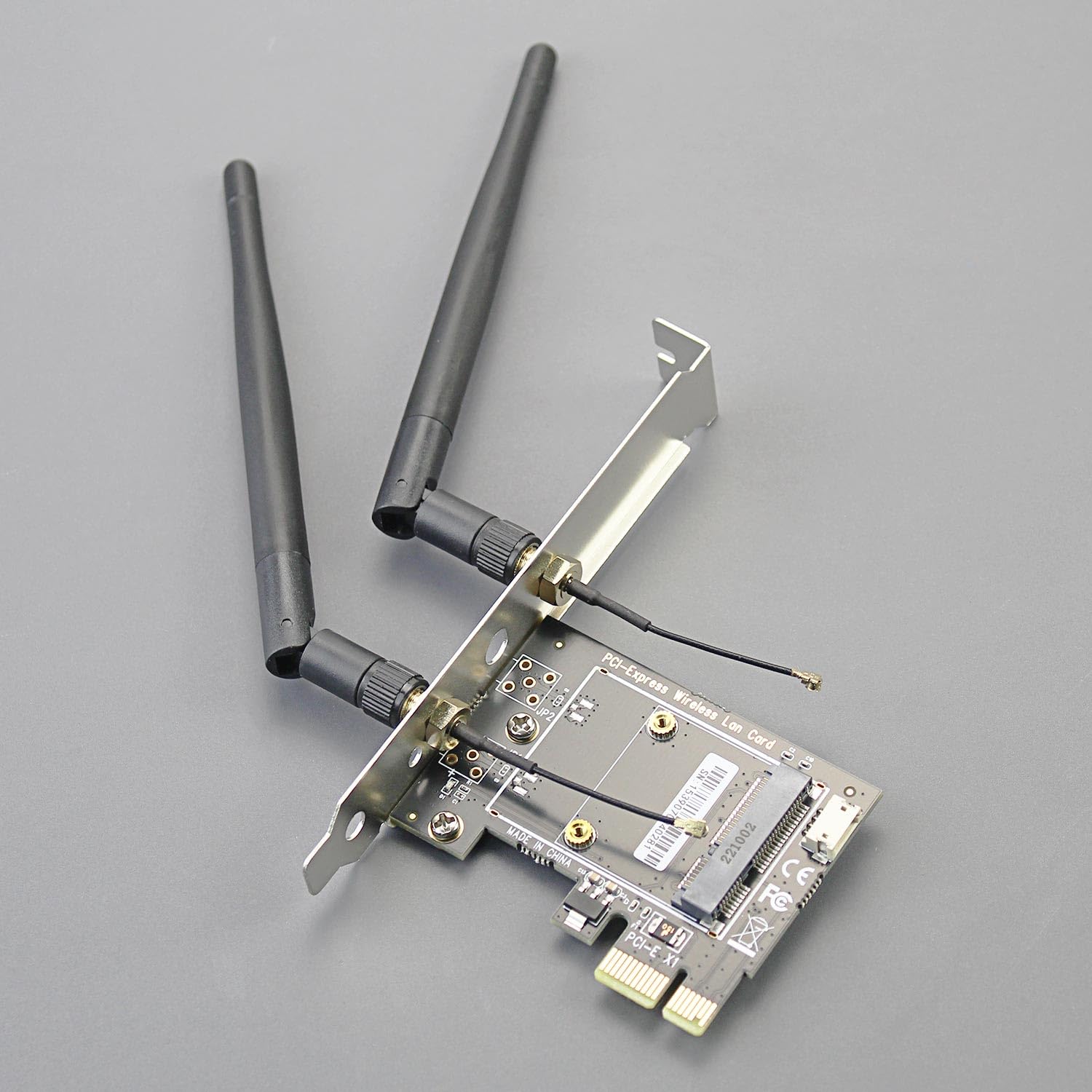

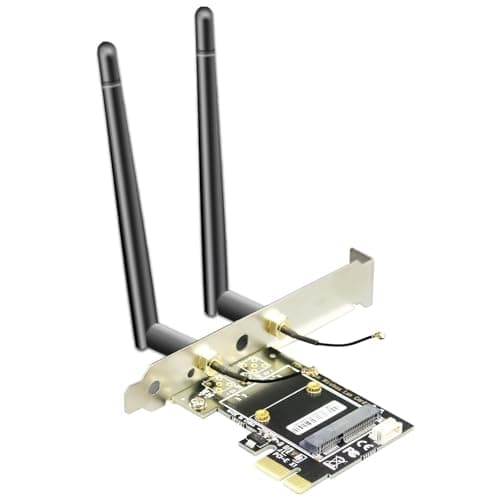

Mini PCIe to PCIe X1 WiFi Bluetooth adapter with SMA Antenna Kits, work with Mini PCIe WiFi module, as well as Coral TPU (Mini PCIe Accelerator module)

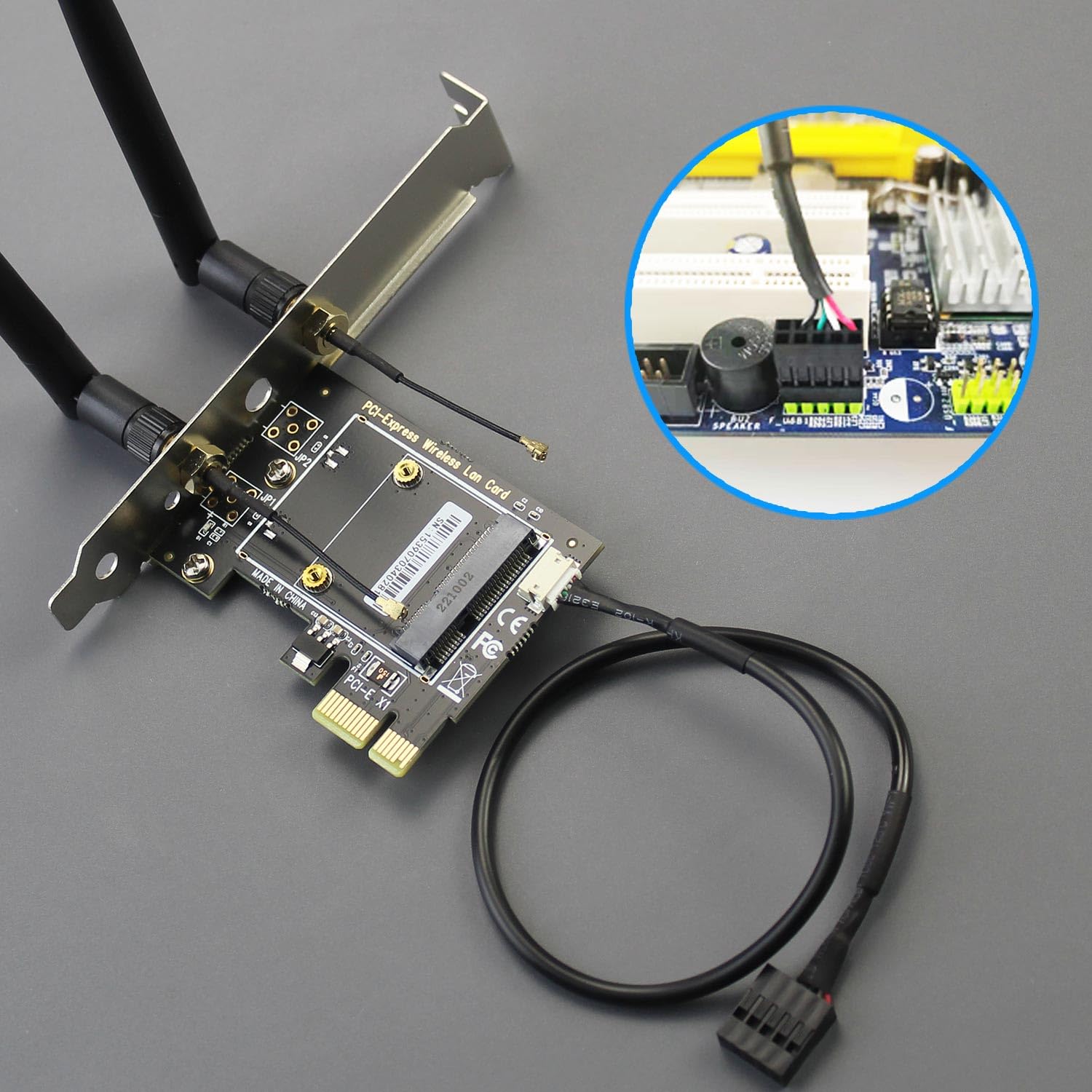

The WiFi signal goes through the PCIe X1 interface, and the Bluetooth signal goes through the USB interface (To enable Bluetooth: The USB cable needs to connect with the motherboard USB port)

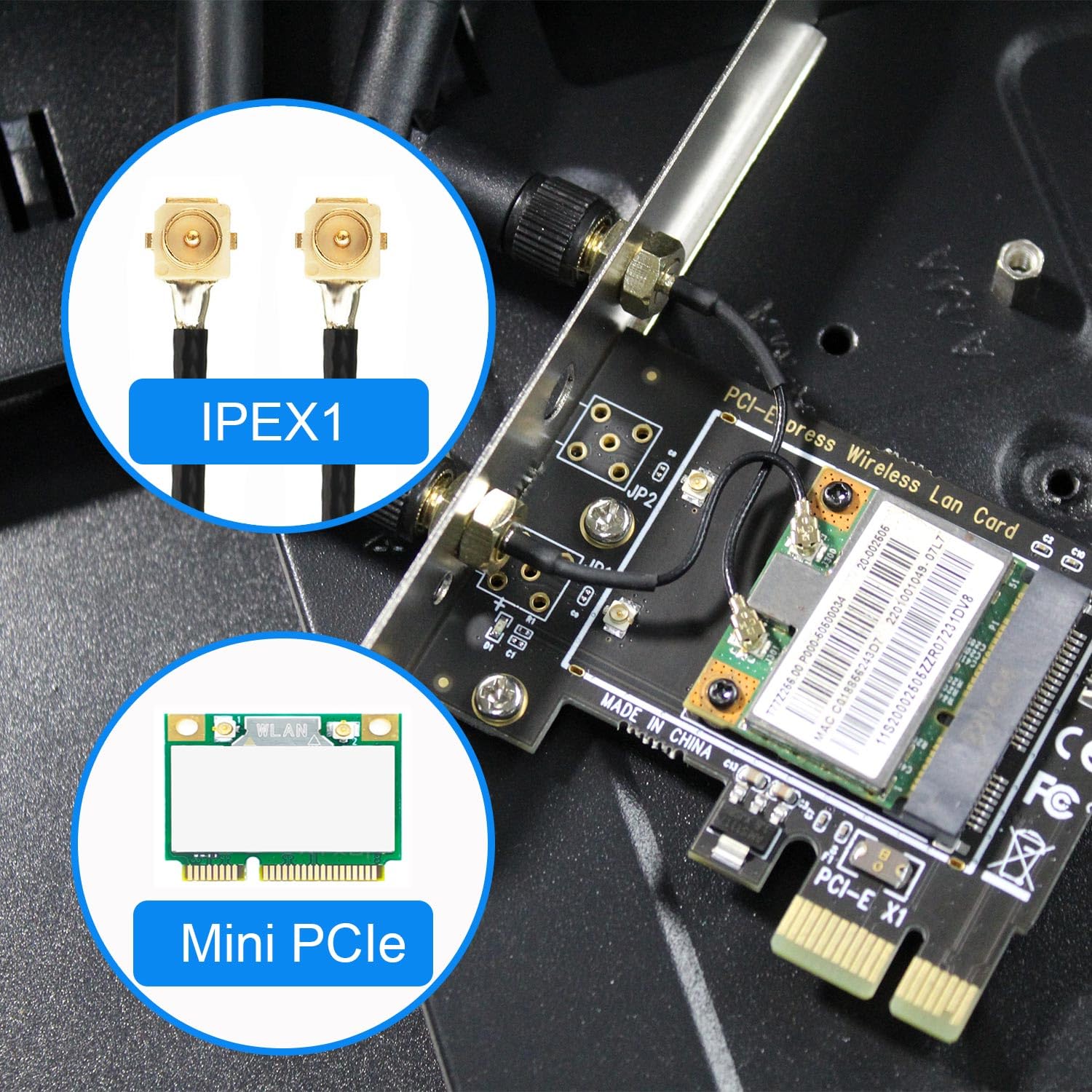

Triple Band 2.4GHz 5GHz 6GHz Antenna: 3.5 dBi RP-SMA Male antenna, with 2 x 15cm U.FL/IPEX1 to RP-SMA Female pigtail cable
Compatible with MPE-AX3000H, AX210HMW, AX200HMW, 7265HMW, 7260HMW, 62230ANHMW, 633ANHMW, 622ANHMW, 62205ANHMW and Broadcom, Realtek, Atheros Mini PCIe WiFi module. Support WiFi 4/5/6/6E, Bluetooth 4.0/4.1/4.2/5.0/5.1/5.2/5.3
Note: can not work with M.2 WiFi module and full-high Mini PCIe WiFi module
OS compatibility: DOS/Windows/Linux/Mac OS (Based on your WiFi module Compatibility). It is only a signal converter and does not need a driver. But you may need to install a driver for Mini PCIe WiFi module.
Pre-installed 12cm regular-profile bracket, and come with 8cm low-profile bracket.
Product From USA
