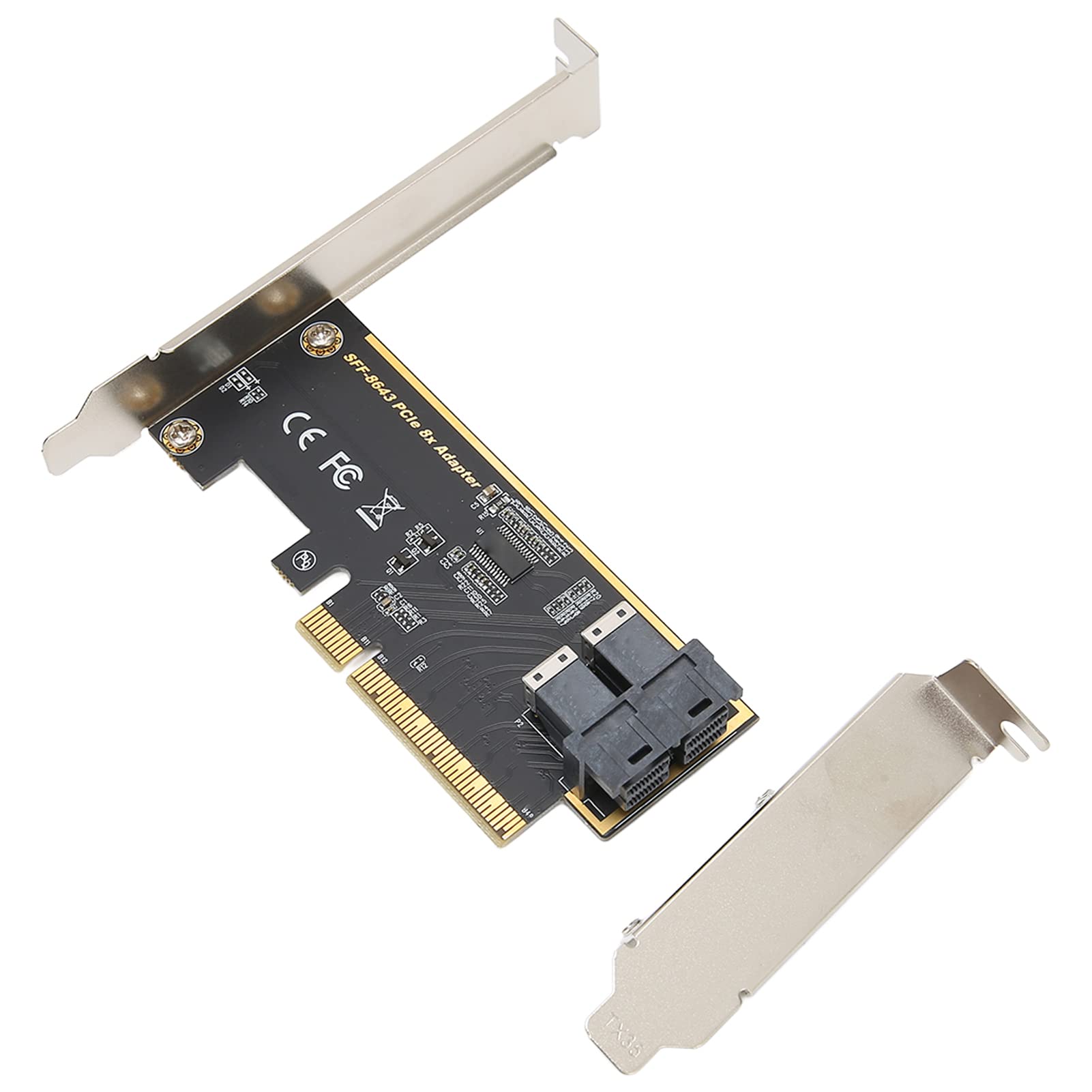

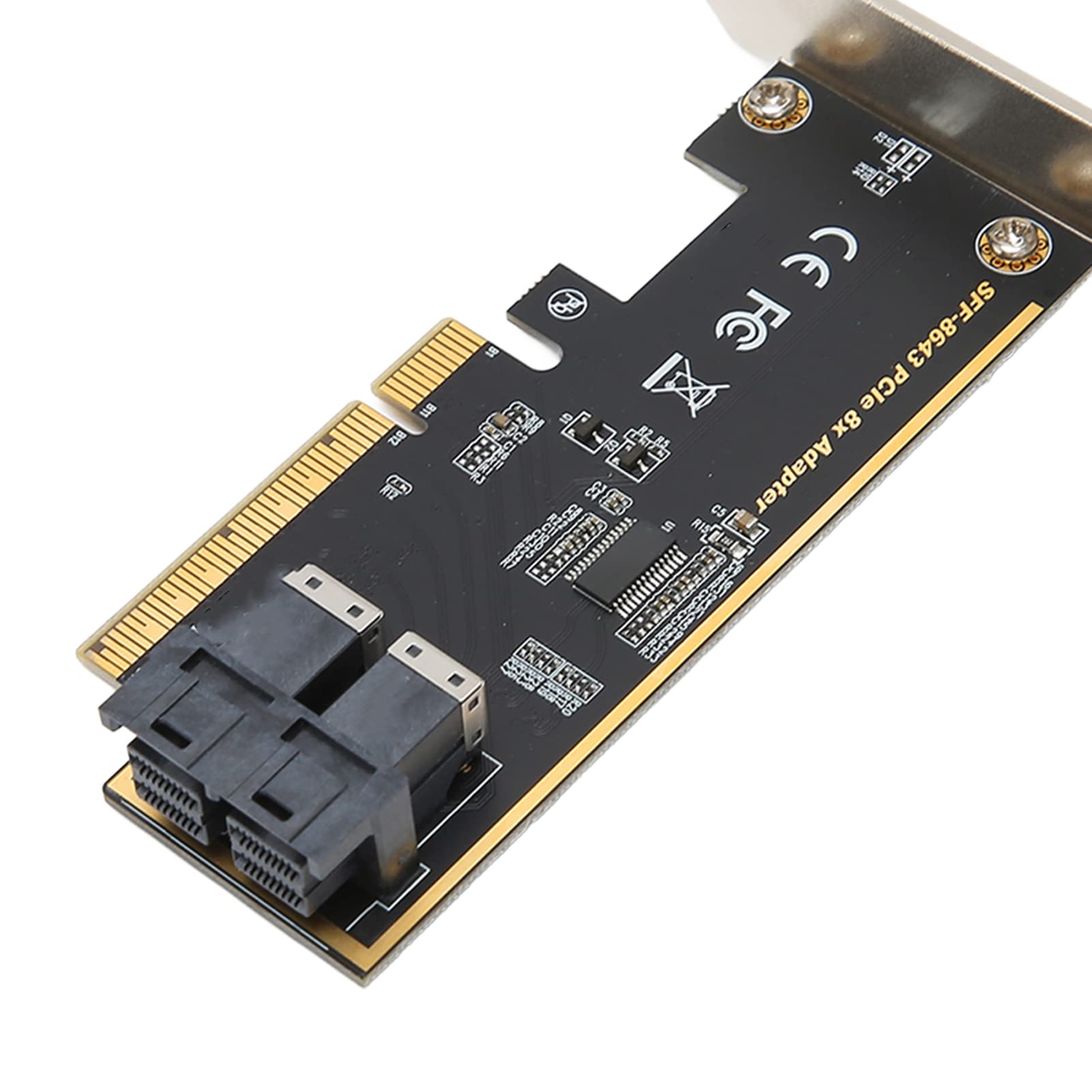

new | PCIE X8 to U.2 Adapter Card, PCIE Adapter Card, High Compatibility Dual Port SFF 8643 Mini SAS HD 36Pin PCIE Adapter Card for Conventional Desktop
02501BAUXXB09W9D9YCW
Zunate
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details
【Best Solution】Connect two 2.5 inch U.2 (SFF‑8639) PCIe NVMe SSDs to PCIe x8 slots in the system via SFF‑8643 cables (not included). Allows you to install two PCIe NVMe U.2 2.5in SSD drives to your PC system via a PCIe 3.0 x8 card.
【Parameter】Two SFF 8643 mini SAS HD connectors (requires the motherboard to support split function, only 1 interface is not supported). Interface: PCIE X8 to dual port SFF 8643. Hardware requirements: PCIe 3.0 x4/x8/x16, backward compatible with PCIe 2.0/1.0.
【Throughput】Using sophisticated production techniques to support a maximum throughput of 32Gbps in PCIe 3.0.
【Support System】Support for Windows2000, for xp, for server2003, for xp 64bit, for Vista, for win7, for linux, for DOS, for OS X.
【Easy Installation】The adapter card can transfer 2 SFF 8643 interfaces through the PCle x8 slot of the host computer, and users can connect 2 U.2 SSDs at the same time through the SFF 8643 to U2 (SFF 8639) data cable (not included), with a bus bandwidth. Easy to install, no drivers required.
Product Description
How to Use:<br> use&nbsp;after&nbsp;installation<br> <br> Specification:<br> Item Type: PCIE&nbsp;X8&nbsp;to&nbsp;U.2&nbsp;Adapter&nbsp;Card<br> Material: PCB<br> Interface Type: PCIE X8<br> Applicable Models: Conventional Desktop<br> Expansion Interface: Dual Port Mini-SAS HD (SFF 8643, 36 Pin) Female<br> Support System: for Windows2000, for xp, for server2003, for xp 64bit, for Vista, for win7, for&nbsp;linux, for DOS, for OS X<br> Hardware Requirements: PCIE 3.0 x8/x16, Backward Compatible with PCIE 2.0/1.0<br> <br> <br> <br> <br> <br> Package List:<br> 1 x PCIE&nbsp;X8&nbsp;to&nbsp;U.2&nbsp;Adapter&nbsp;Card1 x Thin Bracket<br> <br> <br> Note:<br> The motherboard needs to support the split function, and only one interface is not supported. Note: Not all for BIOS systems support NVMe formatted U.2 drives, you need a for BIOS with UEFI. So check with your device manufacturer to make sure you can use it.
Product Specifications
Conditionnew
AsinB09W9D9YCW
CategoryElectronics
SubcategoryNetwork Cards
LeafcategoryINPUT_OUTPUT_CARD
MPNZunatezxebanugp27408
OriginUSA
BrandnameZunate
Weight1
