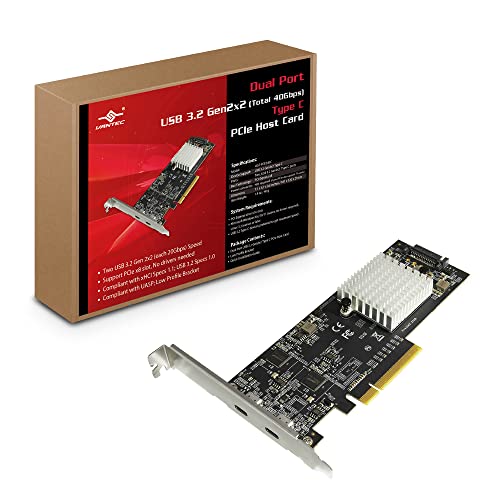

new | Vantec Dual Port USB 3.2 Gen2x2 (2x20Gbps) Type C PCIe Host Card, 15Watts per Port, PCIe v2.0 x8, Two USB C Dedicated Ports (UGT-PCE340C)
02501BAUXXB09VNWCS52
Vantec
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details

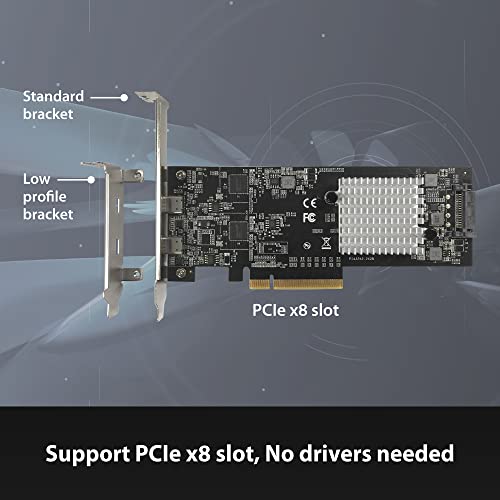

Two USB 3.2 Gen 2x2 (each 20Gbps*) Speed; Support PCIe x8 slot, No drivers needed; Compliant with xHCI Specs 1.1; USB 3.2 Specs 1.0. * Note: Theoretical speed of two ASM3242 each capable of 20Gbps for a total of 40Gbps, actual speed may vary

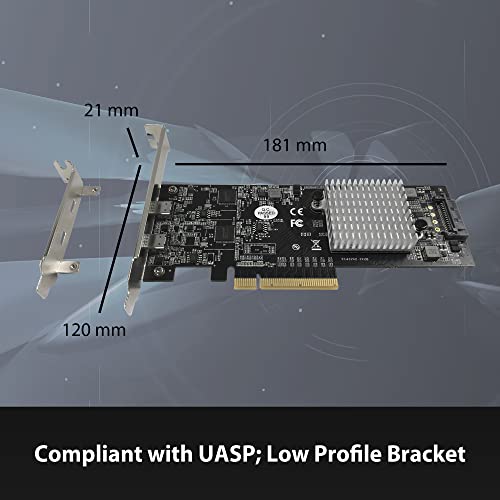

Compliant with UASP; Low Profile Bracket; Two USB 3.2 Gen 2x2 (each 20Gbps*) Speed to give you the Maximum File Transfer or Backup; Support PCIe x8 slot interface with wider lanes for speed and large amount of data.

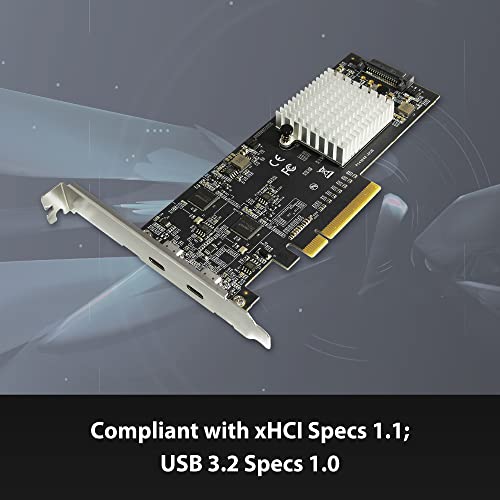

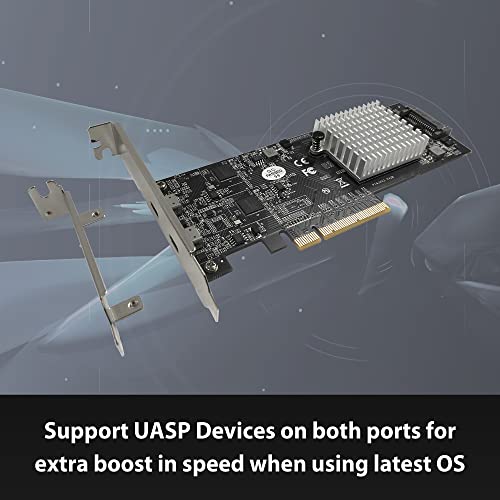

Compliant with USB 3.2 Specs Rev 1.0 for compatibility; Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specs Rev 1.1; Support UASP Devices on both ports for extra boost in speed when using latest OS.
Support PCI-Express 3.0 specs for increase speed thru the PCIe Bus; Support Control, Bulk, Stream, Interrupt, Isochronous transfer type; Support native drivers within Windows 8/8.1/10 Support Linux kernel 3.2 & above; Support Multiple INs function; Data rate up to 40Gbps* total
* Note: Theoretical speed of two ASM3242 each capable of 20Gbps for a total of 40Gbps, actual speed may vary
Product Ranking
#330 in Internal Computer Networking Cards
Product Description
The Vantec Dual Port USB 3.2 Gen2x2 (40Gbps) Type C PCIe Host Card is designed to offer the latest in USB 3.2 Technology. Each USB C port provide dedicated 20Gbps for a total of 40Gbps for two ports. Power per port is at 15Watts. This design links the PCIe v2.0 x8 from the PCIe Bus to the two USB C ports. These dedicated ports provide true 20Gbps per port for ultimate speed for fast access/transfer of data. * Note: Theoretical speed of two ASM3242 each capable of 20Gbps for a total of 40Gbps, actual speed may vary
Product Specifications
Conditionnew
AsinB09VNWCS52
CategoryElectronics
SubcategoryNetwork Cards
LeafcategoryINPUT_OUTPUT_CARD
MPNUGT-PCE340C
OriginUSA
BrandnameVantec
Height0.82677
Length7.12597
Width4.7244
Weight1
Operating SystemWindows 10
Warranty Description1 year parts and labor
