new | SOONHUA Ethernet Relay Controller Control Board Ethernet Controller Board RJ 45 Interface
02501BAUXXB09VGHYDLC
SOONHUA
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details
The product has a wide range of uses. Easy to use.
Default IP address: 192.168.1.4. Port: 30000.

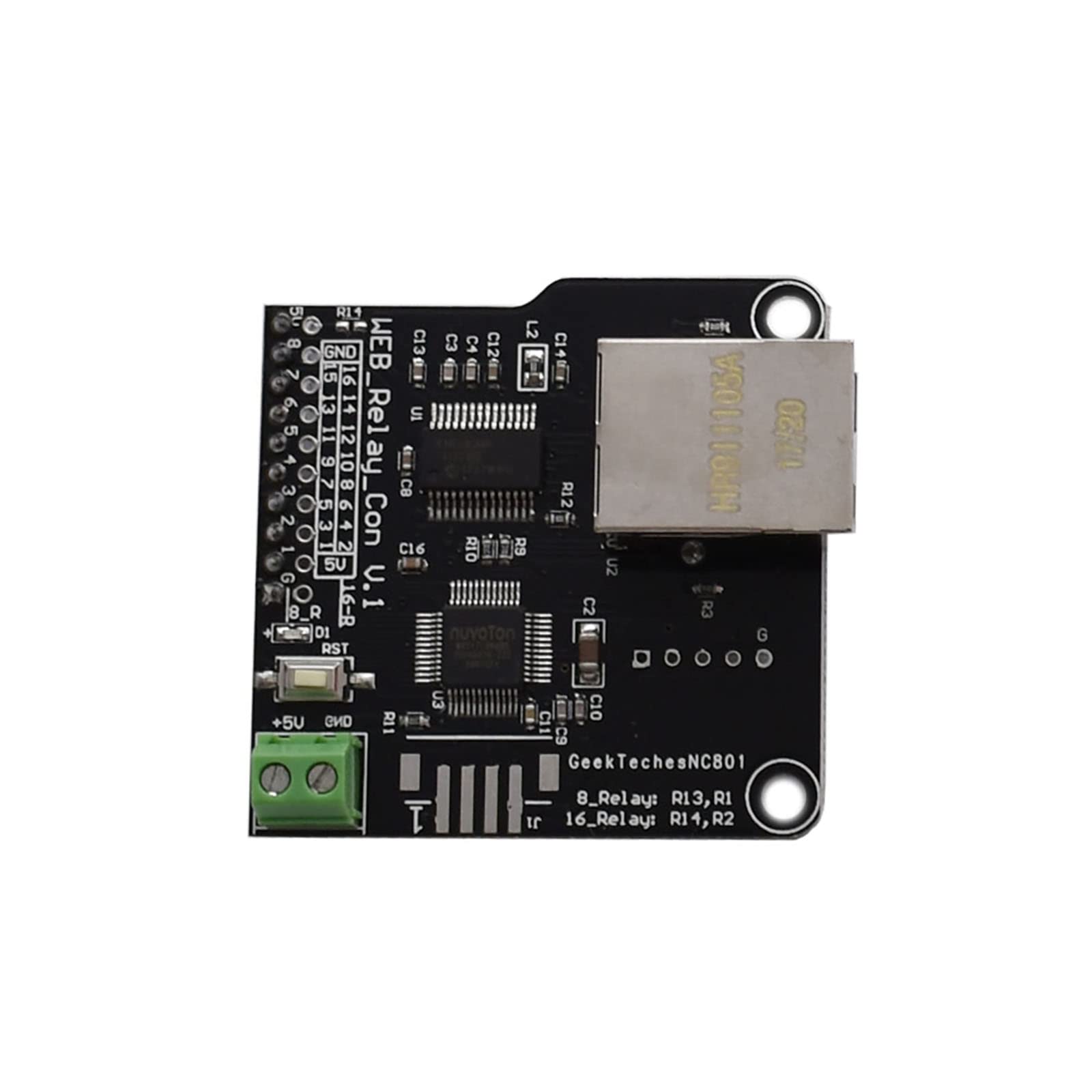

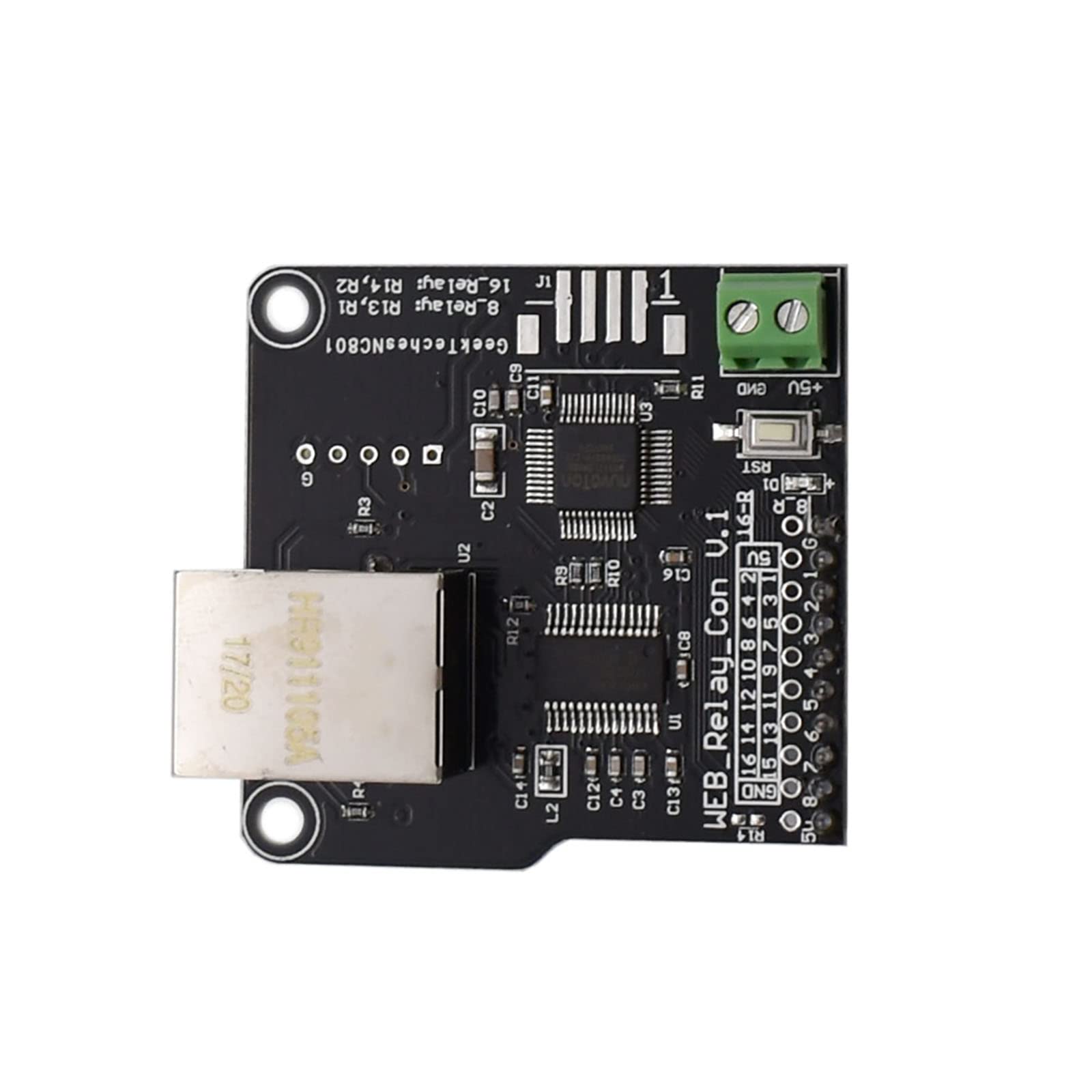

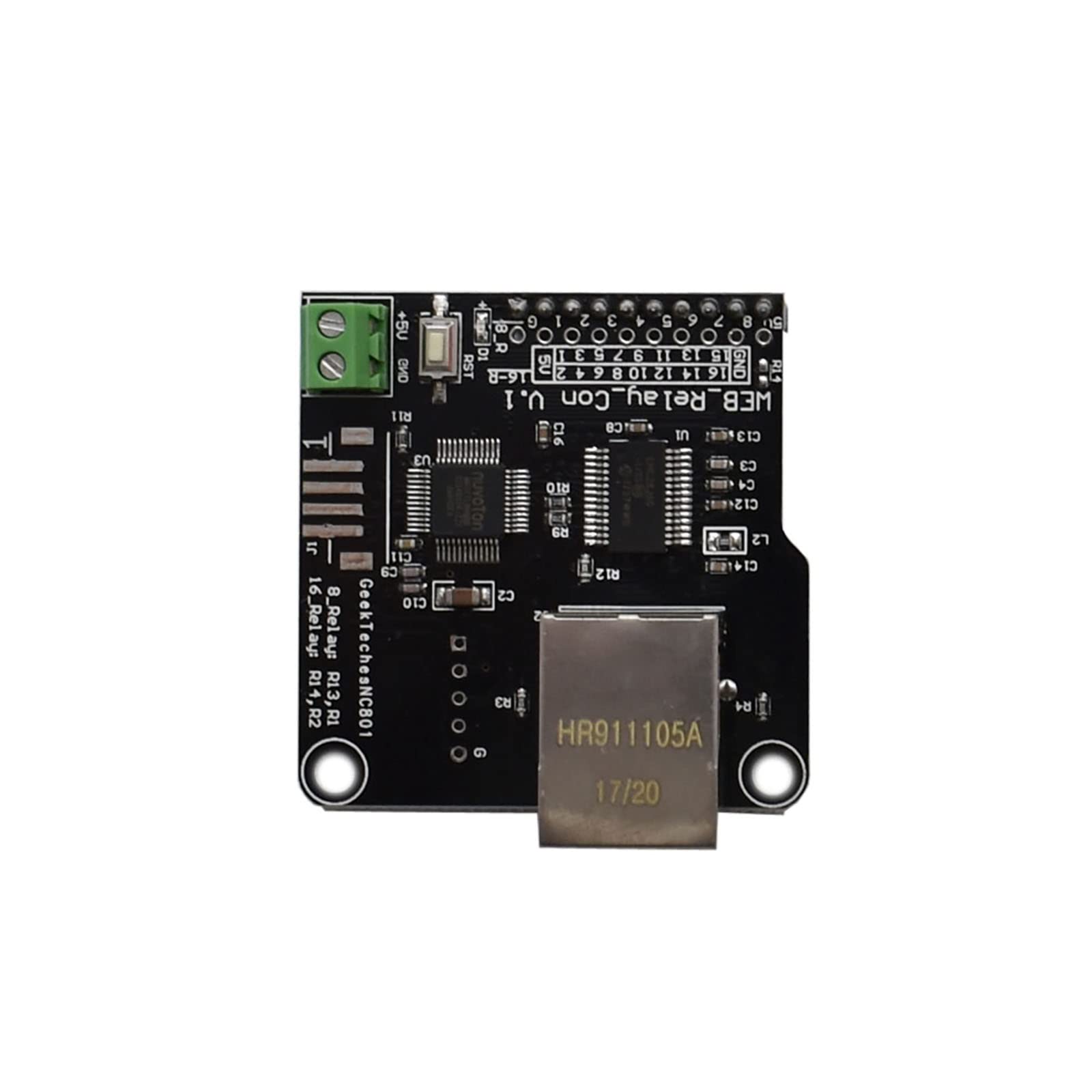

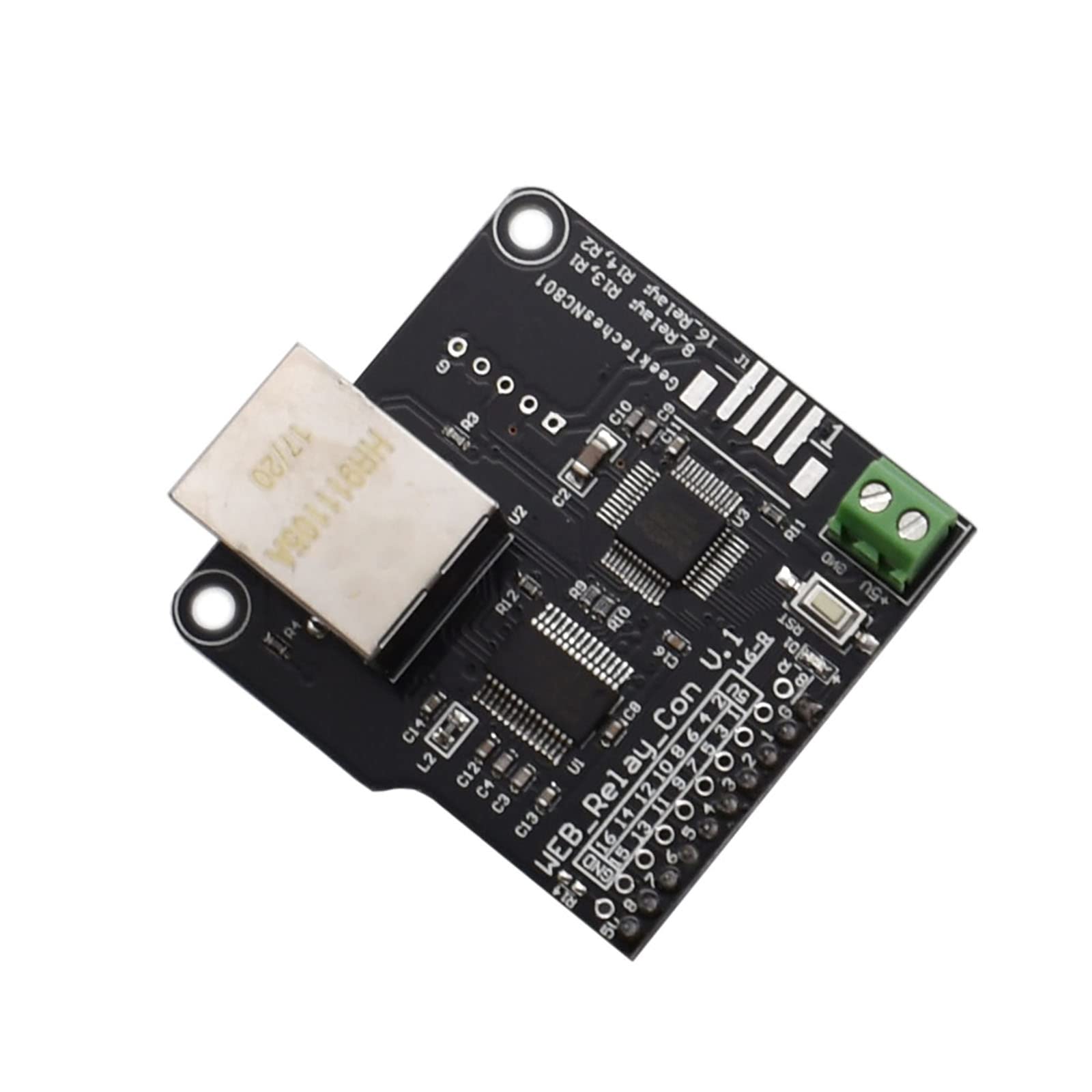

This is an Ethernet Controller board which could be compatible with the 8-channel relay.
Using the controller module and 8-channel relay(Not include), you can remotely control up to 8 devices on the local area network.
RJ45 interface, via RJ45 telecommunications connection for network control.
Product Description
Features:&nbsp;<br/>Default IP address: 192.168.1.4. Port: 30000.<br/>The product has a wide range of uses. Easy to use.<br/>RJ45 interface, via RJ45 telecommunications connection for network control.<br/>This is an Ethernet Controller board which could be compatible with the 8-channel relay.<br/>Using the controller module and 8-channel relay(Not include), you can remotely control up to 8 devices on the local area network.<br/><br/>Specification: &nbsp;<br/>Item name: LED Controller<br/>Color: As shown &nbsp;<br/>Material: ABS&nbsp;<br/>Options: NC801 controller/NC801 controller+8 Channels Relay&nbsp;<br/><br/>Instructions:&nbsp;<br/>1: Default IP: 192.168.1.4 Port: 30000<br/>Open the browser, enter in the address bar: http://192.168.1.4/30000 to enter the control interface<br/><br/>2. Board instructions:<br/>http://192.168.1.4/30000/00: Relay-01 is off<br/>http://192.168.1.4/30000/01: Relay-01 is on<br/>http://192.168.1.4/30000/02: Relay-02 is off<br/>http://192.168.1.4/30000/03: Relay-02 is on<br/>http://192.168.1.4/30000/04: Relay-03 is off<br/>http://192.168.1.4/30000/05: Relay-03 is on<br/>http://192.168.1.4/30000/14: Relay-8 is off<br/>http://192.168.1.4/30000/15: Relay-8 is on<br/>http://192.168.1.4/30000/41: Enter<br/>http://192.168.1.4/30000/40: Exit<br/>http://192.168.1.4/30000/42: Next page<br/>http://192.168.1.4/30000/43: Next page<br/><br/>&nbsp;<br/><br/><b>Package Including</b><br/>Package Included:<br/>1*NC801 Module
Product Specifications
Conditionnew
AsinB09VGHYDLC
CategoryElectronics
SubcategoryNetwork Cards
LeafcategoryCE_ACCESSORY
MPN2470677*120934*FBM
OriginUSA
BrandnameSOONHUA
Height1.181102361
Length5.905511805
Width3.93700787
Weight1
