new | DWEII WT32-ETH01 ESP32 Module Ethernet WiFi Bluetooth Development Board WT32-ETH01 Embedded Serial Port to Ethernet Converter Serial to WiFi&Bluetooth MCU Module Pack of 1
02501BAUXXB09V2VMMMX
DWEII
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details
The ESP32 series of ICs are SOCs that integrate 2.4GHz Wi-Fi and Bluetooth dual-mode, with ultra-high radio frequency performance, stability, versatility, reliability, and ultra-low power consumption
Support wifi to access the Internet or LAN through a router, establish a TCP/UDP connection, and access the user's designated server
Many traditional serial port devices do not have the ability of networking. The integrated optimized TCP / IP protocol stack of WT32-ETH01 can provide the scheme of transferring serial communication to TCP / IP network and improve the level of industrial automation
Support to connect to the network via wired network or wifi to upgrade the firmware

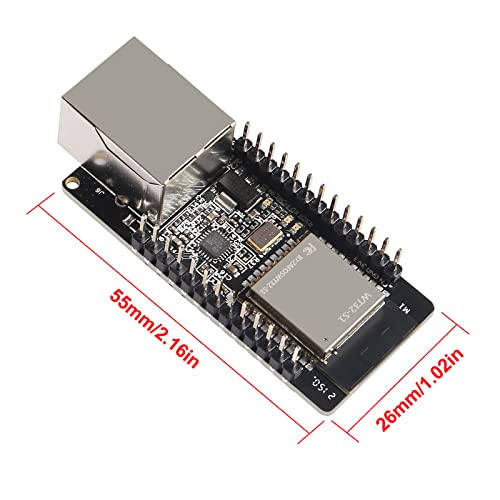

WT32-ETH01 is small in size, industrial grade design, stable in performance, and can provide reliable and stable networking function. It meets the integrated project requirements of power monitoring
Note 1: The module enables high level by default. Note 2: You can only choose one of 3V3 power supply and 5V power supply! ! ! Note 3: IO39 and IO36 only support input.
What's Inside The Box ?
others
Product Ranking
#5962 in Single Board Computers (Computers & Accessories)
Product Description

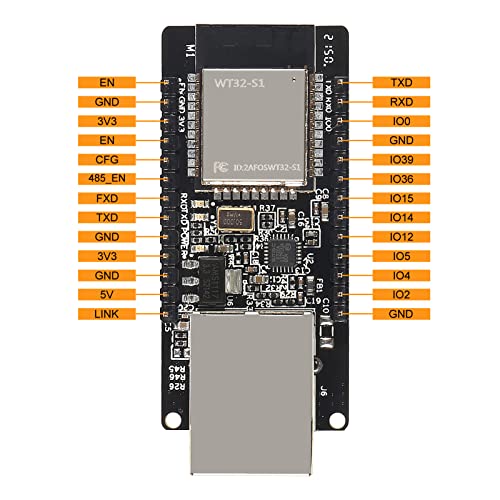

<p><b>Main features of WT32-ETH01&nbsp;</b></p> <p>1. Adopt dual-core Xtensa32-bit LX6 MCU. Integrated SPI flash 3.32Mbit\ SRAM 520KB</p> <p>2. Support TCP Server, TCP Client, UDP Server, UDP Client working mode.</p> <p>3. Support the four data ports of serial port, wif. Ethernet and&nbsp;Bluetooth-compatible-compatible&nbsp;to be combined in pairs, and the data is transparently transmitted.</p> <p>4. Support to connect to the network through wired network or wifi to upgrade the firmware.</p> <p>5. Support wifi to connect to the Internet or LAN through a router, establish a TCP/UDP connection, and access the user's designated server.</p> <p>6. Support wired network access.</p> <p>7. Support user secondary development.</p> <p>8. Industrial grade operating temperature range: -40-+85.</p> <p>9. Serial port baud rate: 80-5000000.</p> <p>10. Network protocol: IPv4, TCP/UDP.</p> <p>11. Software encryption: AES/RSA/ECC/SHA</p> <p>3.3 Pin description</p> <p>Table-1 Debugging and programming interface</p> <p><b>Pin Name Description</b></p> <p>1- EN1 reserved debugging and programming interface; enabled, high level is effective</p> <p>2- GND Reserved debugging and programming interface; GND</p> <p>3- 3V3 reserved debugging and programming interface; 3V3</p> <p>4- TXD reserved debugging programming interface; IO1, TXD0</p> <p>5- RXD reserved debugging programming interface; IO3, RXD0</p> <p>6- IO0 is reserved for debugging and programming interface; IO0</p>
Product Specifications
Conditionnew
AsinB09V2VMMMX
CategoryElectronics
SubcategorySingle Board Computers
LeafcategorySINGLE_BOARD_COMPUTER
CPU ManufacturerCadence Design Systems
Processor Count2
OriginUSA
BrandnameDWEII
Weight1
Warranty Description1
RAM Memory TechnologySRAM
