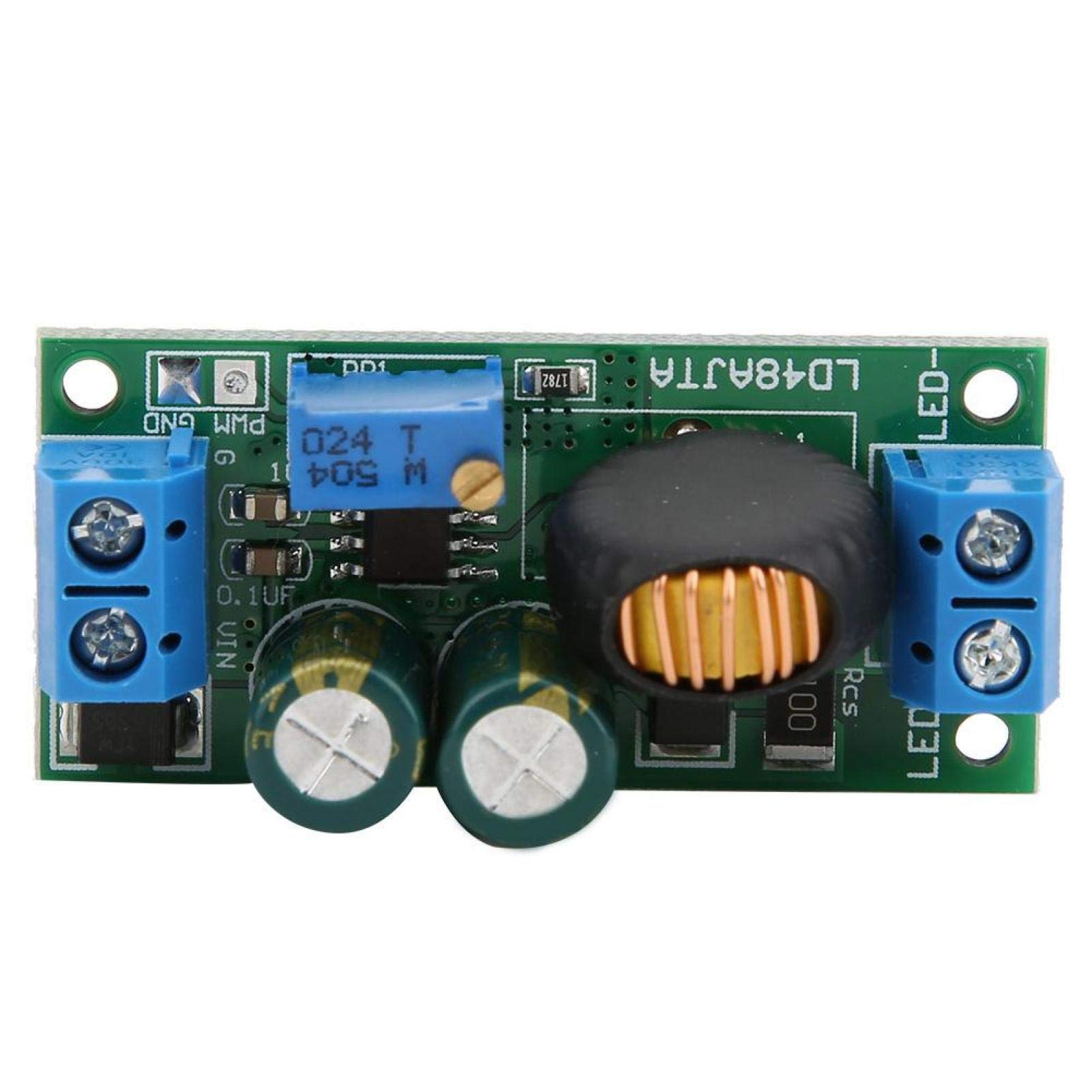

new | Adjustable Converter, LED Driver Board 1-3A LD48AJTA 72W with LED Driver for Woman for Office Tool for Household Products(H 2A 8-36V, with Terminal)
Brand : Jeanoko
new | Adjustable Converter, LED Driver Board 1-3A LD48AJTA 72W with LED Driver for Woman for Office Tool for Household Products(H 2A 8-36V, with Terminal)
Brand : Jeanoko

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
 258.00 د.إ
M.R.P : 361.00 د.إ

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
258.00 د.إ
M.R.P : 361.00 د.إ

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB09TM11DXT
CategoryTools & Home Improvement
SubcategoryLow Voltage Transformers
LeafcategoryELECTRONIC_COMPONENT
MPNJeanoko8fosxg6zar2310-13
OriginUSA
BrandnameJeanoko
Weight1
Product Details
6-50V 1-3A for high brightness LED driver is with 5000: 1 dimming function, which is practical.
Supports maximum output power of 72W (36V / 2A), LED driver has up to 1MHz switching frequency
Single pin on / off and brightness control can be finished by using DC voltage or PWM.
Inherent open LED protection, which can keep over temperature drop current function for adjustable constant LED current with up to 97% efficiency.
With function of high-end current detection, such LED driver board is easy to use in the practical life.
Product Description
Feature:
1. 6-50V 1-3A for high brightness LED driver is with 5000: 1 dimming function, which is practical.
2. Supports maximum output power of 72W (36V / 2A), LED driver has up to 1MHz switching frequency
3. Single pin on / off and brightness control can be finished by using DC voltage or PWM.
4. Inherent open LED protection, which can keep over temperature drop current function for adjustable constant LED current with up to 97% efficiency.
5. With function of high-end current detection, such LED driver board is easy to use in the practical life.


Specification:
Item Type: LED Driver Module
Pattern 1: H 1A 8-50V / H 2A 8-36V / H 3A 8-16V / L 1A 6-16V
/ L 2A 6-16V / L 3A 6-16V
Pattern 2: With Terminal / Without Terminal (optional)
Working Voltage: L-type DC 6-16V, H-type DC 8-50V (perfect for 6V / 9V / 12V / 18V / 24V / 36V / 48V LED driver)
Output Current: 1A / 2A / 3A
By Changing for RCS Resistance,Maximum Current: 4A
Maximum Output Power: 72W (36V / 2A)
Current Regulation: 1 to adjustable resistance; 2 via PWM control
Switching Frequency: Up to 1MHz
Current Accuracy: Typical 5% output
Intrinsic Open LED Protection: Support
High Efficiency: Up to 97%
Size: Approx. 45 x 21 x 16mm / 1.77 x 0.83 x 0.63in
Weight:
Approx. 11 g / 0.4 oz (without terminals)
Approx. 14 g / 0.5 oz (with terminals)

Package List:
1 x LED Driver Module
