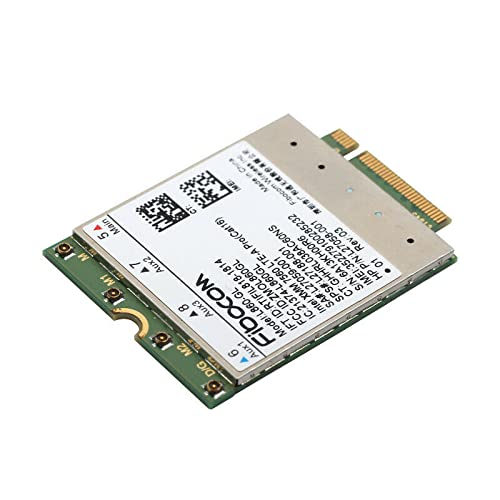

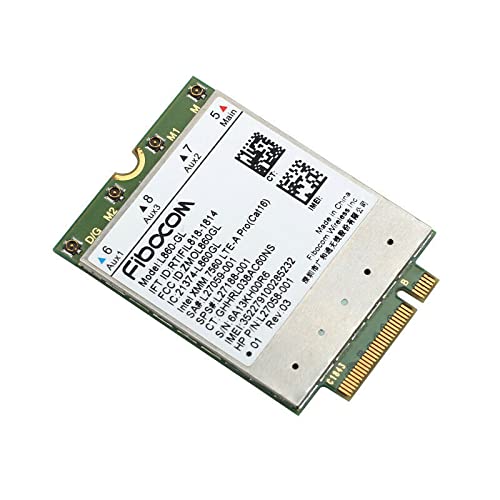

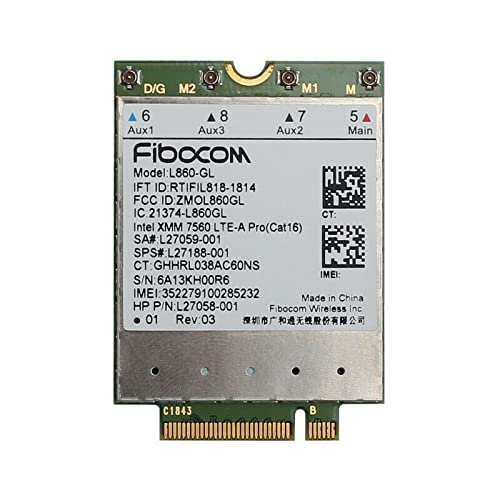

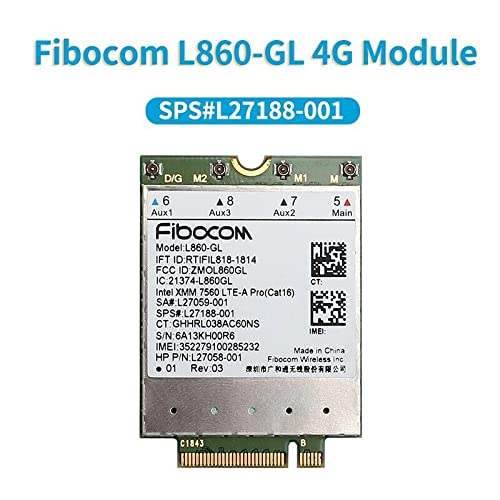

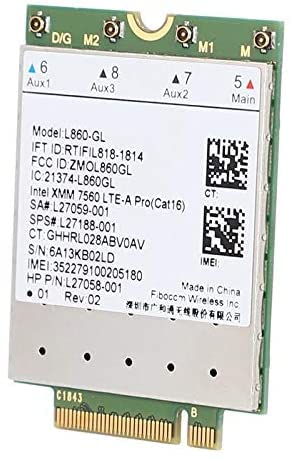

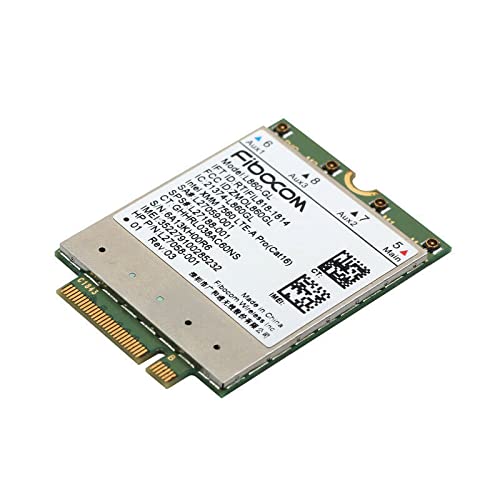

new | SenFend L860-GL 4G LTE WWAN Card Module for HP Elitebook X360 830 840 850 SPS#L27188-001 CAT16 (1Gbps) Download Speed + CAT7 (75Mbps) Upload Speed high Speed
Brand : SenFend
new | SenFend L860-GL 4G LTE WWAN Card Module for HP Elitebook X360 830 840 850 SPS#L27188-001 CAT16 (1Gbps) Download Speed + CAT7 (75Mbps) Upload Speed high Speed
Brand : SenFend
Product Specifications
Conditionnew
AsinB09JVCMGGZ
CategoryElectronics
SubcategoryNetwork Cards
LeafcategoryNETWORK_INTERFACE_CONTROLLER_ADAPTER
OriginUSA
BrandnameSenFend
Weight1
Product Details
Model: L860-GL Chipset: For Intel XMM7560
Maximum download speed: CAT16 (1Gbps) Datarate upload: CAT7 (75Mbps)
Only compatible with these HP Model:HP Elitebook X360 830 840 850
Support 4x4 MIMO, 256QAM technology, can greatly improve the user experience, fully meet your speed needs.
With M.2 interface, it meets the standards and has strong performance. Support for Windows 10 and Linux systems
Product Description
Only compatible with these HP Model:HP Elitebook X360 830 840 850
Specification:
Model: L860-GL
Chipset: For Intel XMM7560
Size: approx. 3.7 * 3 * 0.5cm / 1.46 * 1.18 * 0.2inch
Interface Formfaktor / Connect: M.2
Operating temperature: -20 ° C to +65 ° C
Maximum download speed: CAT16 (1Gbps)
Datarate upload: CAT7 (75Mbps)
Chipset: for Intel XMM7560
LTE FDD: Band 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66
LTE TDD: B38/39/40/41/42
UMTS: Band 1, 2, 4, 5, 8
DL 5CA on 4 bands, DL 256QAM support
DL-MIMO: 2*2, 4*2, 4*4
DL 4x4 MIMO: Band 1,2,3,4,7,30,40,41NB, 66
LAA (Band 46)
Integrated GNSS
eSIM interface support
Operating Voltage: 3.135V~4.4V, Typical 3.3V
Operating Temperature: -10~+55°C
Storage Temperature: -40~+85°C
AT Command Set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands
TX Power:
FDD & TDD LTE: 23dBm
WCDMA: 23.5dBm
RX Sensitivity: FDD & TDD LTE: -98dBm~102dBm
Data:
FDD & TDD LTE: 1Gbps DL (Cat 16), 150Mbps
UL (Cat 13, 2CA on online bands)
UMTS/HSPA+: 42Mbps DL (Cat 24), 11.5Mbps
UL (Cat 7)
Interface:
USIM: 3V/1.8V
Support System: for Windows 10 and Linux
Supported Carriers:
CE / CCC / FCC / GCF / PTCRB etc. 100+ countries certification
For AT&T / Verizon /Sprint / DT / Telefonica / Vodafone /Swisscom / Docomo / KDDI / Softbank / Telstra /Optus
Package list:
1 * L860-GL Module
1 x Screws
