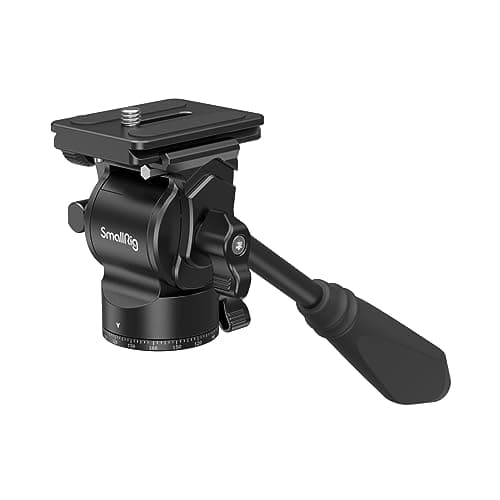

new | SmallRig Tripod Fluid Head Pan Tilt Head with Quick Release Plate for Arca Swiss for Compact Video Cameras and DSLR Cameras -3259B
Brand : SmallRig Selection
new | SmallRig Tripod Fluid Head Pan Tilt Head with Quick Release Plate for Arca Swiss for Compact Video Cameras and DSLR Cameras -3259B
Brand : SmallRig Selection
Product Specifications
Conditionnew
AsinB09C89QPR6
CategoryElectronics
SubcategoryTripod Heads
LeafcategoryPhotography
MPN3259-SS
ColorBlack
OriginUSA
BrandnameSmallRig Selection
Height1
Length1
Width1
Weight1
Product Details
【Compact and Portable】SmallRig CH10 is a compact fluid video head that weighs only 279g. It features a 70mm height and a 36mm base diameter, making it incredibly portable. The mini fluid head dimension is: 80mm*50mm*72mm (excluding handle size),80mm*240mm*72mm(include handle size).
【Pan and Tilt Adjustment】The fluid head features fixed damping for a smooth operation experience(the damping of handle end is 100g); With the handle, this tripod head can tilt +90°/-55° and swivel 360° for multi-angle shooting.
【Quick Release Plate】This fluid head comes with a quick release plate for Arca-Swiss, allowing you to switch between handheld and tripod quickly.
【Wide Compatibility】SmallRig Selection fluid tripod compatible for Arca Swiss QR system, you can mount the QR plate to the camera with the top 1/4" screw. The tripod head CH10 is fully compatible with SLRS, mirrorless cameras, pocket cinema cameras, etc. The safety payload of this tripod head is 3 kg. The bottom 3/8"-16 & 1/4"-20 with screw adapter,compatible with most tripods and monopods.
【Allen Wrench】There is an Allen wrench held on by a magnet tucked away and easily accessible, it can be used for removing the handle.
Product Ranking
#18 in Tripod Heads
Product Description
SmallRig Selection Compact Fluid Head CH10 3259

1. Compact fluid head, lighter, smaller, and more convenient.
2. Fixed damping for a smooth operation experience.
3. It can be tilted +90°/-55° and swiveled 360°, allowing multi-angle shooting.

Note:
1. Do not use the tripod in sandy and dusty conditions, or there is a risk of damage;

Compatibility:
Universal

Package Includes:
1 x Fluid Head
1 x User Manual

Product Dimensions (excluding lever): 70 x 75 x 50mm
Package Dimensions: 245 x 85 x 73mm
Net Weight: 279±5g
Package Weight: 347±5g
Material: Aluminum Alloy
Load Capacity: 3kg
Tilt: +90°/-55°
Tilt Damping: Non-adjustable
Independent Tilt Lock: Yes
Panorama: 360°
Independent Panning Lock: Yes
Base Diameter: 36mm
Lever Length: 200mm
Quick Release Plate Type: for Arca-Swiss
Top Attachment: 1/4"-20 Screw
Product Description
SmallRig Selection Compact Fluid Head CH10 3259

1. Compact fluid head, lighter, smaller, and more convenient.
2. Fixed damping for a smooth operation experience.
3. It can be tilted +90°/-55° and swiveled 360°, allowing multi-angle shooting.

Note:
1. Do not use the tripod in sandy and dusty conditions, or there is a risk of damage;

Compatibility:
Universal

Package Includes:
1 x Fluid Head
1 x User Manual

Product Dimensions (excluding lever): 70 x 75 x 50mm
Package Dimensions: 245 x 85 x 73mm
Net Weight: 279±5g
Package Weight: 347±5g
Material: Aluminum Alloy
Load Capacity: 3kg
Tilt: +90°/-55°
Tilt Damping: Non-adjustable
Independent Tilt Lock: Yes
Panorama: 360°
Independent Panning Lock: Yes
Base Diameter: 36mm
Lever Length: 200mm
Quick Release Plate Type: for Arca-Swiss
Top Attachment: 1/4"-20 Screw
