new | Camera Module HD Camera Module for Raspberry pi manually Switch IR-Cut telephoto Large Lens HBV-IR Cut
Brand : Oumefar
new | Camera Module HD Camera Module for Raspberry pi manually Switch IR-Cut telephoto Large Lens HBV-IR Cut
Brand : Oumefar
Product Specifications
Conditionnew
AsinB099NQDNZ4
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryNETWORKING_DEVICE
MPNOumefar8wdxag9b0f327
OriginUSA
BrandnameOumefar
Height0.393700787
Length0.393700787
Width0.393700787
Weight1
Product Details
CLEAR PICTURE :The camera module is manufactured in strict accordance with the factory quality control, with 5 million high-definition pixels, which brings a pure and delicate picture quality experience, and the picture is clearer.
CLEAR PICTURE :The camera module is manufactured in strict accordance with the factory quality control, with 5 million high-definition pixels, which brings a pure and delicate picture quality experience, and the picture is clearer.
VISUAL EXPERIENCE :The camera module uses high-definition photosensitive chip, strong stability, giving you a good visual experience, and has been improved to improve durability and long service life.
GOOD PERFORMANCE :The camera module adopts advanced technology and exquisite craftsmanship. The camera module has a 65° field of view, a wider field of view, and good performance.

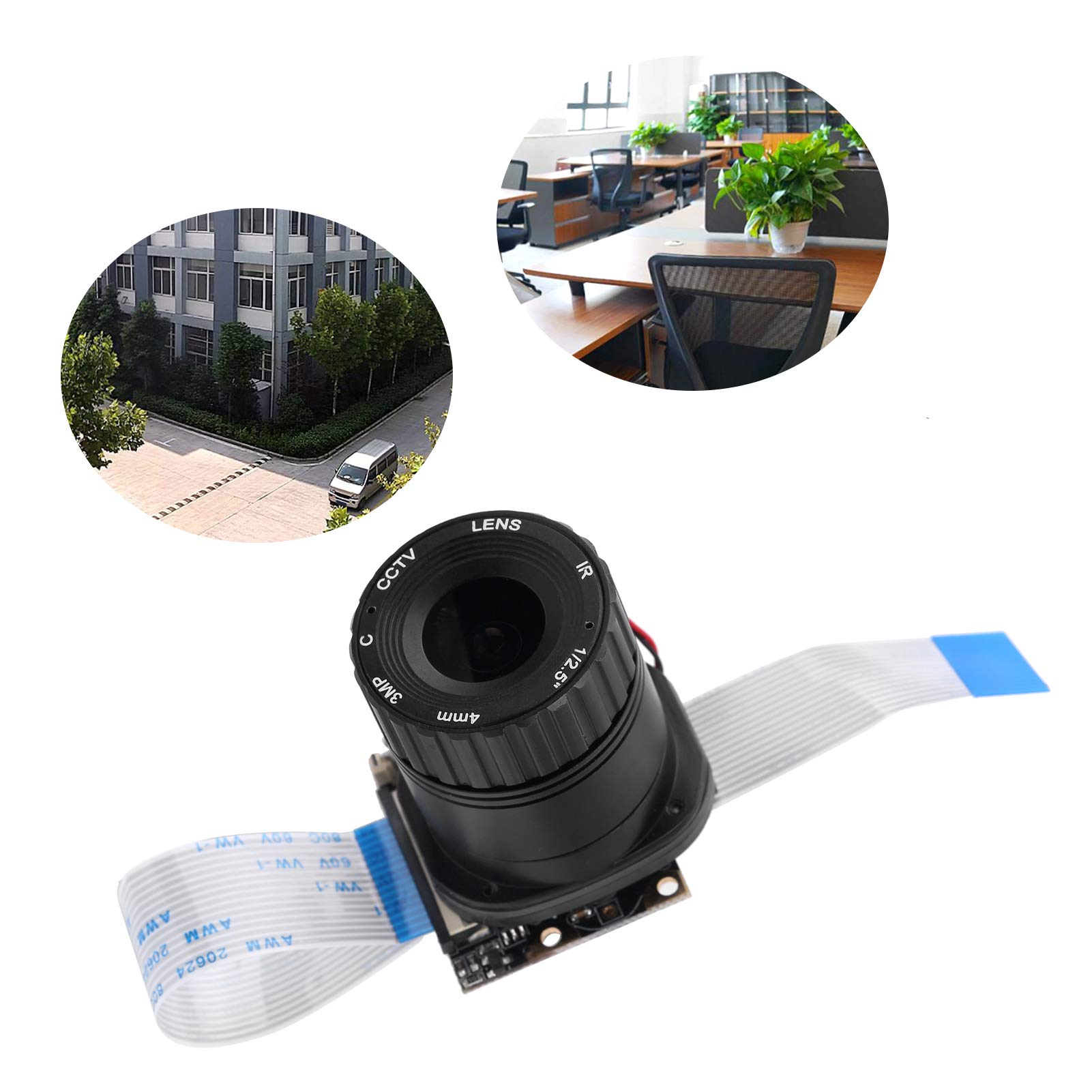

USED FOR :The camera module has excellent workmanship, simple structure, high safety factor, and can be used with confidence. Camera module is used for Raspberry Pi face recognition, license plate recognition equipment, and intelligent learning machine equipment.

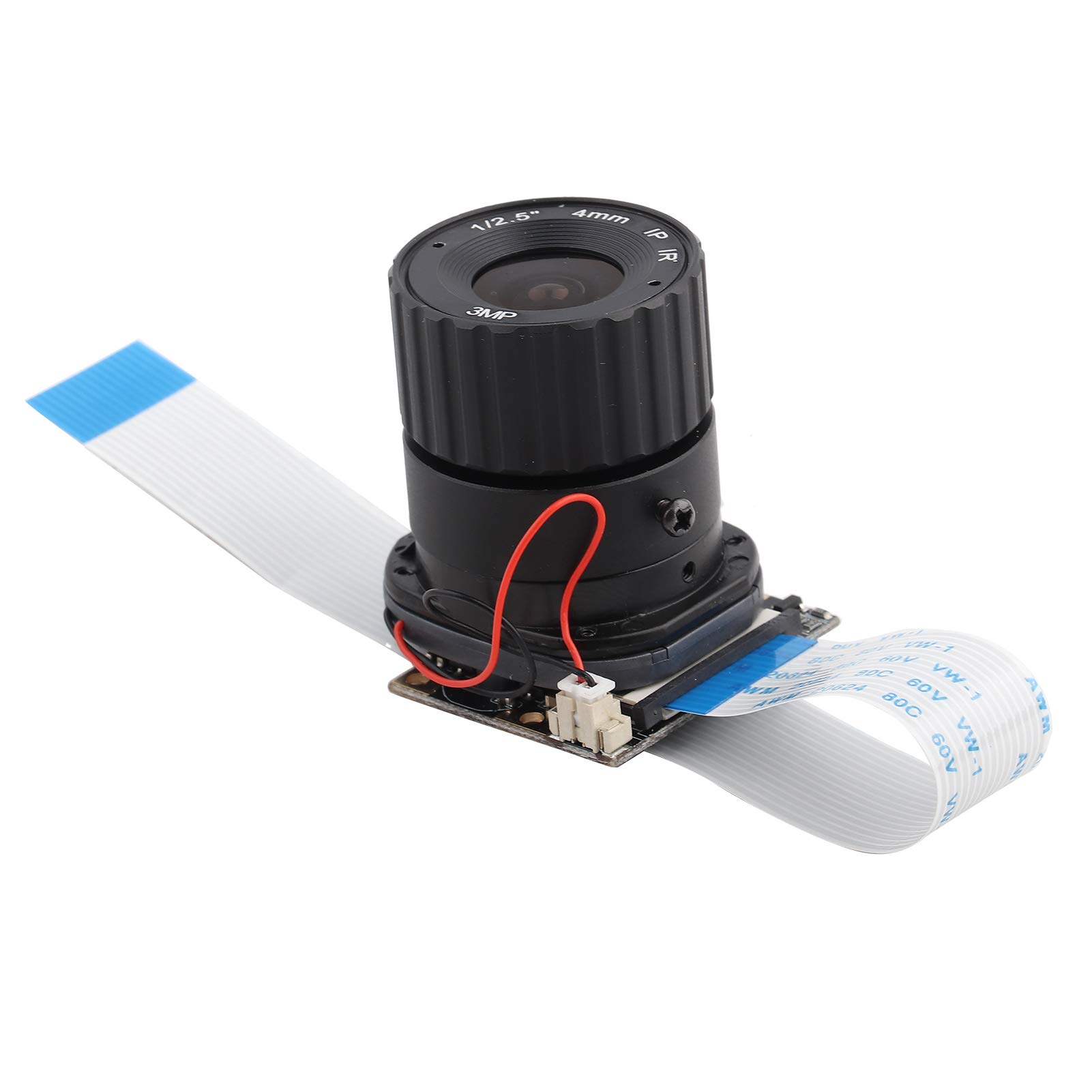

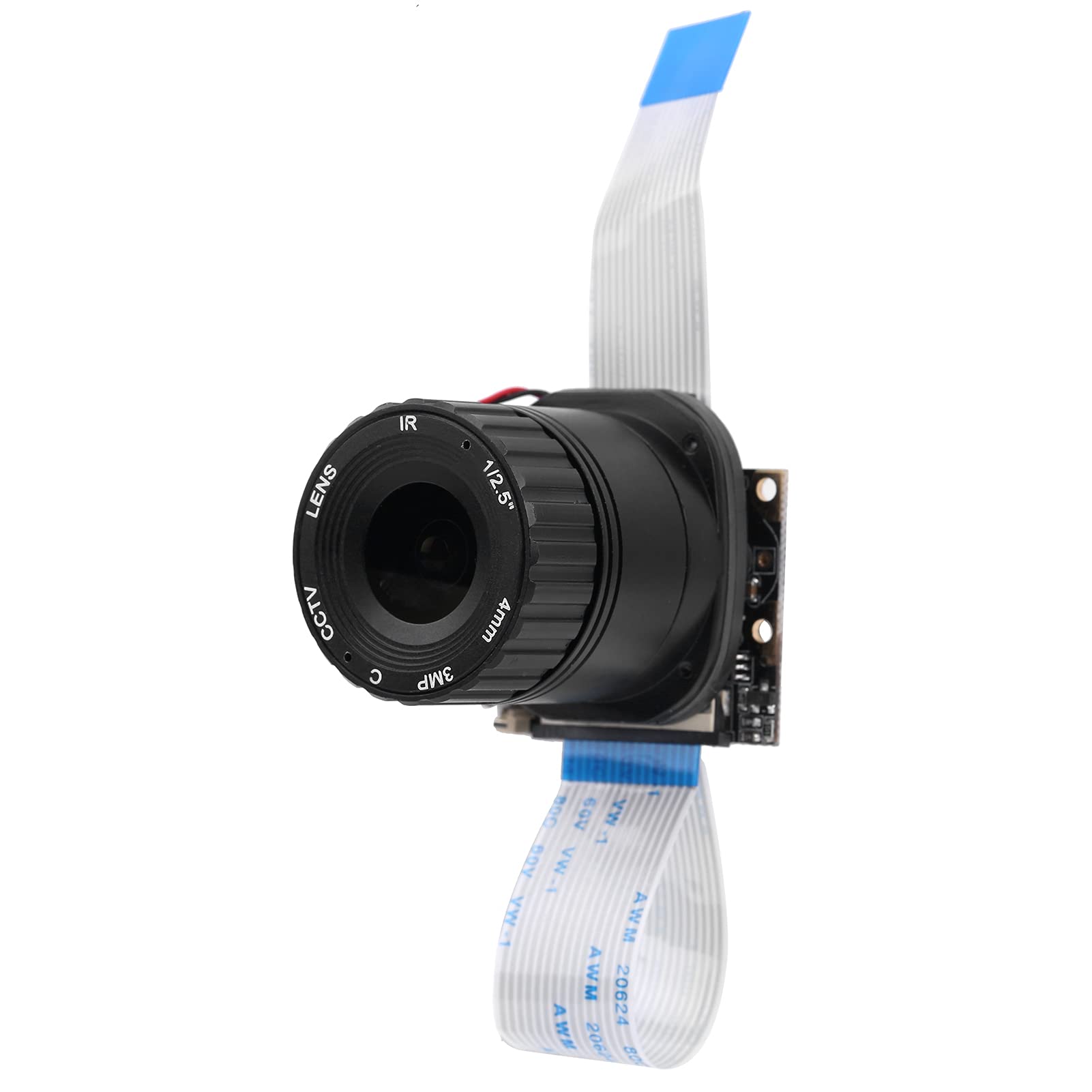

CAMERA MODULE :There is 1 camera module in the package, model HBV-IR CUT, aperture 1.2, manual focus, focal length about 4 mm/0.2 inches, CMOS size about 0.6 cm/0.25 inches, suitable for Raspberry Pi system.
Product Description
Description:
The camera module has excellent workmanship, simple structure, high safety factor, and can be used with confidence. Camera module is used for Raspberry Pi face recognition, license plate recognition equipment, and intelligent learning machine equipment.


Specification:
Item Type: Camera Module
Model: HBV-IR CUT

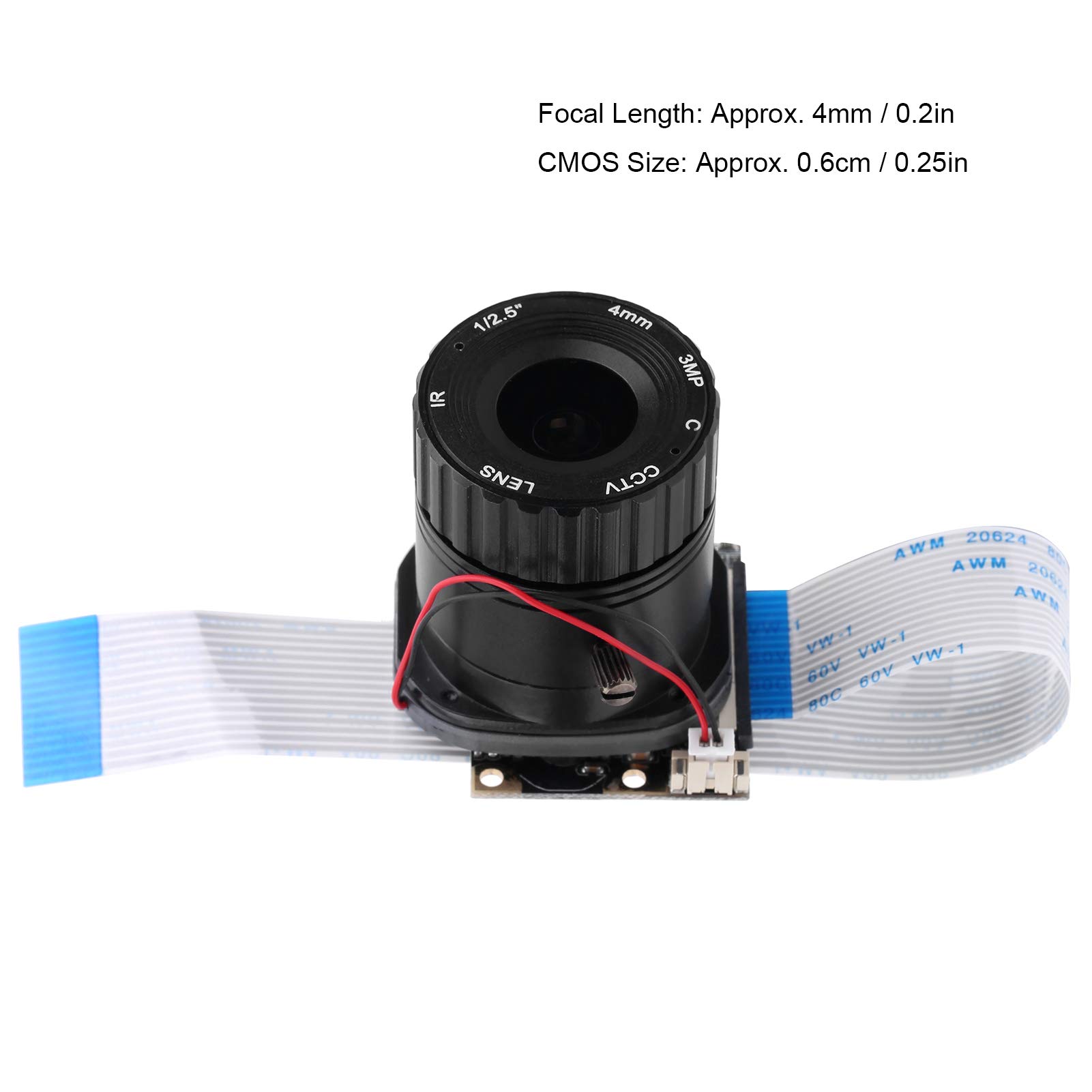

Focal Length: Approx. 4mm / 0.2in
Diagonal Field of View: 65°
Aperture: 1.2
Focus Method: Manual Focus
Material: PCB
Power Supply: DC3.3V
Interface: CSI
Frame Rate: 30FPS
Sensor Pixels: 1080p
Photosensitive Chip: OV5647
CMOS Size: Approx. 0.6cm / 0.25in
Sensor Type: CMOS
The Highest Resolution: 2592 x 1944
Need to Drive: Free drive
System Support: For Raspberry Pi system
Working Temperature: -20℃~70℃ conventional
Application Scope: For Raspberry Pi development board
IR-CUT (manual switching method)
RPi IR-CUT Camera works in normal mode by default.
Execute The Command: Sudo nano/boot/config.txt, add disable_camera_led=1 in the last line, save and restart the for Raspberry Pi and Camera will work in night view mode.
To restore to normal mode, just delete disable_camera_led=1, save and restart the Raspberry Pi. If you need to flexibly control the display mode, you can connect to the following locations through the GPIO interface of the for Raspberry Pi, and switch between different modes by changing the GPIO level (high level is normal mode, low level is night view mode)

Package List:
1 x Camera Module

Note:
New and old models are shipped randomly
