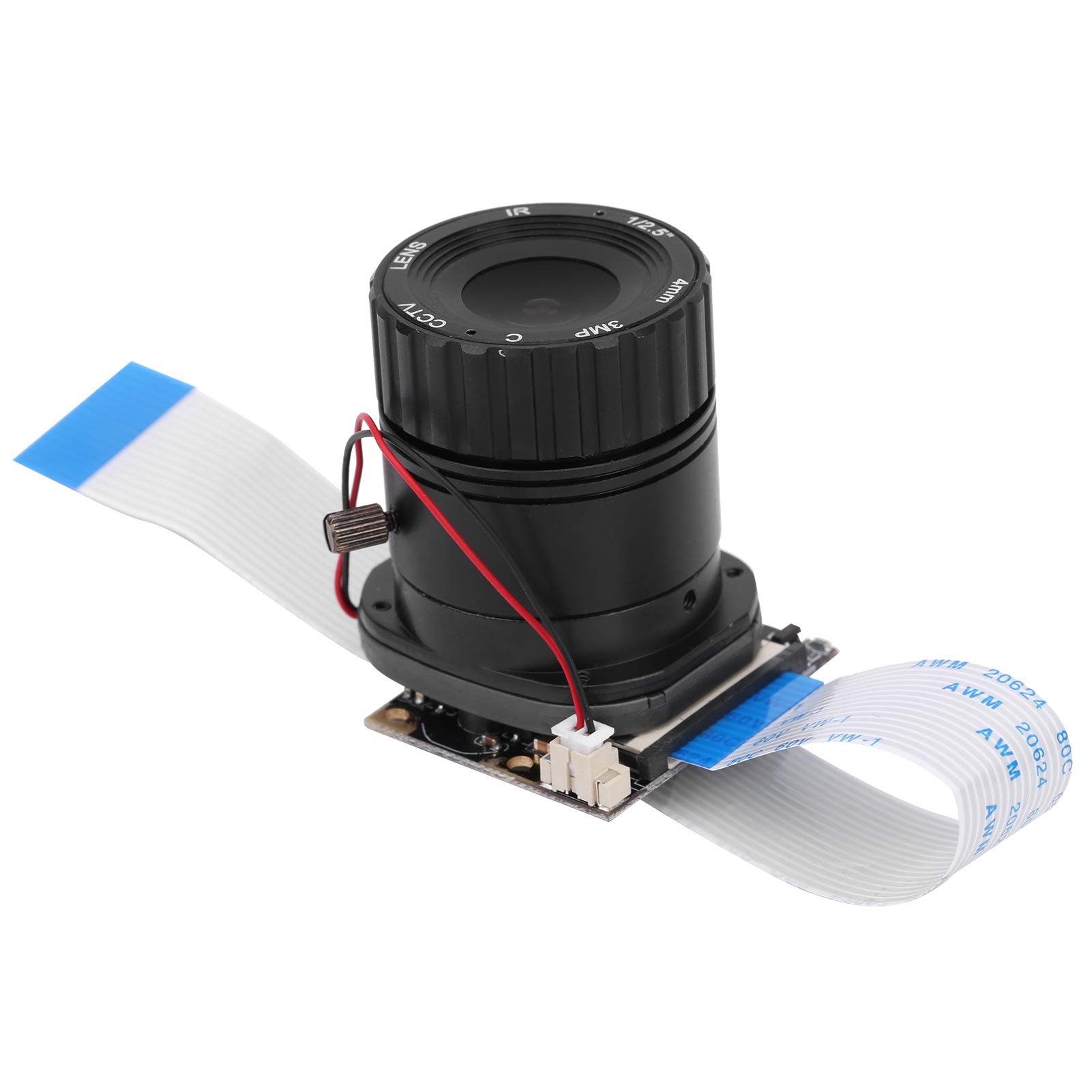

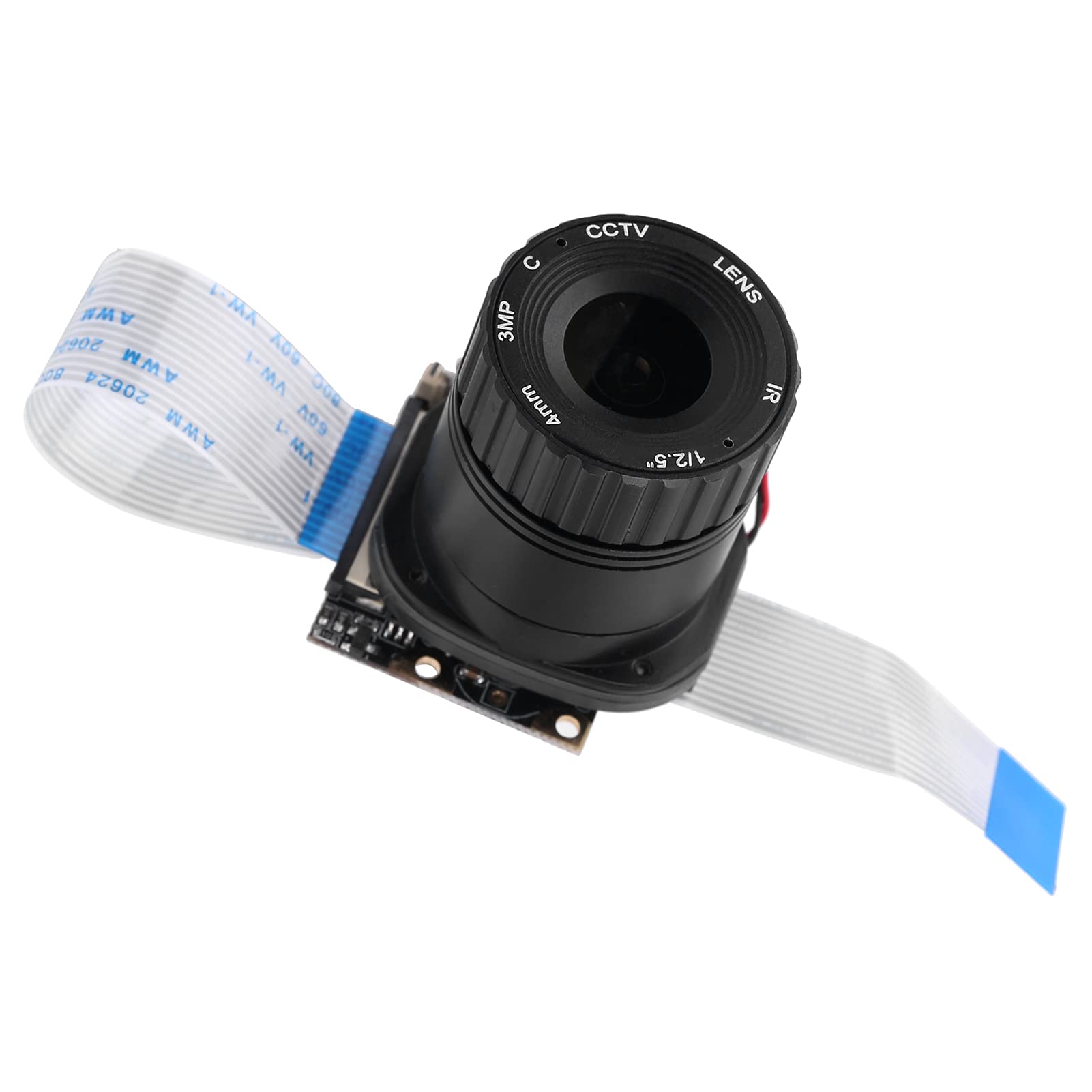

new | 65° Field View HD Camera Module Camera Module for Raspberry Pi Manually Switch IR-Cut Telephoto Large Lens HBV-IR Cut
Brand : Tomantery
new | 65° Field View HD Camera Module Camera Module for Raspberry Pi Manually Switch IR-Cut Telephoto Large Lens HBV-IR Cut
Brand : Tomantery
Product Specifications
Conditionnew
AsinB097HQN1VN
CategoryElectronics
SubcategorySingle Board Computers
MPNTomanteryqxnye6bpug720
OriginUSA
BrandnameTomantery
Height0.393700787
Length0.393700787
Width0.393700787
Weight1
Product Details
5 MILLION HIGH-DEFINITION PIXELS：Our camera module have 5 million high-definition pixels, bring pure and delicate picture quality experience and the image is clearer,which is a good choice for you.
STRONG STABILITY：Camera module use high-definition photosensitive chip, strong stability, which will give you a good visual experience.
WIDELY USED：The HD camera module is widely used for raspberry pi face recognition, license plate recognition equipment, smart learning machine equipment.
WIDE FIELD：The camera module has a 65° field of view, a wider field of view and good performance.
GOOD REPLACEMENT ：This 1080p camera module have strict quality control,professional and practical,which is perfect replacement camera module.
Product Description
Specification:


Item Type: Camera Module
Model: HBV-IR CUT
Focal Length: Approx. 4mm / 0.2in
Diagonal Field of View: 65°
Aperture: 1.2
Focus Method: Manual Focus
Material: PCB
Power Supply: DC3.3V
Interface: CSI
Frame Rate: 30FPS
Sensor Pixels: 1080p
Photosensitive Chip: OV5647
CMOS Size: Approx. 0.6cm / 0.25in
Sensor Type: CMOS
The Highest Resolution: 2592 x 1944
Need to Drive: Free drive
System Support: For Raspberry Pi system
Working Temperature: -20℃~70℃ conventional
Application Scope: For Raspberry Pi development board
IR-CUT (manual switching method)
RPi IR-CUT Camera works in normal mode by default.
Execute The Command: Sudo nano/boot/config.txt, add disable_camera_led=1 in the last line, save and restart the for Raspberry Pi and Camera will work in night view mode.
To restore to normal mode, just delete disable_camera_led=1, save and restart the Raspberry Pi. If you need to flexibly control the display mode, you can connect to the following locations through the GPIO interface of the for Raspberry Pi, and switch between different modes by changing the GPIO level (high level is normal mode, low level is night view mode)




Package List:
1 x Camera Module

Note:

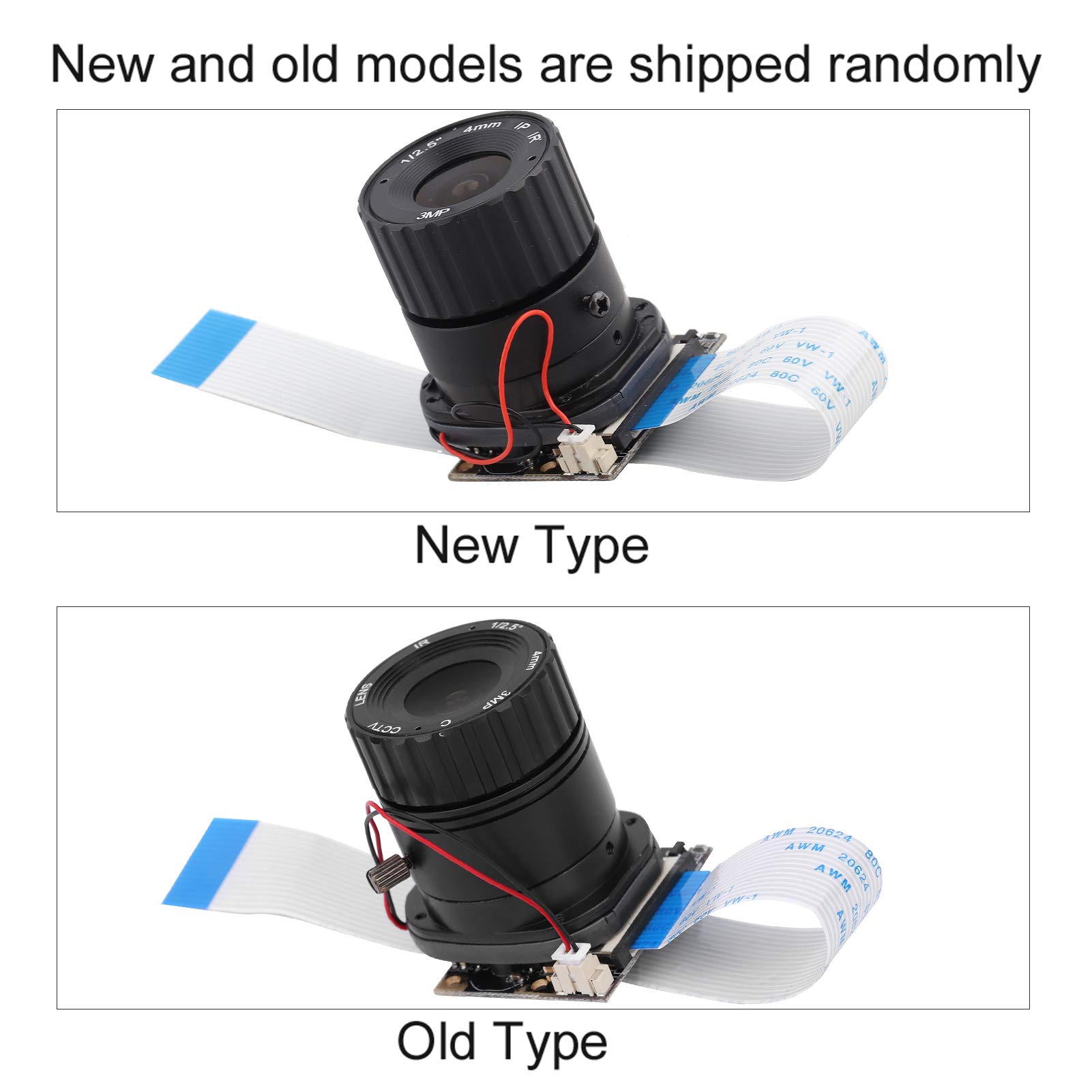

New and old models are shipped randomly
Product Description
Specification:


Item Type: Camera Module
Model: HBV-IR CUT
Focal Length: Approx. 4mm / 0.2in
Diagonal Field of View: 65°
Aperture: 1.2
Focus Method: Manual Focus
Material: PCB
Power Supply: DC3.3V
Interface: CSI
Frame Rate: 30FPS
Sensor Pixels: 1080p
Photosensitive Chip: OV5647
CMOS Size: Approx. 0.6cm / 0.25in
Sensor Type: CMOS
The Highest Resolution: 2592 x 1944
Need to Drive: Free drive
System Support: For Raspberry Pi system
Working Temperature: -20℃~70℃ conventional
Application Scope: For Raspberry Pi development board
IR-CUT (manual switching method)
RPi IR-CUT Camera works in normal mode by default.
Execute The Command: Sudo nano/boot/config.txt, add disable_camera_led=1 in the last line, save and restart the for Raspberry Pi and Camera will work in night view mode.
To restore to normal mode, just delete disable_camera_led=1, save and restart the Raspberry Pi. If you need to flexibly control the display mode, you can connect to the following locations through the GPIO interface of the for Raspberry Pi, and switch between different modes by changing the GPIO level (high level is normal mode, low level is night view mode)




Package List:
1 x Camera Module

Note:
New and old models are shipped randomly
