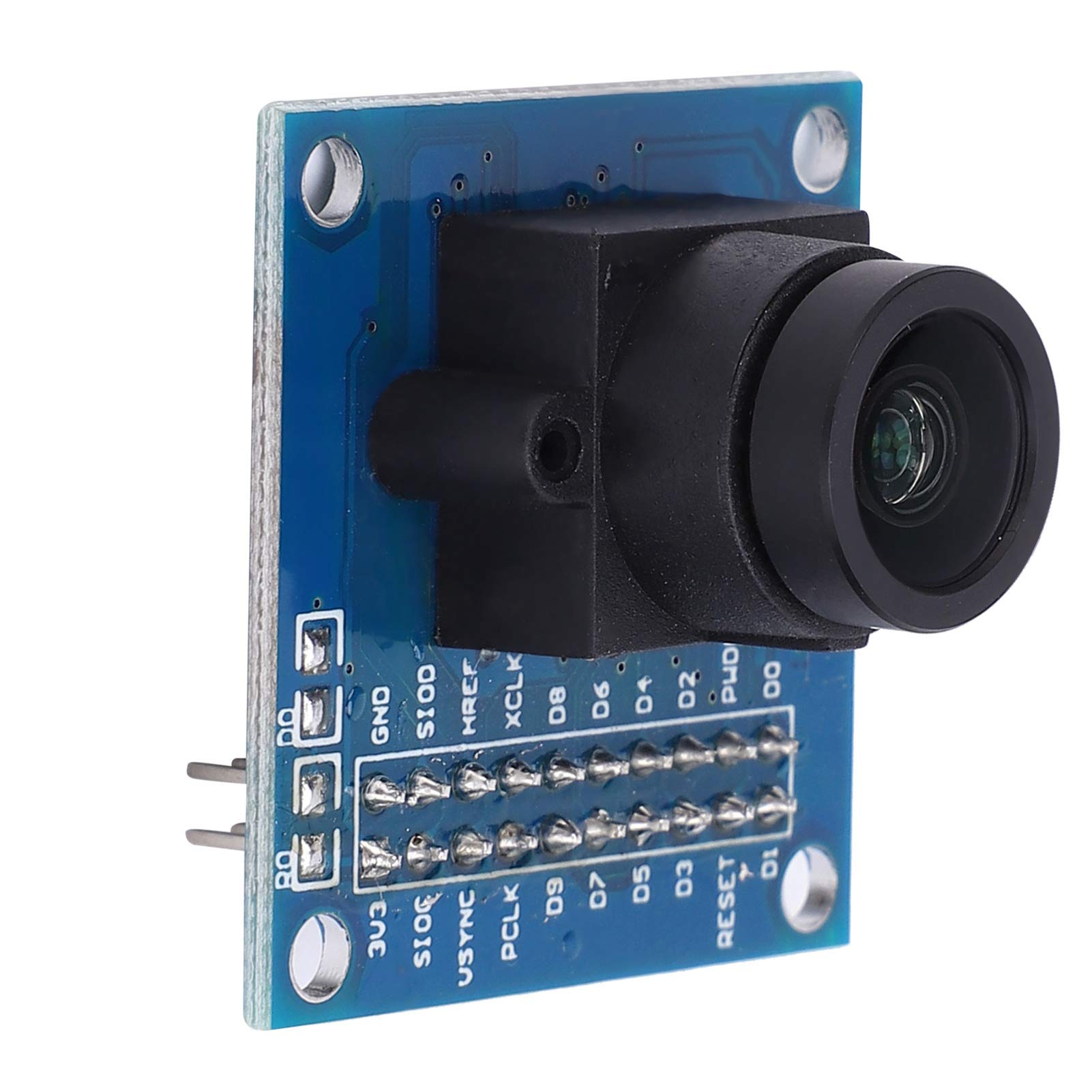

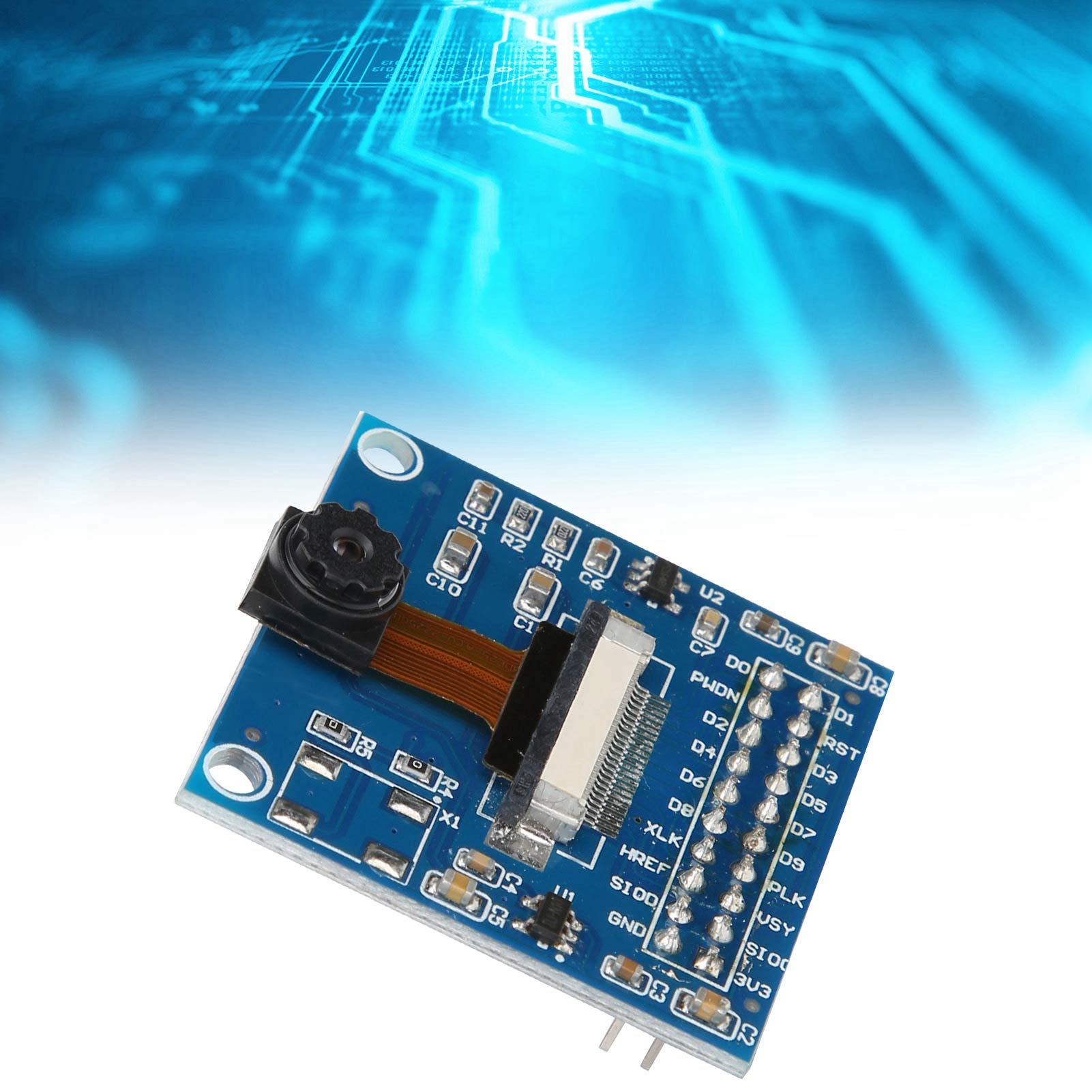

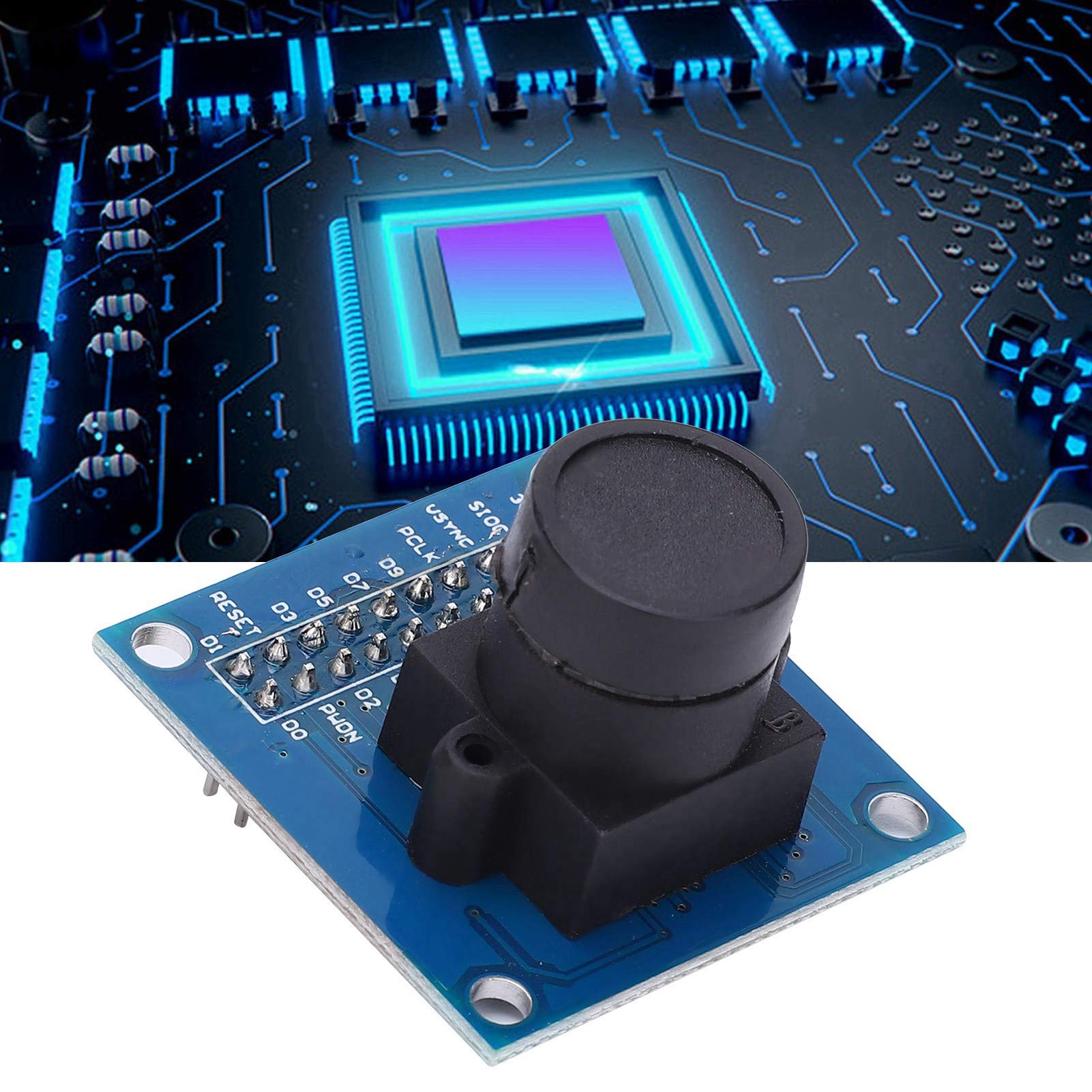

new | Camera Module Board, OV7725 30W High Definition Camera Module STM32 Webcam Camera Module Board
Brand : Eujgoov
new | Camera Module Board, OV7725 30W High Definition Camera Module STM32 Webcam Camera Module Board
Brand : Eujgoov
Product Specifications
Conditionnew
AsinB08TWB2CTB
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryNETWORKING_DEVICE
MPNPFMf8noxu1b4cygs600
OriginUSA
BrandnameEujgoov
Height0.393700787
Length0.393700787
Width0.393700787
Weight1
Product Details

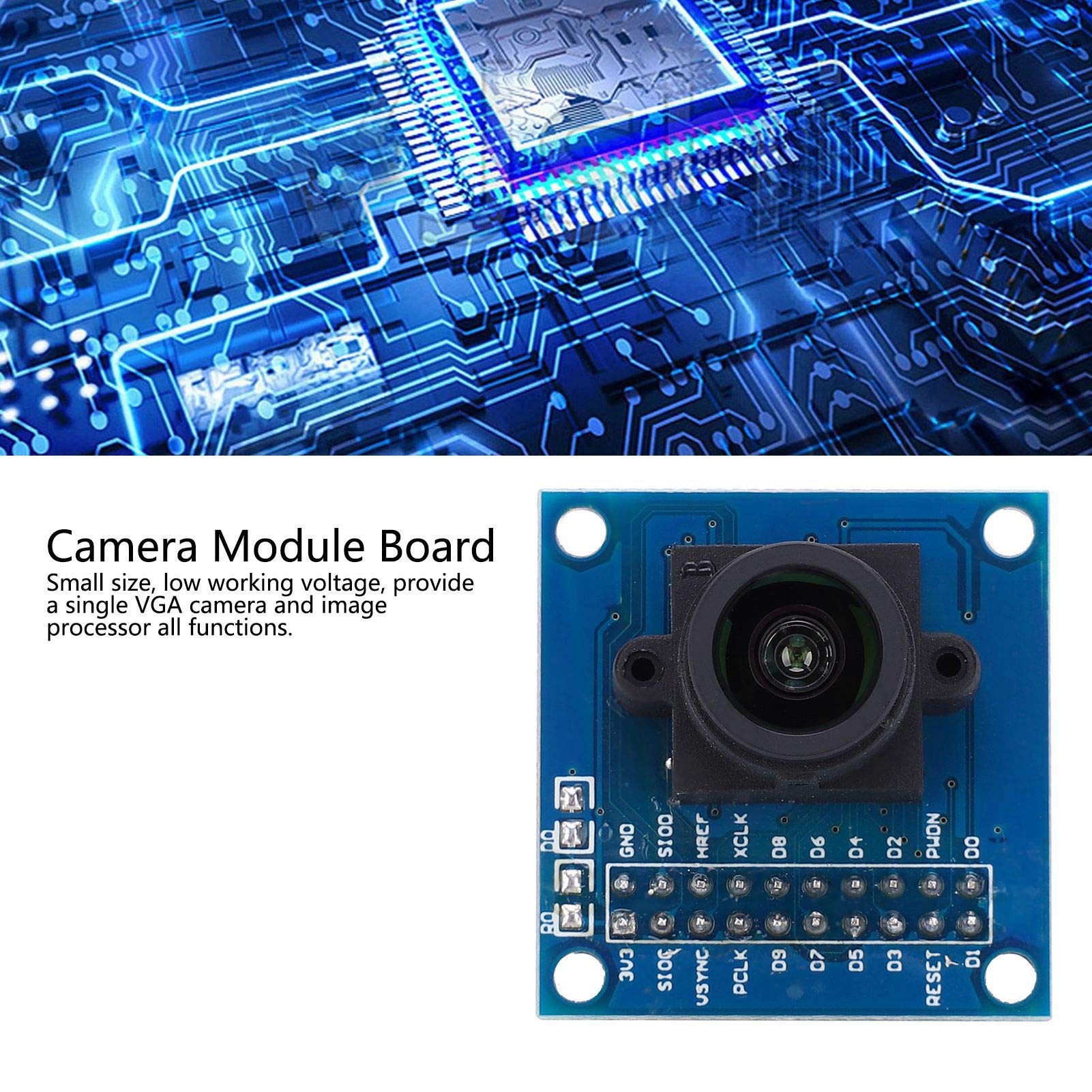

PRACTICAL TO USE: Small size, low working voltage, provide a single VGA camera and image processor all functions.
GOOD PERFORMANCE: Through SCCB bus control, it can output the whole frame, sub‑sampling, and other ways of various resolutions of 10‑bit data
SPECIFIC FEATURE: VGA image up to 60 frames per second, 30W high definition camera module.
WELL DESIGNED: All image processing processes including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface.
ADVANTAGE: High sensitivity for low illumination applications and low voltage for embedded applications.
Product Description
Specification:
Condition: 100% Brand New
Item Type: Camera Module
Material: PCB
Purpose: Image acquisition, color photography, simple image recognition, car tracking, automatic tracking, automatic control
Photosensitive Array: 640X480
IO Voltage: 1.7-3.0V (internal LDO supplies 1.8V to the core)
Power Consumption: 120mH/65fpsVGA, YUV conditions
Dormancy: <20uA
Temperature Operation: -20℃~70℃
Stable Operation: 0℃~50℃
Output Format (10 or 8 bits)YUV/ McBcr4:2:2 RCGB565/555/444CGRB4:2:2 RGB Data
Optical Size: 1/4in
Field of View: 25°
Maximum Virginity Rate: 60fpsVGA sensitivity 3V/ (Lux- SEC)
Signal to Noise Ratio: 50dB
Dynamic Range: 60B
Browse Mode: Line by line
Electronic Exposure: Lines 1 to 510
Pixel Area: 6.0μm x 6.0μm
Dark Current: 40mV/s at 60℃

Package List:
1 x Camera Module
