new | PC Diagnostic 4-Digit Card,Module Board Test & Measuring Module PC Computer Mother Board Debug Post Card Analyzer PCI Motherboard Tester Diagnostics Display for Desktop PC
Brand : GINTOOYUN
new | PC Diagnostic 4-Digit Card,Module Board Test & Measuring Module PC Computer Mother Board Debug Post Card Analyzer PCI Motherboard Tester Diagnostics Display for Desktop PC
Brand : GINTOOYUN

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
 265.00 د.إ
M.R.P : 371.00 د.إ

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
265.00 د.إ
M.R.P : 371.00 د.إ

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB08QRCDR9D
CategoryElectronics
SubcategoryMotherboards
LeafcategoryMOTHERBOARD
MPNzbc-105
Colorblack
OriginUSA
BrandnameGINTOOYUN
Weight1
Product Details
PCI and ISA 4 digit PCI analyzer:standard PCI and ISA interface,easy access to desktop PC.Standard PCI and ISA interfaces for easy access to desktop PCS.4 digit display,the first 2 digits indicate the current error code,and the last 2 digits indicate the previous error code.
PC Diagnostic 4-Digit Card fully compatible with any kind motherboards which has the PCI and ISA bus slot
The POST code display is made up of a dual, dot matrix hexadecimal read-out that display's Power On Self Test (POST) status codes.
Self checking remote display function. Dual POST code display - User can readout the POST at PCB component and solder side. It is easy to view the POST code when user plugs the POST card in computer system. Recall previous post codes at the touch of a button
Self checking remote display function. Dual POST code display - User can readout the POST at PCB component and solder side. It is easy to view the POST code when user plugs the POST card in computer system. Recall previous post codes at the touch of a button
Product Ranking
#949 in Computer Motherboards
Product Description
The motherboard diagnostic card is also called a POST card (Power On Self Test) or a PC analyzer. It is a code that displays the motherboard BIOS self-test procedure.
Specifications:
System: for Windows 98 SE/ ME/ NT/ 2000/ XP / VISTA
Size: Approx. 89mm x 82mm(L*W)
Support for desktop computers
With motherboard operating indicator;
The use of patch components does not hurt hands;
This card can be inserted into ISA or PCI; Plug in the wrong slot or reverse insertion will not burn any parts;
Able to display the crash of repeated automatic reset under a black screen;
You can diagnose the failures in the board without plugging in the CPU and other empty boards.
Suitable for all computers with PCI or ISA interface.
Introduce of run LEDS
Only by some units and a few mainboard slot message , it could runs normally , and it has a low error percentum , If the card is plugged into the bad slot , the code stop changing , or the other LEDS is not light , but the run LED is quite possible to run normally . You can solve the following problems by the result "of if the run LED has lighted , the mainboard has ever ran":
1 . The code of the card is bad
2 . The card is not fit for the mainboard which you using
3 . PCI slot or ISA slot is bad
4 . The card is plugged incorrectly or pins of card are dirty , or pins in slotrusted
5 . The mainboard stops working
6 . The mainboard is working on programs which is out of relation tocode

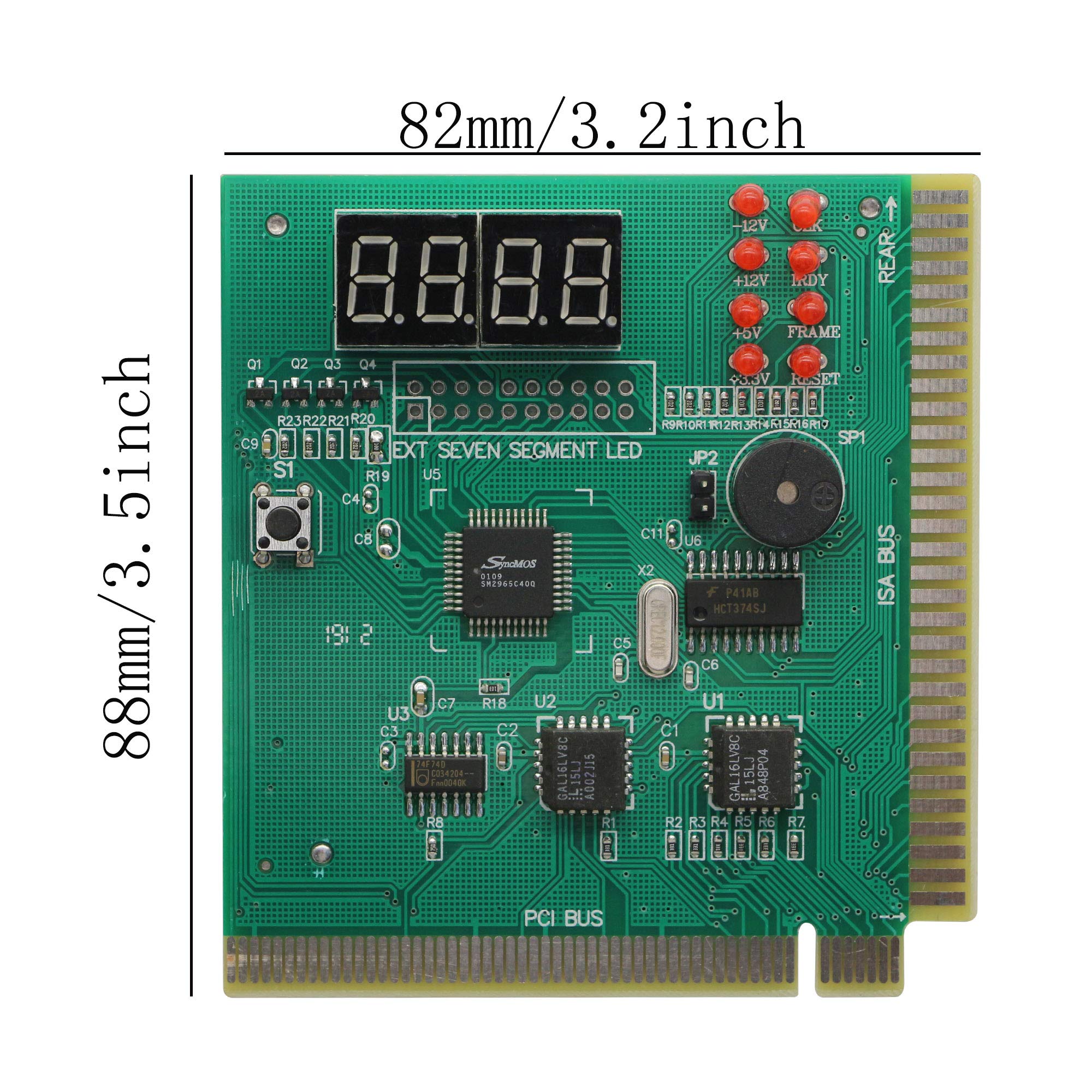

Size:89mm x 82mm
Weight:32g

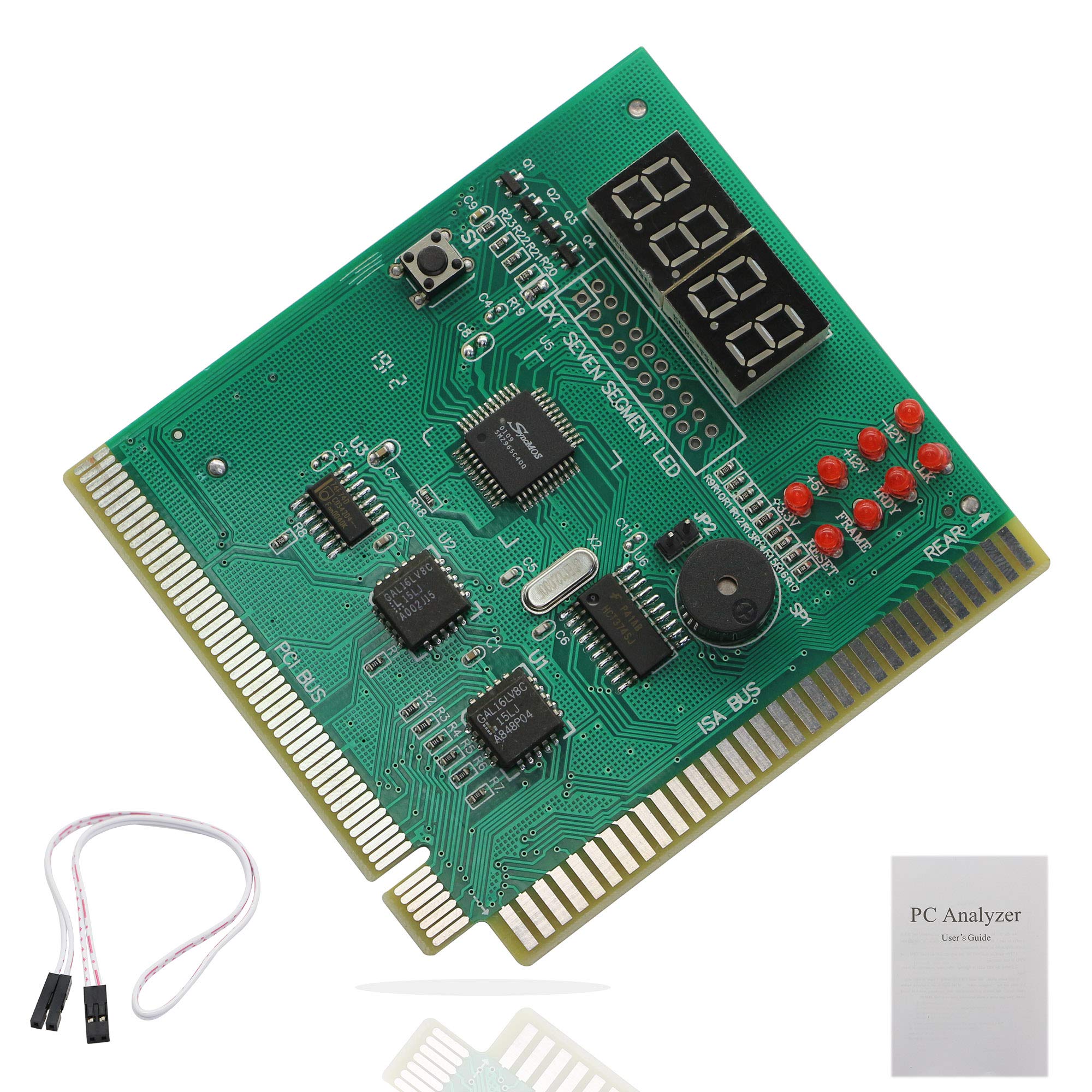

Package contains:
1. Diagnostic test card;
2. Instruction manual

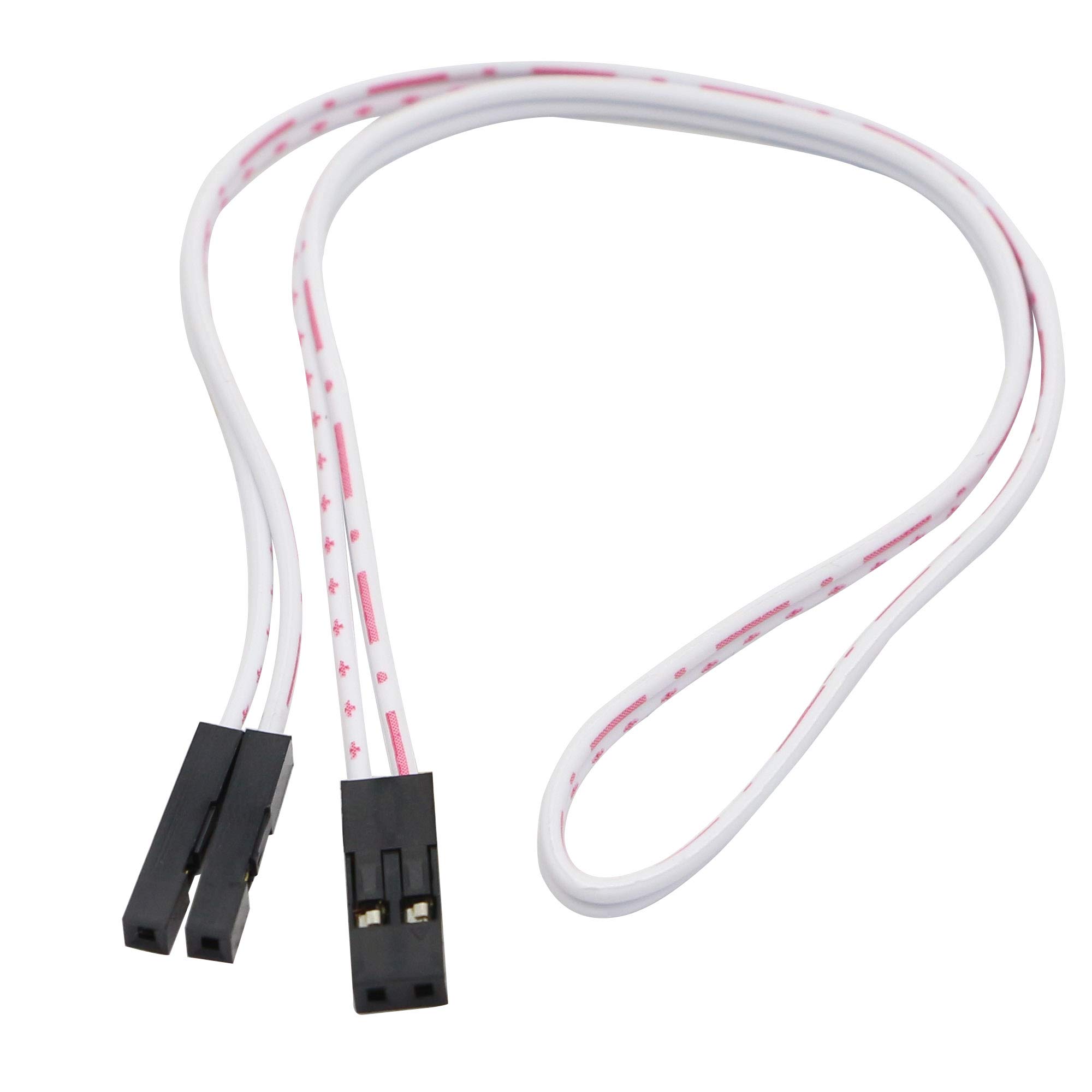

3.DuPont Wire
