new | NanoPi R2S Open Source Mini Router with Dual-Gbps Ethernet Ports 1GB DDR4 Based in RK3328 Soc for IOT NAS Smart Home Gateway, Bundle with CNC Metal Case
02501BAUXXB08D9K6QFJ
WayPonDEV
Free Delivery
Free Delivery
days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Blue Dart Delivered
Blue Dart Delivered
Secure Transaction
Secure Transaction
Product Details
Rockchip RK3328 SOC: The NanoPi R2S computer routers uses the Rockchip RK3328 SoC, which is an open source platform with dual-Gbps Ethernet ports designed for IoT applications. It has one USB 2.0 port that can interface with 4G modules, USB WiFi modules etc.
Easy to Use: NanoPi R2S wireless portable router was ported an OpenWrt system and supports TF card booting. lt works with FriendlyWt, UbuntuCore, Armbian etc. You can easily make it a router by simpy applying simple configuration

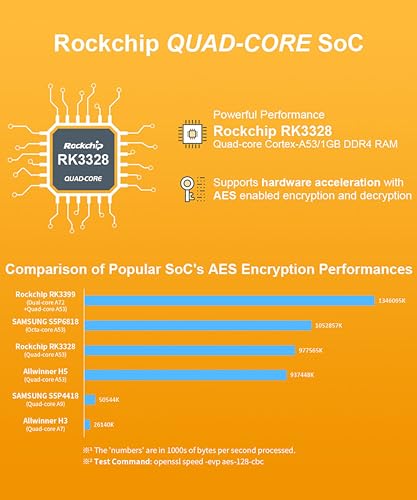

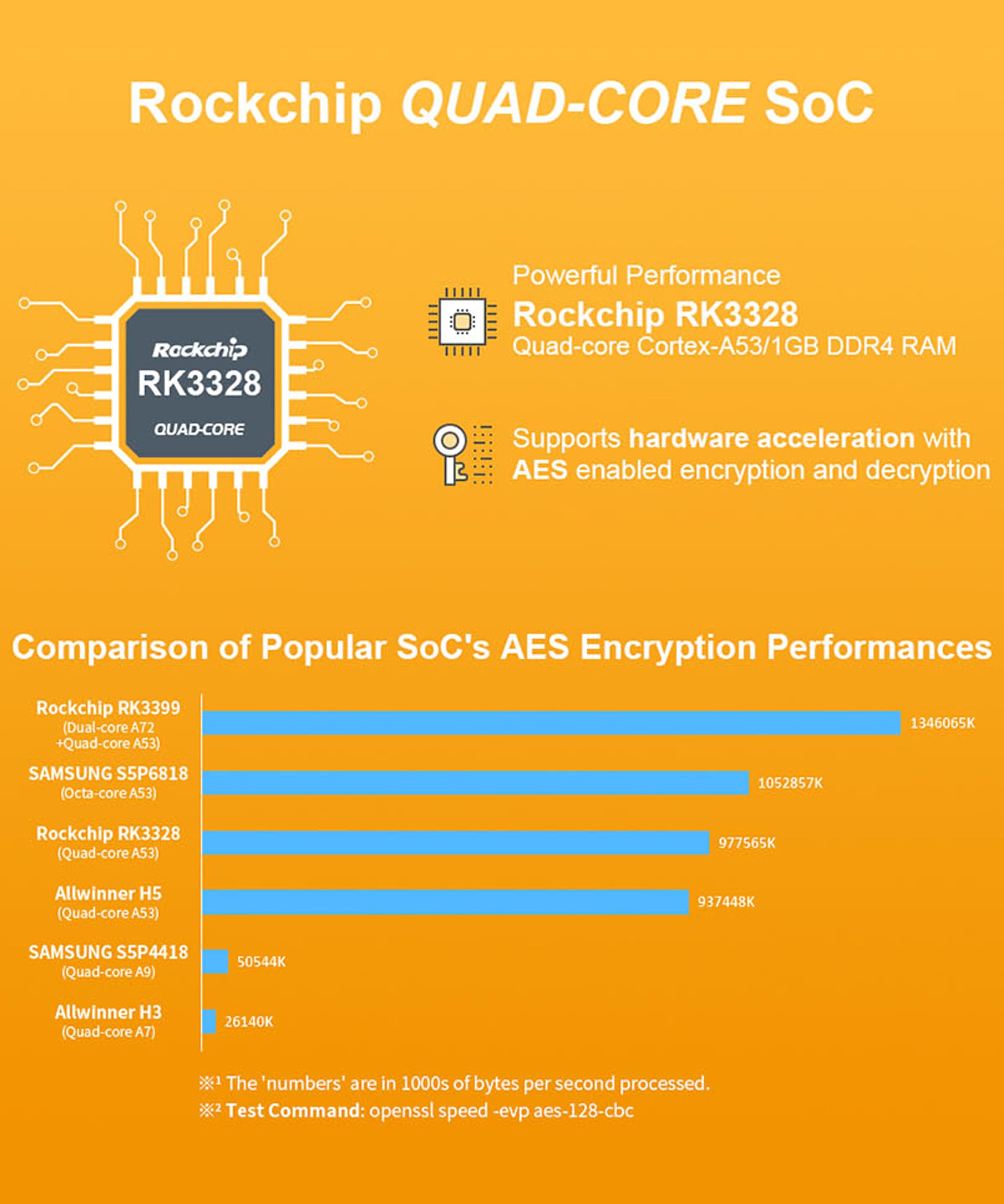

Smooth and Elegant: NanoPi R2S Wifi Router has two Gbps Ethernet ports and 1G DDR4 RAM, lts default frequency is 1.2GHz. It uses RK805 PMU chip and supports dynamicfrequency scaling, sufficient for running various application

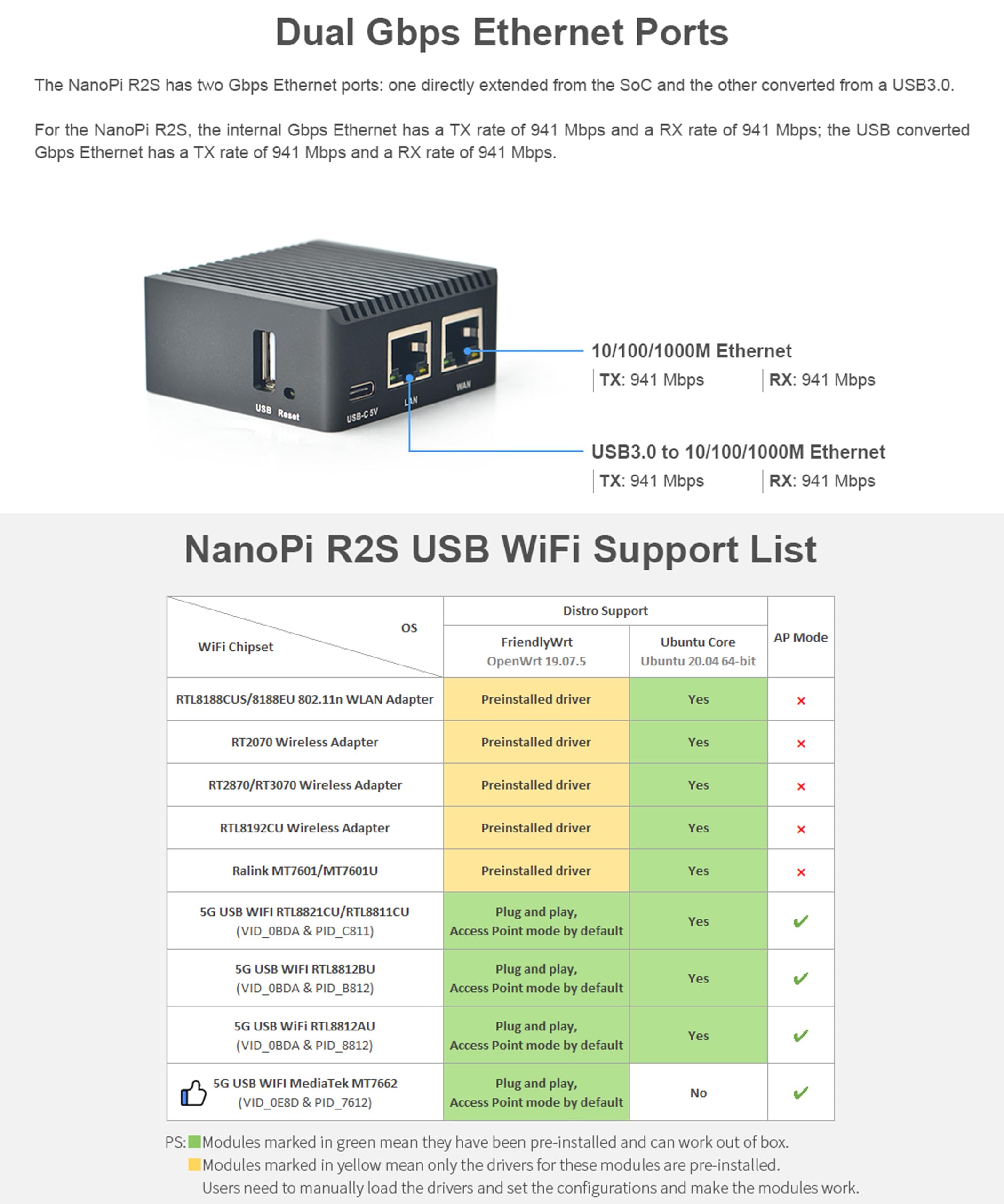

Memory Specification: It has two Gbps Ethernet ports and 1G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways etc.
Wiki: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_R2S. Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click "WayPonDEV" and ask a question.

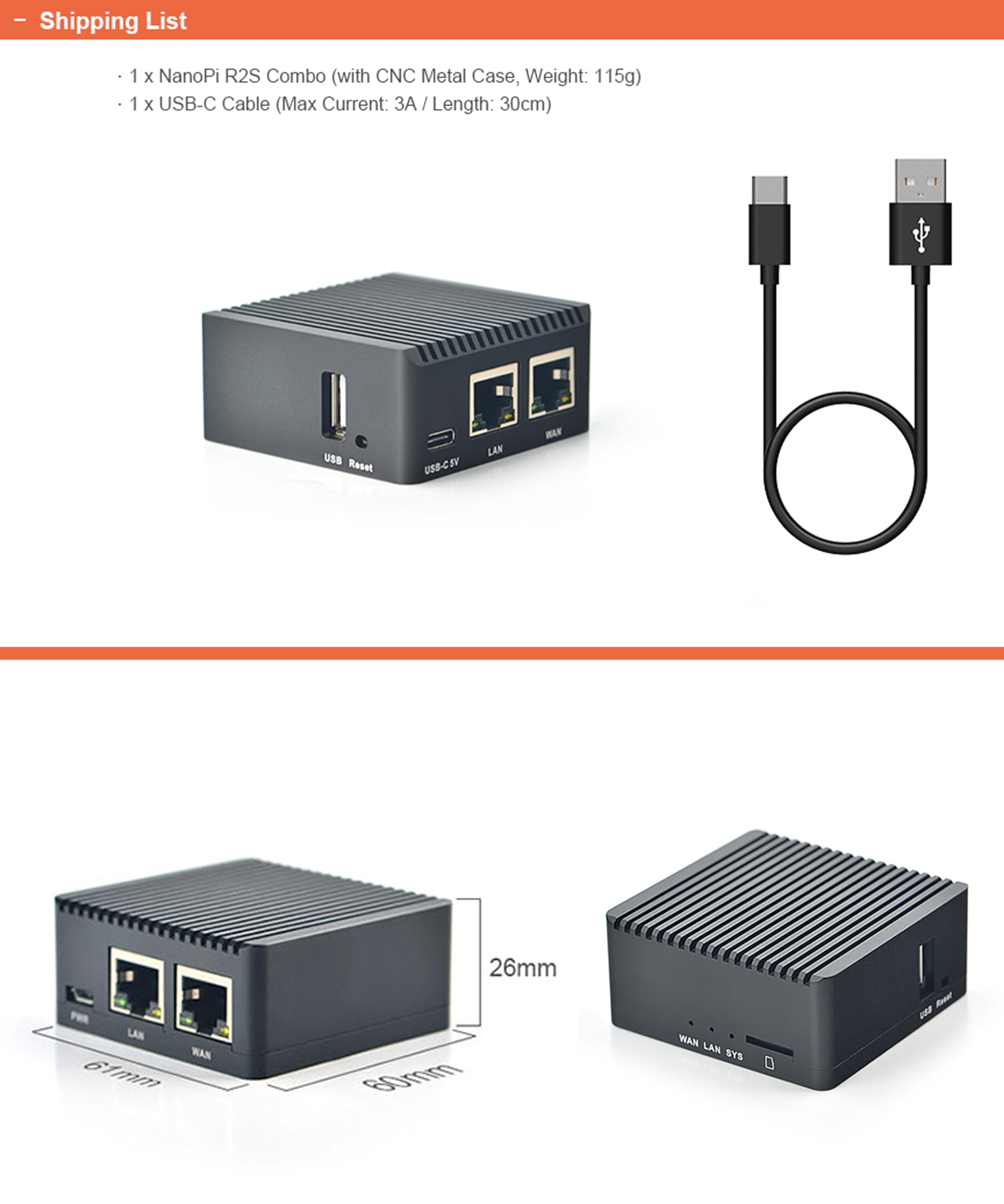

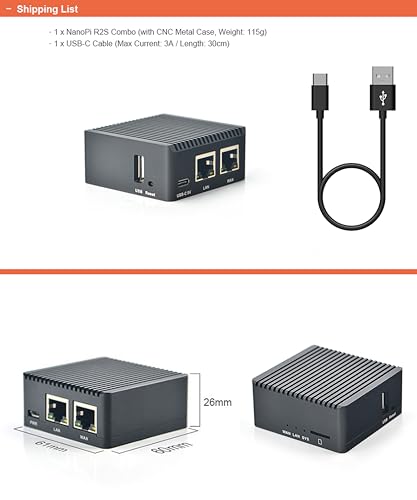

What's Inside The Box ?
Nanopi R2S conbine x1
Product Ranking
#1346 in Computer Routers
#221931 in Electronics
Product Description

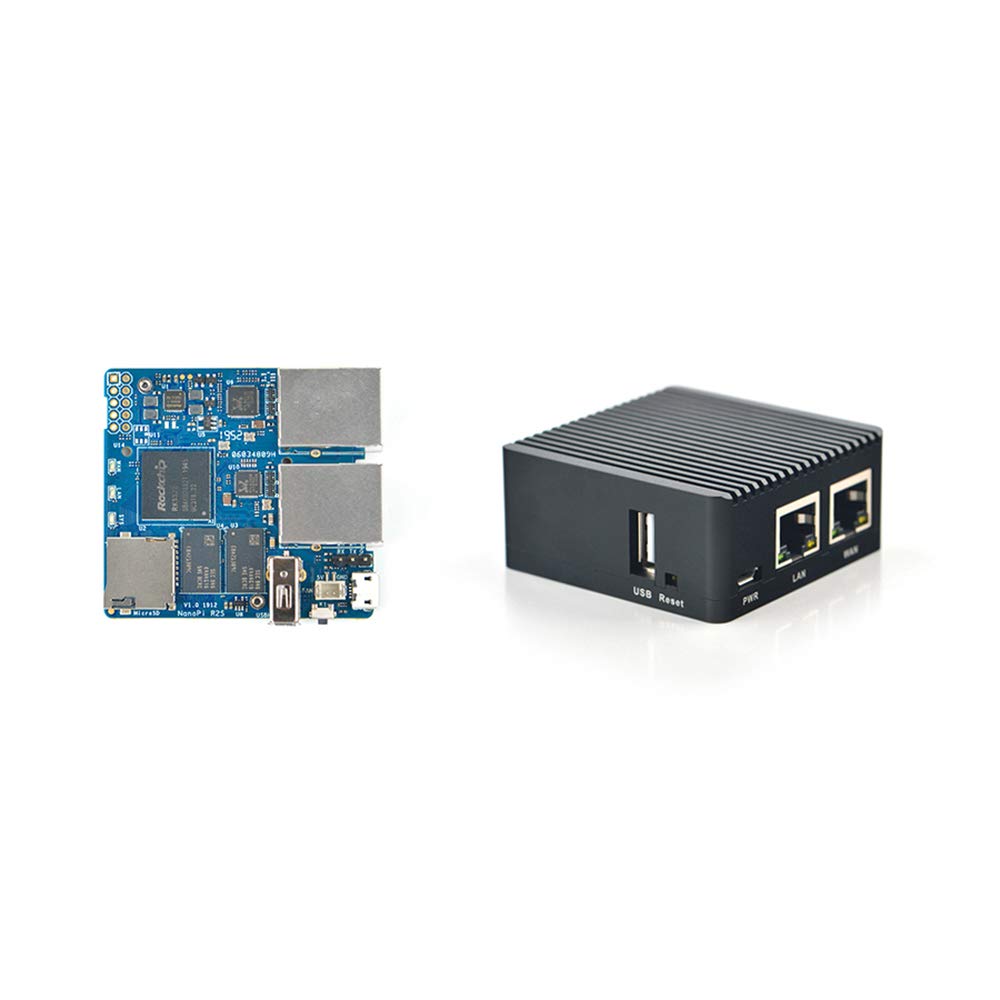

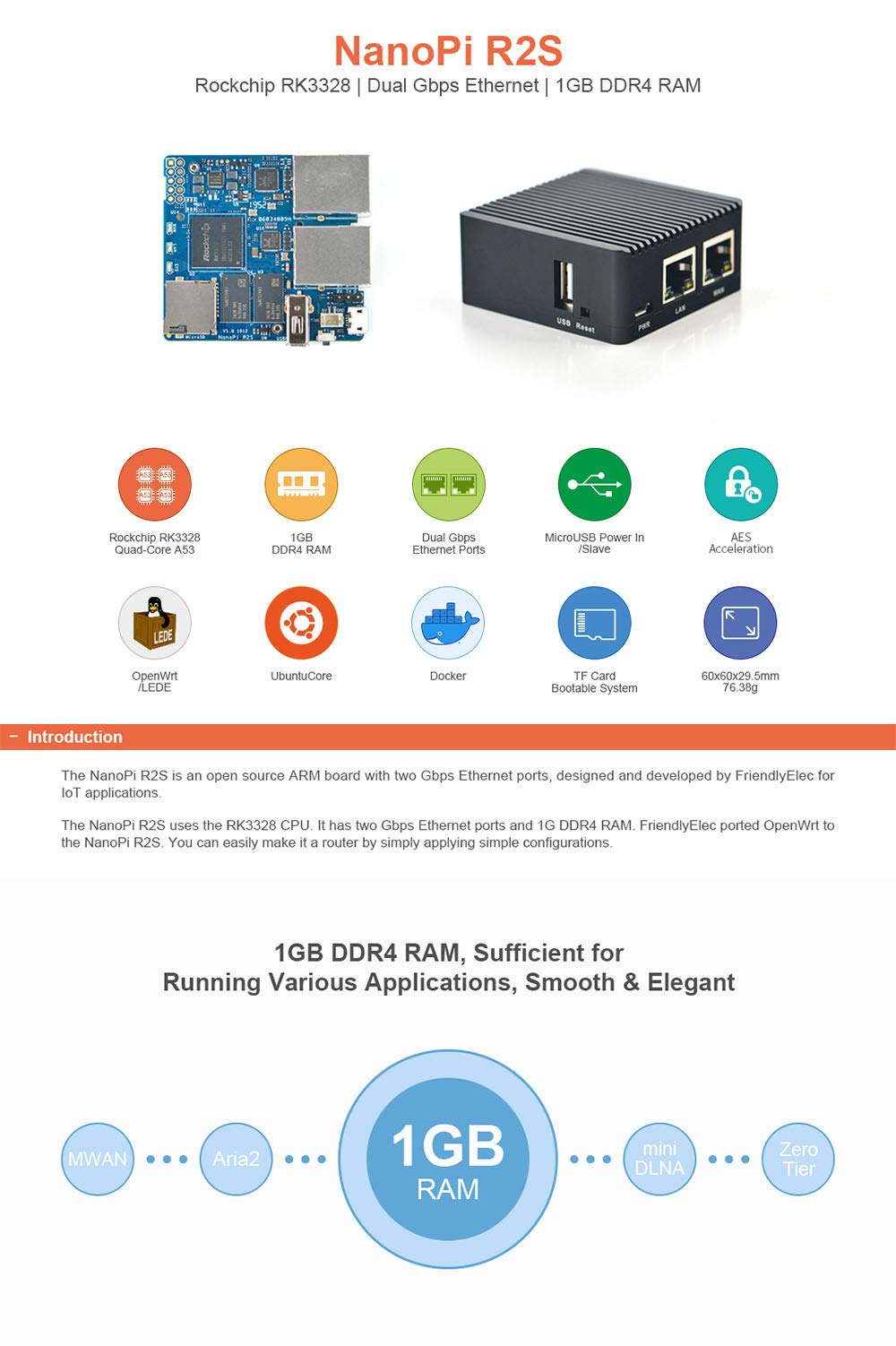

-Note- Documents code: YS107 You can find wiki of the product by using documents code at this link: https://youyeetoo.com/blog/-57 A Tiny Computer & Router that you cannot miss! -Specification- CPU: Rockchip RK3328, Quad-core Cortex-A53 DDR4 RAM: 1GB Network: -Internal 10/100/1000M Ethernet Port x 1 -USB3.0 converted 10/100/1000M Ethernet Port x 1 USB2.0 Host: Type-A x1 MicroSD Slot x 1 MicroUSB: power input and USB Slave Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector LED: LED x 3 KEY: KEY x 1 programmable PC Size: 55.6 x 52mm Power Supply: DC 5V/2A Temperature measuring range: 0℃ to 80℃ OS/Software: U-boot,Ubuntu-Core,OpenWrt -Package Content- 1x NanoPi R2S board 1x CNC Metal Case -Tech-Support- Get Started: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_R2S#Get_Started Firmware Image: https://drive.google.com/drive/folders/1OB4qN2Ehx8-CjoqdGv_ecPjQ1DgMnkf- Forum:https://www.youyeetoo.net/ Tech-Team: support@smartfire.cn Skype: smartfire_cn
Product Specifications
Conditionnew
AsinB08D9K6QFJ
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryNETWORKING_DEVICE
MPNNanoPi R2S
ColorNanoPi R2S with CNC Metal Case(No Heat SInk)
OriginUSA
BrandnameWayPonDEV
Height1.16
Length2.36
Width2.36
Weight1
Operating SystemU-boot, Ubuntu-Core, OpenWrt
RAM Memory Installed Size1 GB
