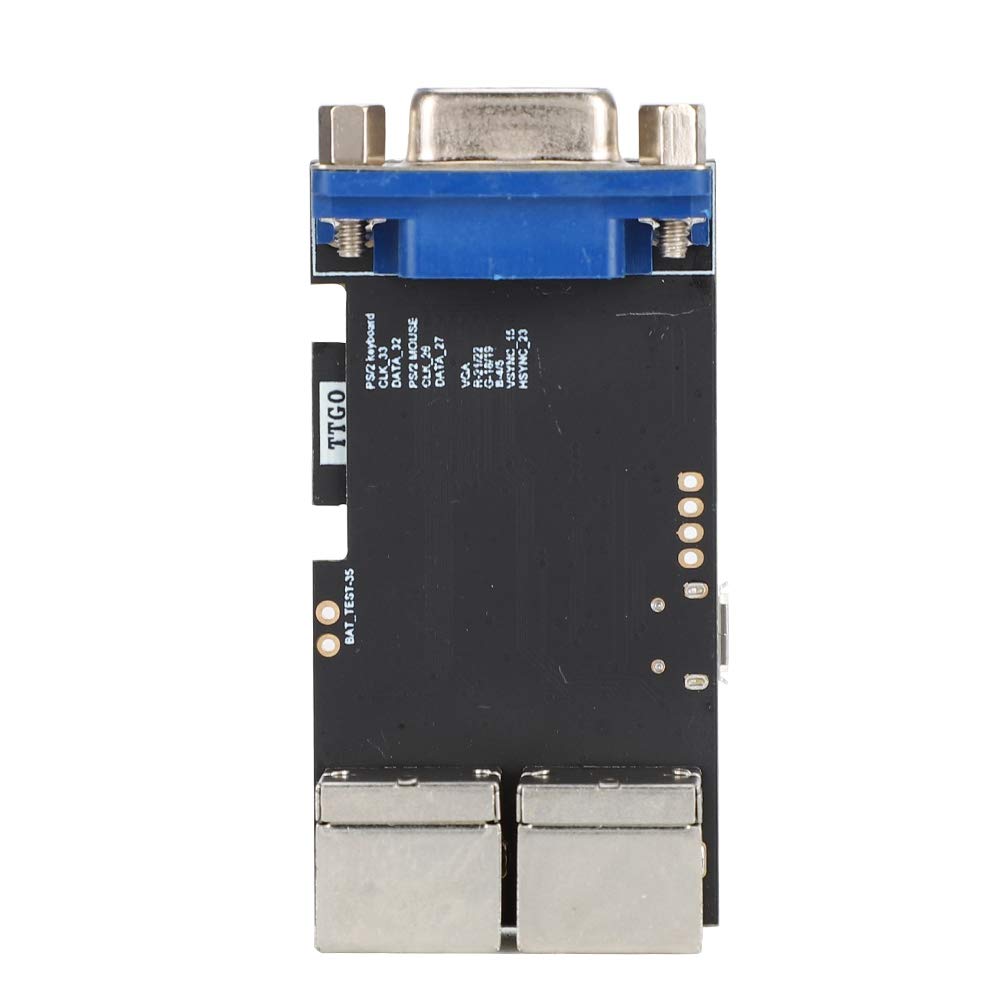

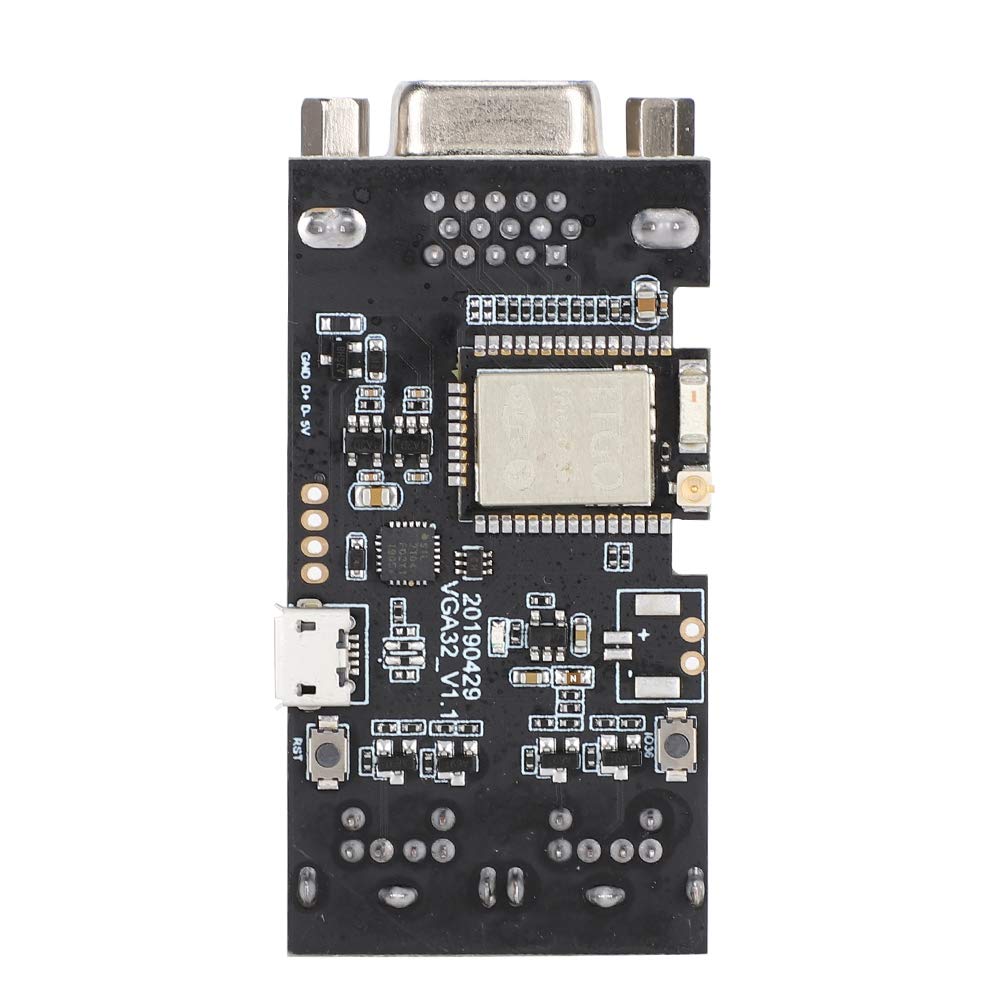

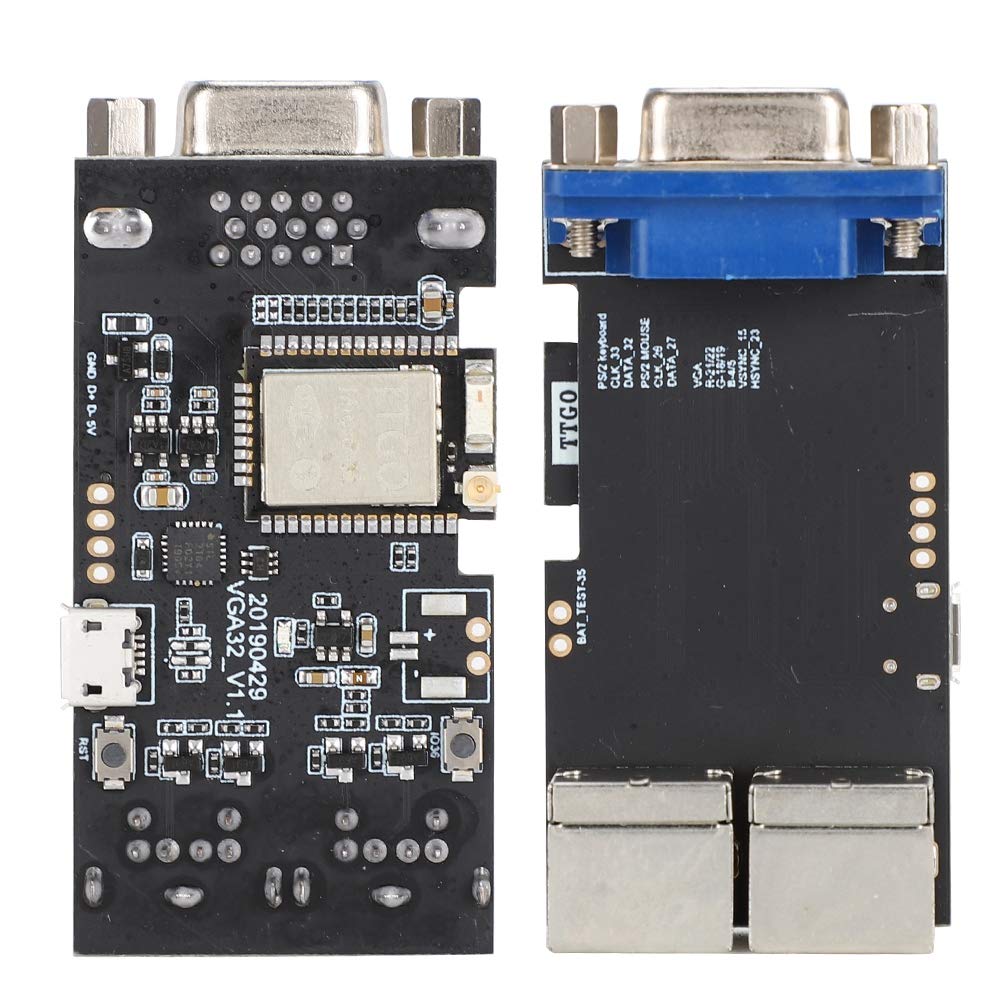

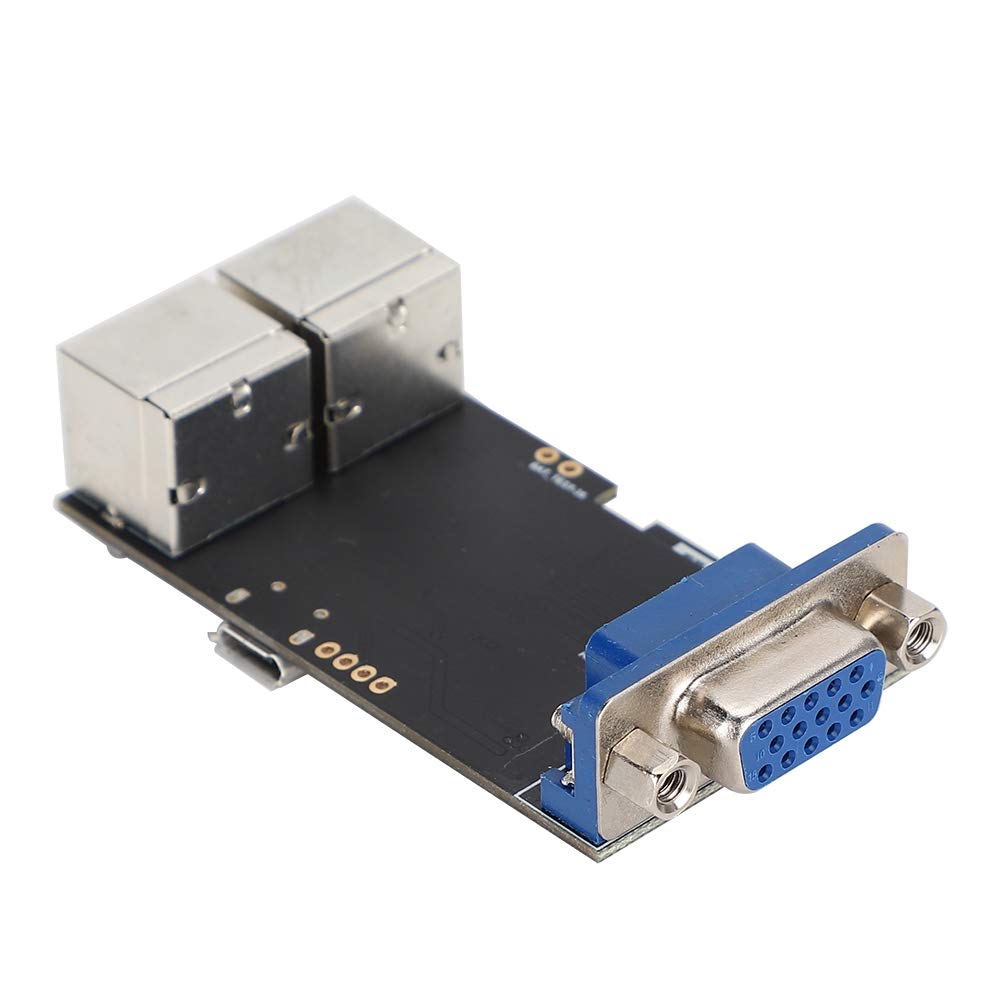

new | VGA Control Module, PS/2 Keyboard Control Module Support Network IPv4/IPv6/SSL.TCP/UDP/HTTP/FTP/MQTT, Mouse Control Module for FreeRTOS
Brand : Bewinner
new | VGA Control Module, PS/2 Keyboard Control Module Support Network IPv4/IPv6/SSL.TCP/UDP/HTTP/FTP/MQTT, Mouse Control Module for FreeRTOS
Brand : Bewinner
Product Specifications
Conditionnew
AsinB0842QM8LB
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryMOTHERBOARD
MPNBewinner1g7vib83sx
Colordefault
Memory Clock Speed2.5 GHz
OriginUSA
BrandnameBewinner
Height0.6299212592
Length2.5590551155
Width1.2598425184
Weight1
RAM Memory Technologysram
Product Details

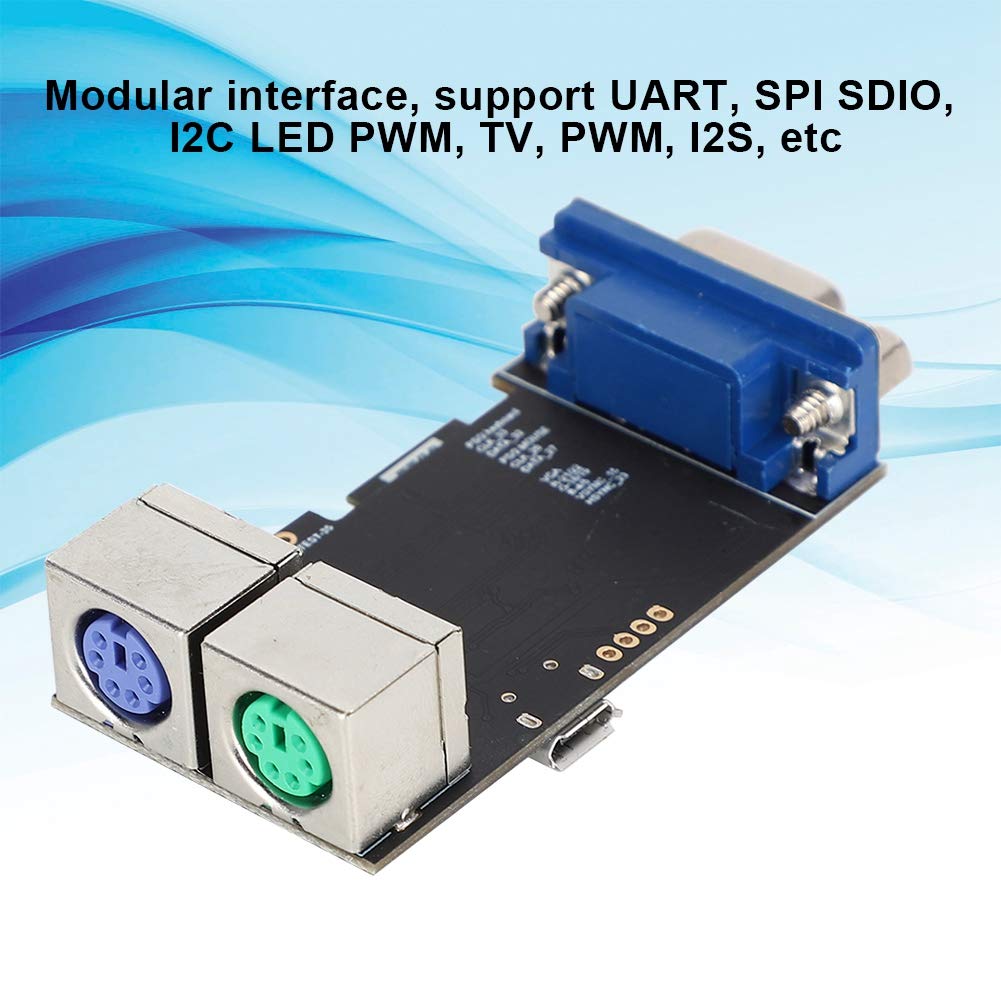

【Multiple Modular interface】: UART, SPI SDIO, I2C LED PWM, TV, PWM, I2S, IRGPIO, Capacitor, Touch, Sensor, ADC, DACLNA, Preamplifier.
【Long Distance】The communication distance is up to 300 meters and the power is 22dBm.NZIF Receiver Class-1, Class-2 and Class-3 Transmitter AFH.
【Networking Protocol】 supports FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC. Support network IPv4/IPv6/SSL.TCP/UDP/HTTP/FTP/MQTT.
【Bluetooth Protocol】VGA32 keyboard mouse control module compliant with Bluetooth V4.2BR / EDR and BLE standards, sensitivity is -97dBm.
【100% Satisfaction Guarantee】Professional manufacture, stable performance and high reliability.This VGA32 Keyboard Control Module has a complete service,if you have any questions about the product or you are not satisfied, please us at any time, we will provide you with the best solution.Your satisfaction is our main concern.





Product Ranking
#9937 in Single Board Computers (Computers & Accessories)
Product Description
Specifications:
Material: PCB
Size: Approx. 6.5*3.2*1.6cm/2.56*1.26*0.63inch
Chipset: Micro32
FLASH: QSPI Flash 4MB/PSRAM 8MB
SRAM: 520kB SRAM
Button: reset, I036
Extended function: VGA, PS/2
USB To TTL: CP2104
Modular interface: UART, SPI SDIO, I2C LED PWM, TV, PWM, I2S, IRGPIO, Capacitance Touching Sensor, ADC, DACLNA, preamplifier
Onboard clock: 40MHz crystal oscillator
Working voltage: 2.7-3.6V
Working current: Approx. 30mA
Sleeping current: 230uA
Operating temperature range: -40-85°C
Instructions:
Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC

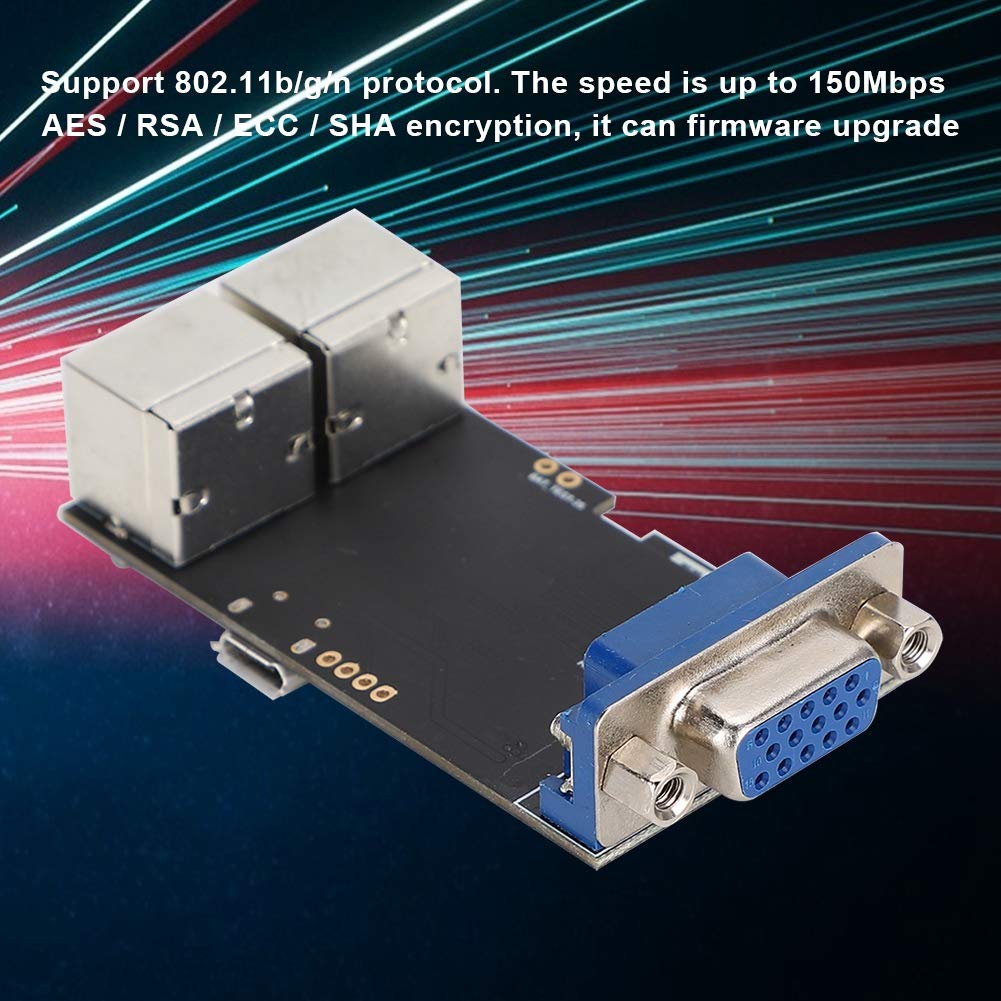

Protocol: 802.11b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard interval
Frequency range: 2.4GHz~2.5GHz(2400M-2483.5M)
Transmitted power: 22dBm
Communication distance: 300m/984.25ft
Bluetooth Instructions:
Protocol: Compliant with Bluetooth V4.2BR/EDR and BLE standards
RF: Sense NZIF Receiver Class-1, Class-2 and Class-3 Transmitter AFH with a sensitivity of -97dBm
Audio: CVSD And SBC Audio
Software Specification:

Package list:
1 x VGA32 Control Module
