Full 2.5 Gbps in each direction, single channel and single channel operation.With the proliferation of PCI Express systems, there are still many applications that do not require the extended bandwidth and performance characteristics of PCI Express. With the PEX 8112, many existing chips and entire subsystems can be used without modification, using a PCI Express motherboard.

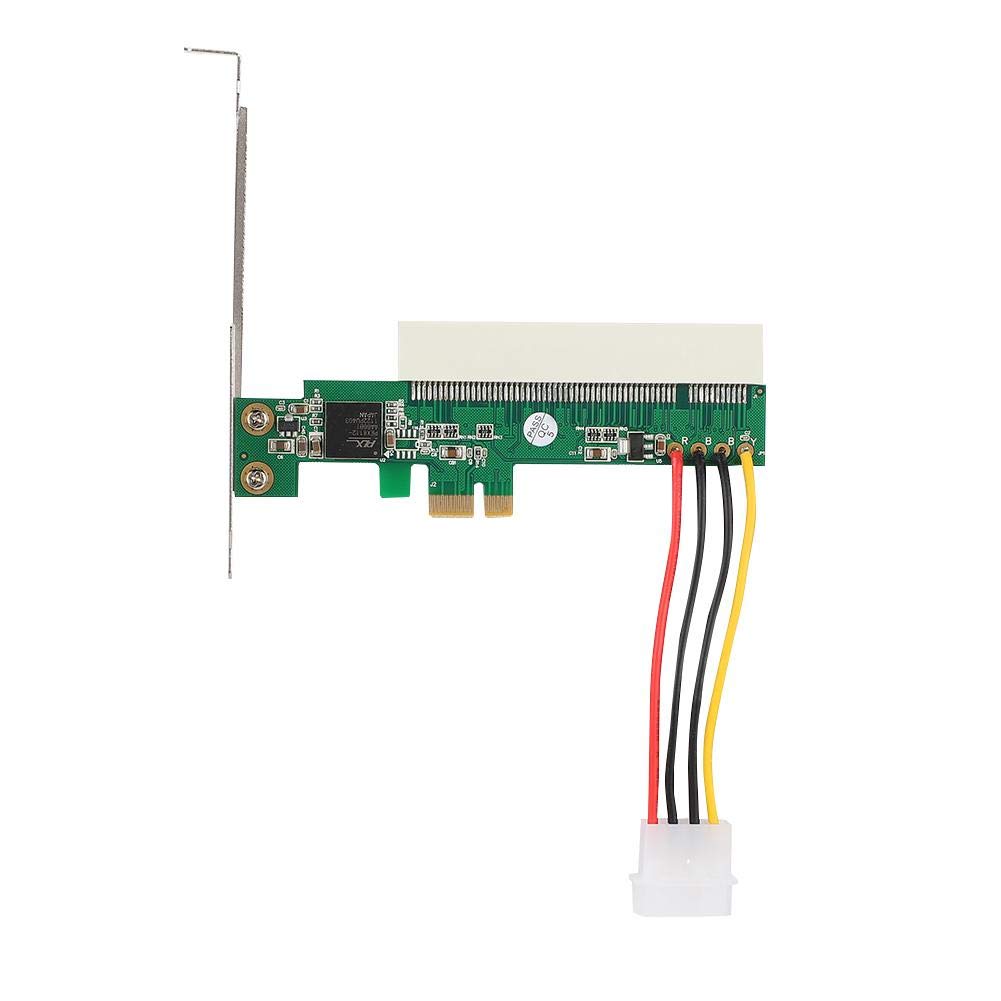

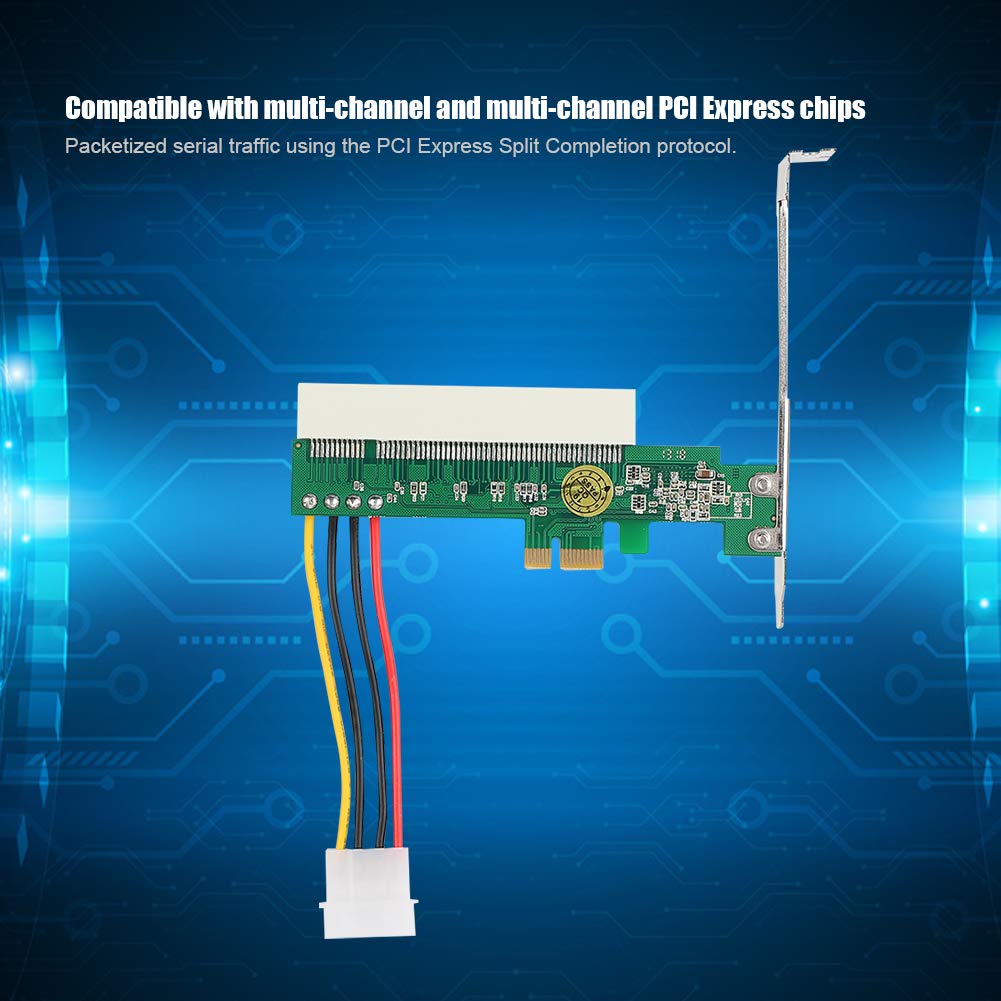

Compatible with multi-channel and multi-channel PCI Express chips. Packetized serial traffic using the PCI Express Split Completion protocol.The PEX 8112 PCI Express-to-PCI riser card allows the use of popular PCI chips with high-performance PCI Express networks.
Data Link Layer Cyclic Redundancy Check (CRC) generator and checker, automatic retry of bad packets, integrated low voltage differential drivers, 8b/10b signal encoding. In-band interrupts and messages, support for Message Signal Interrupt (MSI).

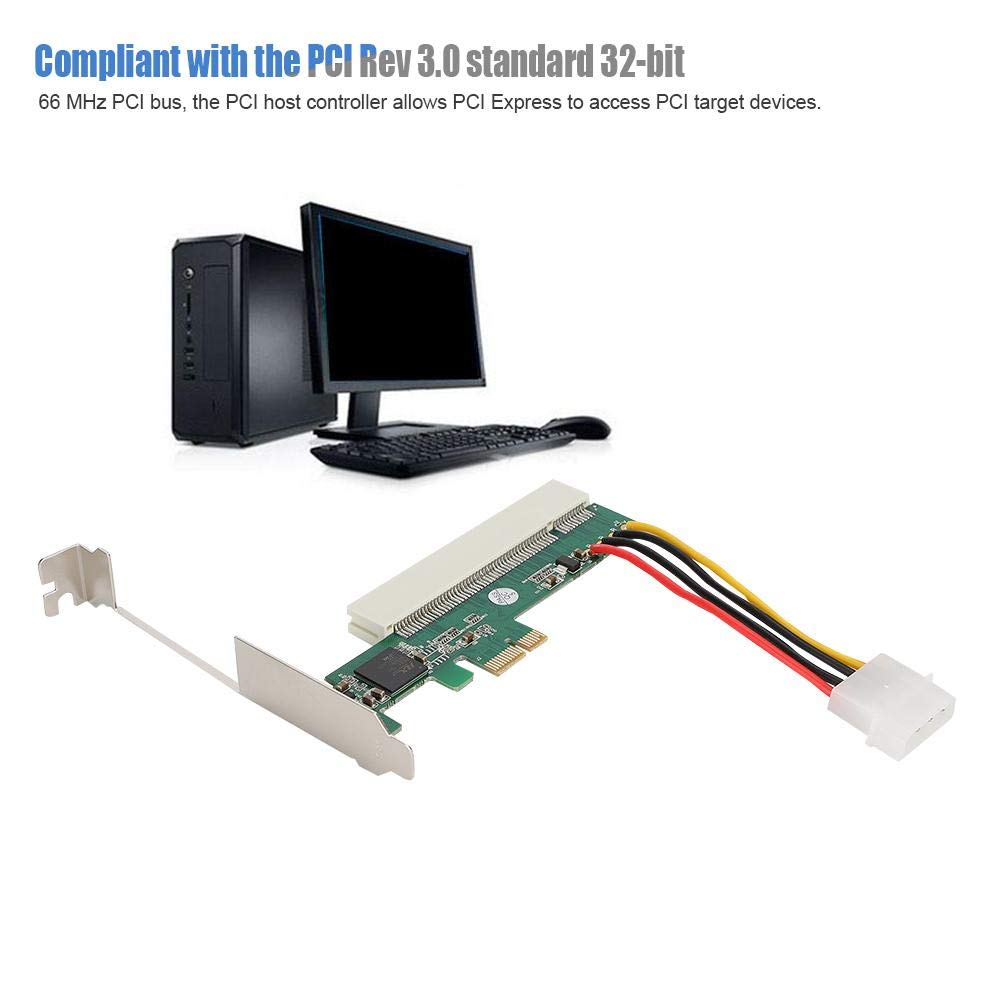

Compliant with the PCI Rev 3.0 standard 32-bit, 66 MHz PCI bus, the PCI host controller allows PCI Express to access PCI target devices.PM register and PCI backplane PME# signal support. Message Signal Interrupt (MSI) support.In contrast, the PEX 8112 not only allows full configuration of downstream PCI Express systems from the PCI bus, but also handles limited PCI Express root functions for reverse interrupt and power management events.

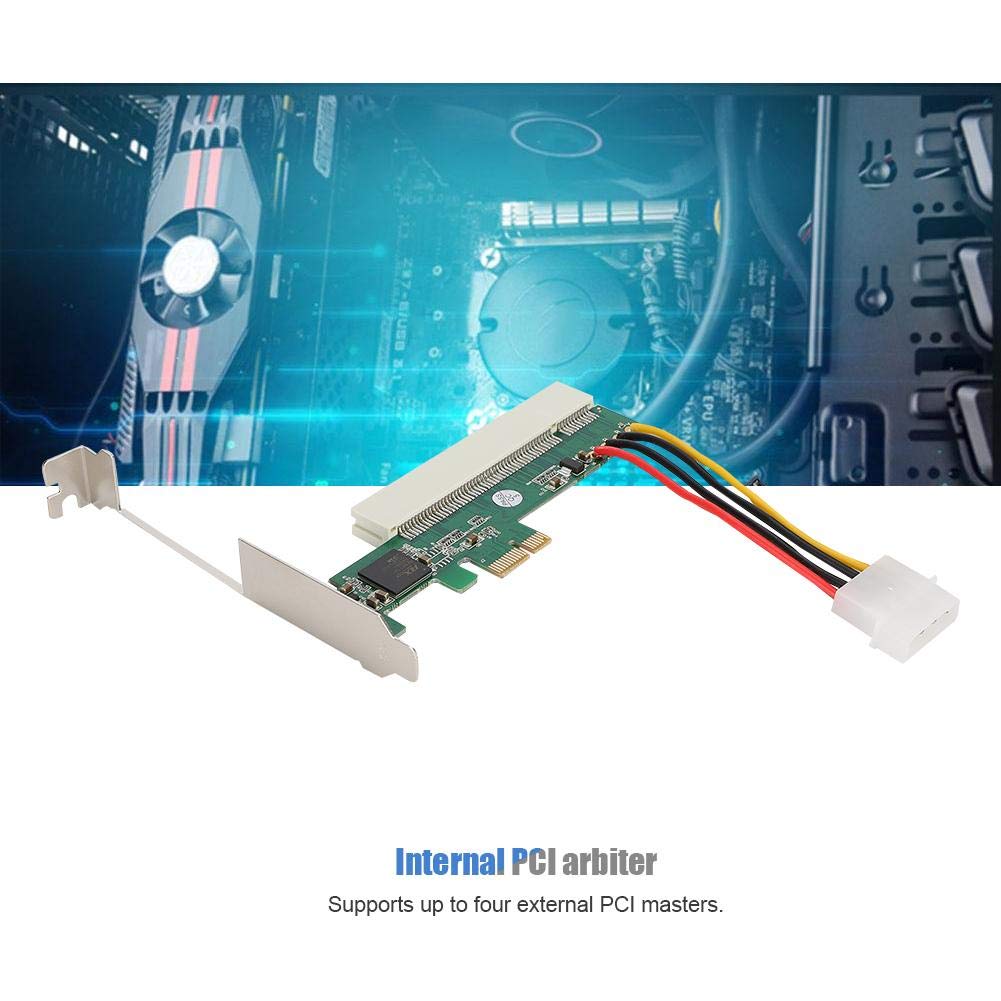

The PCI target controller allows full transparent access to PCI Express resources. Allows memory-mapped access to shared RAM and configuration registers.An internal PCI arbiter that supports up to four external PCI masters. No drivers are required.
