flagProduct From USA

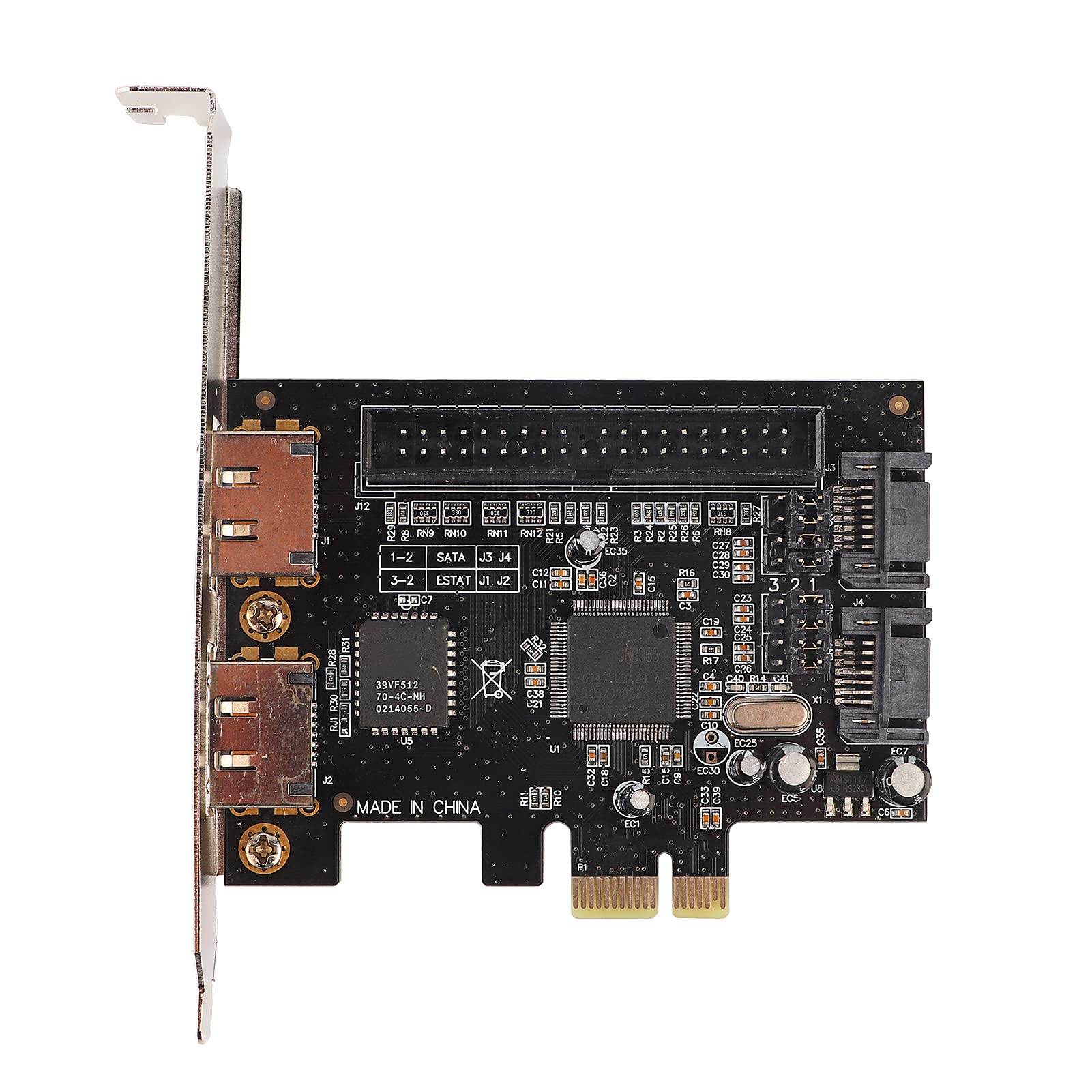

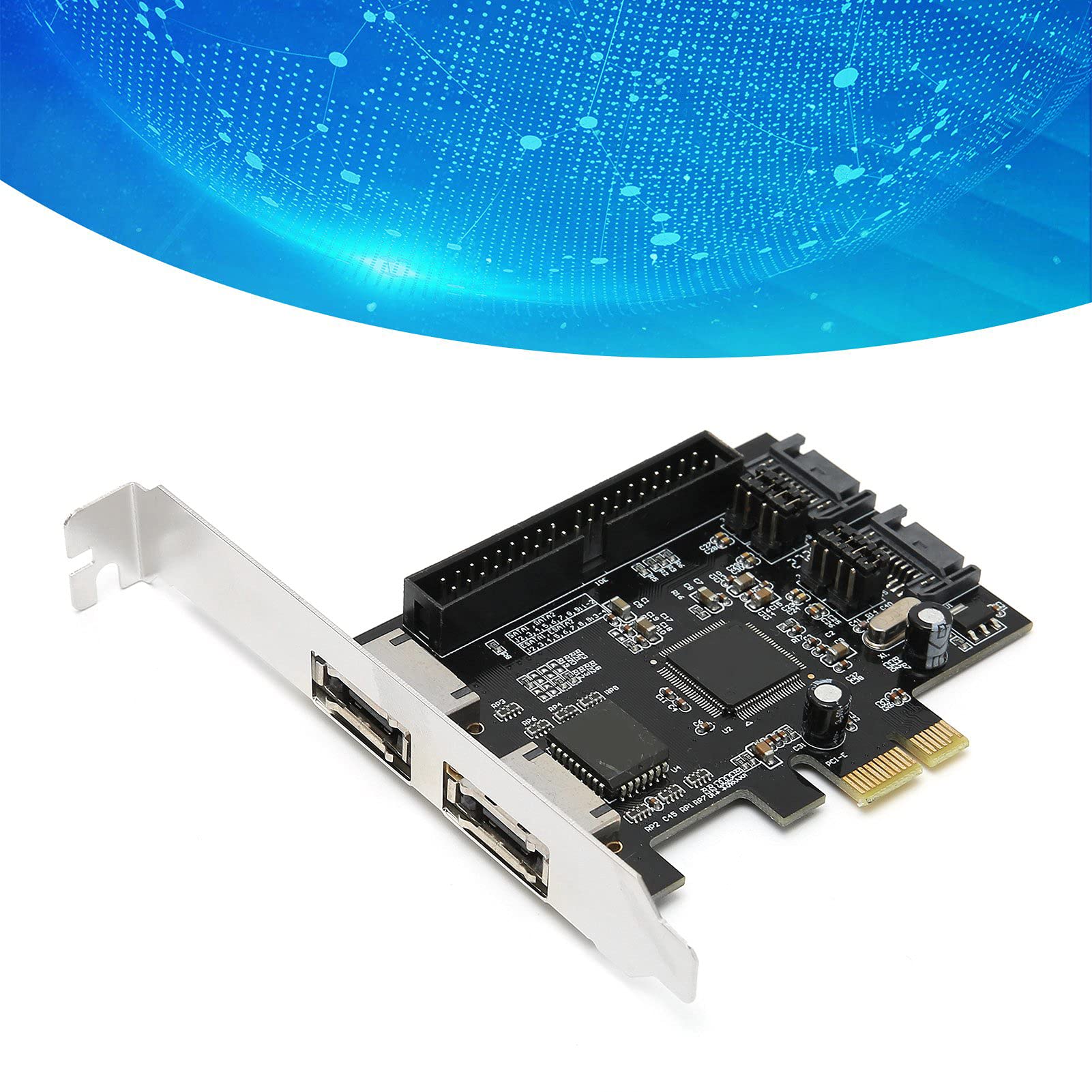

new | SATA PCI Express Controller Card, PCIe to 3Gb/s SATA ESATA IDE Controller Expansion Card Adapter, Support for RAID
Brand : ASHATA
new | SATA PCI Express Controller Card, PCIe to 3Gb/s SATA ESATA IDE Controller Expansion Card Adapter, Support for RAID
Brand : ASHATA
Product Specifications
Conditionnew
AsinB07RLTPBNK
CategoryElectronics
SubcategoryNetwork Cards
LeafcategoryINPUT_OUTPUT_CARD
MPNeboxer-1gzqid38y1a552
Colorblack
OriginUSA
BrandnameASHATA
Height0.393700787
Length0.393700787
Width0.393700787
Weight1
Operating SystemWindows, macOS, Linux
Product Details
Comply with PCI Express 1.0 a standard, support for Ultra ATA 133 hard drive, and downward support for Ultra ATA 100/66/33 standard.
The adapter card supports hard drives with a capacity of 137 GB or more (48-bit LBA mode).
Support 1 external ESATA interface and 1 internal SATA interface, the transfer rate can be up to 3Gb/s.
Support for RAID 0/RAID 1/RAID 0+1 mode, support JBOD, with various storage methods.
The is simple, insert the adapter into the corresponding PCI Expres slot, read the drive disk and insert the hard disk to use.





Product Ranking
#878 in Internal Computer Networking Cards
Product Description
Specification:

Item Type: Adapter Card
Material: PCB
Color: Black board
Chip: For JMB363
Transfer Type: PCIe to 2 internal SATA + IDE + 2 external ESATA (external ESATA and internal SATA can only use 2 at the same time, select by jumper, the default is 2 internal SATA interfaces)
SATA Transfer Rate: Up to 3Gb/s

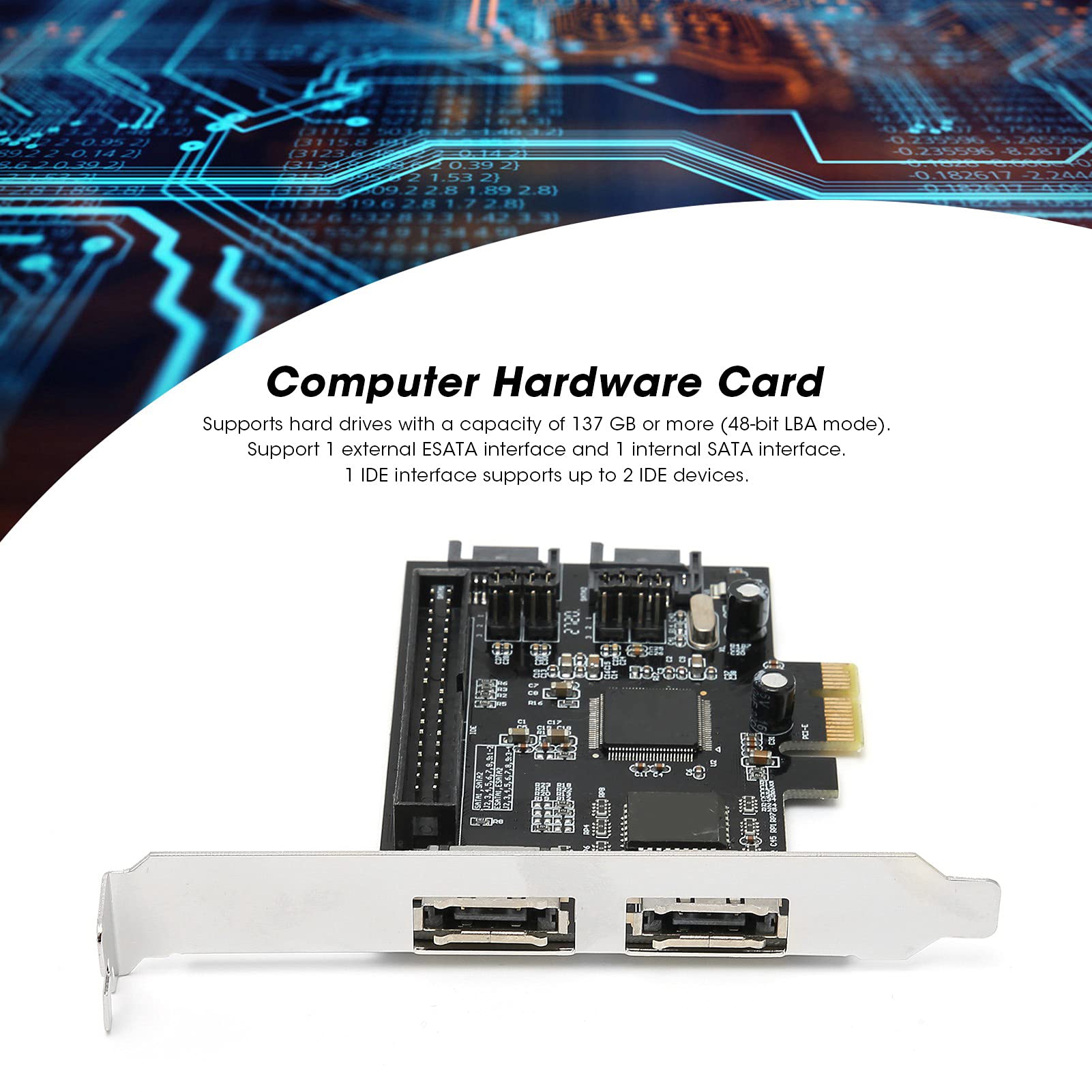

Supports hard drives with a capacity of 137 GB or more (48 bit LBA mode)
1 IDE interface supports up to 2 IDE devices

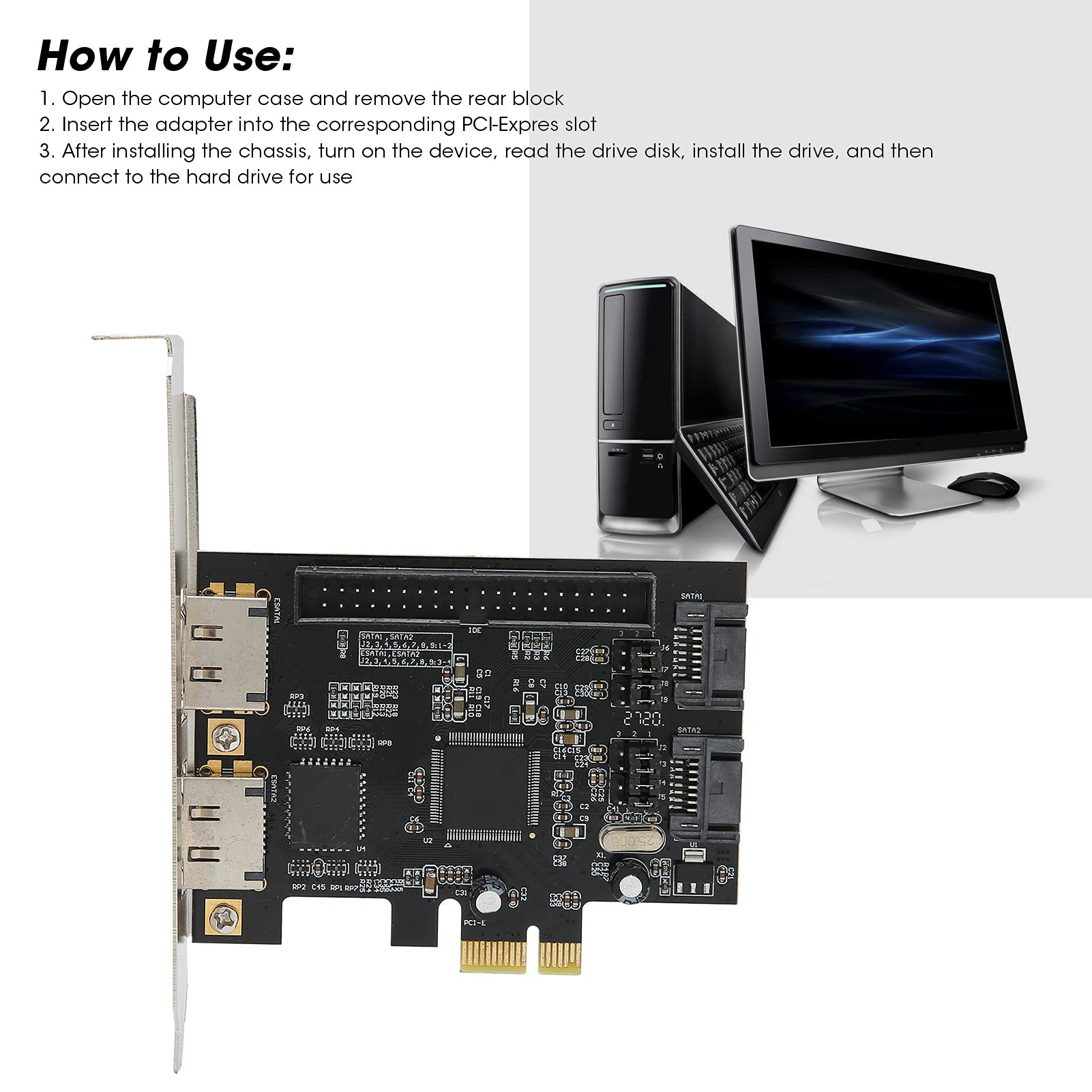

How to Use:
1. Open the computer case and remove the rear block
2. Insert the adapter into the corresponding PCI Expres slot
3. After installing the chassis, turn on the device, read the drive disk, install the drive, and then connect to the hard drive for use

Package List:
1 x Adapter Card 1 x Driver CD
Product Description
Specification:

Item Type: Adapter Card
Material: PCB
Color: Black board
Chip: For JMB363
Transfer Type: PCIe to 2 internal SATA + IDE + 2 external ESATA (external ESATA and internal SATA can only use 2 at the same time, select by jumper, the default is 2 internal SATA interfaces)
SATA Transfer Rate: Up to 3Gb/s
Supports hard drives with a capacity of 137 GB or more (48 bit LBA mode)
1 IDE interface supports up to 2 IDE devices
How to Use:
1. Open the computer case and remove the rear block
2. Insert the adapter into the corresponding PCI Expres slot
3. After installing the chassis, turn on the device, read the drive disk, install the drive, and then connect to the hard drive for use

Package List:
1 x Adapter Card 1 x Driver CD
