Description:

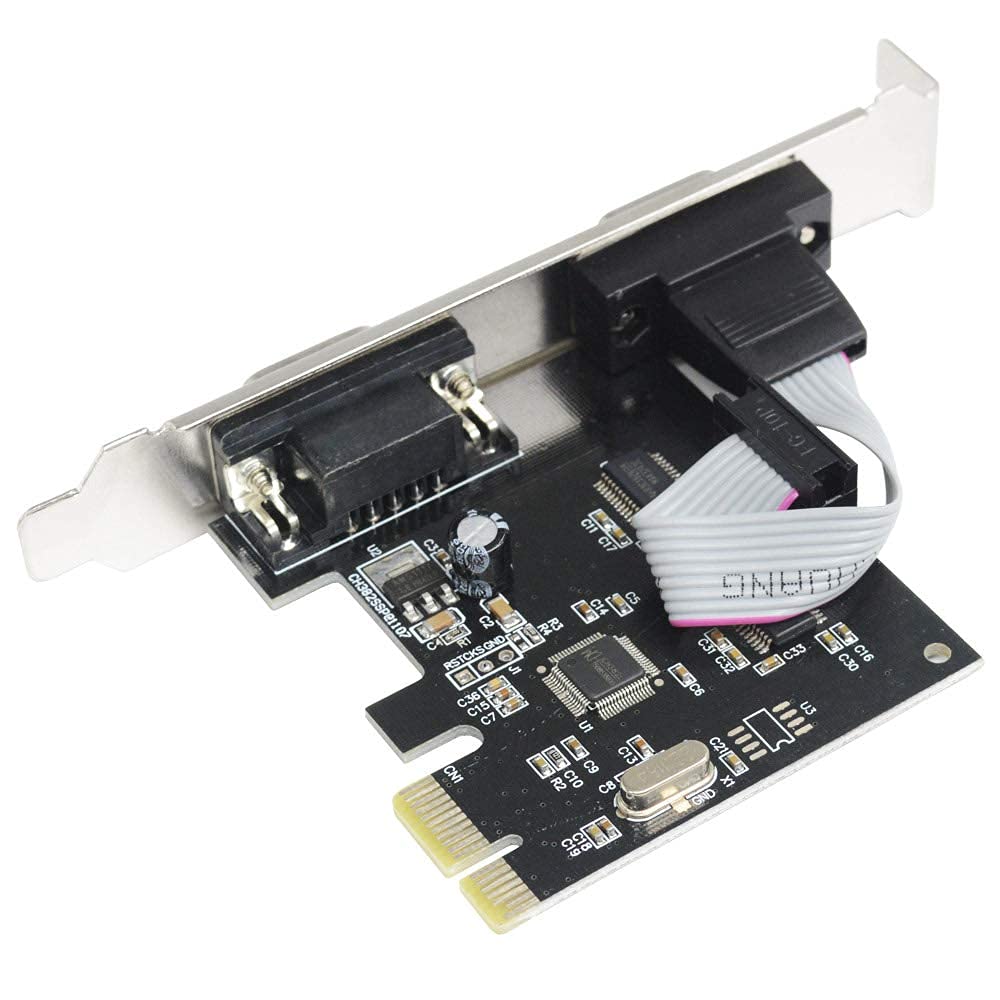

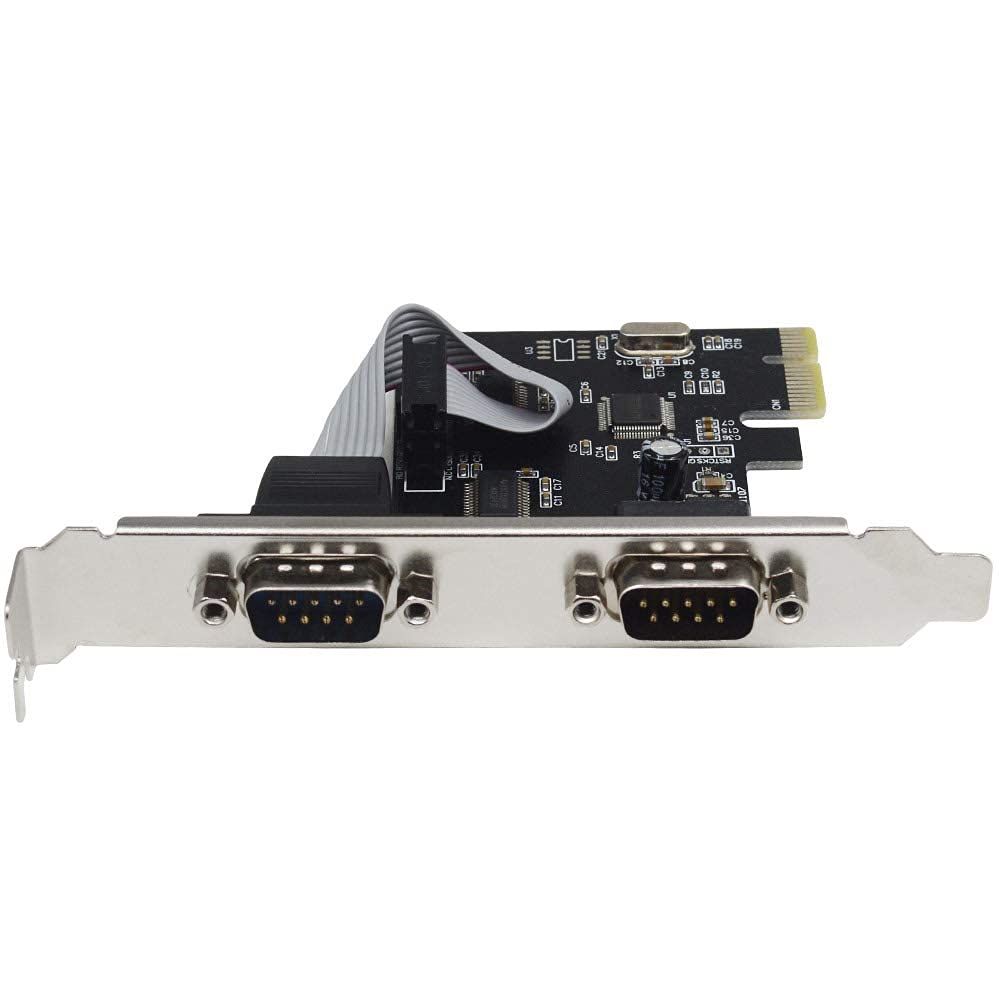

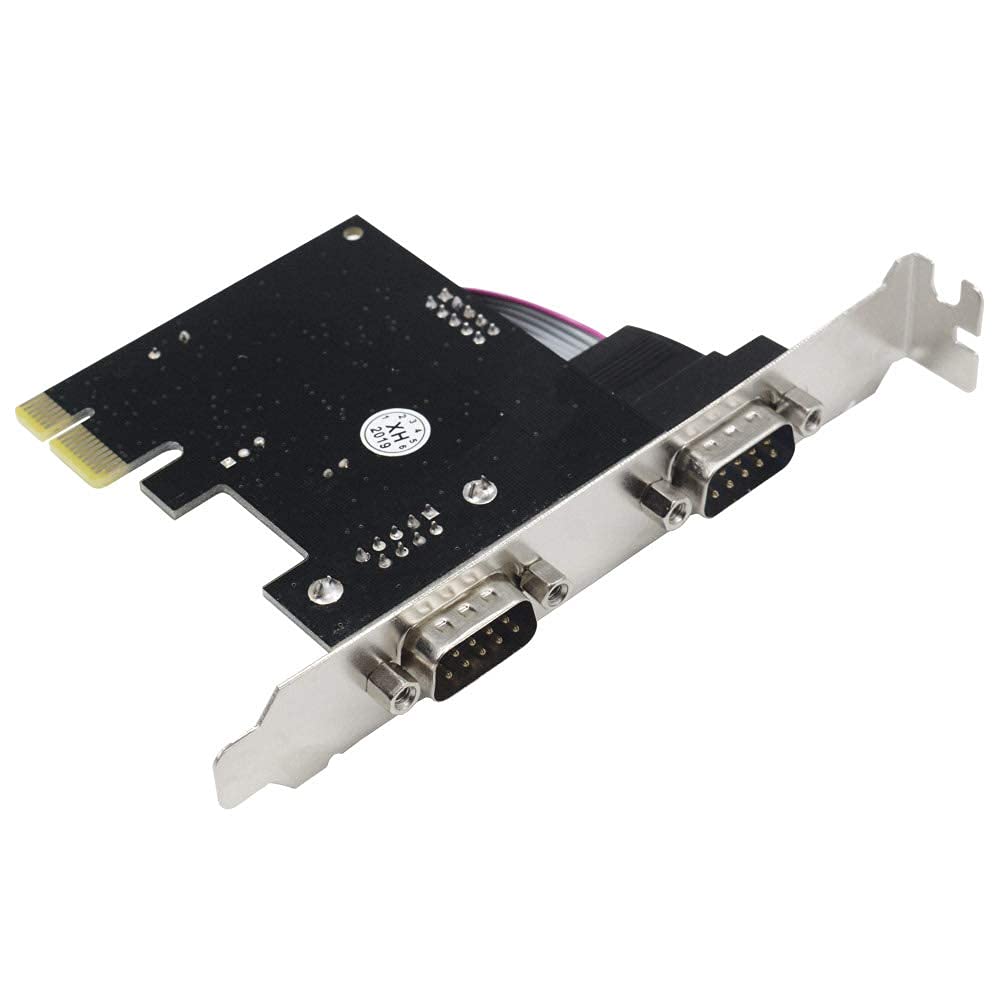

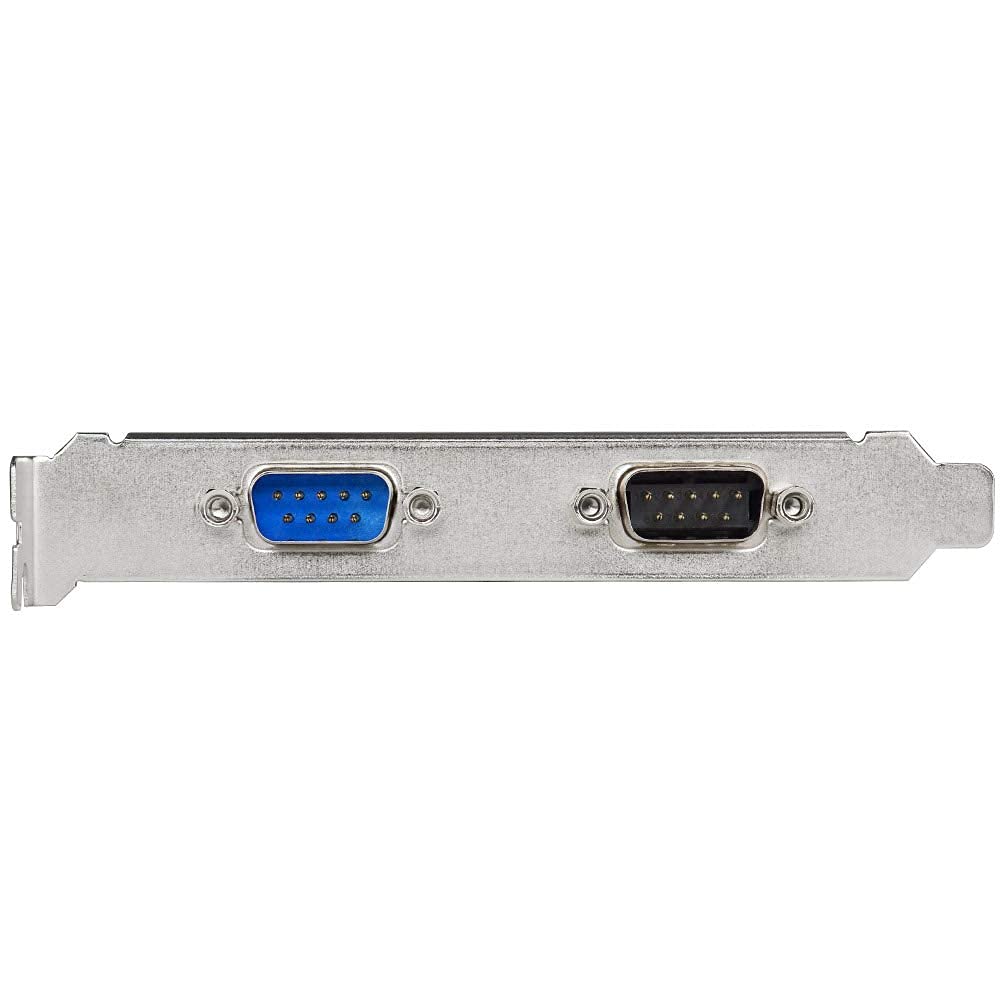

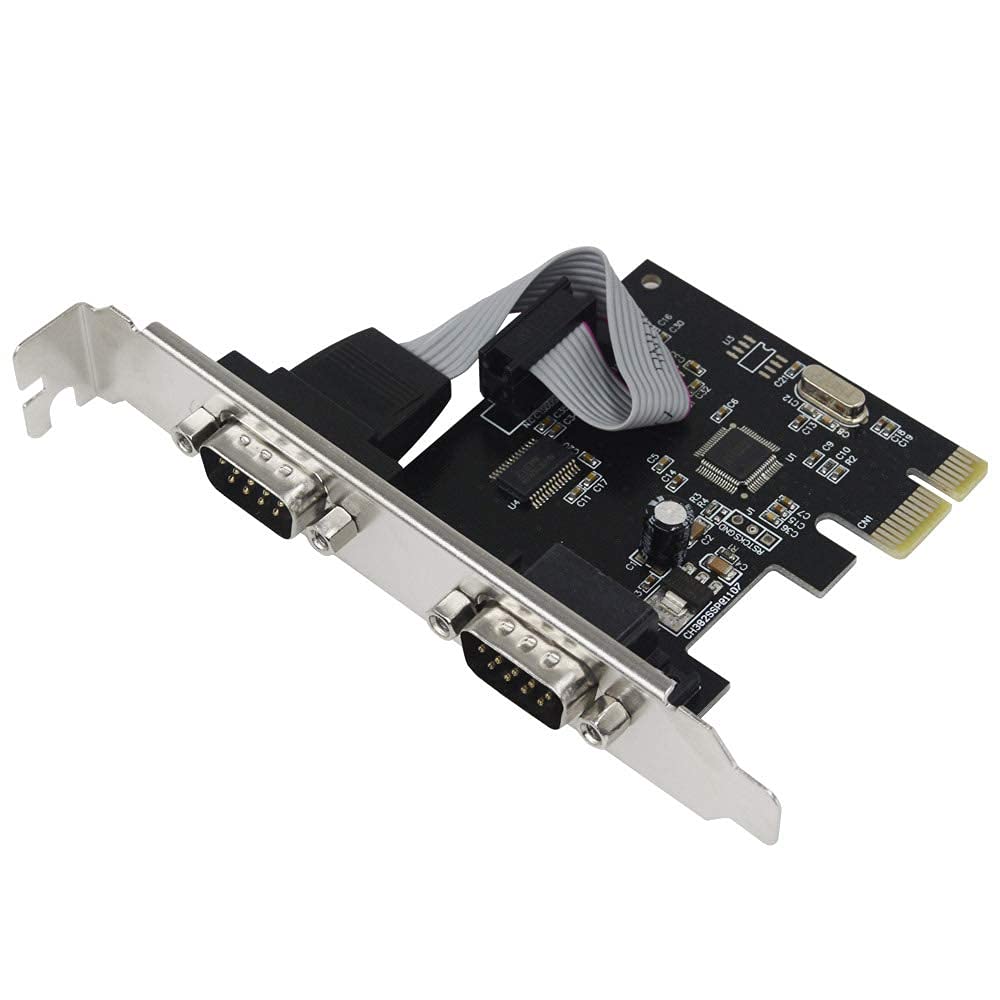

This  PCI Express serial card, is specially designed for POS and ATM applications. The product with WCH382L chip supports a variety of mainstream operating systems, including Windows and Linux. In addition, the extended 2 rs-232 serial ports can support the communication rate of 230.4 Kbps, and provide modem control signals to ensure compatibility with all kinds of external serial port devices. Since the card is PCI Express "x1", it can be installed on various PCI Express slots (including 4x 8x16x).

Serial Interface (RS232):

Comply with industrial standard 16C450/16C550 UART

On-Chip 256-bit depth FIFOs in Transmit, support H/W, S/W flow control

Data transmission rate of each serial port can be up to 250Kbps

Baud rate: 230.4 Kbps

Serial communication parameter data bits: 5, 6, 7, 8

Stop bit: 1, 2

Parity: None, Even, Odd, Space, Mark

Flow control: RTS/CTS, XON/XOFF

I/O address: Assigned by the BIOS

IRQ: Distributed by the BIOS

Serial signal RS - 232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Specifications:

Chip: WCH382L

Type: PCI-E to Serial Interface Card

Interface: 1 x PCI-E, 2 x Serial

Operating Systems: Support DOS, Windows 98 / Me / NT4.0 / 2000 / XP / Vista / Win7 / Win8 / Server 2003 & 2008 / Linux operating systems.

Package weight: 101g

Package Included:

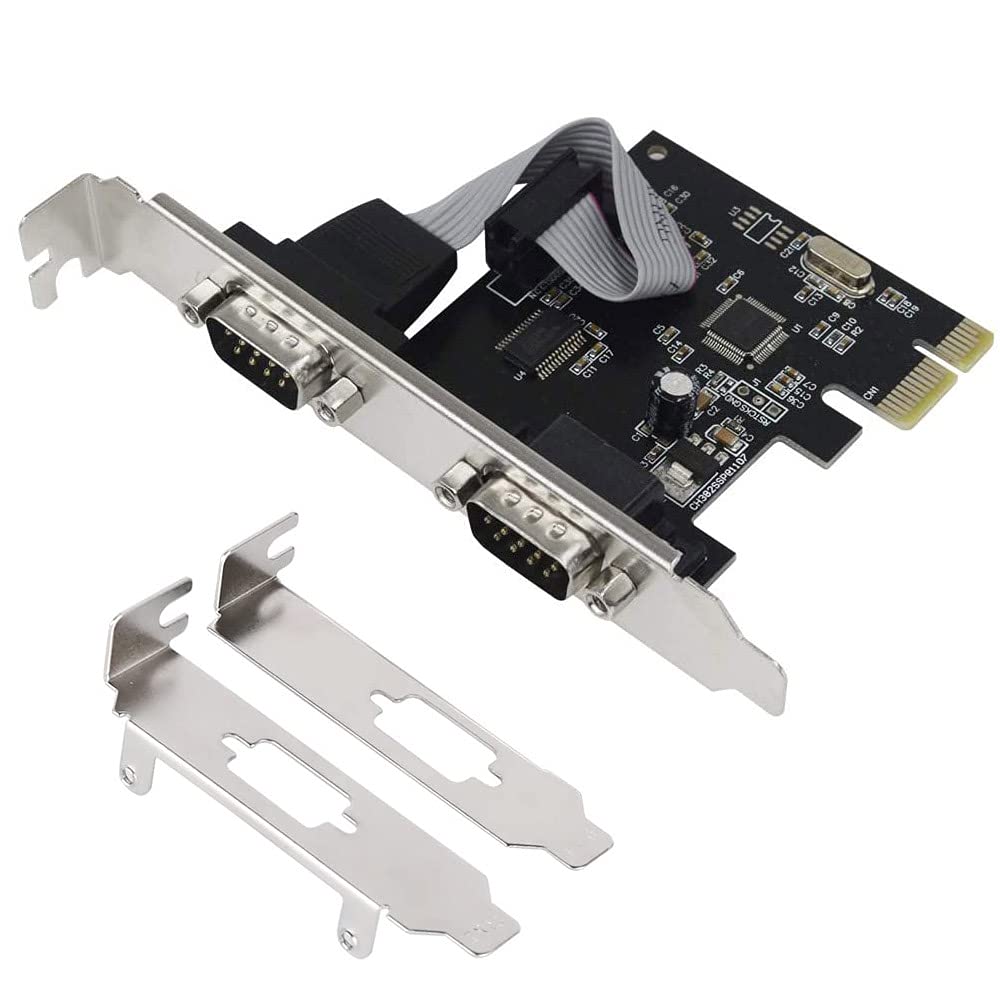

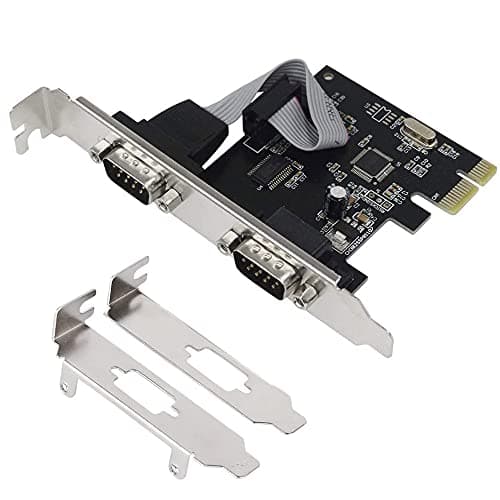

1x PCI-E to Dual Serial Port Controller Card

1 x Drive CD
