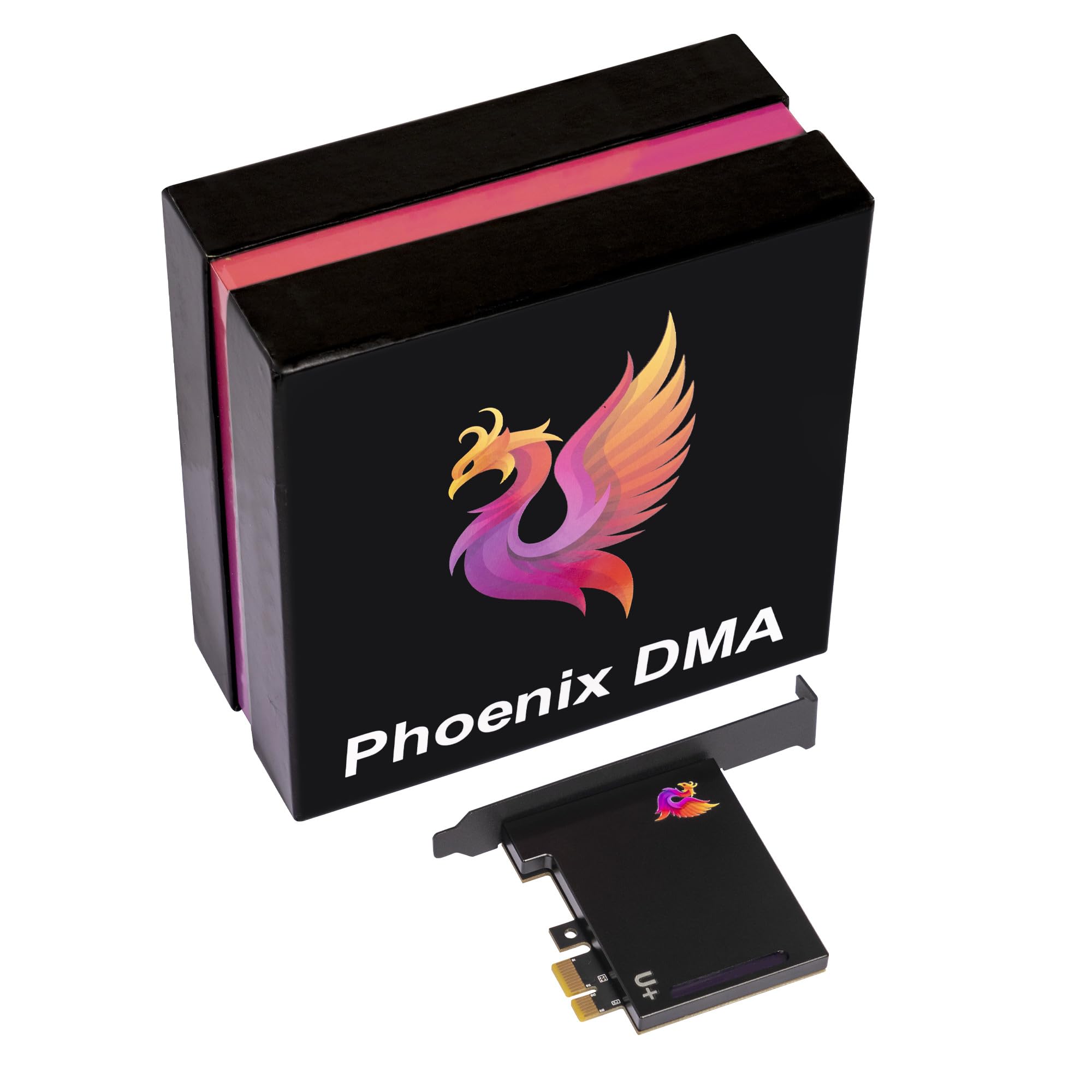

•Xilinx 7 series Artix-7 75T FPGA: Xilinx Artix 7 FPGAs provide cost-optimized performance with advanced features like high logic density, robust signal processing, embedded memory, LVDS I/O, memory interfaces, and transceivers. These FPGAs deliver exceptional performance-per-watt efficiency, unmatched transceiver line rates, powerful DSP processing, and refined AMS integration. The model u+ DMA card, leveraging these capabilities with a XC7A75T, is the perfect solution for projects demanding higher logic density and enhanced processing power.
•PCILeech Friendly: The Model U+ card supports 64-bit memory access, PCIe TLP access, and is fully compatible with PCILeech. PCILeech leverages the PCIe board equipped with FPGA DMA capabilities to perform direct memory access (DMA) operations, enabling both reading from and writing to the target system’s memory. It is important to note that our card is not pre-flashed with any custom firmware, allowing users the flexibility to configure it according to their specific requirements.
•Advanced Two System Cooling: Our 75T FPGA DMA card is designed with advanced thermal management features to ensure optimal performance and longevity of the hardware. At the core of this system is a carefully applied layer of Zinc Oxide-based thermal compound, which is placed directly on top of the Artix 7 FPGA chip. The card is further equipped with an aluminum alloy enclosure. This enclosure acts as an additional heat sink, leveraging the excellent thermal conductivity properties of aluminum to absorb and disperse the remaining heat.
•USB-C FTDI FT601 Connection: The onboard FT601 SuperSpeed USB 3.0 integrated circuit (IC) is engineered to deliver exceptional speed and capacity for data transfer operations, offering a maximum bandwidth of up to 5Gbps. This high-performance IC, when paired with the included USB 3.2 cable, ensures that data transfer bottlenecks are significantly reduced, enabling smoother and more efficient operations. Additionally, the system maintains PCILeech DMA read and write speeds of up to 400 MB/s, ensuring reliable and high-speed memory access for demanding applications.
•CH347 USB-C JTAG: A CH347 JTAG is integrated onboard, allowing users to flash or update the card’s firmware directly through the Update Port using a standard USB connection. This approach not only reduces the complexity of the setup but also saves time and effort by removing the need for external JTAG adapters or specialized hardware.

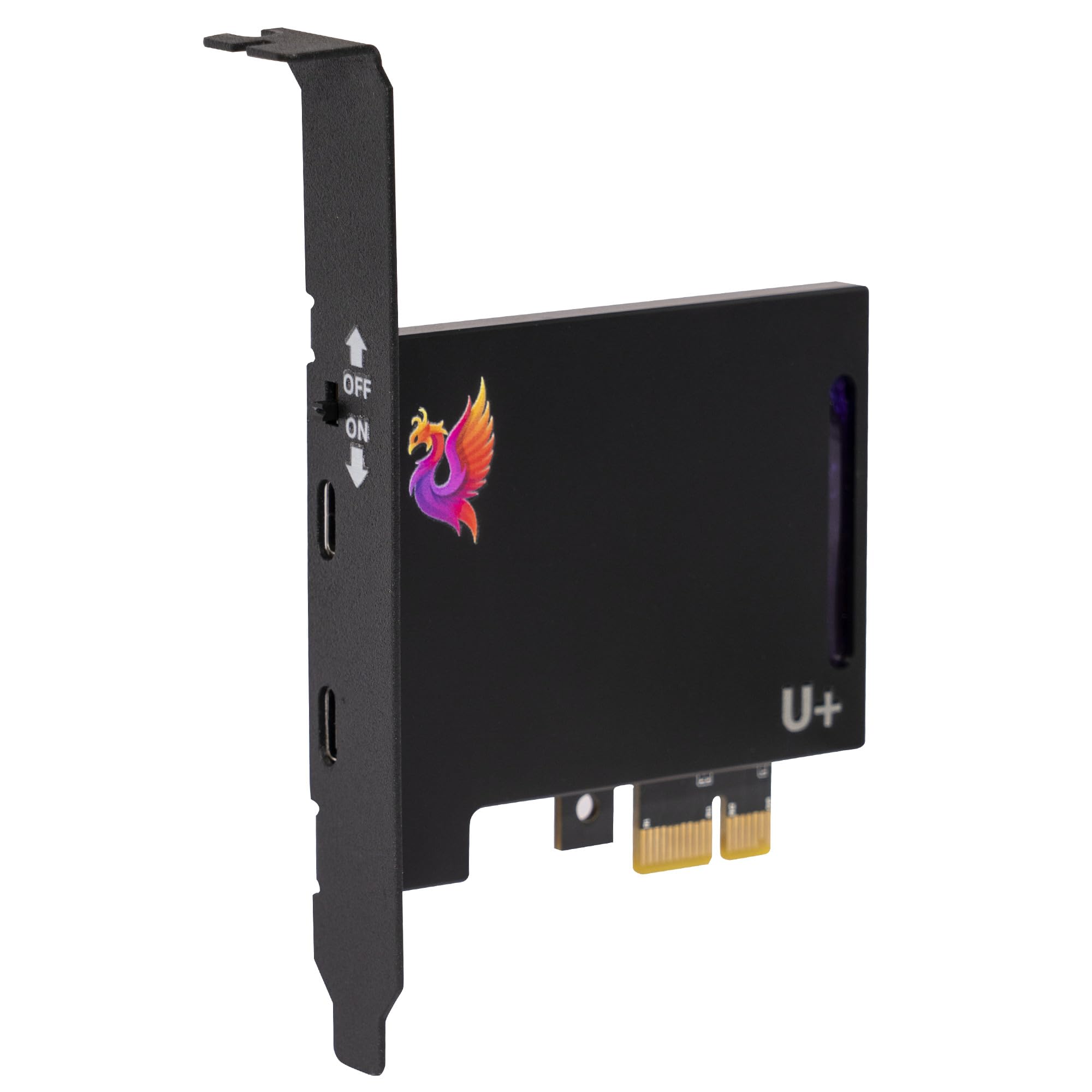

•On/Off Switch: The 75T FPGA card is equipped with a convenient built-in on/off switch, designed to provide users with an efficient and hassle-free way to manage the device’s power state. This feature eliminates the need to physically unplug or disconnect the card from your PC when it is not in use, offering a user-friendly experience. This design feature helps the user easily manage the card’s power state, enhancing both convenience and the longevity of the hardware, while maintaining a stable connection to the system for when the card is needed again.
•USB Installation Drive: The packaging includes a USB drive that has been preloaded with all the essential resources required to ensure a smooth and efficient initial setup process. This USB drive contains the necessary drivers to enable proper communication between your system and the device, as well as a suite of tools designed to assist with configuration, programming, and operation. Additionally, the drive features detailed, step-by-step information that guide you through the process, that way even users with minimal technical experience can successfully set up and begin using the DMA card.
