MECCANIXITY 20Pcs USB 2.0 Type A Male Plug Connector, 4 Pin Solder Terminal with 3mm Cable Hole for DIY Cable Repair Kit, Power Supply, Microcontroller Projects, White, 36.5x14.8mm
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

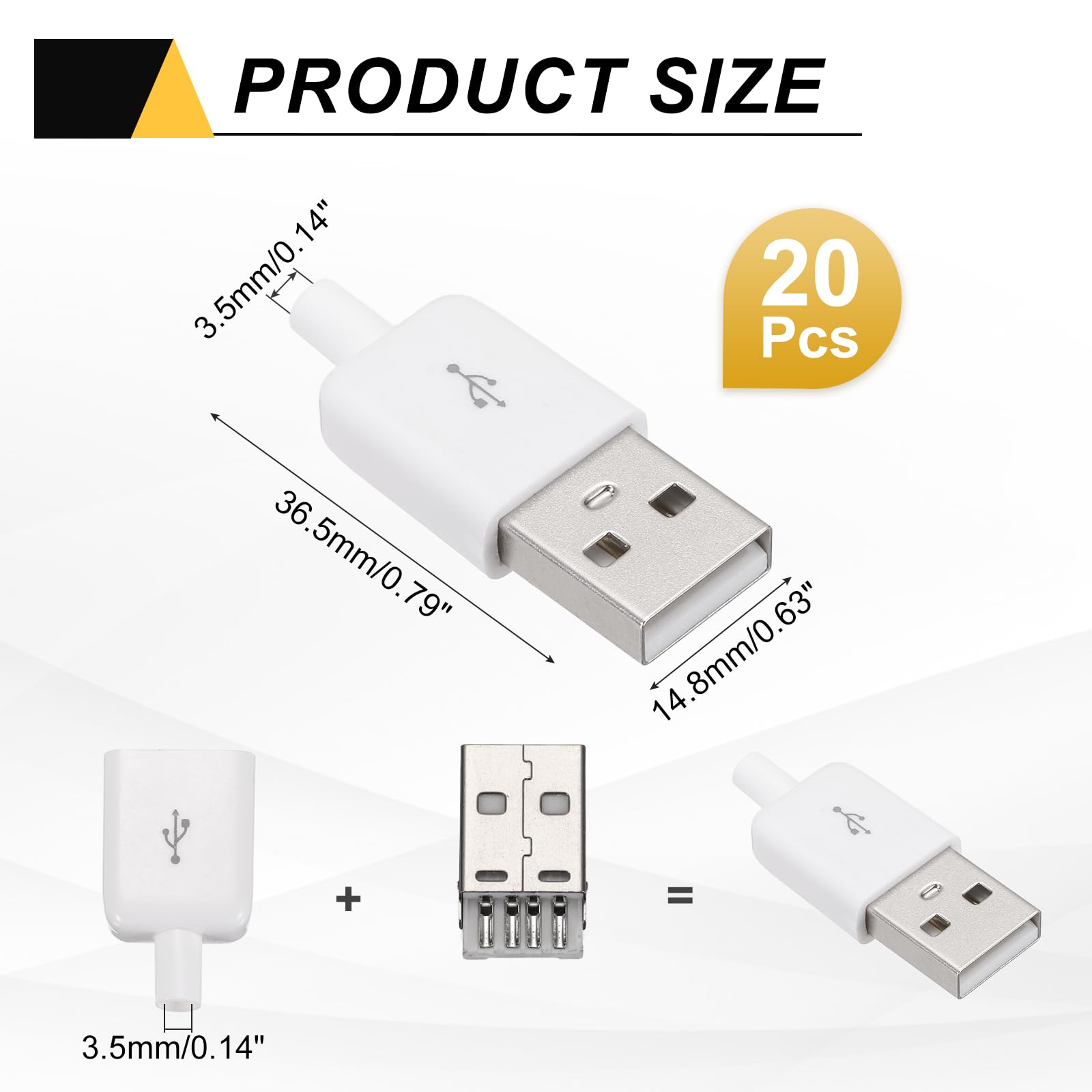

•Interface: USB Type-A Male (Standard rectangular plug); Pinout: Pre-soldered 4-pin terminals; Overall Dimensions: 36.5x14.8x4/0.79x0.63x0.39 inch(L*W*H); Color:White; Package Includes: 20 x USB 2.0 Type-A Connector Boards
•USB 2.0 Type-A Connector Board, standard interface for power and data transfer. Perfect for DIY projects such as microcontroller power hubs, custom USB cables, and breadboard prototyping, etc.
•This USB 2.0 connector features phosphor bronze contacts rated for 10,000+ insertion and FR-4 fiberglass PCB for crack resistance. Pre-tinned terminals ensure stable 5V/1A power output and reliable USB 2.0 data transfer (480Mbps), with enlarged solder pads for easier wiring.
•Connect wires to terminals: Red→VBUS (+5V), White→D-, Green→D+, Black→GND
•Note: When plugging/unplugging, grip the connector housing (not wires) to avoid PCB damage. Do not exceed 1A continuous current on VBUS. Soldering temperature must stay below 350°C.
