KOCACKOO FX3/FX30/FX3A Camera Cage/Power Extension Module + DC to NP-FZ100 Dummy Battery Kit, with 4 D-Tap, 2 DC, USB-C/A Output Ports, Support for External V-Mount Batteries
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【Highly Customized Power Solution】 This expansion kit is specifically designed for the Sony FX3/FX3A/FX30 cameras, enabling the physical relocation of camera function buttons. Featuring multiple output ports, it achieves minimalist installation. Without the need for traditional cage systems, it can be securely mounted in under 30 seconds, perfectly fitting the camera body for a sleek, native professional cinema appearance and an exceptional user experience.

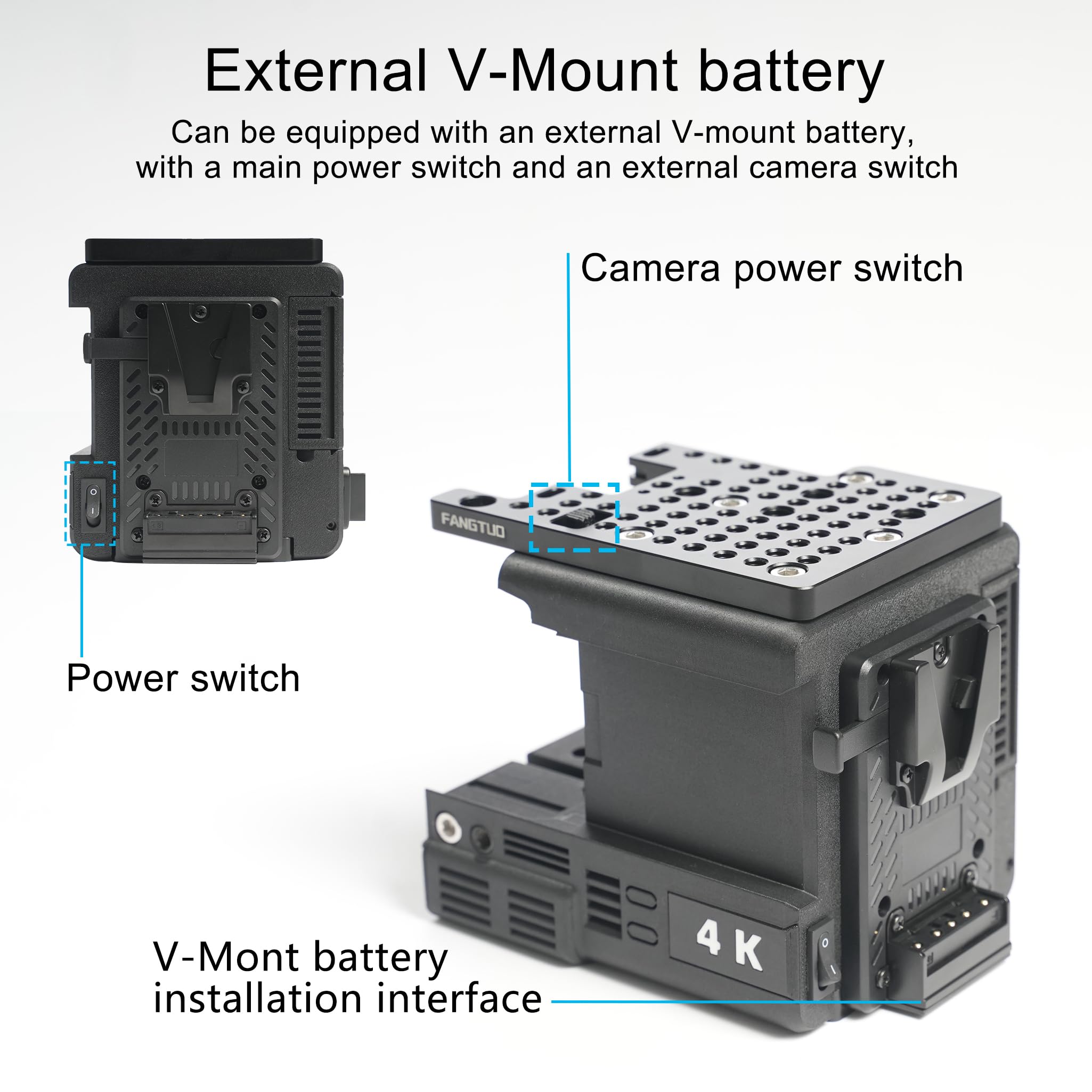

•【External V-mount battery】The module itself does not have a built-in battery and supports connecting standard V-mount batteries as a power source, making it suitable for long-term shooting. Setting up a separate power switch allows for long-term centralized power supply to the camera (connected via NP-FZ100 dummy battery or Type-C power cord), monitor, wireless image transmission, and autofocus system, achieving single power management of the entire shooting system..

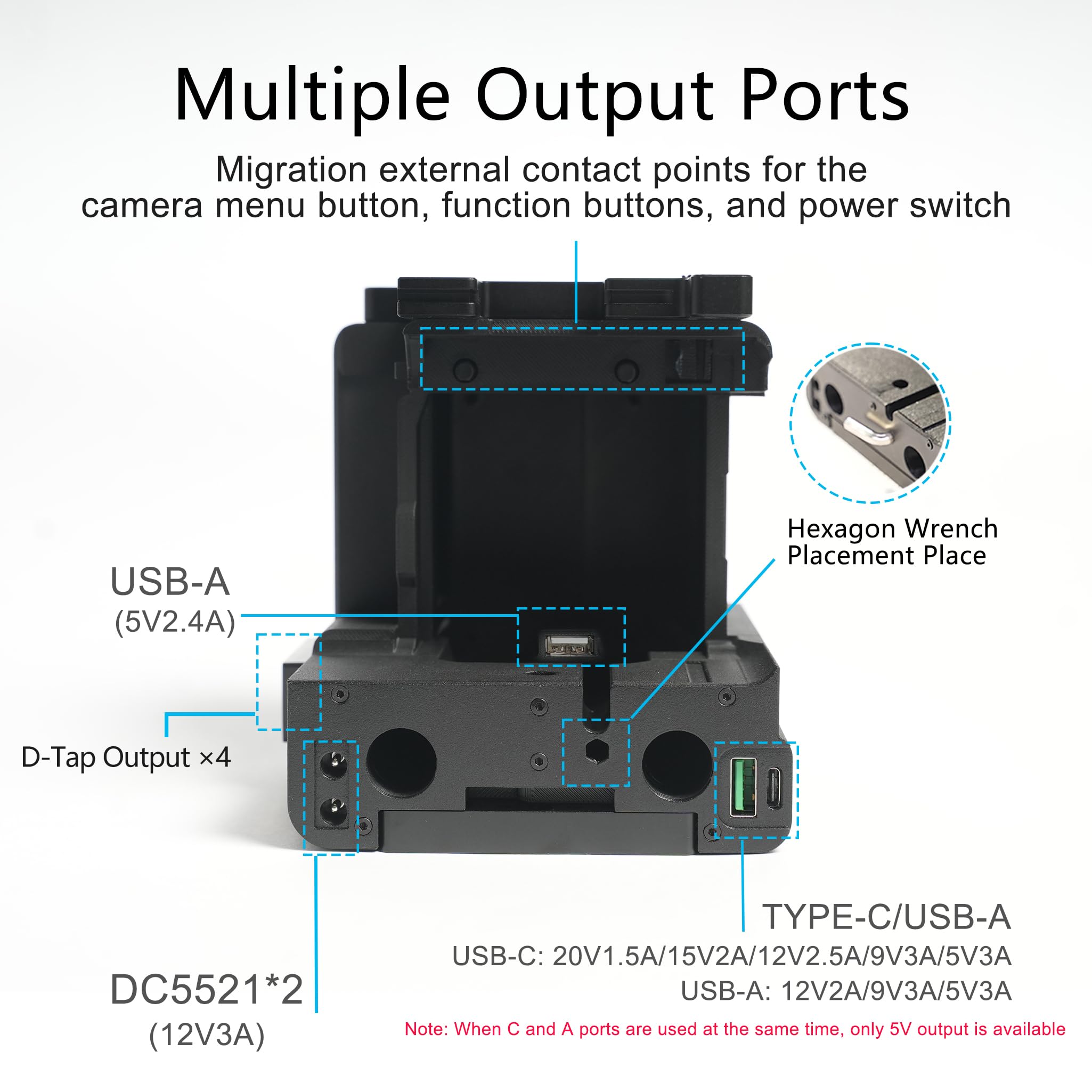

•【 Rich output interfaces 】 Equipped with 4 D-TAP port outputs and 2 DC5521 outputs (12V3A), USB-C interface outputs (20V1.5A/15V2A/12V2.5A/9V3A/5V3A) and USB-A interface outputs (12V2A/9V3A/5V3A). Note: (When using both C port and A port, only 5V output can be provided), specially reserved HDMI cable hole, compatible with BMD HDMI/SDI module and built-in USB-A power supply interface (5v2.4A).

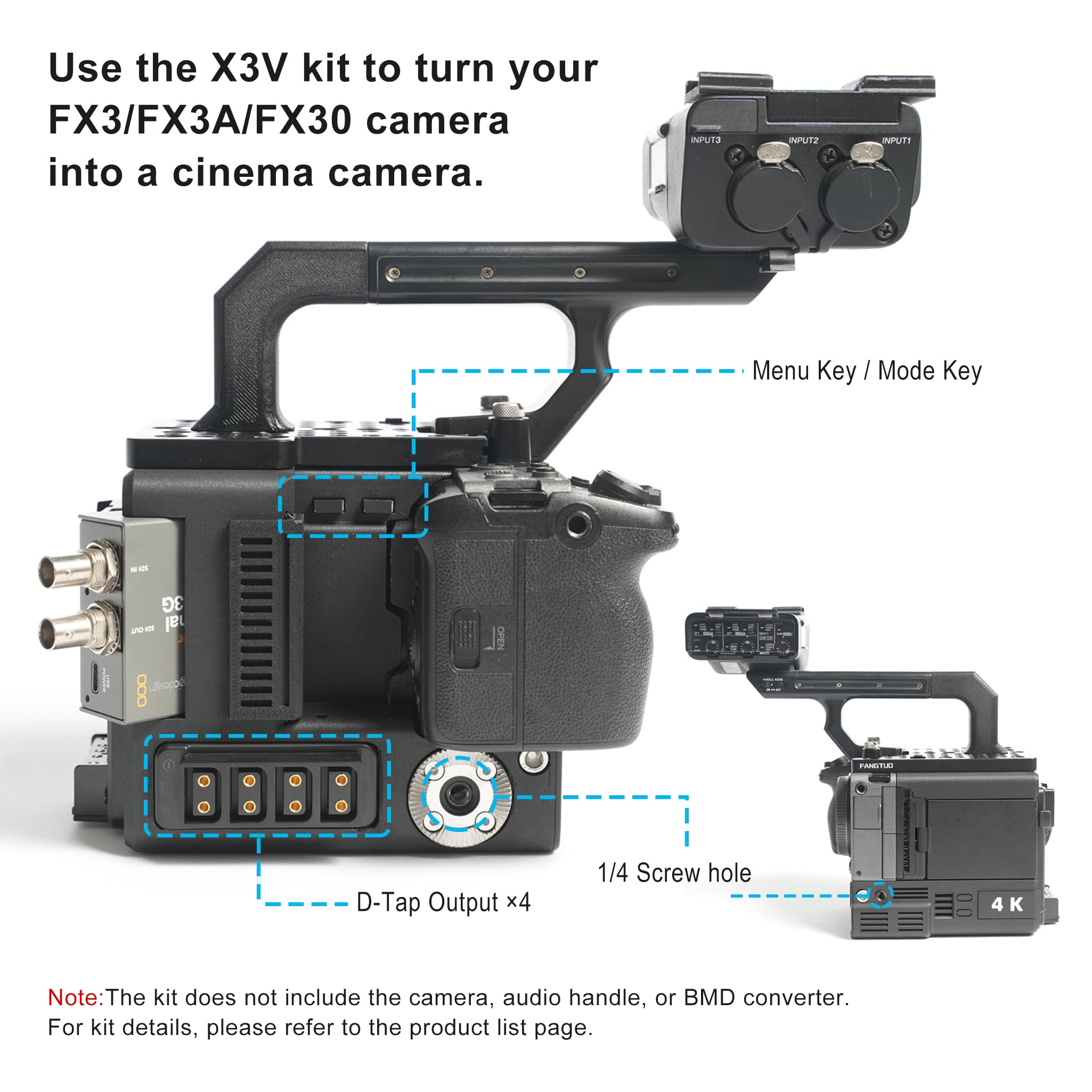

•【Easy to install, Unlimited expansion】The top and bottom are made of aluminum alloy material, equipped with multiple 1/4 inch and 3/8 inch screw holes, The half section handle can be perfectly adapted to the original audio handle, and after installing the T-shaped accessory, it can be adapted to third-party handles.No need for traditional rabbit cages, can be paired with aluminum alloy accessories on the left and right sides (accessories need to be purchased separately), achieving a full rabbit cage effect for the camera. Integrating a 15mm tube clamp (with a hole spacing of 60mm) and an Aleya disc, it can easily expand more functions.
•【The package includes】 X3V module * 1, T-shaped accessories (aluminum alloy) * 1, DC to NP-FZ100 dummy battery * 1, Type-CtoType-C cable * 1, half handle (plastic) * 1, hex wrench * 1,multiple 1/4 inch and 3/8 inch screws.
•This power supply module is jointly created by the two major brands Fangtuo (FANGTUO) and Kocackoo (KOCACKOO)
