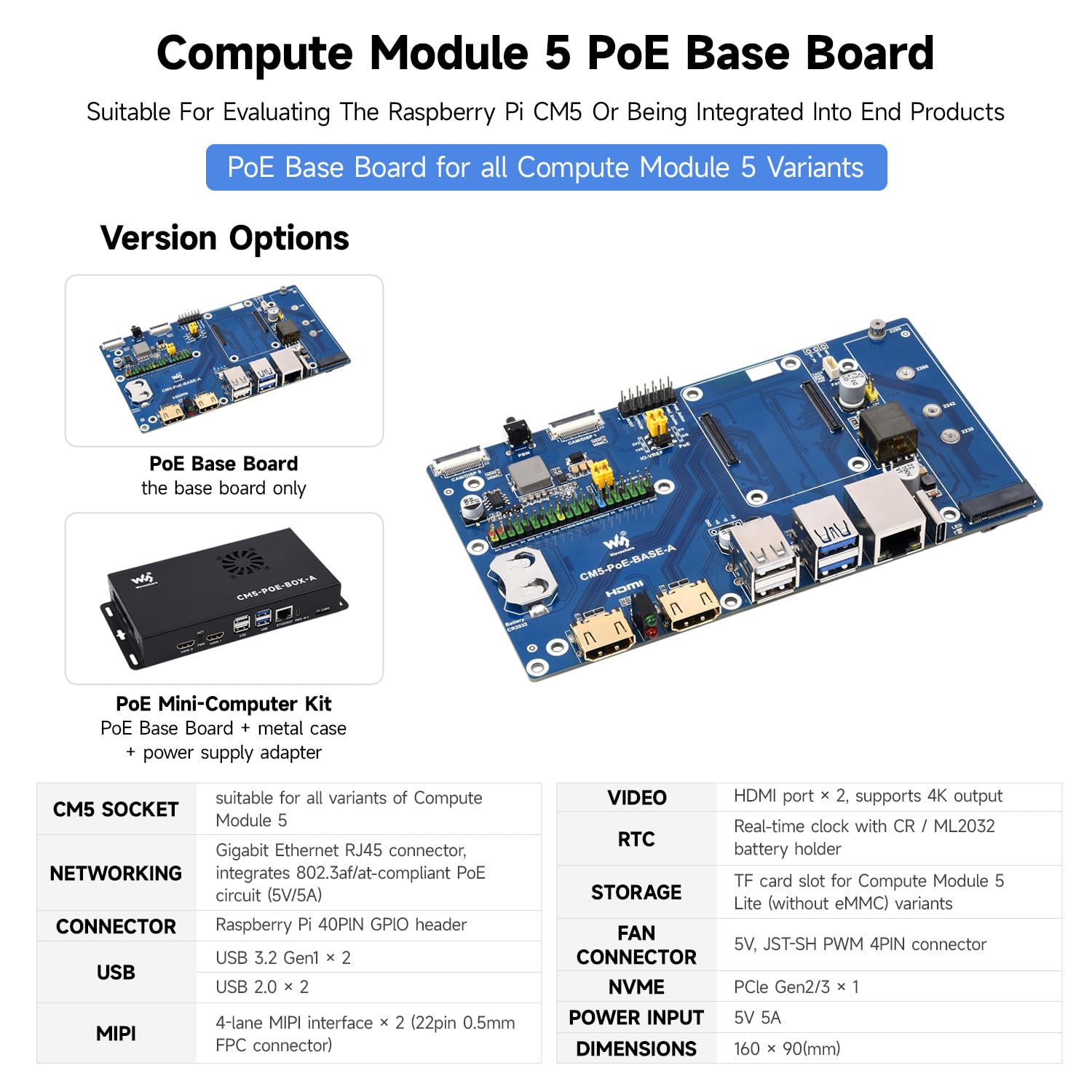

KLAYERS Compute Module 5 PoE Expansion Board, Compatible with Raspberry Pi All CM5 Versions, Complete System Package with Core Board and Base Plate
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Compatibility: This product is designed for all versions of the Compute Module 5, offering seamless integration and support for a wide range of applications.

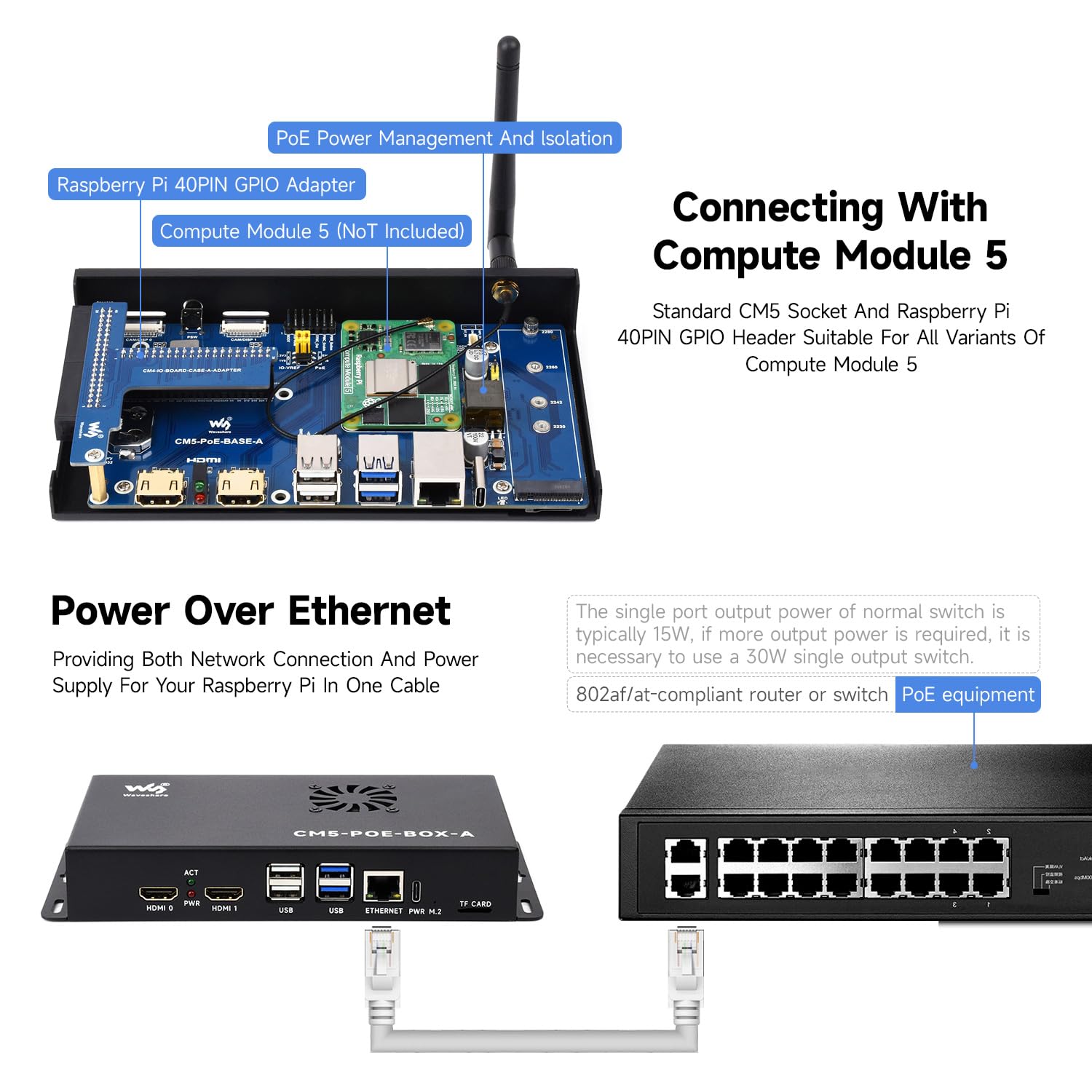

•Networking & Power over Ethernet: It features a Gigabit Ethernet RJ45 interface and includes an integrated PoE circuit (5V/5A) that complies with 802.3af/at network standards, enabling efficient power delivery and connectivity.
•Connectivity Options: Equipped with two USB 3.2 Gen1 ports and two USB 2.0 ports, along with dual 4-lane MIPI interfaces (22-pin 0.5mm FPC connectors), it ensures flexible device connection options.
•Video and Storage: The board offers dual HDMI ports supporting 4K output for high-definition video display and includes a Micro SD card slot for storage, ideal for versions without eMMC.

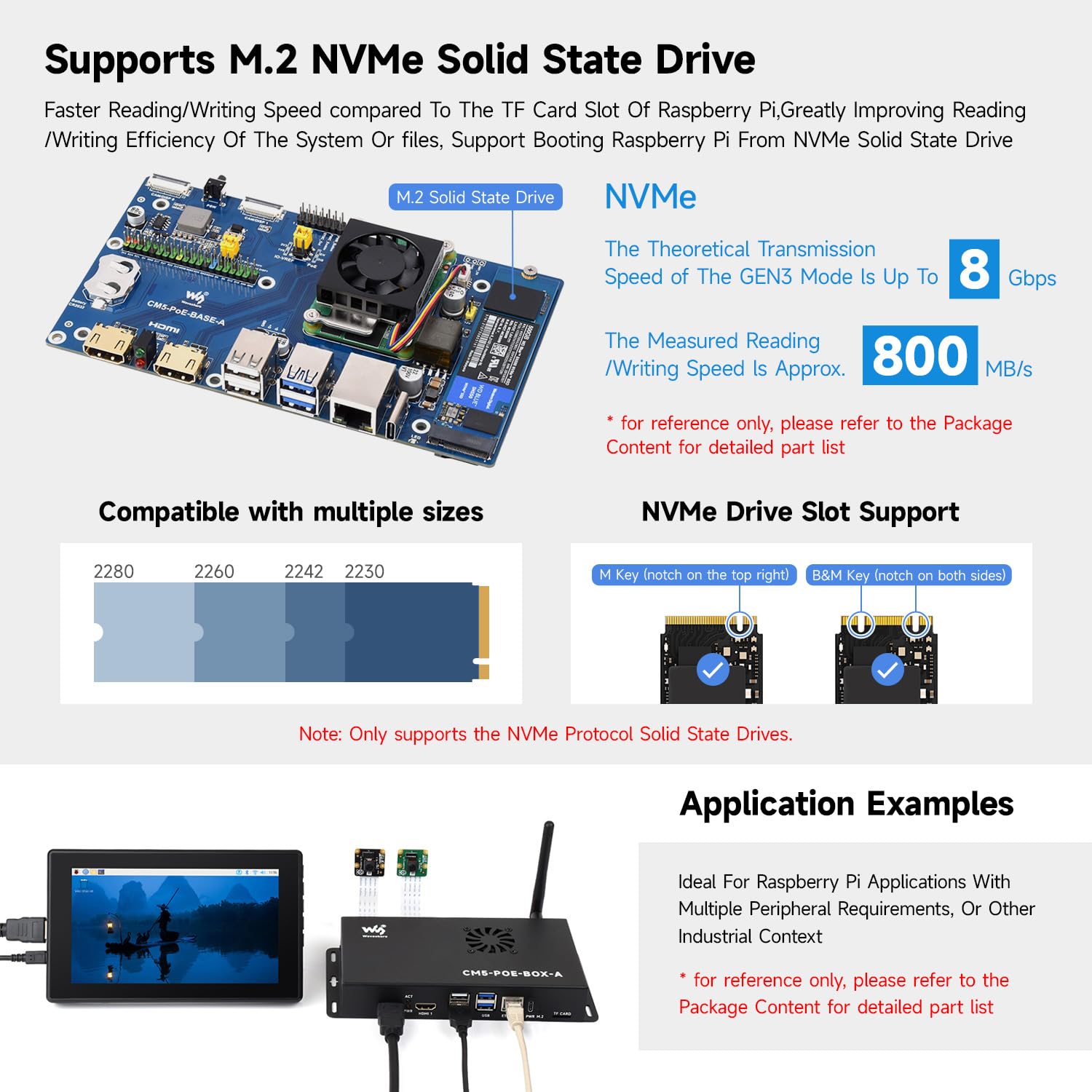

•Additional Features: It supports a real-time clock powered by a CR/ML2032 battery, features a 5V PWM fan connector, and provides an NVMe PCIe Gen2/3 x1 slot for fast storage expansion. The board's dimensions are 160.0 × 90.0 mm (bare board) and 200.5 × 97.5 × 31.0 mm (assembled).
