KLAYERS CAN FD ETH RS232/RS485 Converter, Industrial-Grade Performance & Design, High-Speed CAN FD Support
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

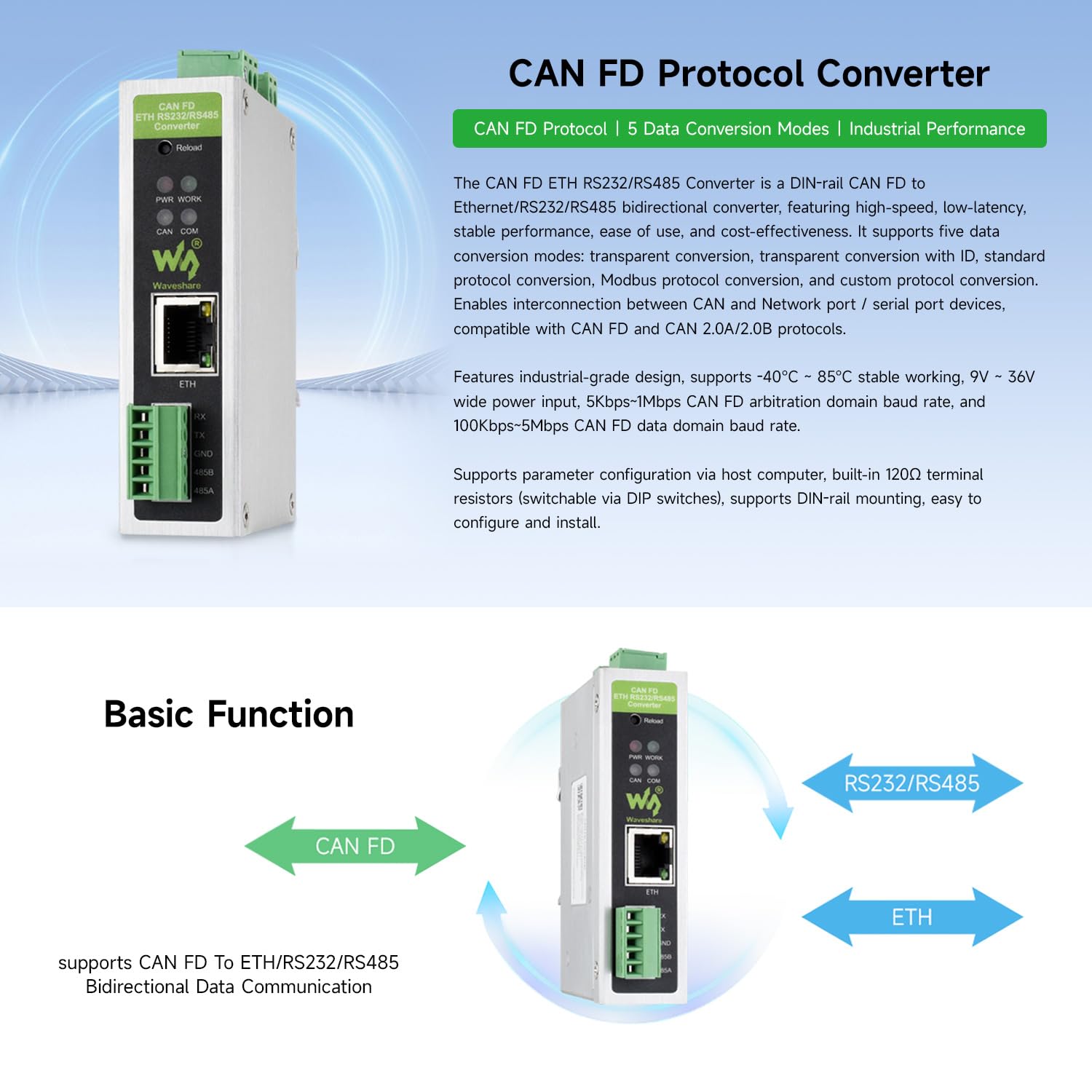

•Versatile Bidirectional Communication: Enables seamless data conversion between CAN FD/CAN 2.0 networks and Ethernet (ETH), RS232, or RS485 interfaces, facilitating interconnection between industrial devices.
•Five Flexible Data Conversion Modes: Supports transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion to meet diverse application needs.
•Industrial-Grade Performance & Design: Built for harsh environments, operating reliably from -40掳C to 85掳C with a wide 9V~36V DC power input and featuring DIN-rail mounting for easy installation.
•High-Speed CAN FD Support: Offers high-performance data transfer with configurable baud rates up to 1Mbps in the arbitration phase and 5Mbps in the data phase, fully compatible with both CAN FD and CAN 2.0A/2.0B protocols.
•Enhanced System Integration: Features built-in, switchable 120惟 terminal resistors, simple parameter configuration via PC software, and support for heartbeat/registration packets for robust network management.
