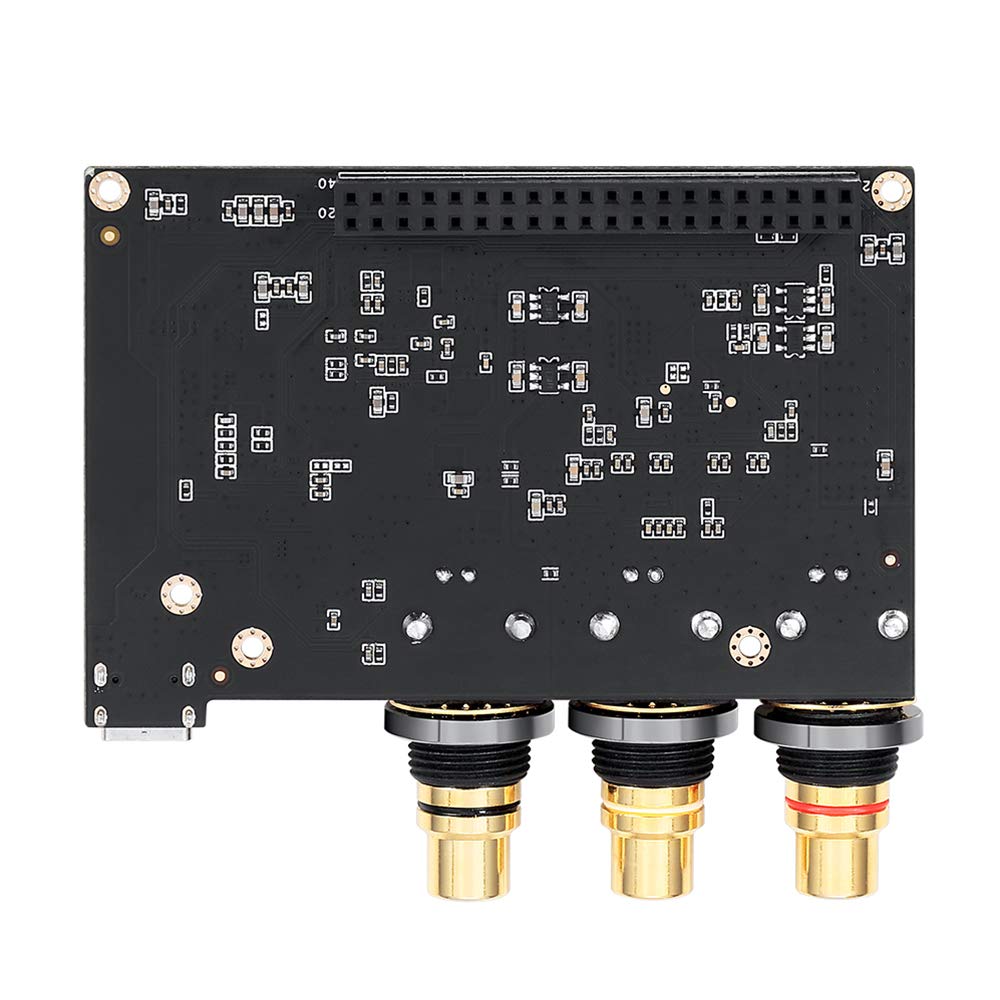

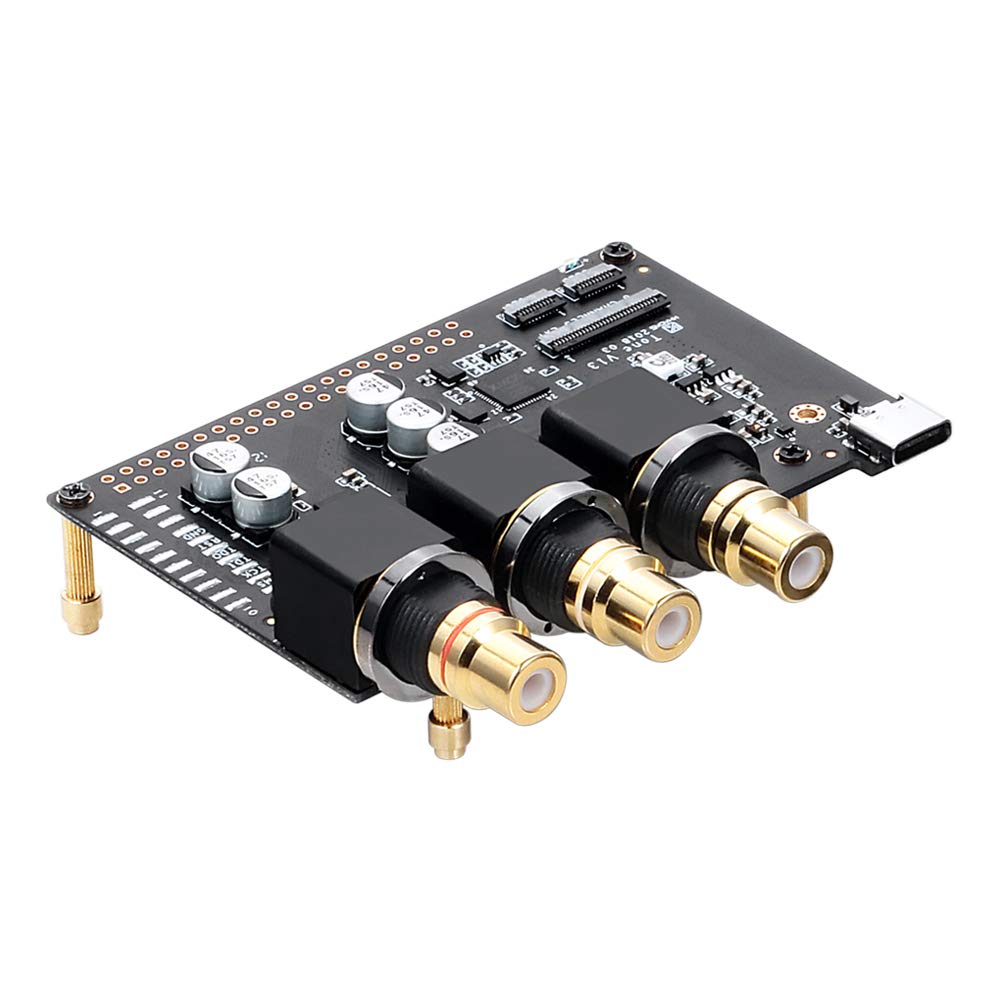

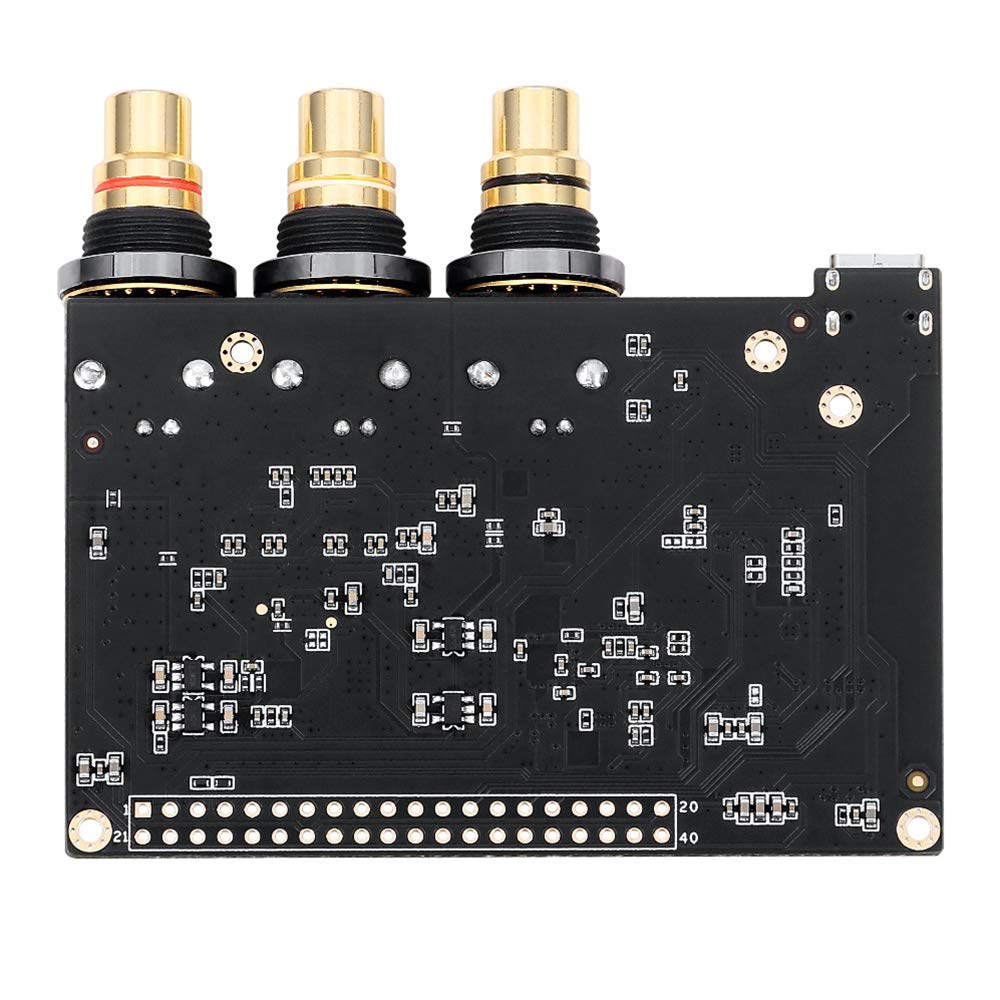

Khadas Tone Board ES9038Q2M USB DAC Hi-Res Audio Development Board with XMOS XU208-128-QF48
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•XMOS: XU208-128-QF48, Eeight Cores, Core Share up to 500 MIPS; ES9038Q2M 32-Bit Stereo Mobile Audio DAC.
•Compatibility: Windows PC, Mac OS, Android, Linux PC, Volumio, LibreELEC, and Other SBCs. The XMOS USB Audio to ensure a rock-solid connection
•Extension: One 30-Pins FPC Connector for 8 Channels Analog Output Extension; Two 10-Pins FPC Connectors for OLED Display and I2S Extension; VIMs Version also have 40-Pins Female header connecting with VIMS and 20-Pins SMT Header for debugging XMOS and VIMs.
•Ultra-low Phase Noise Clock Jitter: The SiTime ultra performance oscillator SiT820&8209 series with just 0.5ps phase jitter and output frequency stability as low as ± 10PPM. We chose it as a reference clock in our audio system so that the data clock jitter < 30ps.
