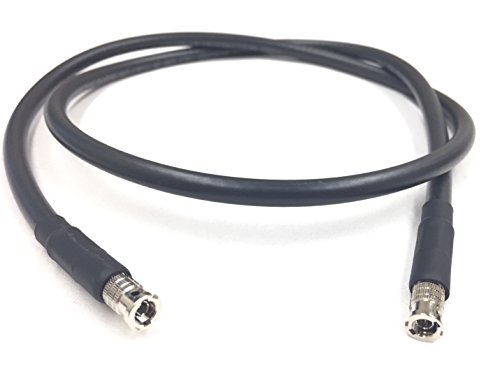

High Density BNC Male to Male HD-SDI Cable with Belden 1694A - 25 Foot
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

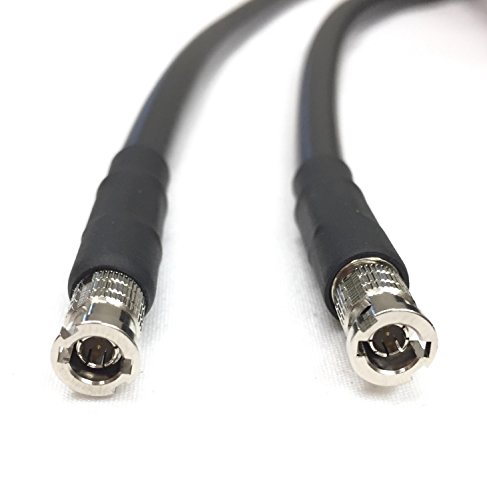

•HD-BNC(High Density BNC) delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating.
•The HD-BNC connector meets or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. HD-BNC is also known as Micro BNC

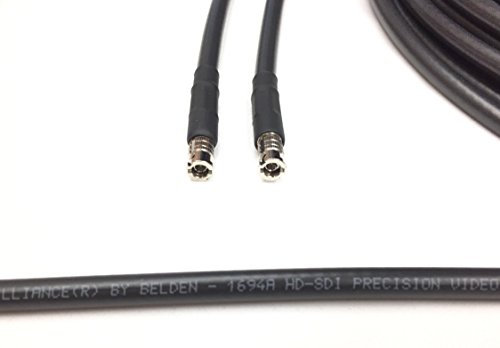

•<b>Belden 1694A Low Loss Serial Digital Coaxial Cable</b> is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60)
•Assembled in Dallas, TX by Custom Cable Connection
