GXMRHWY MS3106A18-1 MS3102A18-1 Male and Female 10Pin Connectors Bayonet Series
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

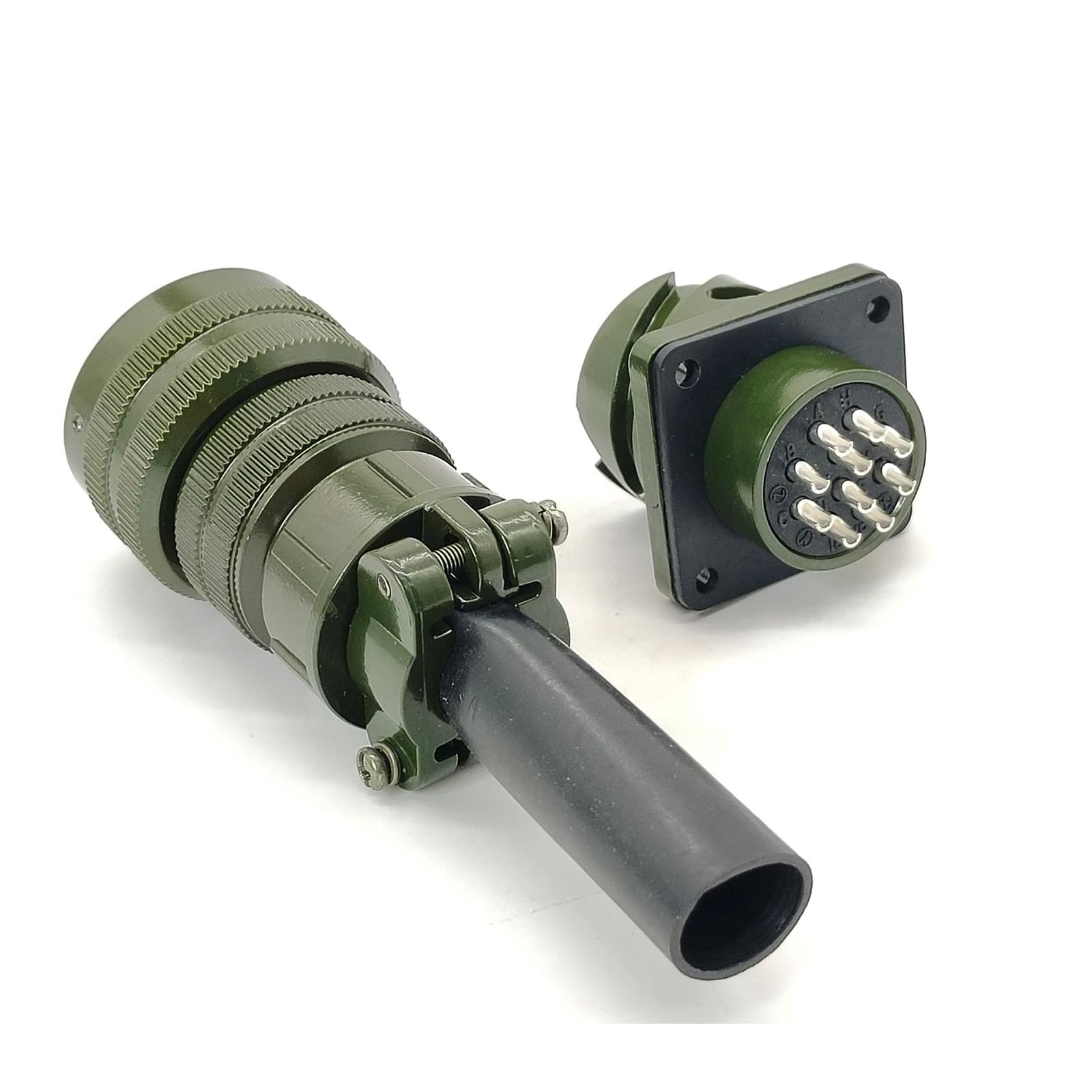

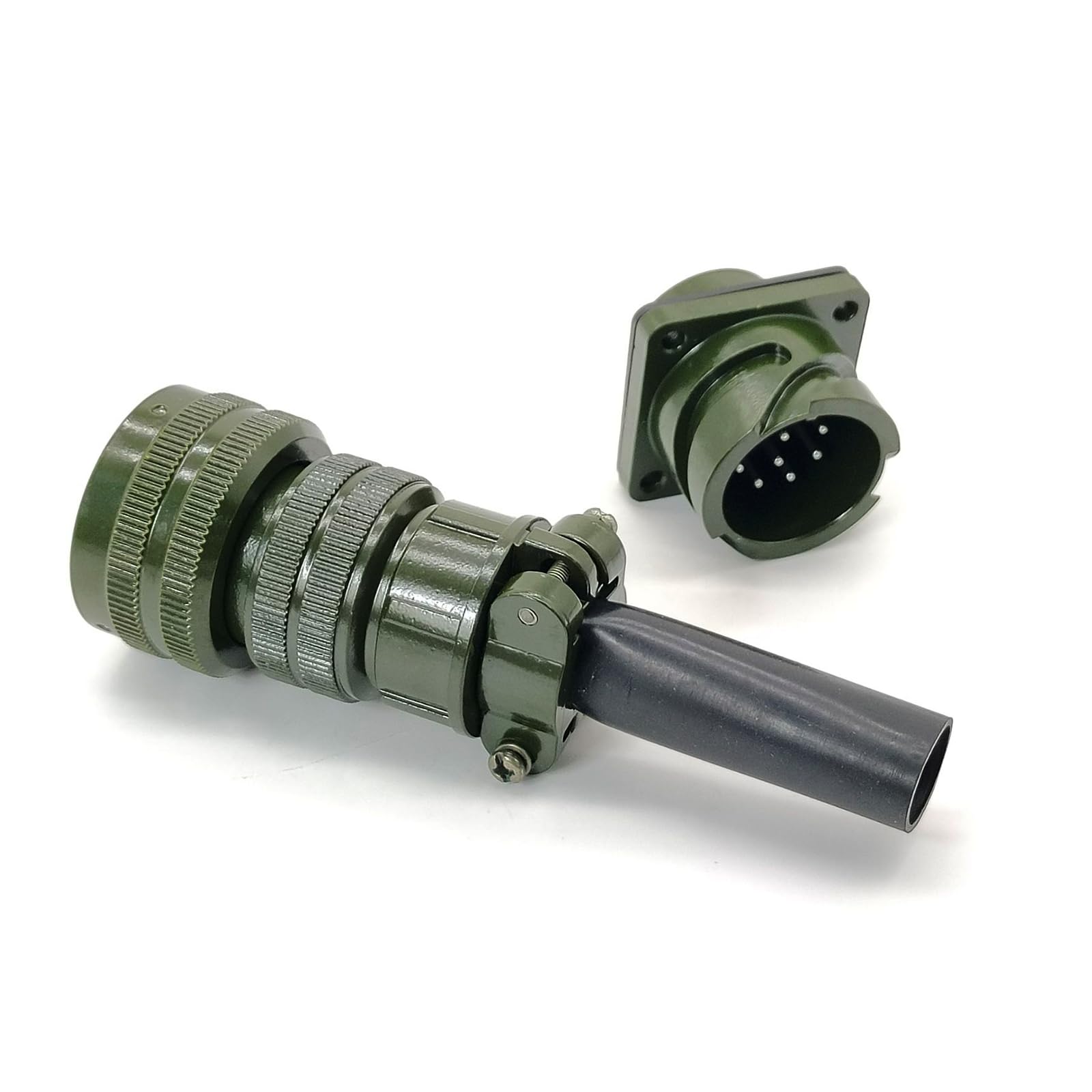

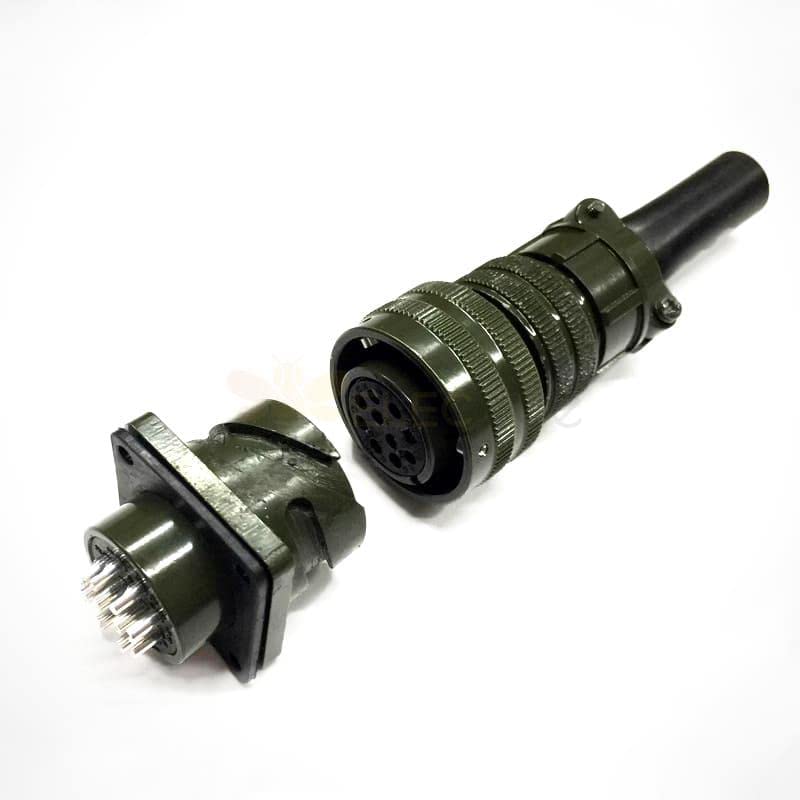

•MS3106A18-1 plug, MS3102A18-1 socket, straight, Cable plug, Box Mount Receptacle，18 shell, Male and female，10pins;
•VG95234 reverse bayonet-lock connector series is based on the MIL-DTL-5015 standard, and shares many of the same insert arrangements, shell dimensions, supported contacts, and electrical performance ratings as MIL-DTL-5015.
•The VG95234 bayonet coupling mechanism provides easy mating and positive locking resistance to vibration, shock, and other connector decoupling forces in general duty and environmental interconnect systems such as railway cars, locomotives, industrial controls, factory robotics, mil vehicles, and other general electronic applications.
•Medium to heavy weight cylindrical; Durable,field-proven design; Environmental resistant;Resilient inserts; Bayonet connect;
•From the OEM Original Factory, the same quality with a much better price.
