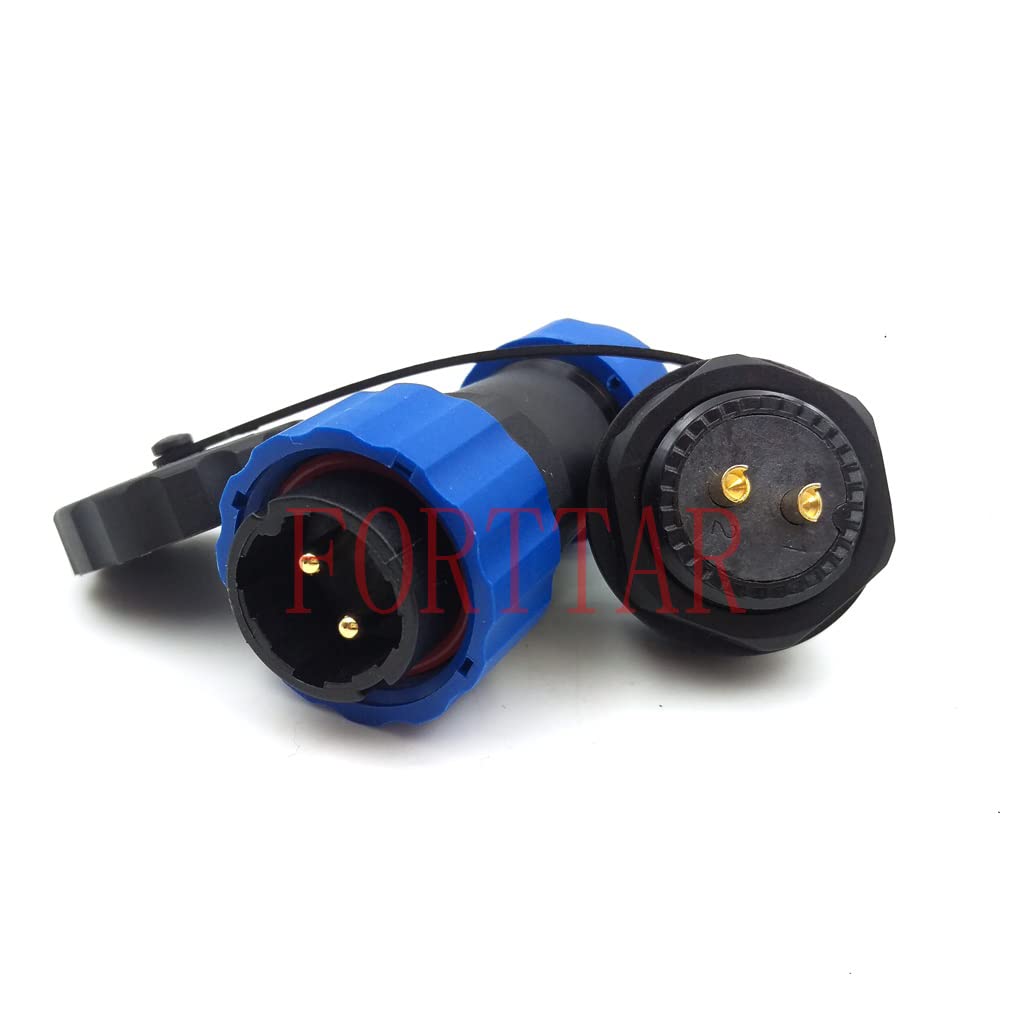

FORTTAR SD20 Series 2 pin Waterproof Connector, 2 Wire Aviation LED Industrial High Voltage Electrical Heavy Circular Connector Plug Socket, IP67 (Rear nut Panel Mount, 2 Pin)

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•Part number: SD20, 2 pin Waterproof Aviation Rear Nut Panel Mount Connector, Termination type: Solder, Gender: Male plug female socket, Panel cutout: 20.5mm
•Contact diameter: Φ2.8x2, Wire specification: <4m㎡/11AWG, Default Cable specification: 6-12mm max

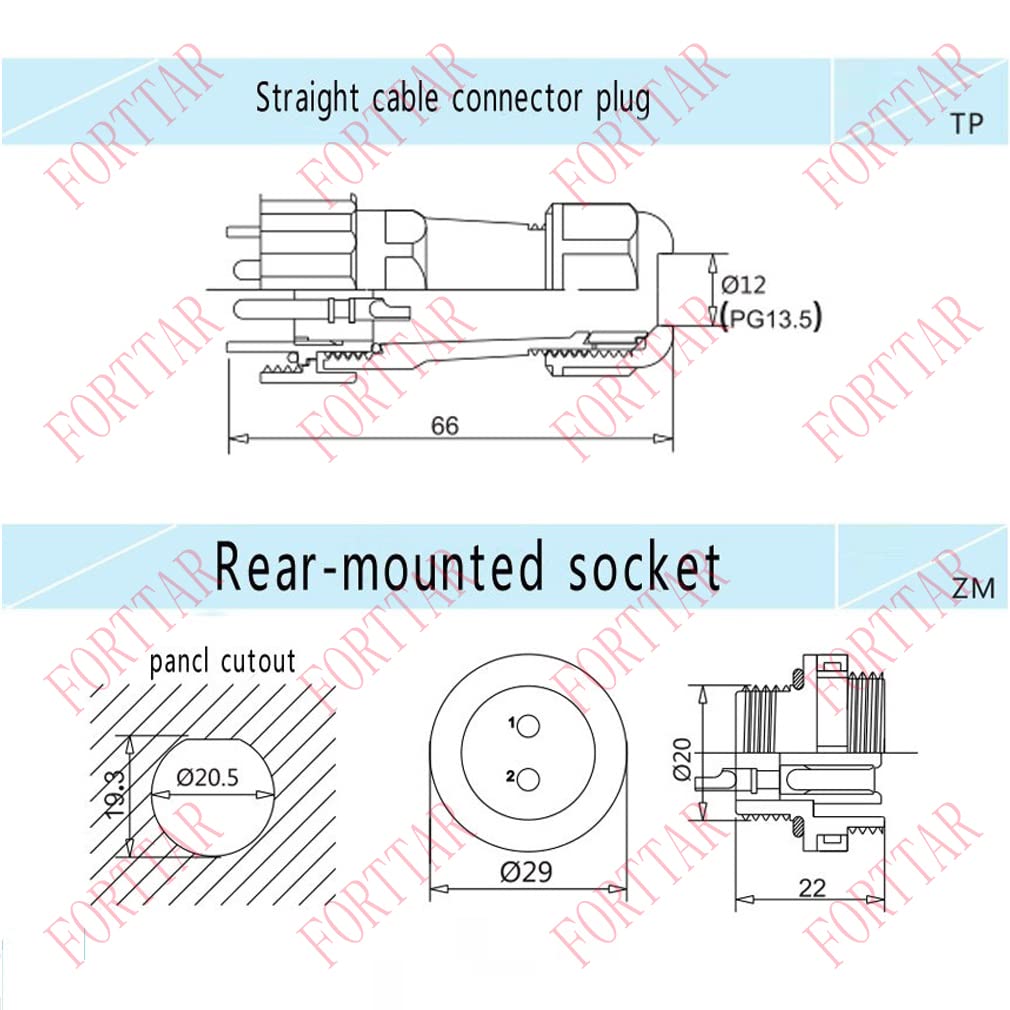

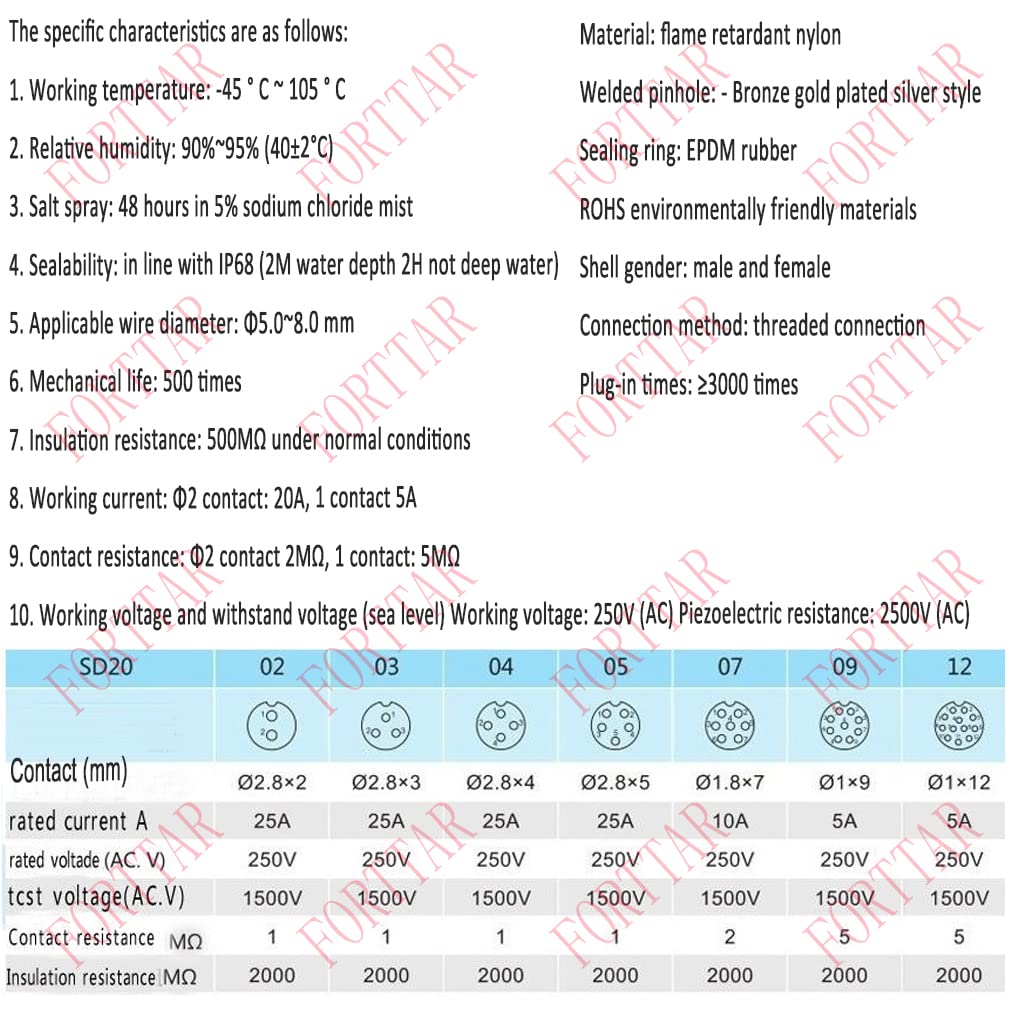

•Rated current: 25A, Rated voltage (AC.V.): 250V, Weight: 1.5 oz, PLEASE REFER TO 2ND PICTURE FOR SIZE AND PARAMETER DETAILS.
•What's in the package: 1 plug + 1 socket with cap + 4 set screw, Type: Circular Waterproof Aviation Connectors
•Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
